- RS20-1600T1T1SDAEHH09.0.00
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for RS20-1600T1T1SDAEHH09.0.00
-
Product ModelRS20-1600T1T1SDAEHH09.0.00
-
Product ParametersETHERNET RAIL SWITCH
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size11x12.5x13.3cm
-
ManufacturerHirschmann
-
Weight0.55 kg
-
Description16 port Fast-Ethernet-Switch
-
Power supply/signaling contact1 x plug-in terminal block, 6-pin
-
V.24 interface1 x RJ11 socket
-
Twisted pair (TP)0 m ... 100 m
-
Ring structure (HIPER-Ring) quantity switches50
-
Operating voltage12/24/48 V DC (9,6-60)
-
Current consumption at 24 V DC392 mA
-
Current consumption at 48 V DC196 mA
-
Power output in Btu (IT) h32.1
-
Operating temperature0 ºC ... 60 ºC
-
Storage/transport temperature-40 ºC ... 70 ºC
-
Relative humidity (non-condensing)10 % ... 95 %
Description
RS201600T1T1SDAEHH09000
ETHERNET RAIL SWITCH
18-30VAC 50/60HZ
0-60DEG/C
ETHERNET RAIL SWITCH
18-30VAC 50/60HZ
0-60DEG/C
Information
Overview
Manuals
Technical notes
Product Applications
Physical Installation
Features:
- Redundant Power Supply
- Compact OpenRail Fast Ethernet Switch
- 4-25 ports
- Managed, software Layer 2 Enhanced
The RS20-1600T1T1SDAEHH09.0.00 Hirschmann 16 port Fast-Ethernet-Switch may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Hirschmann RS20-1600T1T1SDAEHH09.0.00 16 port Fast-Ethernet-Switch Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

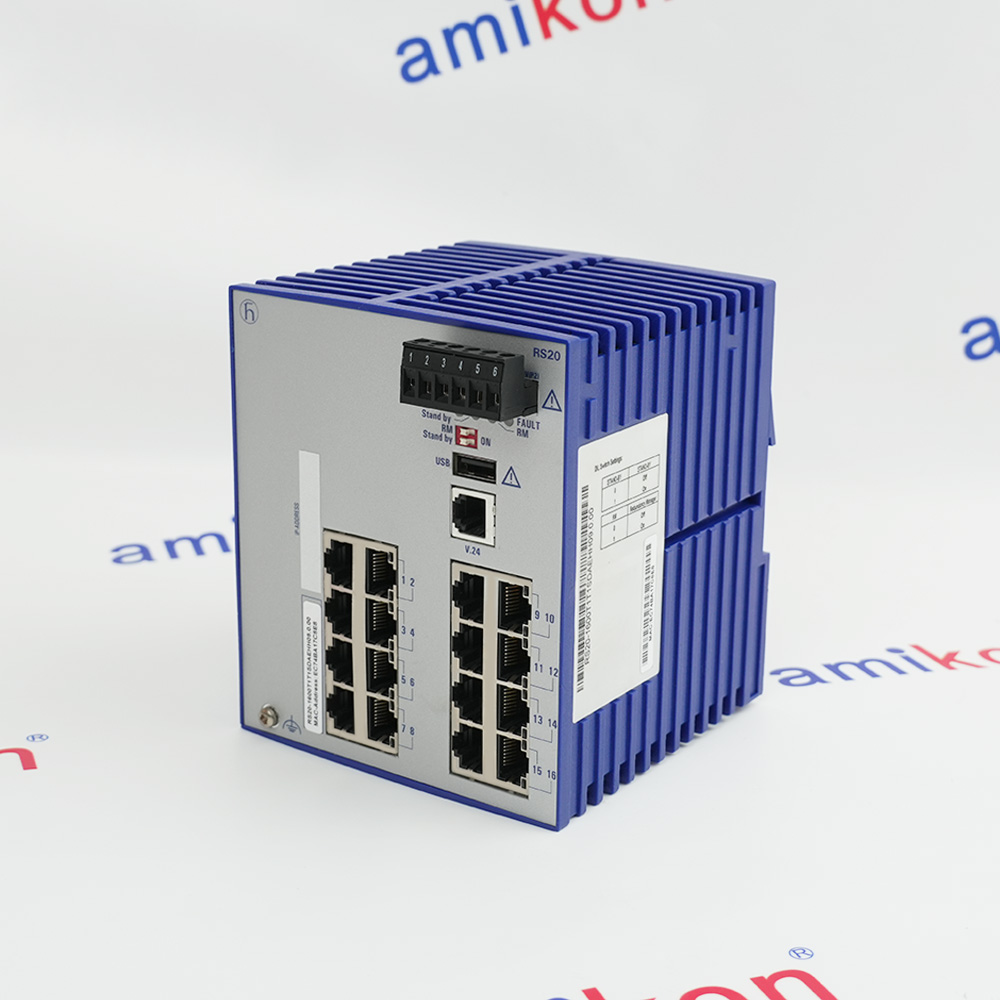

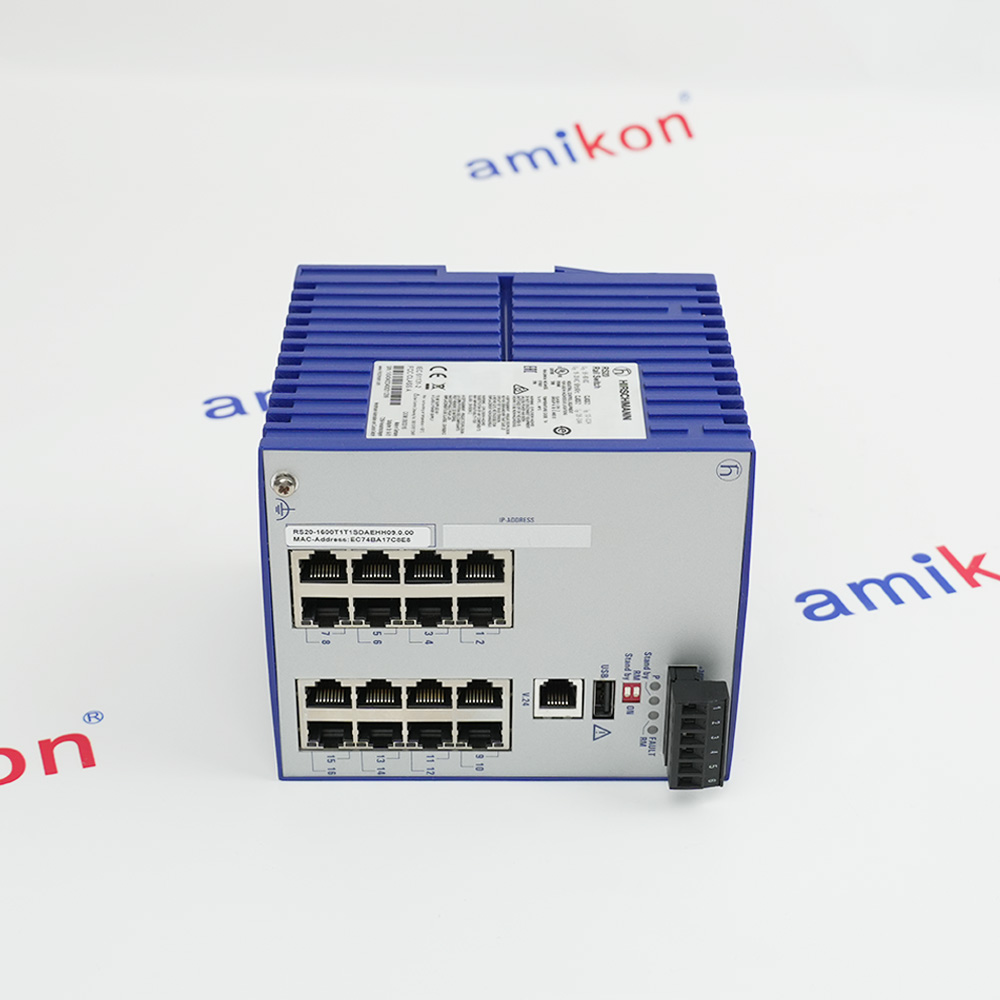

The Hirschmann RS20-1600T1T1SDAEHH09.0.00 is a 16-port, managed Fast Ethernet switch for industrial applications, part of the RS20 Compact OpenRail family. It features 16 TP (RJ45) ports and operates as a Layer 2 managed switch with a fanless design for high reliability.Redundant power input, 12/24/48 V DC (9.6-60 V) or 24 V AC (18-30 V).
- Factory Automation:Central hub for PLCs, HMIs & robotic workcells
- Process Industries:Robust comms for oil/gas/chemical/pharma under extreme temps/vibration
- Energy & Power Generation:Wind/solar: relays performance data to central control.
- Transportation Infrastructure:Traffic control, railway signaling & automated port systems
- Machine Building:High-density local networking for modular OEM machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The switch features a snap-on mounting mechanism for DIN rails.Hold the device so the DIN rail clip hooks onto the top of the DIN rail.Push the bottom of the device until it snaps into place.Grounding: Ground the device via the separate ground screw on the bottom left of the front panel. Use a wire diameter of at least 1.0 \(mm^{2}\).Ventilation: Maintain a clearance of at least 10 cm (3.94 in) to prevent overheating
FAQs
-
What is the RS20-1600T1T1SDAEHH09.0.00?
+It is a managed industrial Ethernet switch from the Hirschmann OpenRail family, for harsh environments, DIN rail mounting, and high-performance communication. -
How many ports does it have?
+This specific model provides 16 Fast Ethernet ports (10/100 Mbit/s). -
What type of ports does it use?
+It features 16 copper (RJ45) ports. The part number indicates 16 ports with specific configuration options for industrial automation. -
What are the power supply requirements?
+The switch supports redundant power inputs ranging from 12/24/48 V DC (9.6–60 V) and 24 V AC (18–30 V).
