PRODUCT DESCRIPTION

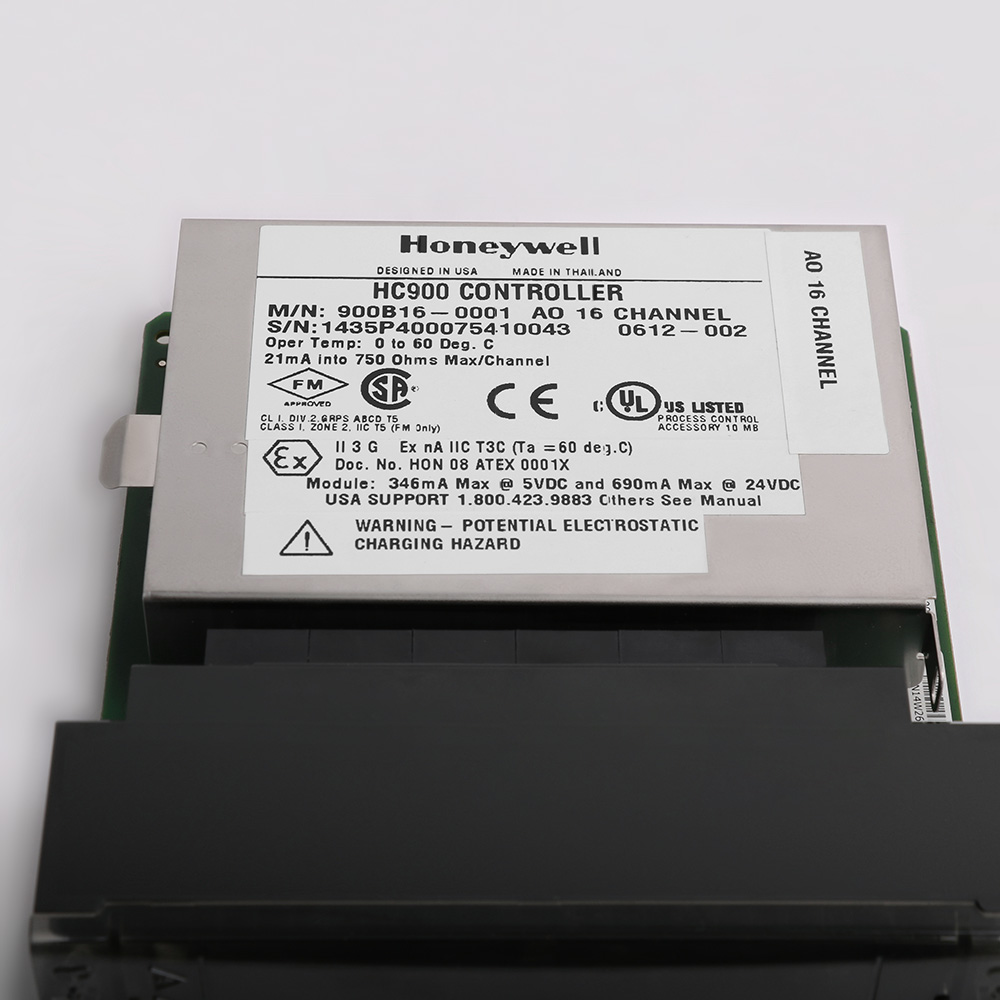

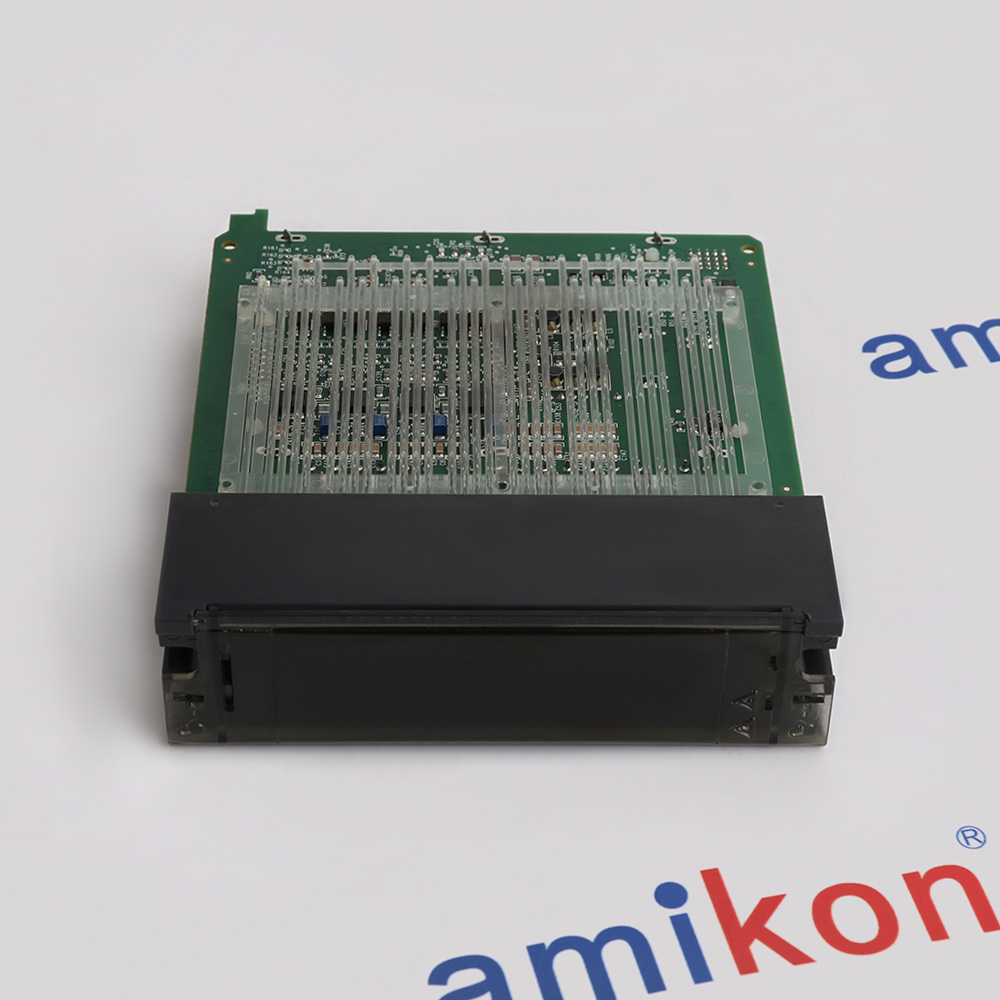

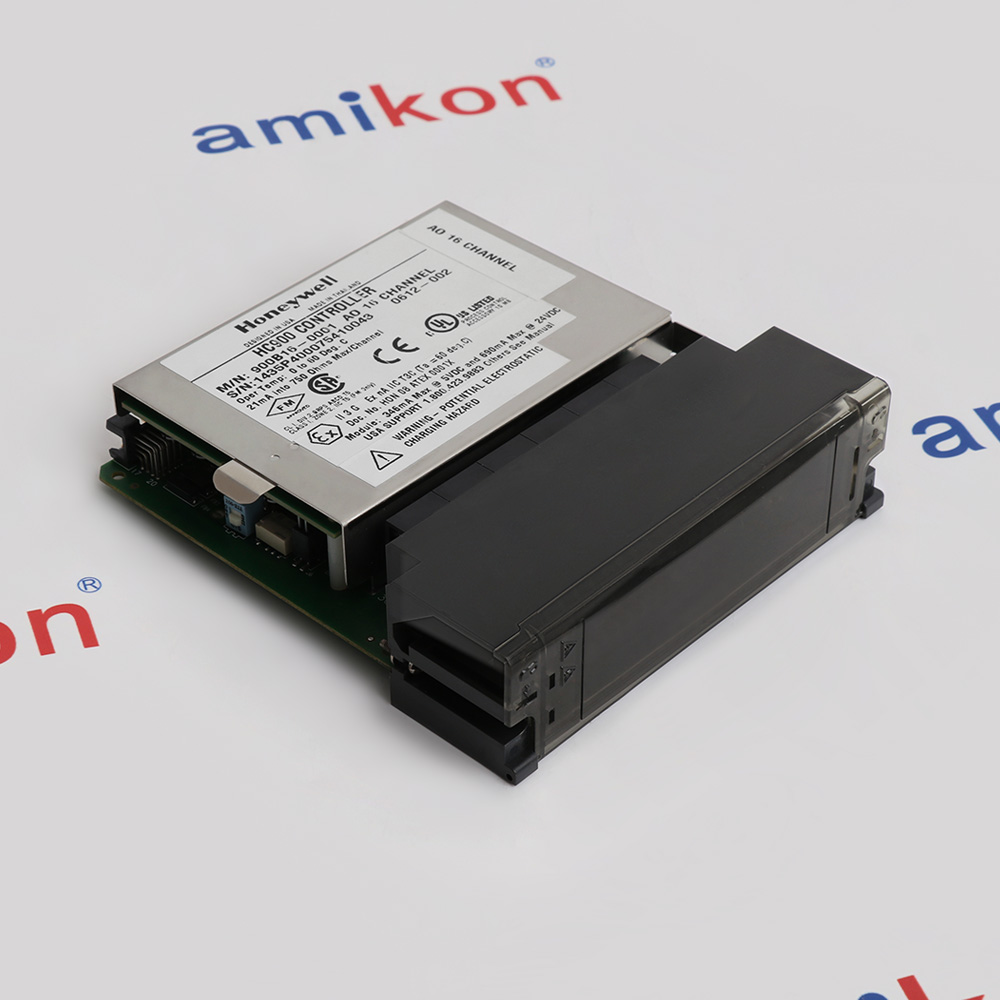

900B16-0001 Sixteen Channel Analog Output
Honeywell 900B16-0001 is a sixteen channel analog output in the ControlEdge HC900 900B16 range. It provides sixteen configured current outputs to compatible process actuators and control circuits.
Sixteen current outputs are isolated in groups of four and updated with controller execution. The module provides configured failsafe values, current verification and calibration diagnostics. A DIP switch selects internal or external loop power; the accepted rack power budget and 36-position terminal block must match the installation.
Sixteen current outputs are isolated in groups of four and updated with controller execution. The module provides configured failsafe values, current verification and calibration diagnostics. A DIP switch selects internal or external loop power; the accepted rack power budget and 36-position terminal block must match the installation.
BEFORE YOU BUY
Confirm the complete sixteen channel analog output
ACTUAL APPLICATIONS
Application context for 900B16-0001
900B16-0001 is a sixteen channel analog output for ControlEdge HC900 900B16. Relevant industries include chemical processing, food and beverage, water and wastewater. Match the supplied revision and installed configuration.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing and Industrial Process Production
Industrial Chemical Process ControlPetrochemical Processing and Production -
02 · FOOD & BEVERAGE
Food Processing and Beverage Production
Food Processing and ProductionBeverage Production and Packaging -
03 · WATER & WASTEWATER
Water Supply and Wastewater Treatment
Municipal Water Supply ControlIndustrial Wastewater Treatment Processes
Technical specifications for 900B16-0001
-
Product Model900B16-0001
-
Product ParametersSixteen Channel Analog Output
-
In stock1 unit
-
ManufacturerHoneywell
-
Analog output allocation16 channels
-
Isolation group arrangement4 groups of 4 outputs
-
Current output range0–21.0 mA
-
Maximum load resistance750 Ω
-
Group-to-group isolation500 V DC
-
Field-to-logic isolation500 V DC
-
Reference-condition accuracy0.1% full scale
-
Internal-power rack limit2 modules on internal 24 V supply
-
Minimum current verification>0.5 mA per output
-
D/A conversion resolution13+ bits, 1 part in 13332
-
5 V supply loading350 mA maximum
-
24 V supply loading700 mA maximum
-
Terminal block allocation36-position Euro-style, 900TCK-0001
-
External supply range18–36 V DC
-
Default power-source selectionExternal loop power
View all additional
Alternative Names
900B16-0001
ControlEdge HC900 900B16 Sixteen Channel Analog Output
HC900 grouped-isolation 16-point current output
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 900B16-0001 sixteen channel analog output
Match 900B16-0001 to the installed ControlEdge HC900 900B16 equipment, connectors and accepted configuration before integration.
Sixteen current outputs are isolated in groups of four and updated with controller execution. The module provides configured failsafe values, current verification and calibration diagnostics. A DIP switch selects internal or external loop power; the accepted rack power budget and 36-position terminal block must match the installation.
Use the applicable controlled documents for 900B16-0001. Validate the affected circuits and retain the final configuration and test record.
Features:
- Analog output allocation: 16 channels
- Isolation group arrangement: 4 groups of 4 outputs
- Current output range: 0–21.0 mA
The 900B16-0001 sixteen channel analog output requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 900B16-0001 sixteen channel analog output
Confirm the complete 900B16-0001 article and installed ControlEdge HC900 900B16 execution before exchange. Similar housings do not establish electrical or functional interchangeability.
Record the sixteen channel analog output connections, associated parts and project settings. Isolate affected circuits under the site procedure and preserve the accepted configuration.
After fitting 900B16-0001, restore the verified configuration and test the affected functions. Keep the supplied-part identity and acceptance results with the ControlEdge HC900 900B16 equipment record.
Features:
- Analog output allocation: 16 channels
- Isolation group arrangement: 4 groups of 4 outputs
- Current output range: 0–21.0 mA
The 900B16-0001 sixteen channel analog output requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 900B16-0001 sixteen channel analog output must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size13.3 × 15.2 × 3.2cm
-
Shipping weight0.25kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 900B16-0001
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How many current outputs belong to 900B16?
The documented analog output allocation for 900B16-0001 is 16 channels. -
How are the sixteen outputs isolated into groups?
The documented isolation group arrangement for 900B16-0001 is 4 groups of 4 outputs. -
What current span can HC900 output channels use?
The documented current output range for 900B16-0001 is 0–21.0 mA. -
What load resistance can the analog output drive?
The documented maximum load resistance for 900B16-0001 is 750 Ω. -
What group-to-group isolation is specified for 900B16?
The documented group-to-group isolation for 900B16-0001 is 500 V DC. -
What field-to-logic isolation is documented?
The documented field-to-logic isolation for 900B16-0001 is 500 V DC. -
Which identification helps quote the ControlEdge HC900 900B16 spare?
Supply 900B16-0001, quantity, the installed ControlEdge HC900 900B16 arrangement and label photographs. Specify any connector, cable or companion assembly required by the accepted configuration. -
What should be inspected on the received sixteen channel analog output?
Inspect the 900B16-0001 label, connector condition and physical assembly against the accepted offer. Compare the ControlEdge HC900 900B16 configuration and included accessories before a controlled replacement test.
