- FC-IOTA-R24 51306505-175
In Stock
Ships by Monday, August 3
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for FC-IOTA-R24 51306505-175
-
Product ModelFC-IOTA-R24 51306505-175
-
Spare Model51306505-175
-
Product ParametersRedundant IO Termination Assembly
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size44.2x12x6.5cm
-
ManufacturerHoneywell
-
Weight0.6 kg
-
Operating temperature-40 .. +70°C (-40 .. +158°F)
-
Storage temperature-40 .. +85°C (-40 .. +185°F)
-
Relative humidity10..95% (non condensing)
-
Supply voltage24 V DC -15%..+30%
-
Supply loadmax. 10 A
Description

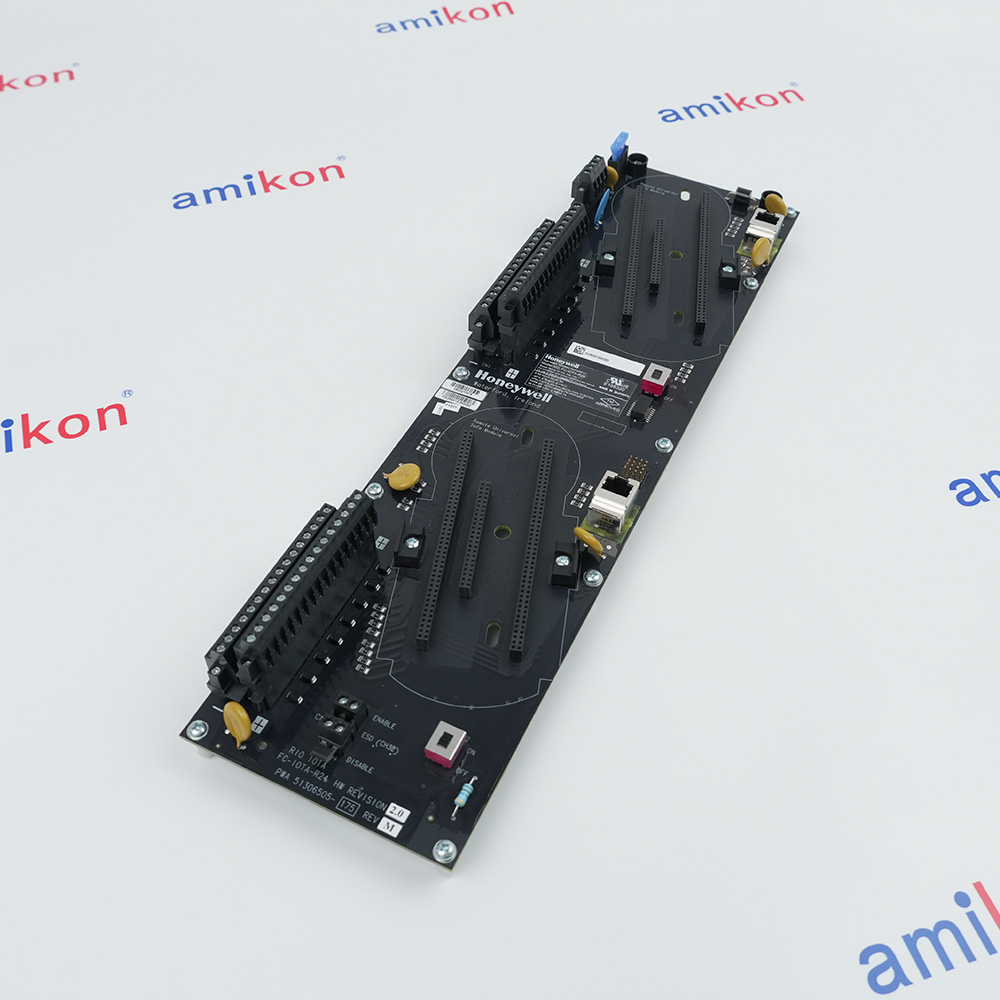

The IOTA-R24 is a Honeywell Redundant IO Termination Assembly designed for use with Honeywell's Safety Manager and Functional Safety Controller (FSC) systems. The IOTA-R24 provides redundant I/O paths for critical industrial automation applications, ensuring continuous operation even if one I/O path fails. The IOTA-R24 supports two redundant RUSIO-3224 or RUSLS-3224 modules, with Module A mounted in the top position and Module B in the bottom position, each controlled independently via POWER 1 and POWER 2 switches.
The IOTA-R24 provides 32 universal I/O channel connections through CN1 and CN2 connectors, with the minus-row connected to 0V and the plus-row serving as the actual channels for any type of I/O field signal. The IOTA-R24 includes four identical V+ connections on CN3 for powering active analog input devices.
The IOTA-R24 features two RJ45 connectors for 100MB Ethernet communication, designated RIOLA and RIOLB, facilitating high-speed data transfer in safety-critical systems. The IOTA-R24 operates with a 24V DC power supply (-15% to +30%) and handles a maximum supply load of 10A, with a 15A blade fuse for protection
The IOTA-R24 provides 32 universal I/O channel connections through CN1 and CN2 connectors, with the minus-row connected to 0V and the plus-row serving as the actual channels for any type of I/O field signal. The IOTA-R24 includes four identical V+ connections on CN3 for powering active analog input devices.
The IOTA-R24 features two RJ45 connectors for 100MB Ethernet communication, designated RIOLA and RIOLB, facilitating high-speed data transfer in safety-critical systems. The IOTA-R24 operates with a 24V DC power supply (-15% to +30%) and handles a maximum supply load of 10A, with a 15A blade fuse for protection
Information
Overview
Manuals
Application Notes
Product Applications
Mounting & Physical Installation
Features:
- Connectors for two (redundant) RUSIO-3224 or RUSLS-3224 modulesl 32 (universal) IO channel connections (CN1 and CN2)
- 4 (identical) V+ connections (CN3), for active AI devices
- Two RJ45 connectors for 100MB Ethernet communication (RIOLA and RIOLB)
- 24V power connection (24V screw and COM screw to the carrier power rails)
The FC-IOTA-R24 51306505-175 Honeywell Redundant I/O Termination Assembly may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-IOTA-R24 51306505-175 Redundant I/O Termination Assembly Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
SIL 3 Support: Enables redundant operations allowing the system to achieve SIL 3 safety standards per IEC 61508/61511.
Ethernet Communications: Equipped with two RJ45 ports to support 100MB RIOLA and RIOLB networks.
Independent Power Paths: Features independent POWER 1 and POWER 2 switches to isolate power for Module A and Module B individually.
Field Power: Provides on-board excitation power and galvanic isolation without the need for external marshalling power.
- Petrochemical & Oil & Gas:ESD & F&G for upstream extraction & downstream refineries
- Chemical Processing:Pressure protection & safety interlocking for volatile production
- Power Generation:Boiler BMS & turbine overspeed protection
- Pharmaceutical & Life Sciences:Critical batch control: precise safe conditions prevent product loss
- Marine & Offshore:Reliable control & safety for harsh remote platforms/vessels
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Carrier Attachment: Secure the mounting carrier to a flat surface or within a Safety Manager cabinet using the provided mounting holes.
Assembly Attachment: Mount the FC-IOTA-R24 onto the carrier, ensuring it is firmly seated to align with the power and ground rails.
Module Insertion: Insert two redundant RUSIO-3224 or RUSLS-3224 modules into the designated slots on the IOTA board.
Alternative Names
FC-I0TA-R24
FC-1OTA-R24
FC-IOTA-RZ4
FC IOTA R24
FC I0TA R24
FC 1OTA R24
FC IOTA RZ4
FCIOTAR24
FC10TAR24
Technical notes
The IOTA-R24 includes reverse polarity protection via a parallel diode that blows the fuse if power is connected incorrectly, preventing damage to the assembly. The IOTA-R24 has a node address set by placing the proper node address jumper on the assembly, and includes an ESD (CH32) link to enable or disable the Emergency Shutdown function. The IOTA-R24 is certified for SIL 3 applications in compliance with IEC 61508/61511, making it suitable for the highest safety integrity levels
FAQs
-
What is the FC-IOTA-R24？
+The Honeywell FC-IOTA-R24 is a redundant I/O termination assembly designed for the Experion C300 Safety Manager, supporting 32 universal I/O channels and SIL 3 safety applications -
What is the function of the FC-IOTA-R24?
+It serves as a Redundant IO Termination Assembly, providing fault-tolerant field wiring connections for sensors and actuators in safety-critical industrial applications. -
Does it require external marshalling power?
+No, it features on-board excitation power, eliminating the need for separate marshalling power. -
What are the power requirements for the FC-IOTA-R24?
+It requires a 24V DC input (range -15% to +30%) and a maximum supply current of 10A.
