Technical specifications for FTA-T-14
-
Product ModelFTA-T-14
-
Product ParametersMODULE RELAY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size20x7x5.8cm
-
ManufacturerHoneywell
-
Weight0.3 kg
-
Number of input channels16
-
Power requirements30 Vdc external 3 mA
-
Input current0 to 25 mA
-
Input resistance250 Ohm
-
Output resistance270 Ohm (± 5%)
-
Output voltage0 to 4 Vdc
-
Rating315 mAT
Description
FTAT14
MODULE RELAY
GENERAL PURPOSE 2WIRE
MODULE RELAY
GENERAL PURPOSE 2WIRE
Information
Overview
Manuals
Technical notes
Product Applications
External power
Features:
- 16-Channel Capacity
- Galvanic Isolation Support
- DIN Rail Mounting
- Redundant Power Feed

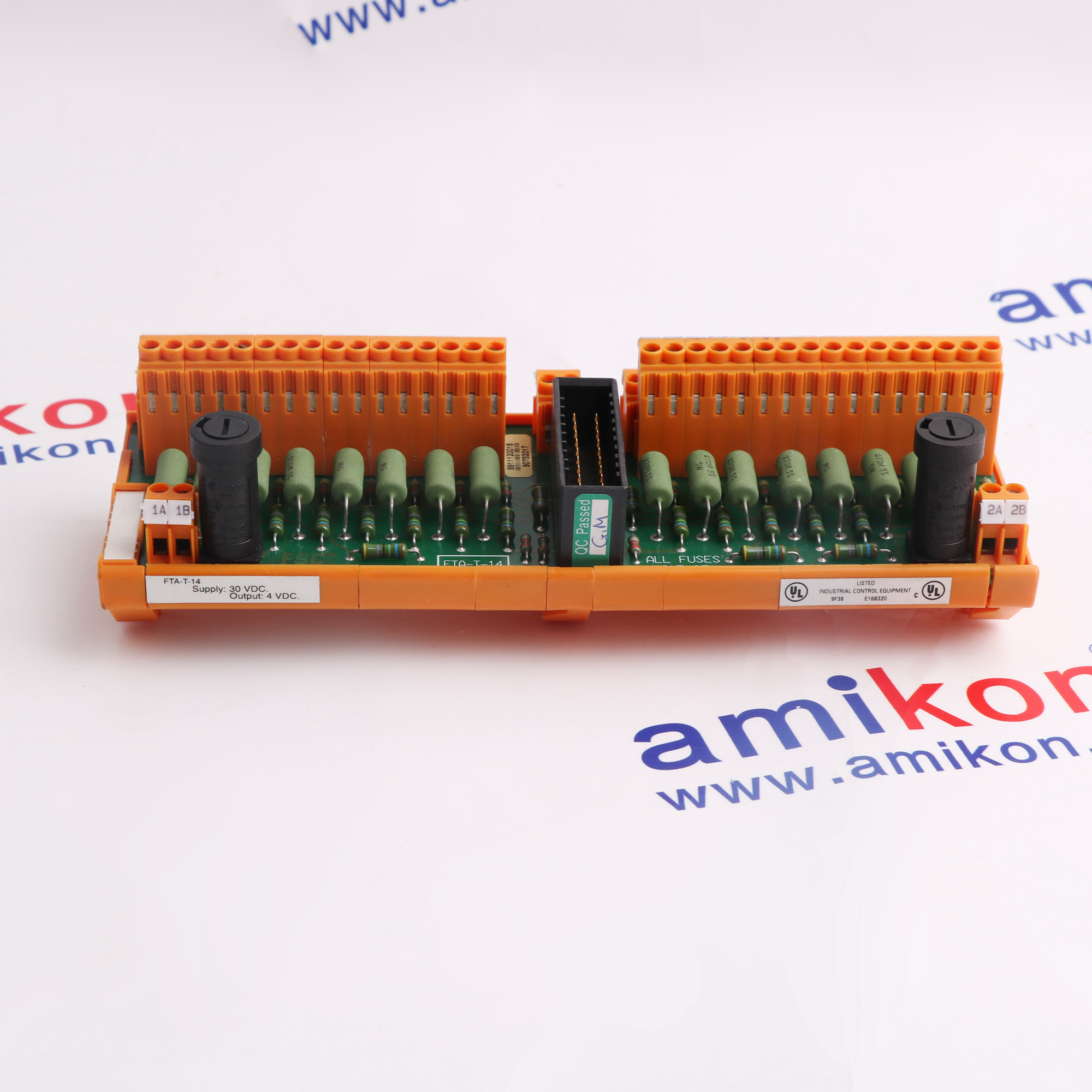

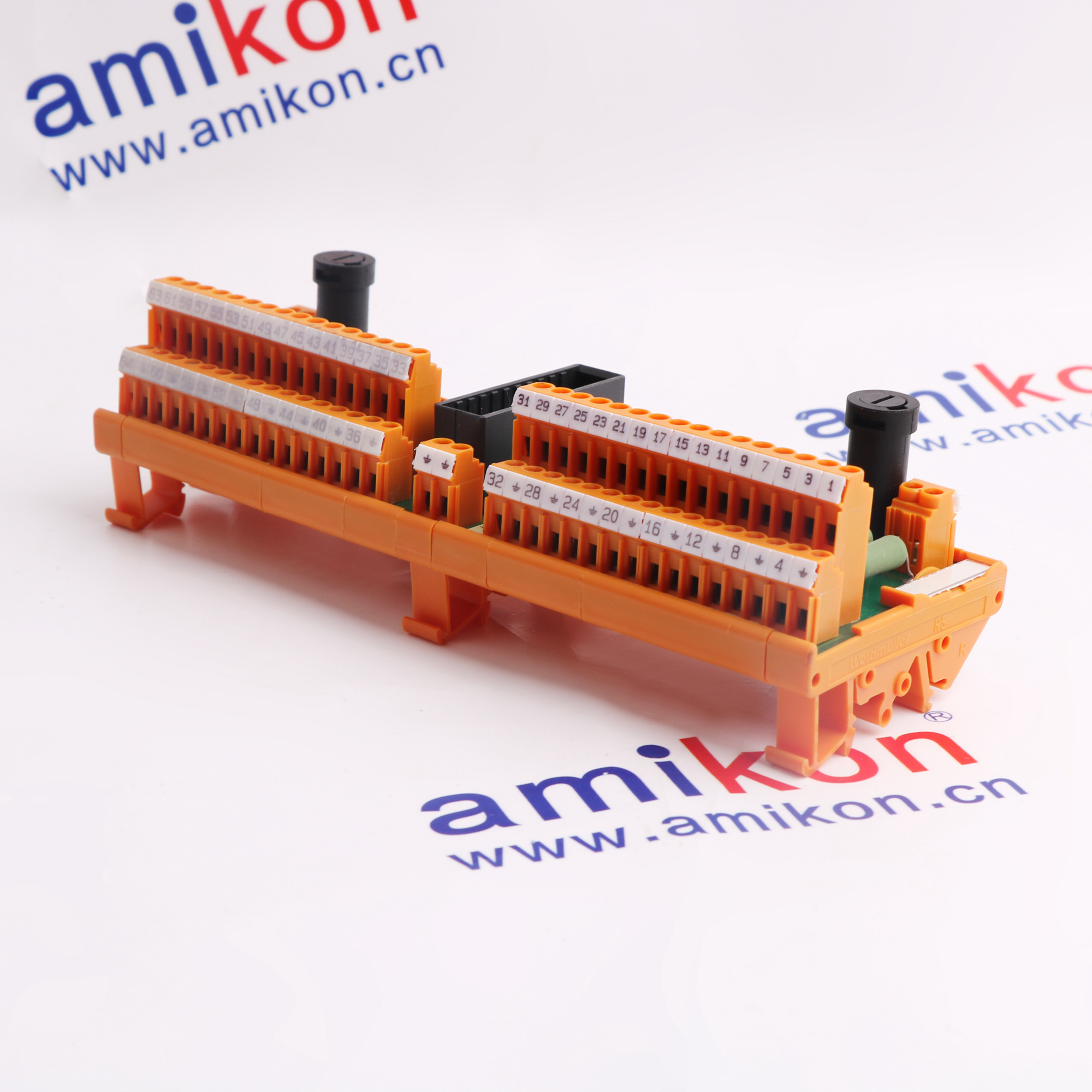

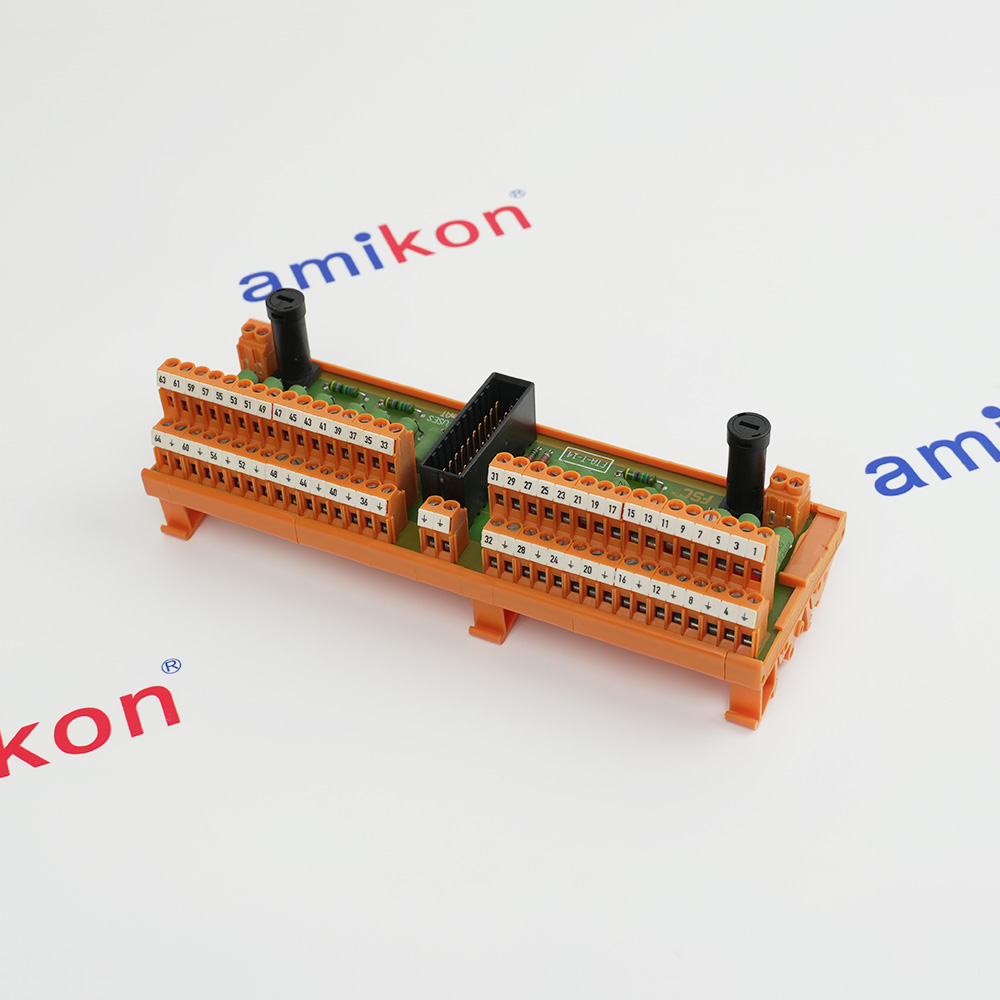

The FTA-T-14 module has sixteen analog input channels which maybe used for both safety-related and non-safety-related applications.These sixteen channels (separated into two groups of eight channelswith common 0 V) are connected to the FTA-T-14 module via asystem interconnection cable (SIC), which is plugged into the SICconnector on the FTA module.

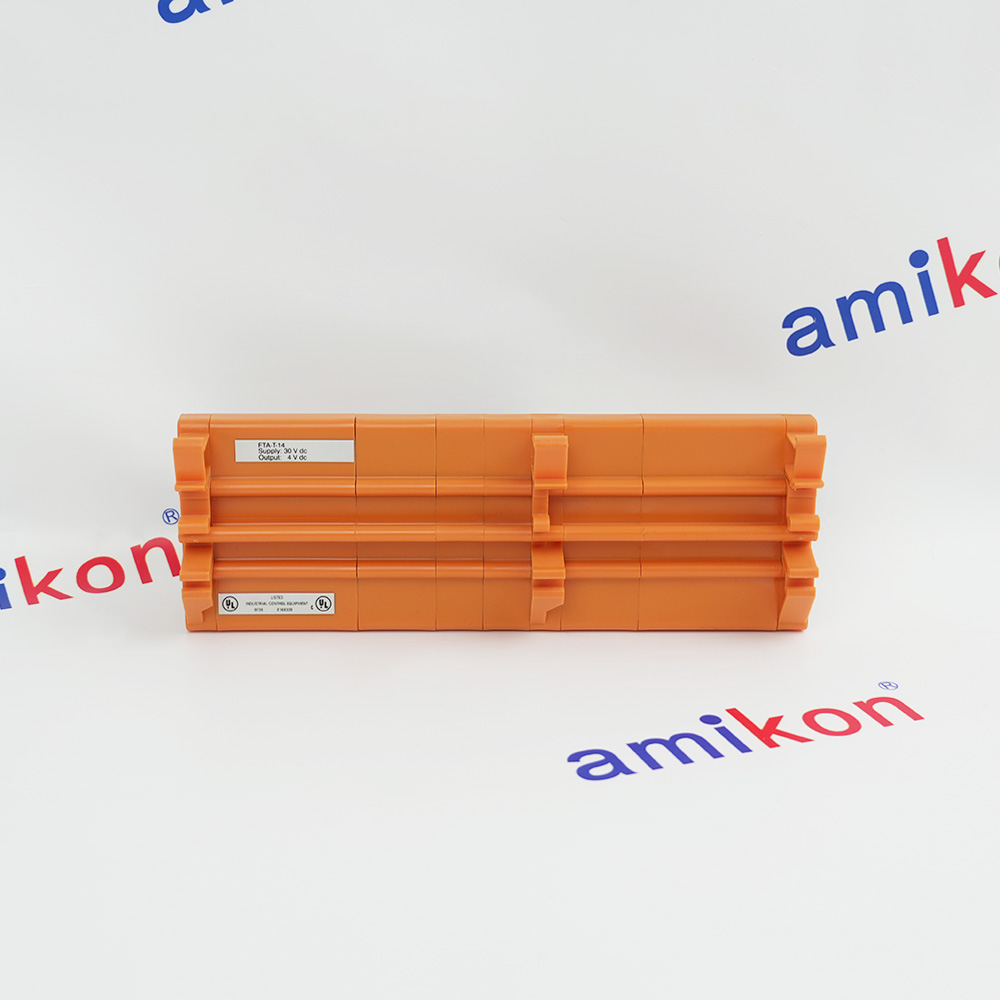

The FTA module has a universal snap-in facility for standard DIN ENrails, and screw terminals for connection of power supply, ground andfield wiring.
The FTA-T-14 Honeywell Field termination assembly module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FTA-T-14 Field termination assembly module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
linear direct conversion of 0(4)-20 mA DC field signals to the signallevels of the fail-safe high-density analog input module 10105/2/1,
power supply distribution to each transmitter with voltage-currentlimitation in compliance with Hazardous Area Class I Division 2,and
enable monitoring of the external power connected to the FTA-T-14module.
- Safety Shutdown Systems (SIS):High-integrity ESD & safety: detects critical field signals
- Industrial Process Control:0-20 mA conversion for petrochem/oil/gas/chem sensors
- Burner/Boiler Management:Monitors/controls burner/boiler systems for safe operation
- Fire & Gas Detection:Ensures reliable inputs for fire & gas system monitoring
- Turbine & Compressor Monitoring:Turbomachinery protection & control systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
For loops which contain passive transmitters, analog process data isonly available if the supply voltage to the electronics is guaranteed.The high-density analog input concept (using FTA-T-14/15 modules)offers full monitoring of power that is provided externally. If DC/DCconverter modules FTA-T-15 are used, even redundant power suppliesare covered.

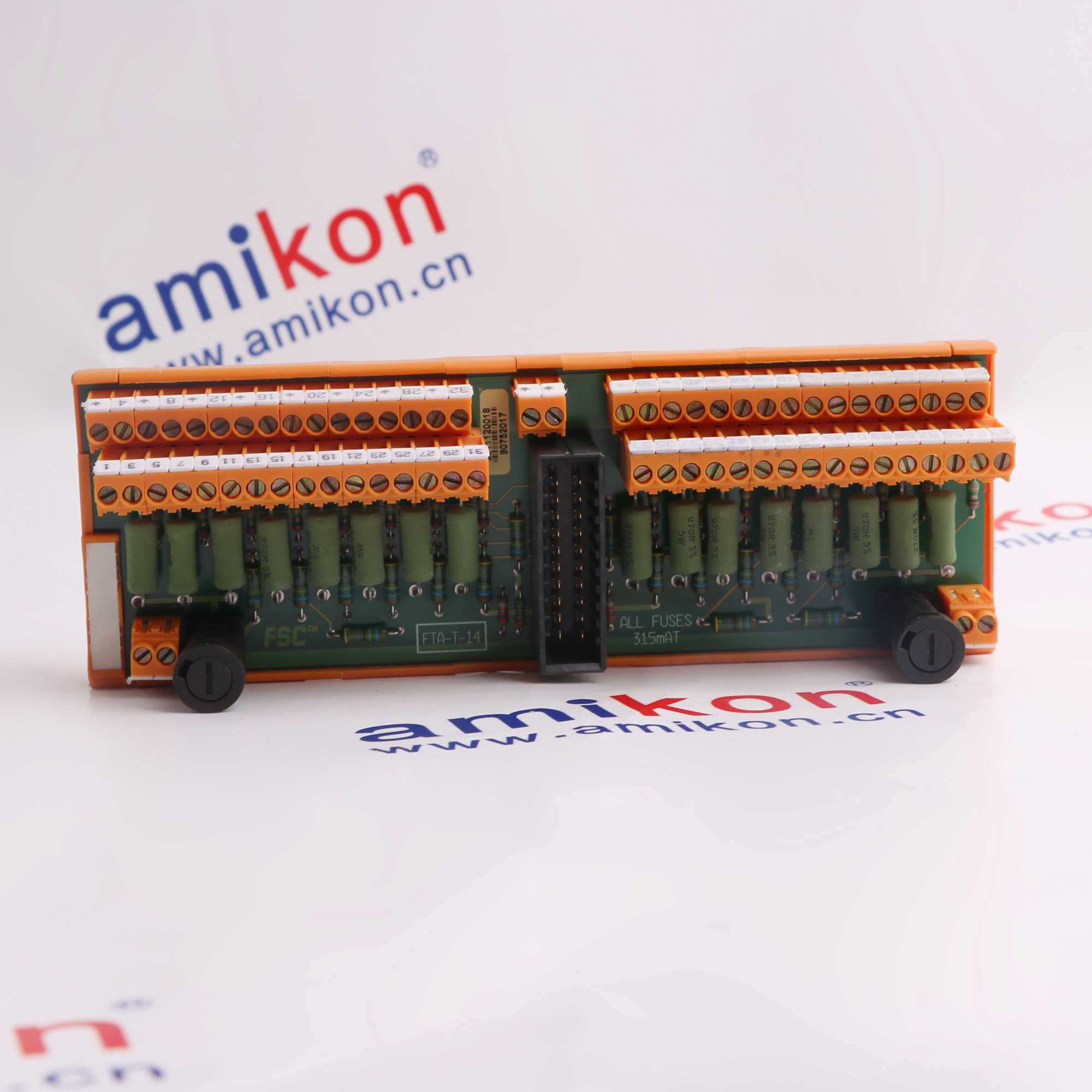

External power can be connected to the FTA-T-14 module via one orboth of the two screw terminal pairs marked '1A', '1B', '2A' and '2B'.The screw terminal pairs are interconnected on the FTA module. Thesixteen channels on the FTA module are divided into two groups ofeight channels, with each group being protected by a 315 mA fuse.Single-channel errors (shorts from V+ to 0 V) cannot blow the groupfuse.
FAQs
-
What is the FTA-T-14 ?
+The Honeywell FTA-T-14 is a 16-channel, fail-safe Field Termination Assembly (FTA) used in Fail-Safe Control (FSC) systems to connect 0(4)-20 mA analog inputs from field sensors. -
How many channels?
+It typically supports 16 analog input channels. -
What is the input signal?
+0(4)-20 mA, with high-precision resistors converting input current to voltage. -
What are the power requirements?
+It supports a range of voltages, with a maximum of 36 Vac / 50 Vdc for overvoltage category 3 and 125 Vac / 150 Vdc for category 2.
