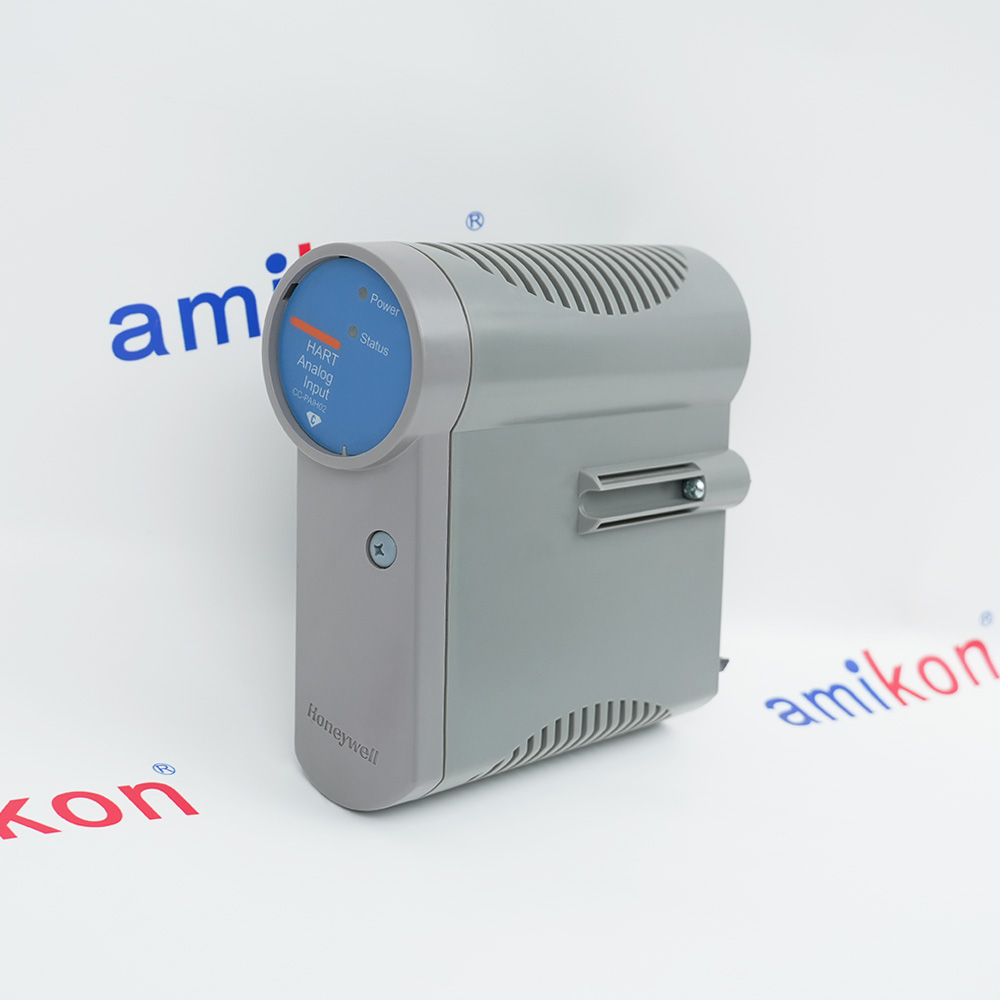

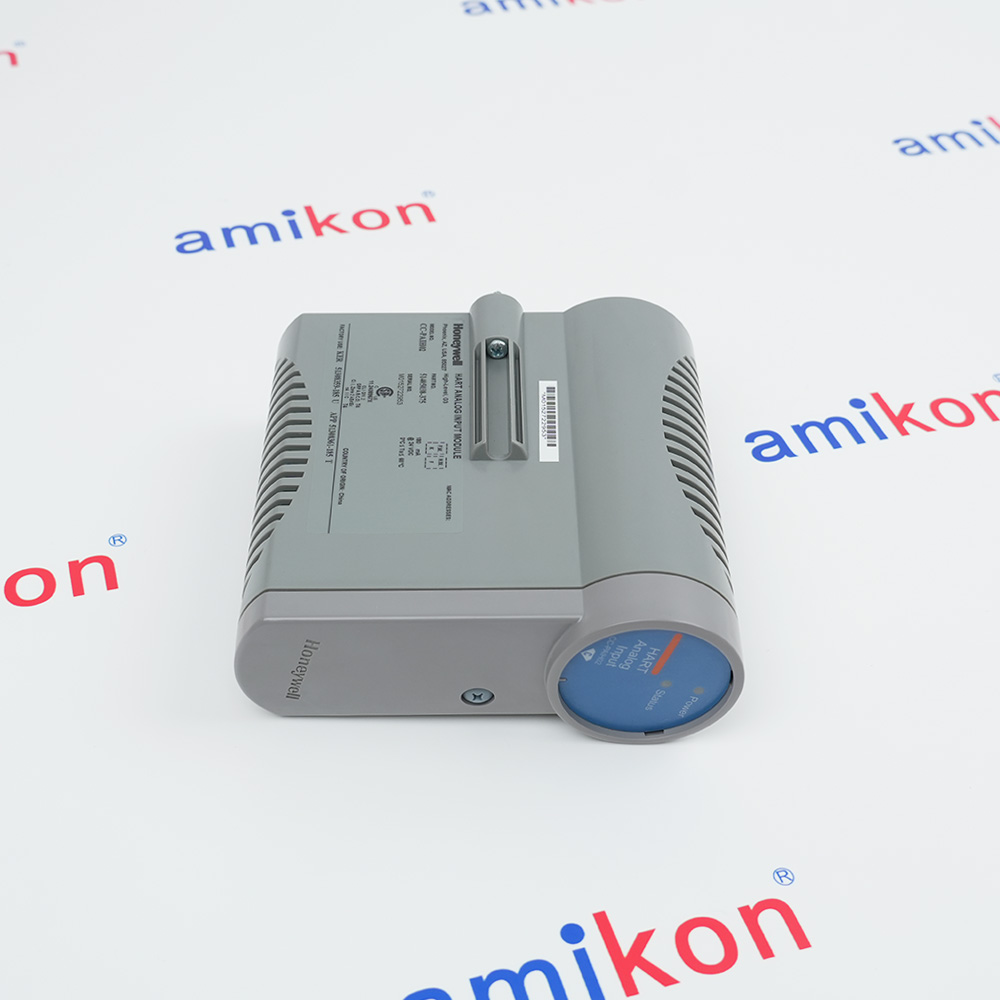

CC-PAIH02 51405038-375
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
INPUT MODULE
ANALOG
DIFFERENTIAL./ SINGLE ENDED INPUT
16 CHANNEL
4-20 MA
0-5 VOLT
60 WATT
POWER & STATUS LED
HIGH LEVEL / G3
ANALOG
DIFFERENTIAL./ SINGLE ENDED INPUT
16 CHANNEL
4-20 MA
0-5 VOLT
60 WATT
POWER & STATUS LED
HIGH LEVEL / G3
Technical specifications for CC-PAIH02 51405038-375
-
Product ModelCC-PAIH02 51405038-375
-
Spare Model51405038-375
-
Product ParametersANALOG INPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x16.5x14.5cm
-
ManufacturerHoneywell
-
Weight0.4 kg
-
Input Type2-wire or self-powered transmitters
-
Input Channels16 Channels
-
Common Mode Rejection Ratio, dc to 60 Hz70 dB
-
Common Mode Voltage, dc to 60 Hz-6 to +5 V peak
-
A/D Converter Resolution16 bits
-
Input Range0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
-
Normal Mode Rejection Ratio, at 60 Hz19 dB
-
Normal Mode Filter ResponseSingle-pole RC, -3 dB @ 6.5 Hz
-
Maximum Normal Mode Input± 30 Volts
-
Crosstalk, dc to 60 Hz-60 dB
-
Input Impedance> 10 M Ω powered
-
Input Scan Rate50 ms
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the CC-PAIH02?+It is a 16-channel, High-Level Analog Input (HLAI) module with HART communication, designed for the Experion Series-C I/O system.
-
What input types does CC-PAIH02 support?+It supports 4-20mA, 1-5V, 0-5V, and 0.4-2V inputs.
-
Does it support HART?+Yes, it provides full HART 7 protocol support for field device configuration and monitoring.
-
What is the difference from CC-PAIH01?+The CC-PAIH02 is the upgraded replacement. It doubles the ADC resolution (24-bit vs 16-bit), offers 50% better accuracy (±0.05% vs ±0.1%), and has a faster sampling rate.
-
What is the required redundancy IOTA?+The DC-TAID11 is used for redundant configurations, while the DC-TAIX011 is used for non-redundant.
Get a quick price fo CC-PAIH02 51405038-375
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Field Wiring & Connection
Features:
- Extensive self-diagnostics
- Optional redundancy
- Open Wire Detection
- Supplies non-incendive field power
- Non-incendive Power
- HART-capable, multivariable instruments and multiplemodems for fast collection of control variables
- Fast loop scan
- PV protection through an open wire detectiondiagnostic
- Open-wire Bad PV Detection
The CC-PAIH02 51405038-375 Honeywell Analog Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PAIH02 51405038-375 Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell CC-PAIH02 is a High-Level Analog Input (HLAI) module with HART communication, for the Experion Series C Mark II I/O system.Supports 4-20 mA current loops (2-wire or self-powered) and voltage inputs including 0-5 V, 1-5 V, and 0.4-2 V.±0.075% of full-scale at 23.5°C; ±0.15% across the full 0 to 60°C operating range.Provides individually protected current-limiting circuits for Class 1, Div 2 non-incendive interfacing, eliminating the need for external fusing
- Oil and Gas: Monitoring high-pressure and temperature variables in refineries and extraction sites
- Petrochemical and Chemical: Controlling critical process parameters and managing complex analytical data for quality control
- Power Generation: Integrating smart sensors into centralized control platforms for precise energy management
- Building Automation: Managing industrial-scale HVAC, lighting, and security systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Termination: Field wiring is landed on the IOTA’s detachable terminals, supporting up to 12 AWG (2.5 mm) stranded wire.
Transmitter Support:
2-Wire: Powered by the 24V DC supply from the IOTA.
Self-Powered: Connects directly to input terminals without using internal loop power.
Jumper Bar: Use a jumper bar to bridge multiple "IN" terminals to a single power source. Pins can be snapped off with pliers to separate power supplies for specific channels.
