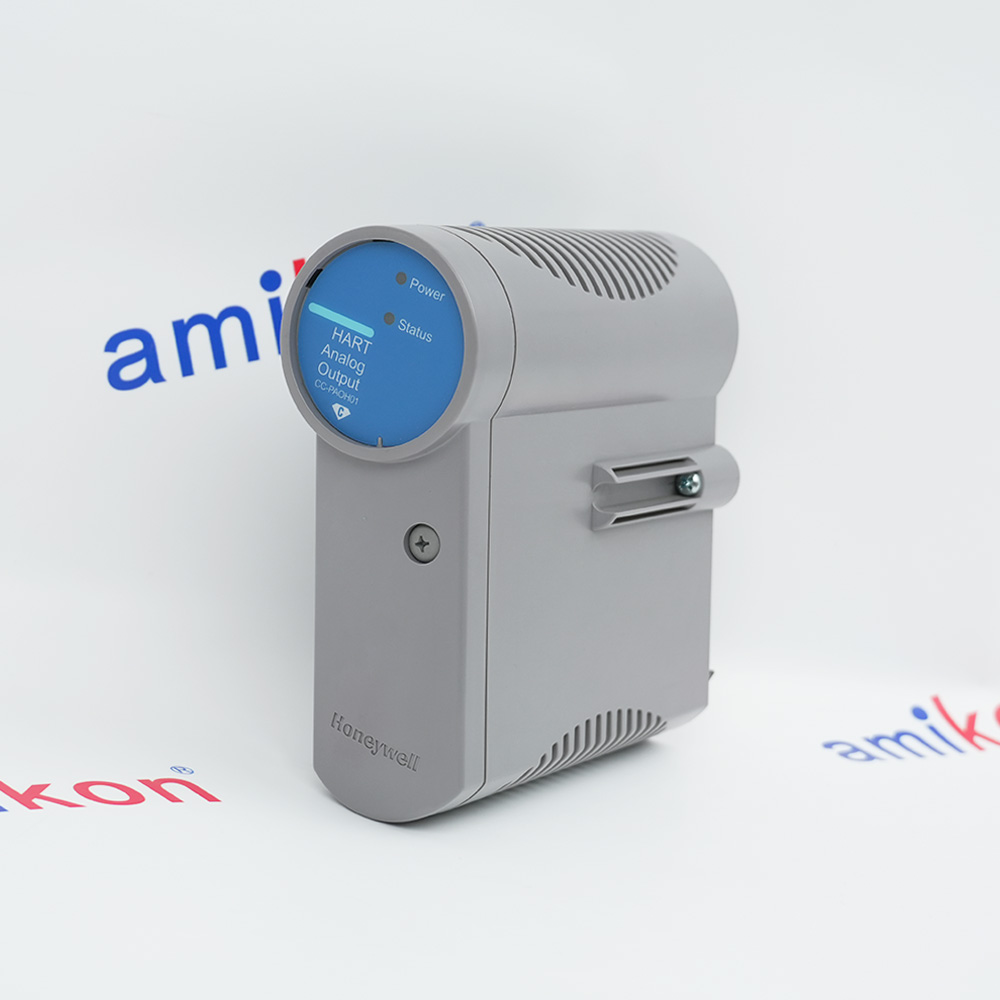

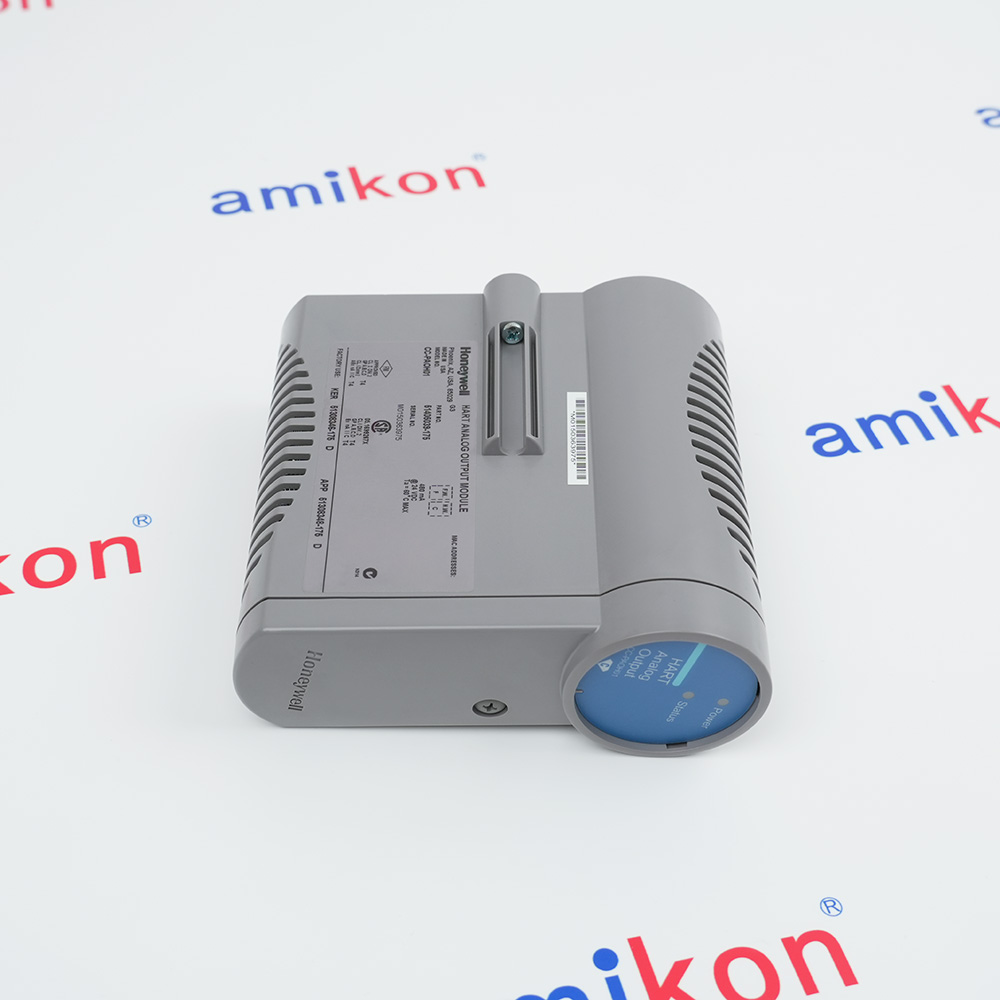

CC-PAOH01 51405039-175
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
HART ANALOG OUTPUT MODULE
16 CHANNEL
0.46 AMP
24 V DC
16 CHANNEL
0.46 AMP
24 V DC
Technical specifications for CC-PAOH01 51405039-175
-
Product ModelCC-PAOH01 51405039-175
-
Spare Model51405039-175
-
Product ParametersAnalog Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x16.2x14.5cm
-
ManufacturerHoneywell
-
Weight0.42 kg
-
Output Type4-20 mA
-
Output Channels16
-
Output Ripple< 100 mV peak-to-peak at power line frequency
-
Output Temperature Drift0.005% of Full Scale/°C
-
Output Readback Accuracy±4% of Full Scale
-
Output Current Linearity± 0.05% of Full Scale nominal
-
Resolution± 0.05% of Full Scale
-
Calibrated Accuracy± 0.35% of Full Scale (25oC) including linearity
-
Directly Settable Output Current Range0 mA, 2.9 mA to 21.1 mA
-
Maximum Resistive Load800 ohms
-
Maximum Output Compliant Voltage16 V
-
Maximum Open Circuit Voltage22 V
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is CC-PAOH01 ?+Honeywell CC-PAOH01 (51405039-176), a 16-channel HART Analog Output Module within the Experion Series C I/O family.
-
What is the IOTA?+The module plugs into an Input/Output Termination Assembly (IOTA) that allows on-board signal conditioning and field power distribution.
-
Does CC-PAOH01 support inter-channel isolation?+Yes, it provides 1500 VAC inter-channel isolation to prevent signal interference.
-
How to install CC-PAOH01?+This module features a baseless mounting design and typically inserts into a C-Series IOTA (Input/Output Terminal Assembly).
Get a quick price fo CC-PAOH01 51405039-175
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Extensive self-diagnostics
- Optional redundancy
- HART-capable, multivariable instruments
- Multiple modems for fast collection of controlvariables
- Safe-state (FAILOPT) behaviors configurable on aper channel basis
- Output read-back and alarm on discrepancy
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices. Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel toeither HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOMdevice electronics fails.This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.
The CC-PAOH01 51405039-175 Honeywell Analog Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PAOH01 51405039-175 Analog Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell CC-PAOH01 (51405039-175) is a 16-channel Analog Output module with HART communication, for the Experion PKS Series C I/O system. The module must be plugged into a specific Input Output Termination Assembly (IOTA). It does not use a separate chassis. In redundant configurations, the output gap to the field during a switchover is 10 ms maximum.: Provided directly through the IOTA, eliminating the need for external marshalling power supplies.
- Actuator and Valve Control:Drives valves, cylinders & solenoids to regulate process flows
- Variable Speed Drives:Sends speed references to motor drives & servo amps.
- Intelligent Field Device Integration:HART communication for smart instrument management
- Sequential and Logic Control:Manages combustion & motion control sequences
- Energy & Power:Manages power plants & combustion control systems
- Manufacturing & Heavy Industry:Supports smelting, steel production & textile machinery
- Infrastructure:Used in water treatment & automobile industry
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The primary difference between the Honeywell CC-PAOX01 (51405039-275) and the CC-PAOH01 (51405039-175) is the support for HART protocol communication. While both are 16-channel high-level analog output modules for the Experion Series C platform, the CC-PAOH01 includes integrated HART modems for digital communication with field instruments, whereas the CC-PAOX01 provides standard 4-20 mA signals without HART capabilities.
