- FC-BKM-0001 V1.1
In Stock
Ships by Thursday, June 25
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for FC-BKM-0001 V1.1
-
Product ModelFC-BKM-0001 V1.1
-
Spare ModelFC-BKM-0001
-
Product ParametersBattery and Key switch Module (conformal coated)
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x22.5x17.5cm
-
ManufacturerHoneywell
-
Weight0.66 kg
-
Operating temperature-5°C - +70°C (+23°F - +158°F)
-
Storage temperature-40°C - +85°C (-40°F - +185°F)
-
Relative humidity10-95% (non condensing)
-
ApprovalsCE, TUV, UL, CSA, FM
-
Voltage24 V DC –15%-+30%
-
CurrentMax. 20 mA (out of each 24 V DC) typ. 7 mA (sharedload on 24 V DC)
-
Output supplyvoltage14-31 V DC
-
Capacity> 2 Ah
Description
The HONEYWELL FC-BKM-0001 V1.1 is a Battery and Key Switch Module engineered as an essential component within Honeywell's Safety Manager control system architecture. It occupies a dedicated slot in the Controller chassis and serves two primary functions: providing non-volatile backup power for critical system data and offering manual key switch control for system diagnostics and signal forcing operations.

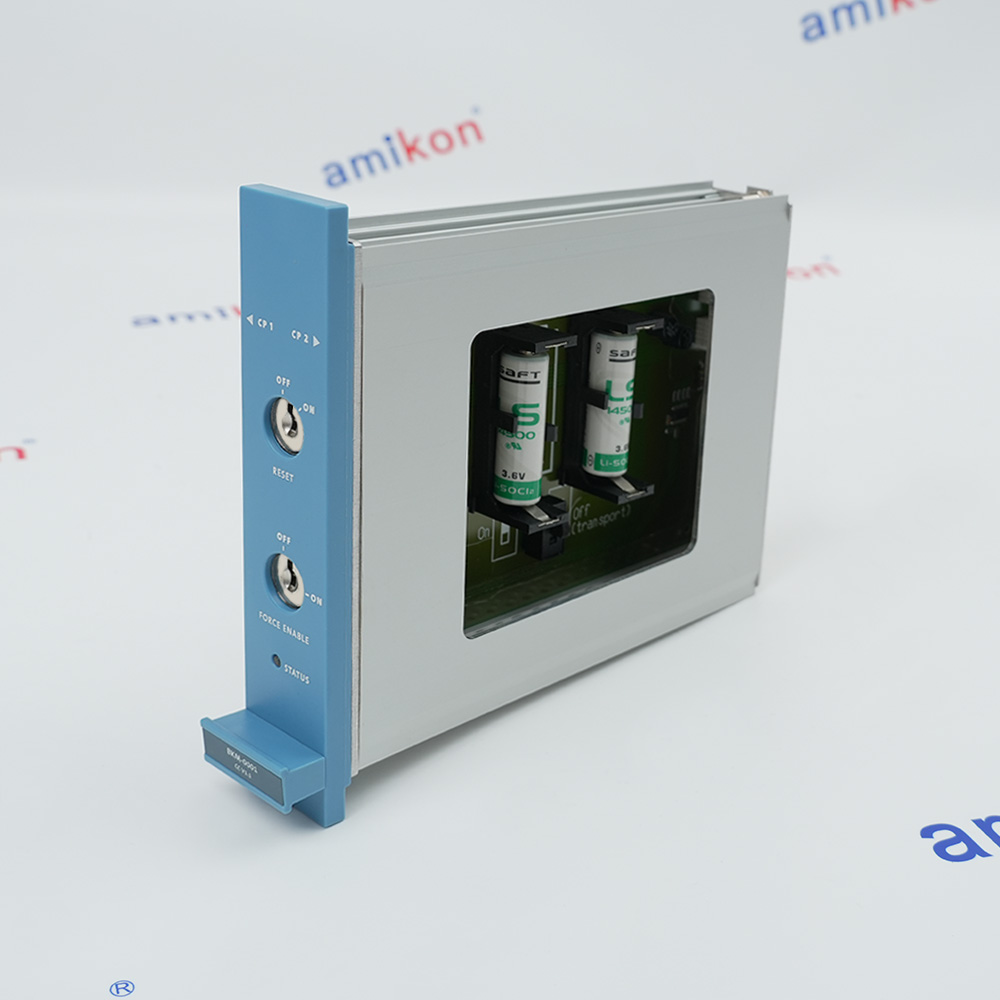

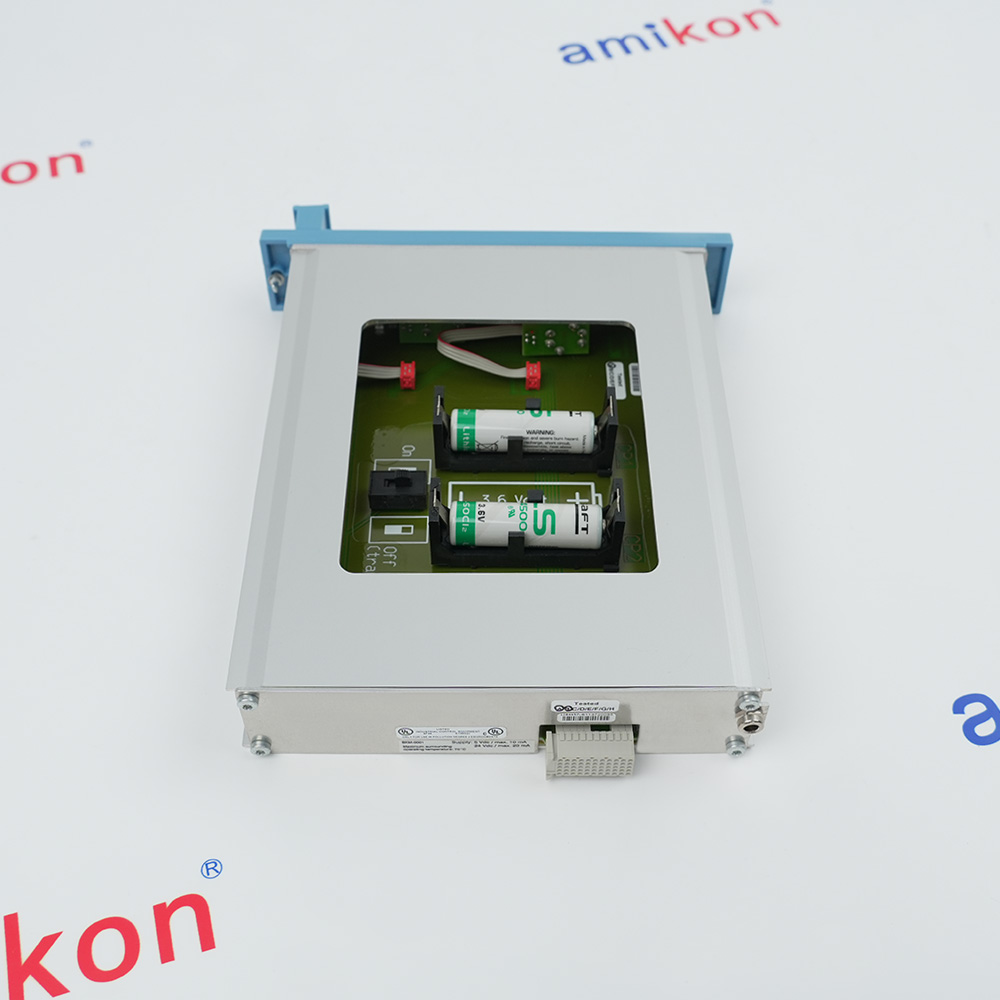

The module contains two SAFT LS14500CFG lithium thionyl chloride batteries, each dedicated to one of the two Control Processor modules (QPP-0001 or QPP-0002) in the chassis. These 3.6 V AA-size cells maintain the diagnostic message database and the real-time clock on the Quad Processor Pack modules during power outages. The accumulated backup time is approximately three months; because the batteries are not rechargeable, this time accumulates across all power loss events. A battery switch on the module allows the cells to be disconnected during extended system shutdowns or transport, preserving remaining capacity. Honeywell recommends battery replacement every five years and after any substantial discharge period. Replacement requires no special tools and is accessible through an opening in the module's side plate.
The module contains two SAFT LS14500CFG lithium thionyl chloride batteries, each dedicated to one of the two Control Processor modules (QPP-0001 or QPP-0002) in the chassis. These 3.6 V AA-size cells maintain the diagnostic message database and the real-time clock on the Quad Processor Pack modules during power outages. The accumulated backup time is approximately three months; because the batteries are not rechargeable, this time accumulates across all power loss events. A battery switch on the module allows the cells to be disconnected during extended system shutdowns or transport, preserving remaining capacity. Honeywell recommends battery replacement every five years and after any substantial discharge period. Replacement requires no special tools and is accessible through an opening in the module's side plate.
Alternative Names
FC-BKM-0001 V1-1
FC-BKM-0001 V1/1
FC BKM 0001 V1.1
FC-8KM-0001 V1.1
FC BKM 000I V1.I
Information
Overview
Manuals
Application Notes
Product Applications
Pre-Installation and Safety Protocol
Features:
- Dual lithium battery architecture
- Located in the Controller chassis
- Two batteries for Control Processor backup

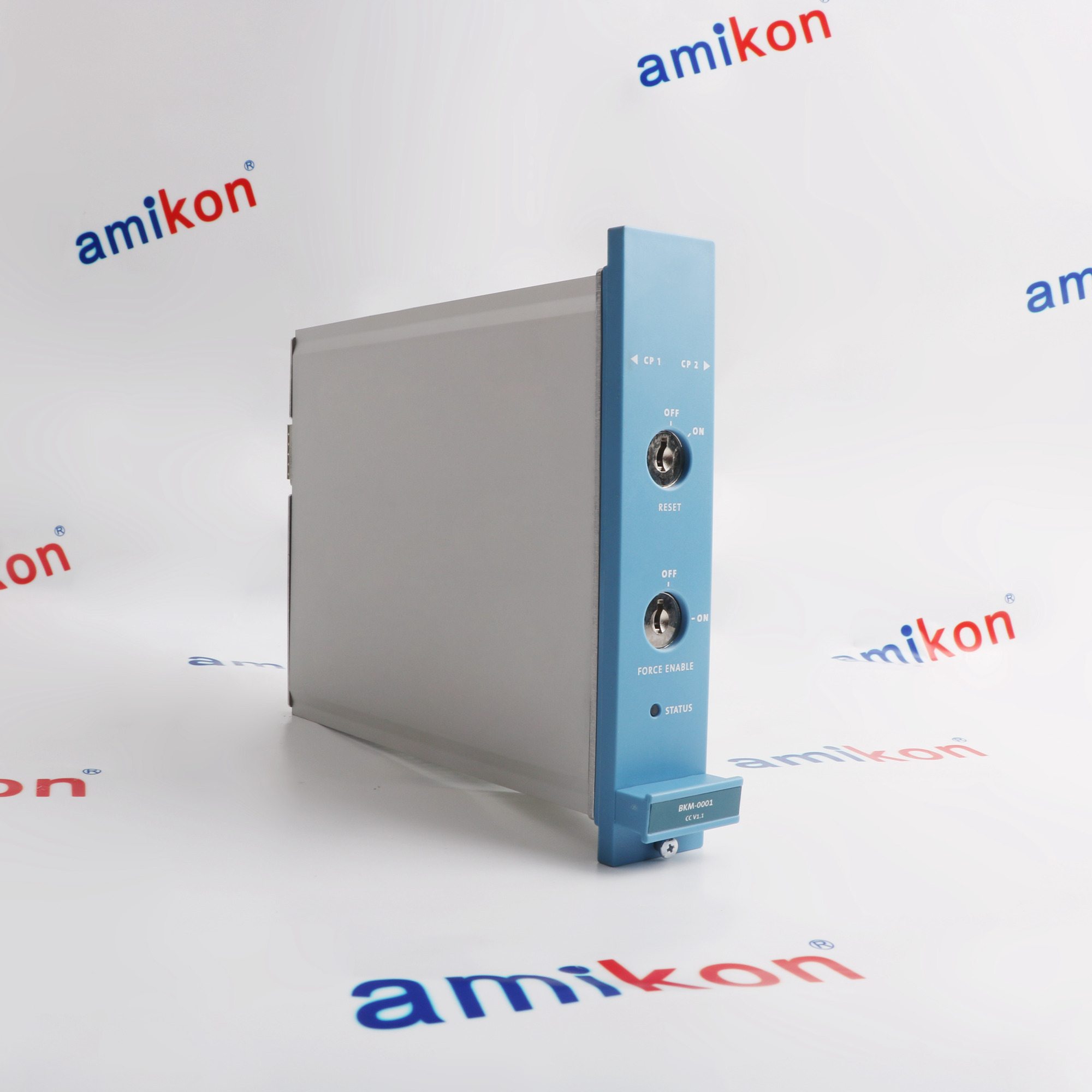

- Force Enable key switch
- Reset key switch
- Three general purpose 24 Vdc inputs
The module incorporates two lithium thionyl chloride batteries, with each battery assigned to an individual control processor. This architecture helps ensure the retention of critical operational data and controller information during power interruptions or maintenance activities. By maintaining processor memory integrity, the module contributes to system availability and reduces recovery time following power disturbances.
The FC-BKM-0001 V1.1 HONEYWELL Battery and Key switch Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL FC-BKM-0001 V1.1 Battery and Key switch Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FC-BKM-0001 V1.1 can be inserted or removed from a running Safety Manager system without interrupting the executing application program. This hot-swap capability simplifies maintenance by allowing battery replacement and module servicing without requiring a controlled process shutdown. However, Honeywell specifies that removal should only be performed with the Force Enable key switch in the OFF position, as extraction of the module automatically removes all active forces.
Environmental specifications include an operating temperature range of −5°C to +70°C and storage from −40°C to +85°C. Humidity tolerance spans 10% to 95% RH without condensation. The module's slim profile of 35.2 mm width allows high-density mounting in the Controller chassis alongside the QPP processor, USI communication module, and PSU power supply.
- Industrial Compressors:Prevents gas surges & over-pressurization
- Steam and Gas Turbines:Halt fuel, prevent overspeed
- Heavy-Duty Process Pumps:Shuts down during downstream leak/fire
- Process Heaters and Furnaces:cuts fuel on flame/ventilation loss
- Industrial Boilers:Prevents over-pressurization & dry-boiler explosions
- Emergency Flare Systems:Safety loops for pressure relief valves
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Isolate Electrical Power: Never insert or remove the module if the sub-rack backplane or terminal connections are actively energized.
Employ ESD Protection: Wear a grounded electrostatic discharge (ESD) wrist strap connected to the cabinet chassis to prevent damage to internal RAM circuitry.
Verify System Interlocks: Ensure any loops connected to the "Force Enable" or "Reset" key switches are placed in a safe manual bypass state before installation.
Technical notes
Three general purpose 24 VDC inputs (IN1, IN2, IN3) are located on the Controller backplane and powered by the BKM-0001's internal +24V_red output circuit. These inputs require external dry contacts and remain operational even if the 24 VDC supply from one Control Processor is interrupted. Input IN1 features a 0.1 ms filter for high-speed signal acceptance, while IN2 and IN3 incorporate 10 ms filters for noise immunity on standard digital signals.
FAQs
-
What is the FC-BKM-0001 V1.1?
+The Honeywell FC-BKM-0001 V1.1 is a vital battery backup and security module used in industrial automation and safety systems. -
What is the primary function of the FC-BKM-0001 V1.1 module?
+It provides necessary backup power for the Control Processors and integrates critical front-panel key switches to manipulate system operations safely. -
What data does the battery backup safeguard?
+The backup power maintains system diagnostic databases, the real-time clock (RTC) on QPP modules, and FTE IP addresses during an external power failure. -
Does it support hot-swapping?
+Yes, it integrates seamlessly into the standard Honeywell safety chassis and supports hot-swapping under appropriate safety procedures
