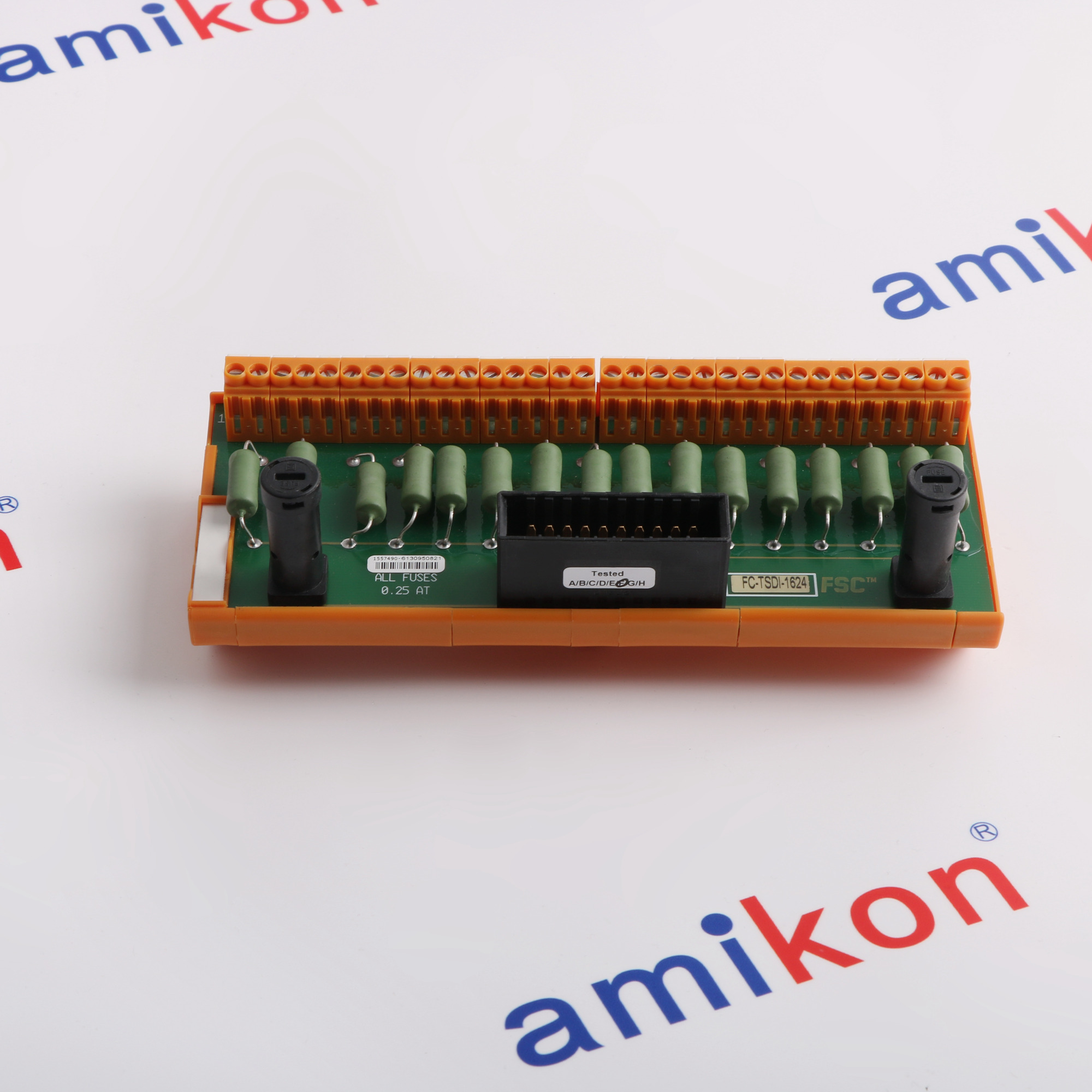

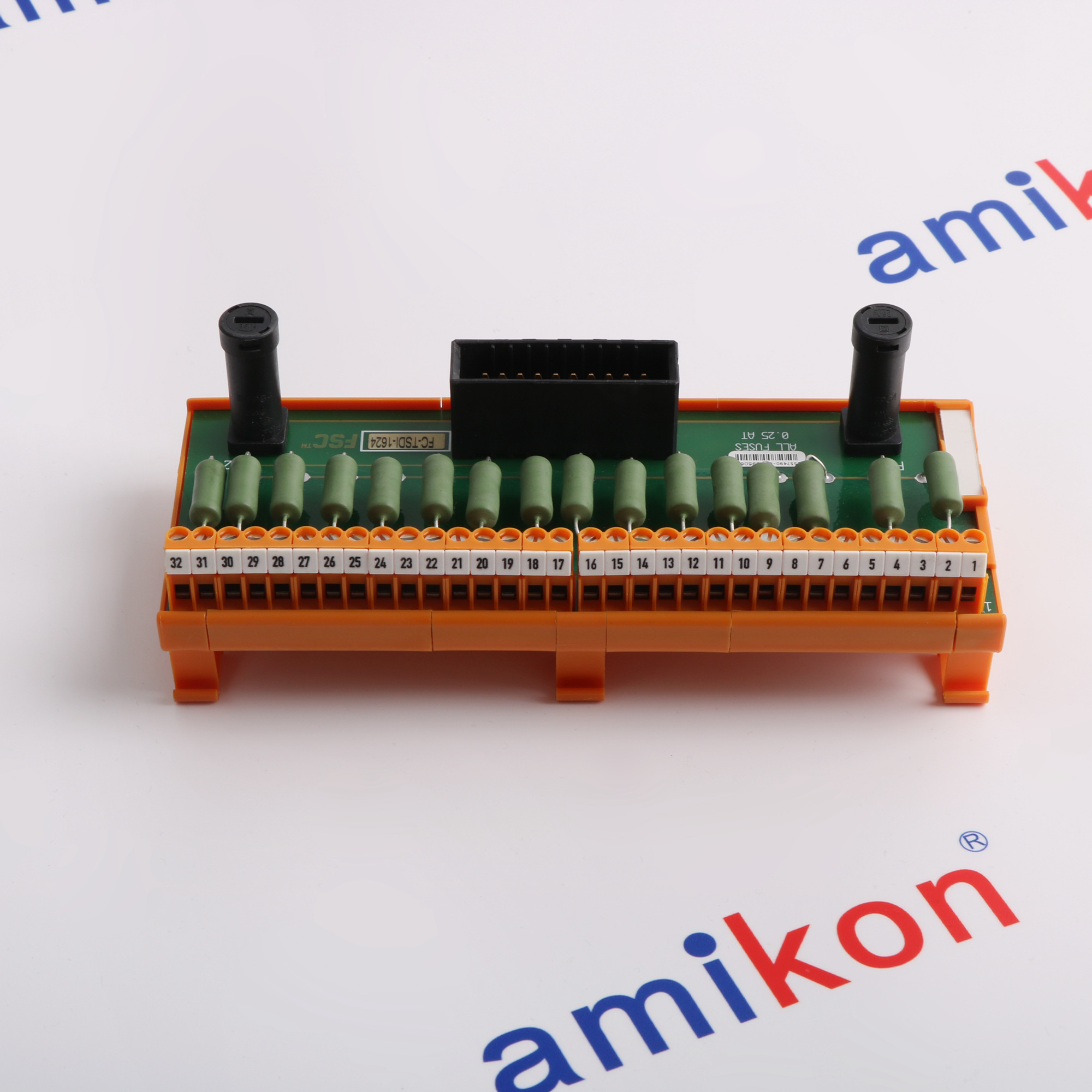

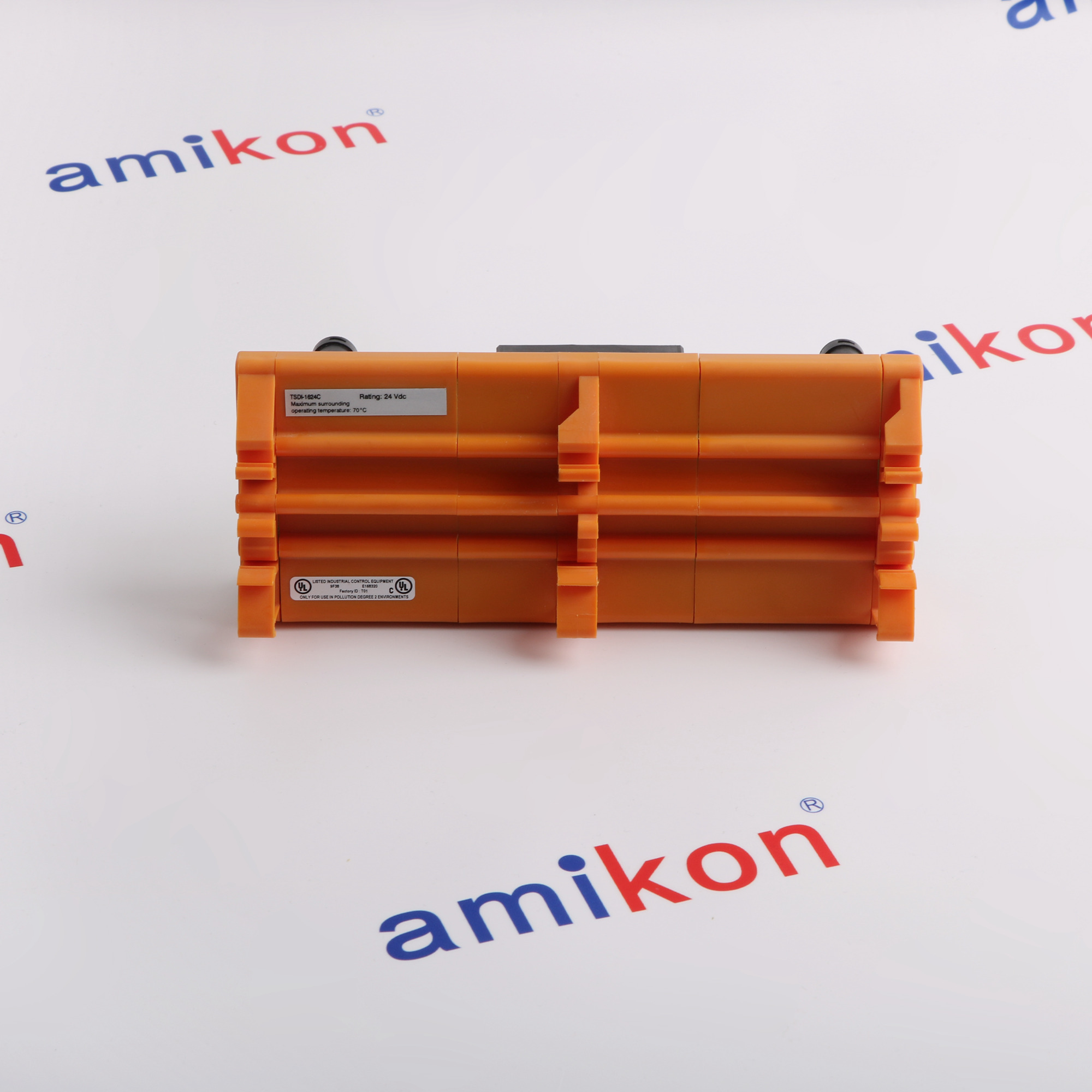

Technical specifications for FC-TSDI-1624C
-
Product ModelFC-TSDI-1624C
-
Spare ModelTSDI-1624C
-
Product ParametersSafe current-limited digital input
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size17x7x5.8cm
-
ManufacturerHoneywell
-
Weight0.2 kg
-
ApprovalsCE, TUV, UL, CSA, FM
-
Number of input channels16 (2 groups of 8)
-
Input voltage24 V DC, -15%-+30%
-
Input current≤ 15 mA at 24 V DC
-
Igniting current perchannel< 100 mA at 24 V DC +30%
-
Fuse rating250 mA
-
Voltage rating AC400 V
-
Voltage rating DC400 V
-
Manufacturer PNSHV12 250 mA
-
Maximum output currentper fuse175 mA
Description
Safe current-limited digital input FTA
24 V DC, 16 channels
Sixteen channels
eight channels with a 250 mA
canbe connected to the TSDI-1624C module
via a system interconnection cable (SICC-0001/Lx)
This cable isplugged into
the SIC connector on the FTA module
and connects to a (redundant pair of) SDI-1624module(s)
24 V DC, 16 channels
Sixteen channels
eight channels with a 250 mA
canbe connected to the TSDI-1624C module
via a system interconnection cable (SICC-0001/Lx)
This cable isplugged into
the SIC connector on the FTA module
and connects to a (redundant pair of) SDI-1624module(s)
