Technical specifications for FC-TSDI-16UNI
-
Product ModelFC-TSDI-16UNI
-
Spare ModelTSDI-16UNI
-
Product ParametersSafe digital input FTA
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9x7x5.8cm
-
ManufacturerHoneywell
-
Weight0.15 kg
-
ApprovalsCE, TUV, UL, CSA, FM
-
Number of channels16 (2 groups of 8)
-
Maximum voltage50 V DC - IEC 61010-1 (1990)
-
Fuse rating250 mA
-
Fuse dimensions5x20 mm
-
Voltage rating AC400 V
-
Voltage rating DC400 V
-
ManufacturerSOC
-
Manufacturer PNSHV12 250 mA
Description
Safe digital input FTA
24/48 V DC, NAMUR, 16 channels
Sixteen channels ,eight channels with a 250 mA fuse
canbe connected to the TSDI-16UNI module
via a system interconnection cable (SICC-0001/Lx)
SIC connector on the FTA module
connects to a (redundant pair of) SDIL-1608module(s)
24/48 V DC, NAMUR, 16 channels
Sixteen channels ,eight channels with a 250 mA fuse
canbe connected to the TSDI-16UNI module
via a system interconnection cable (SICC-0001/Lx)
SIC connector on the FTA module
connects to a (redundant pair of) SDIL-1608module(s)
Information
Overview
Manuals
Technical notes
Product Applications
System Interconnection
Features:
- Fail-safe digital output FTA
- 16-Channel Safe Digital Input
- Dual Group Configuration (2×8 Channels)
- SICC-0001/Lx System Interconnection Cable Interface
- Redundant SDIL-1608 Module Support

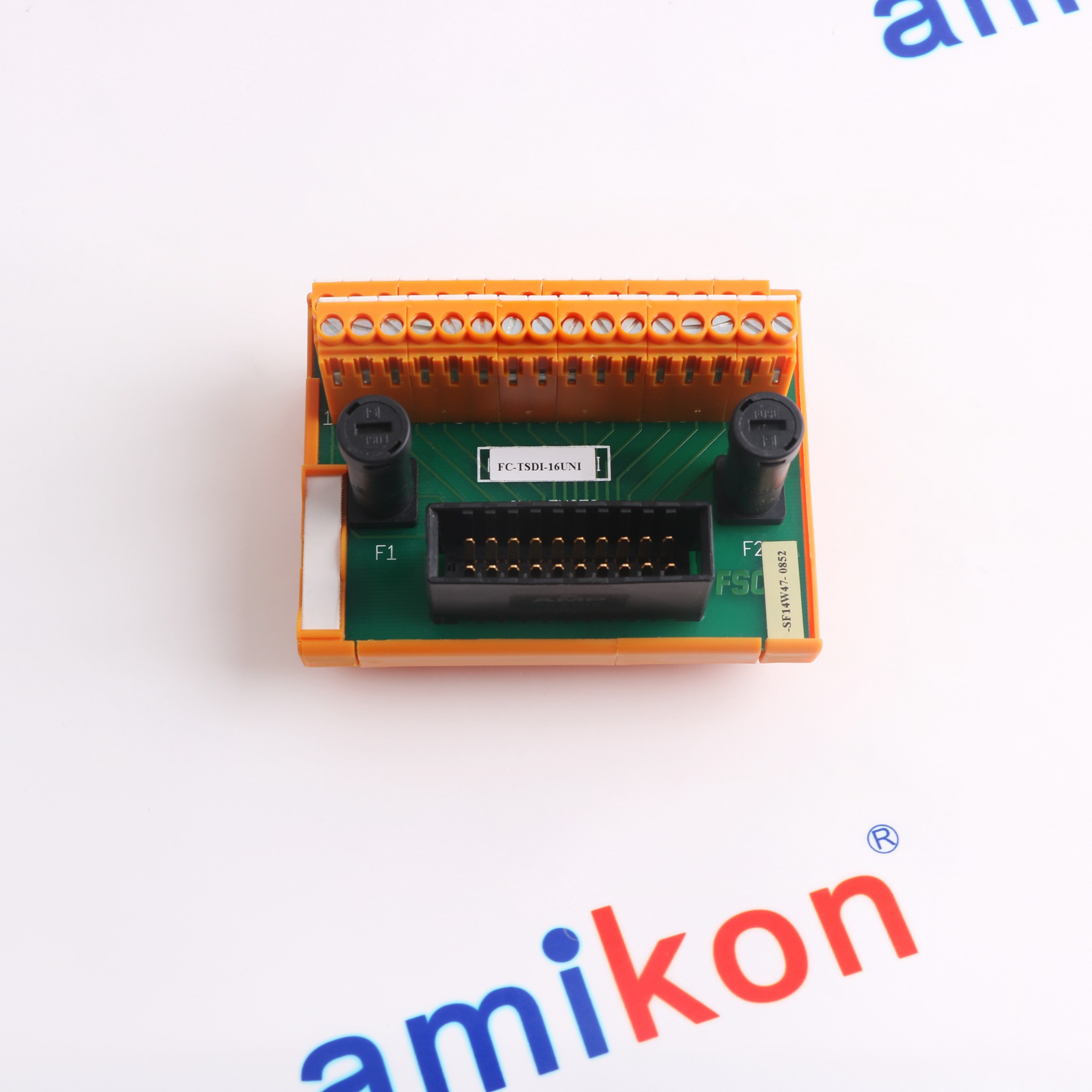

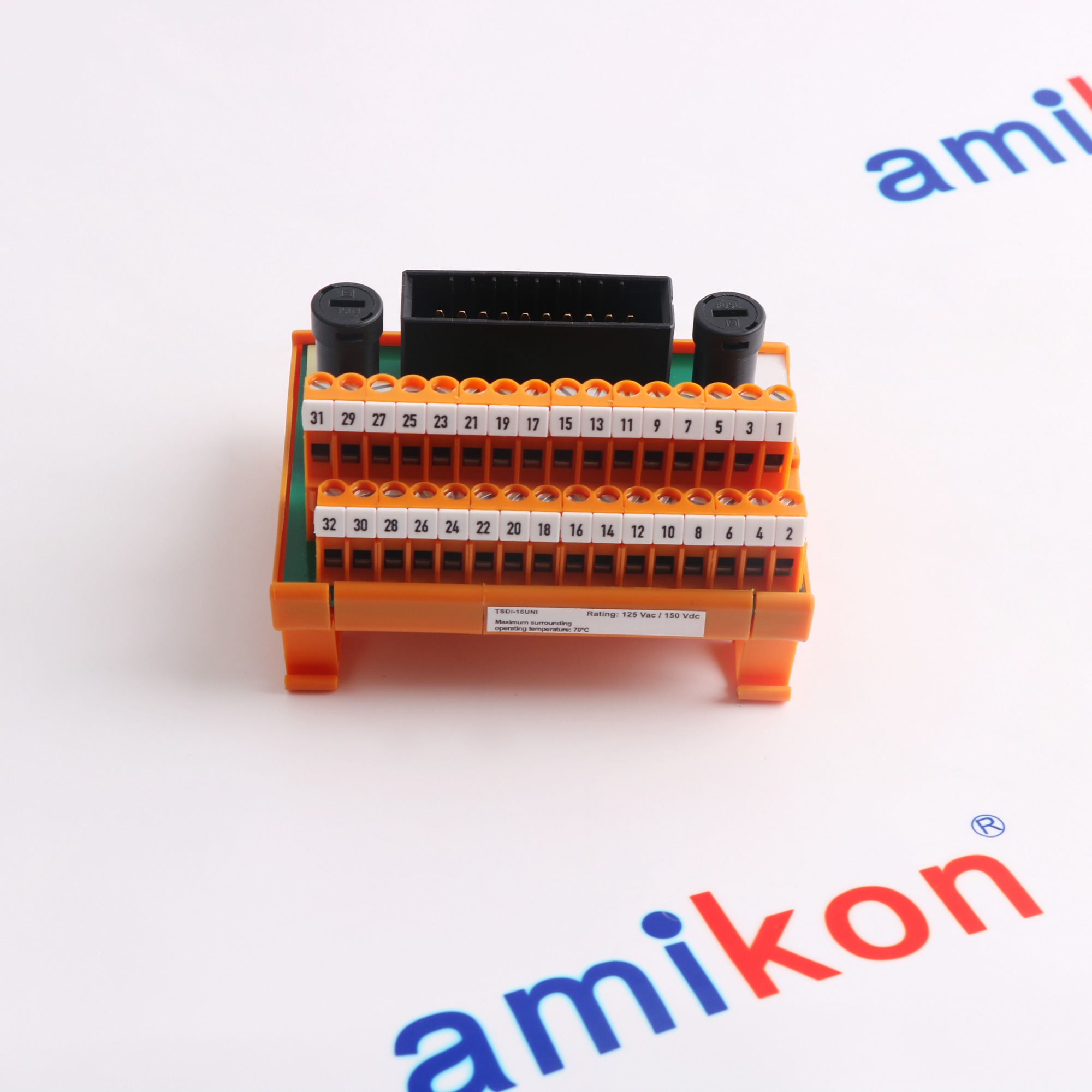

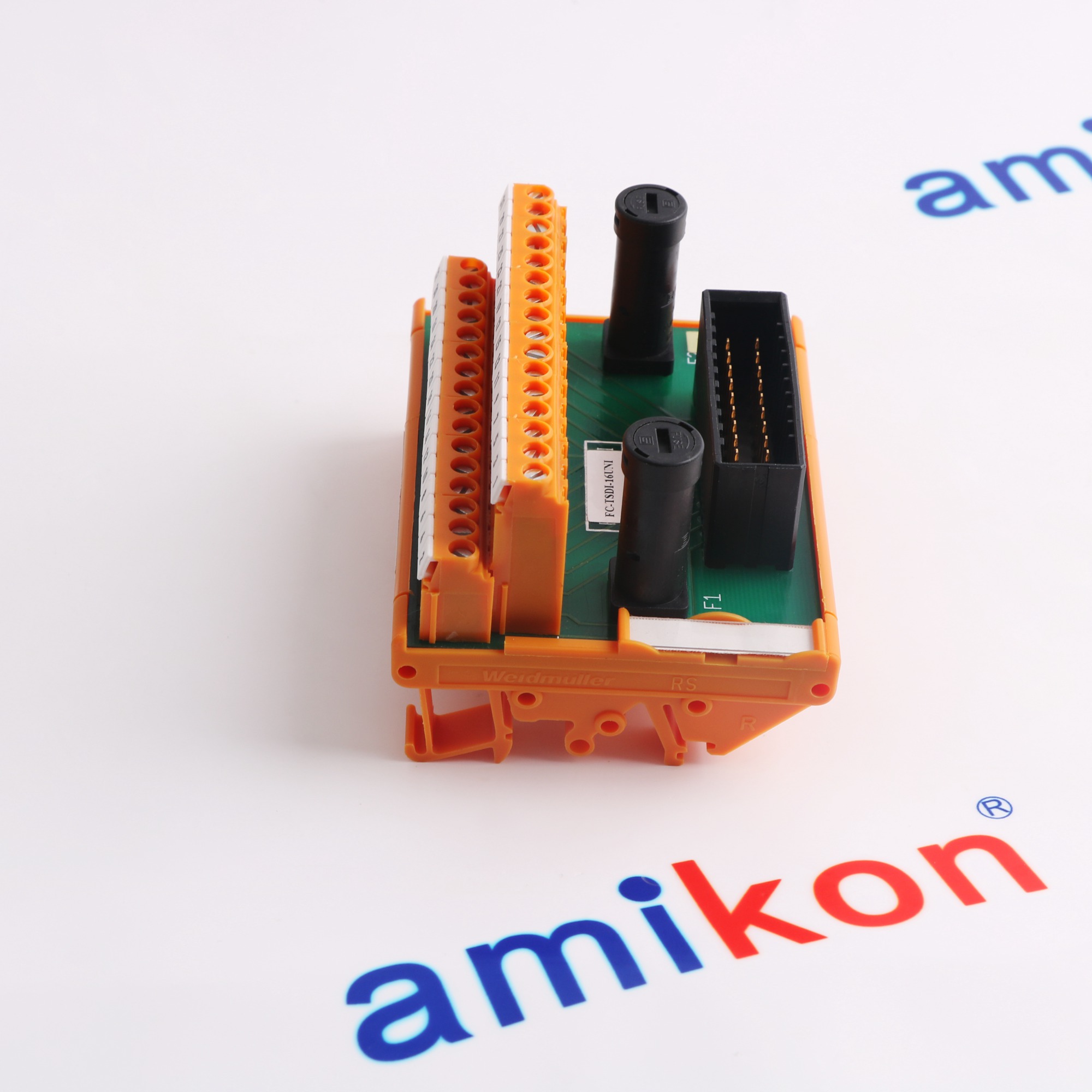

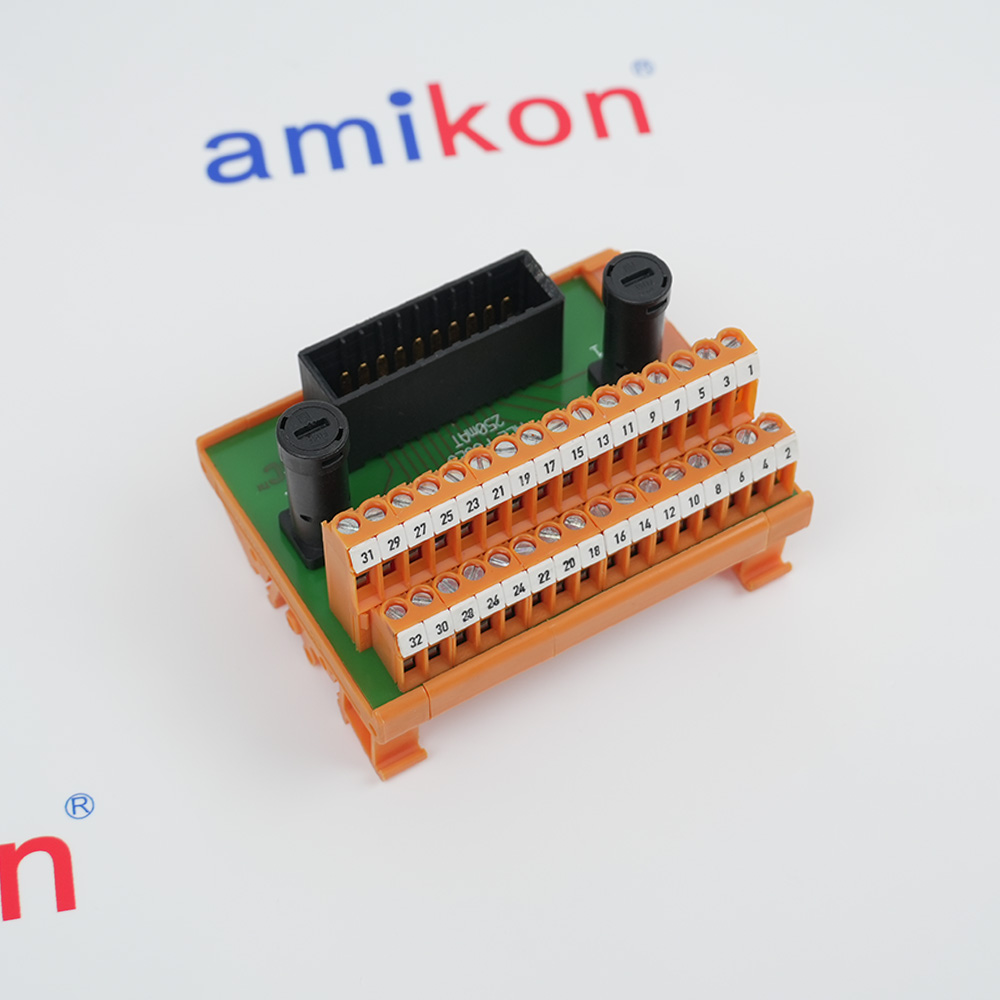

Field termination assembly module TSDI-16UNI is the interface between systeminterconnection cable SICC-0001/Lx and the external field wiring (screwterminals).Sixteen channels (separated into two groups of eight channels with a 250 mA fusein the common +) can be connected to the TSDI-16UNI module via a systeminterconnection cable (SICC-0001/Lx). This cable is plugged into the SICconnector on the FTA module, and connects to a (redundant pair of) SDIL-1608module(s).The FTA module has a universal snap-in provision for standard DIN EN rails, andscrew terminals for connecting field wiring
The FC-TSDI-16UNI Honeywell Safe digital input FTA may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-TSDI-16UNI Safe digital input FTA Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FC-TSDI-16UNI it is a 16-channel Safe Digital Input Field Termination Assembly (FTA) used as an interface between field wiring (screw terminals) and system interconnection cables (SICC-0001/Lx) for Safety Manager modules, including redundant pairs of SDIL-1608 modules.Typically rated for SIL2 (Safety Integrity Level 2) applications. The "FC" prefix indicates the module is conformal coated for protection against harsh industrial environments, whereas "FS" versions are not.
- Emergency Shutdown (ESD) Systems:Secure shutdown signals for critical failures to protect personnel/equipment
- Fire and Gas Detection:Actuates alarms, suppression or ventilation on hazard detection
- Burner/Boiler Management Systems (BMS):Controls solenoids/igniters for safe combustion equipment operation
- Machinery Safety:Fail-safe controls for complex machinery & assembly actuators
- Turbine and Compressor Safeguarding:Safety-critical valve control for high-speed rotating equipment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
System Cable: Plug the SICC-0001/Lx system interconnection cable into the dedicated SIC connector on the FTA.
Module Connection: Connect the other end of the cable to a pair of redundant SDIL-1608 (Safe Digital Input) modules.
Channel Groups: Note that the 16 channels are split into two groups of eight. Each group shares a common positive (+) line protected by a 250 mA slow-acting fuse.
FAQs
-
What is the FC-TSDI-16UNI?
+It is a 16-channel Safe Digital Input Field Termination Assembly (FTA) used as an interface between field wiring (screw terminals) and system interconnection cables (SICC-0001/Lx) for Safety Manager modules, including redundant pairs of SDIL-1608 modules. -
What is the maximum voltage of FC-TSDI-16UNI?
+It supports up to 50 Vdc (IEC 61010-1 Overvoltage Category 3) or 150 Vdc (IEC 61010-1 Overvoltage Category 2). -
Can it be used with redundant modules?
+Yes, the TSDI-16UNI is designed to work with redundant pairs of SDIL-1608 modules. -
What are the fuse requirements for FC-TSDI-16UNI?
+250 mA (slow-blow) fuse, size 5 x 20 mm. -
What safety certifications does it have?
+The module is approved with CE, TUV, UL, CSA, and FM certifications.
