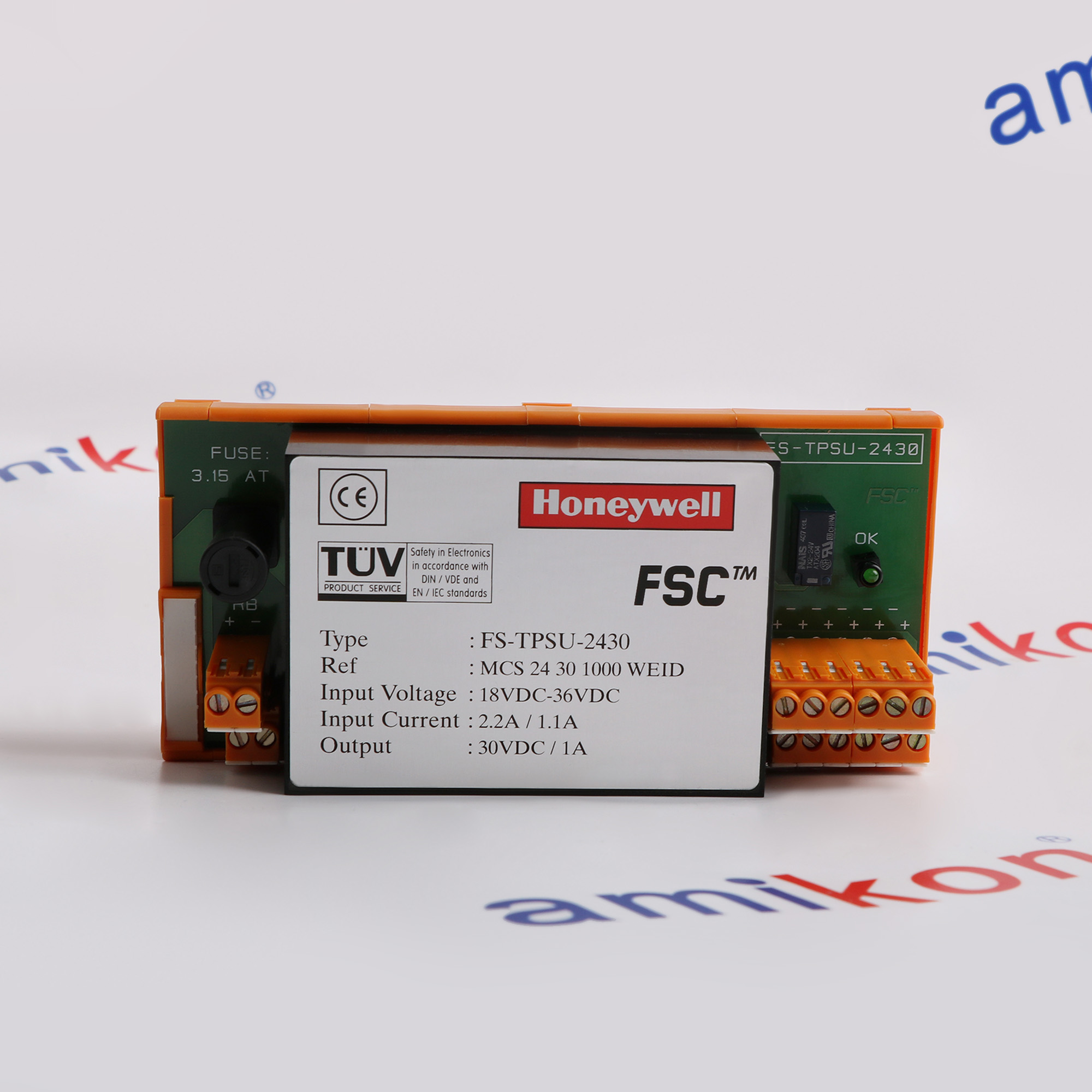

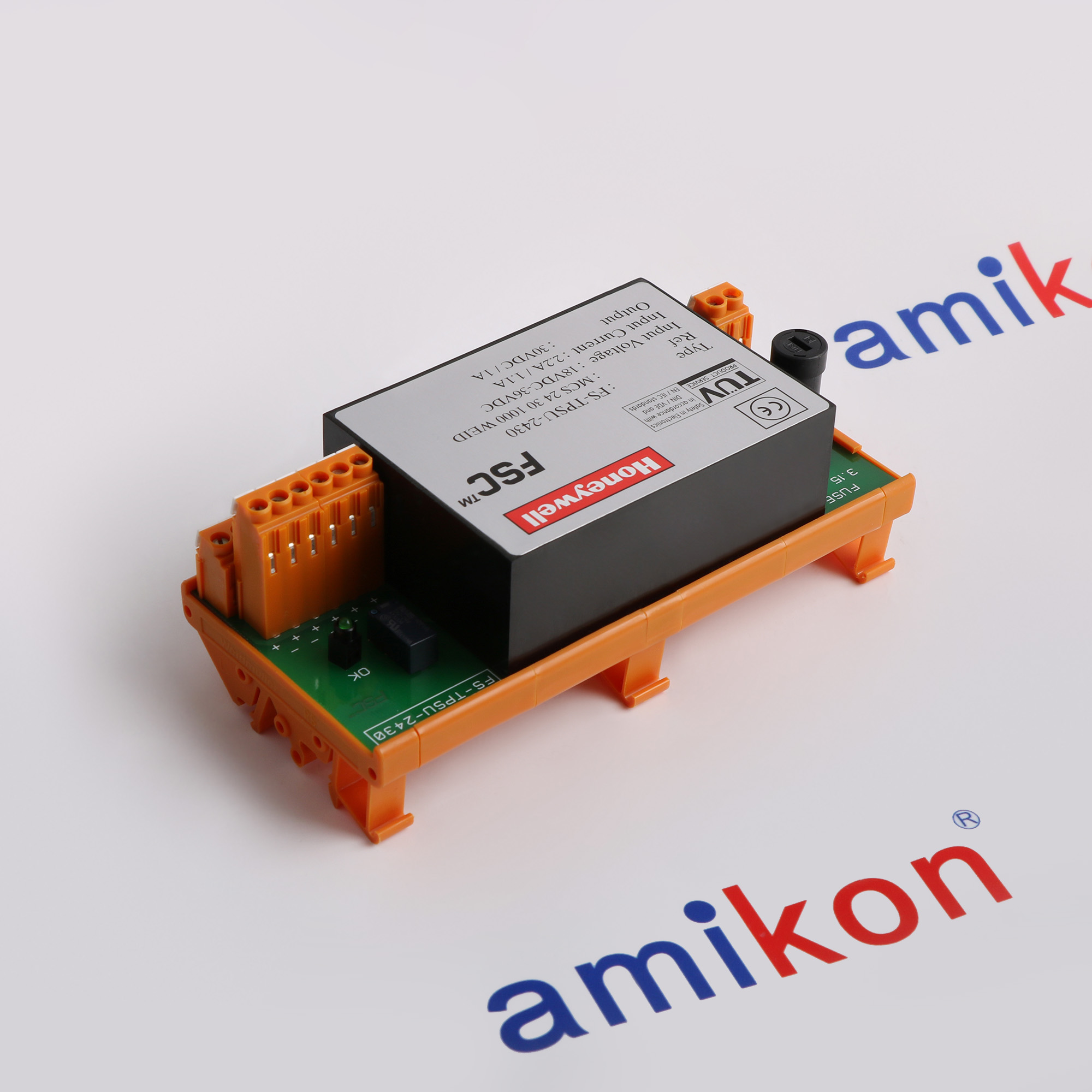

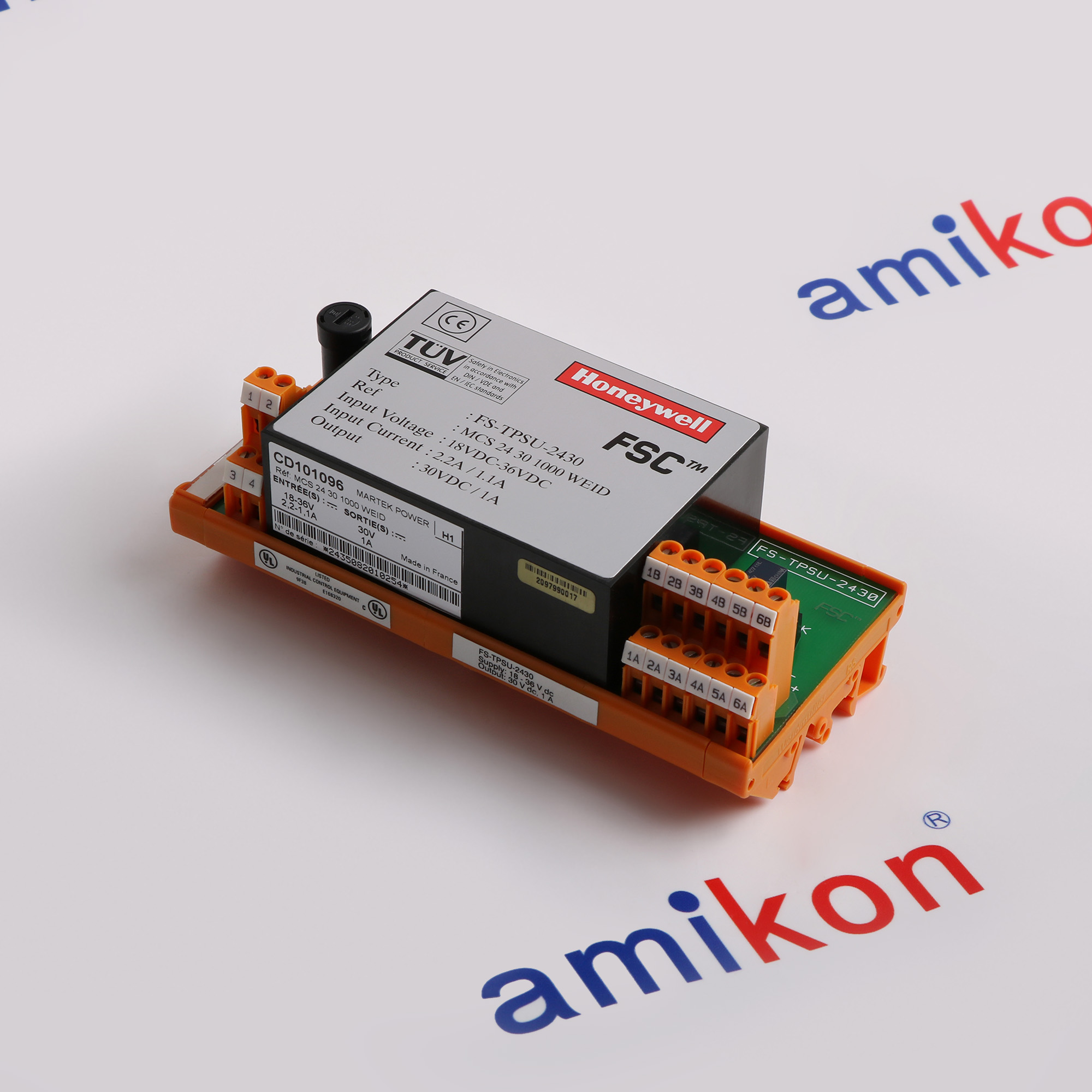

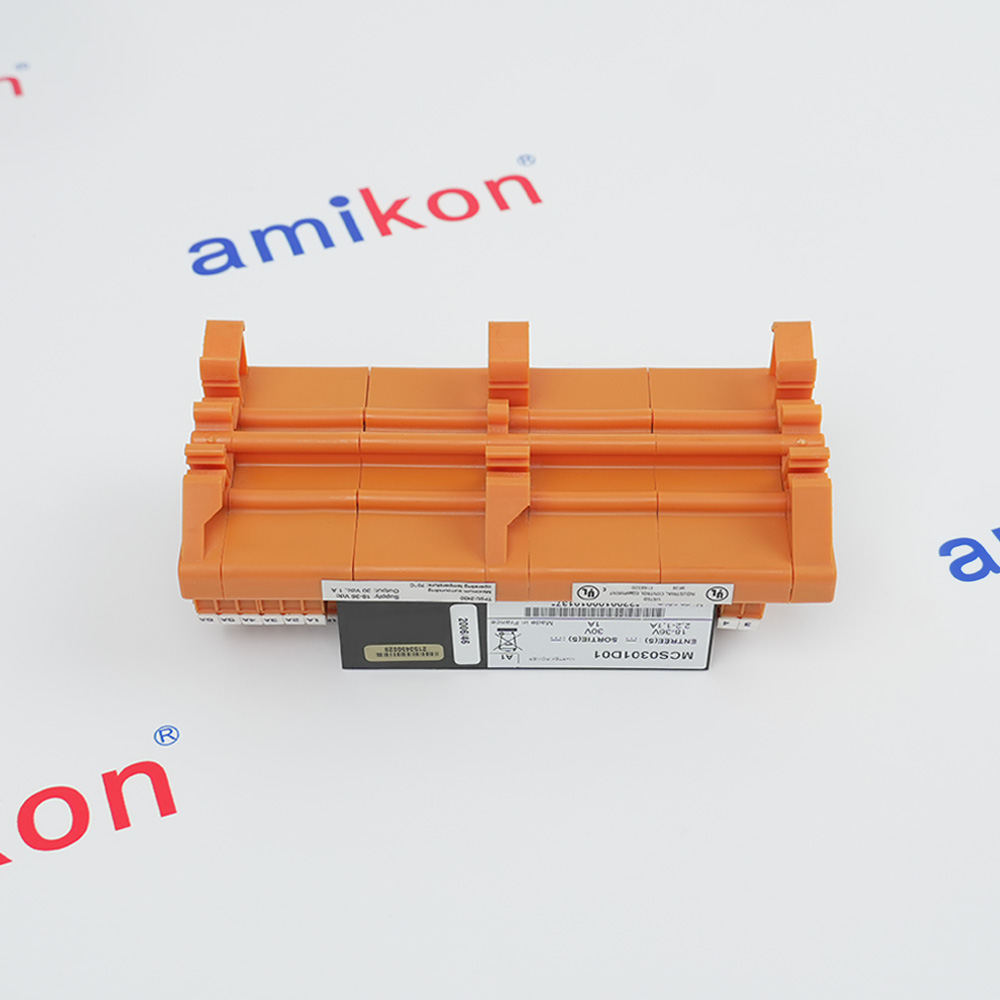

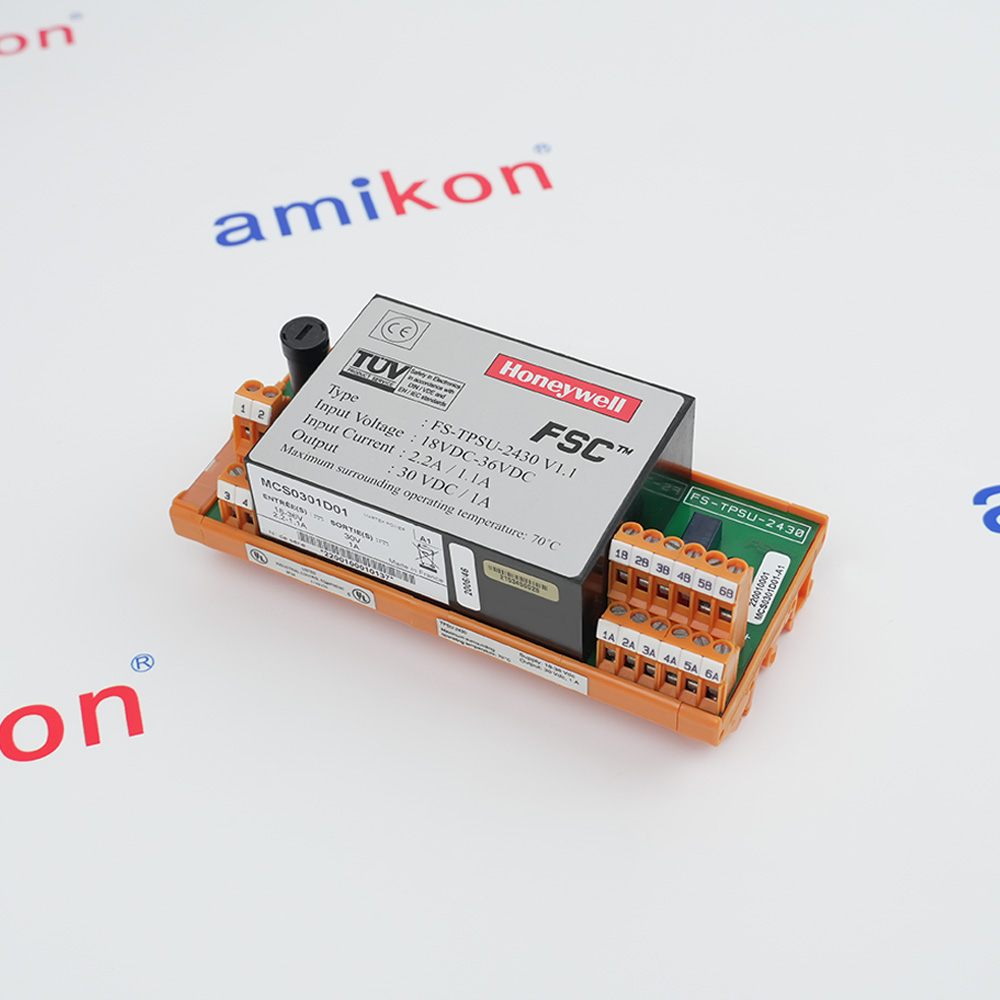

FS-TPSU-2430
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
FSTPSU2430
CONVERTER
1 AMP
24-30 VDC
CONVERTER
1 AMP
24-30 VDC
Technical specifications for FS-TPSU-2430
-
Product ModelFS-TPSU-2430
-
Product ParametersDC/DC converter
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size15x7x6cm
-
ManufacturerHoneywell
-
Weight0.46 kg
-
ApprovalsCE, TUV, UL, CSA, FM
-
Safety classup to and including SIL3
-
Nominal input voltage24 V DC
-
Input voltage range18–36 V DC
-
Inrush current≤ 4 A
-
Output voltage30 V DC, ± 0.25 V
-
Output current1 A
-
Short-circuit current< 3.3 A
-
Ripple (0—30 MHz)< 0.1 Vrms
-
Regulation< 1%
-
Power-on overshoot:output< 33 V
-
Long-term stability (after 30min. operation)< 0.3%
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the FS-TPSU-2430 ?+The Honeywell FC-TPSU-2430(or FS-TPSU-2430) is an industrial-grade DC/DC converter, typically used to convert 24 VDC to 30 VDC(1A) for powering field devices or Safety Manager System components.
-
What is the primary function of the FS-TPSU-2430?+It converts a 24 VDC input to a 30 VDC output (1 Amp) to power field devices that require a higher voltage than the standard 24V supply.
-
Is this product brand new?+Yes, Honeywell FS-TPSU-2430 is brand new, original, unused, and factory sealed
-
How do I get the price of Honeywell FS-TPSU-2430？+Please contact our sales director Ms. Sandy for a discount exclusive quote, Email info@amikon.cn Mob/Whatsapp: +86-18020776786.
Get a quick price fo FS-TPSU-2430
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Core Function & Indicators
Features:
- DC/DC converter
- Isolated 30 Vdc / 1 A to other field termination assemblies(FTAs)
- 24 Vdc to 30 Vdc/1 A converter
The FS-TPSU-2430 Honeywell DC/DC converter may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TPSU-2430 DC/DC converter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FS-TPSU-2430 (often listed as FC-TPSU-2430 for conformal coated versions) is a high-efficiency DC/DC converter module used within the Safety Manager System (formerly FSC) to provide isolated power to field termination assemblies (FTAs), such as the TSAI-1620m and TSHART-1620m.Provides galvanic isolation for input, output, and relay contact connections to enhance system integrity.
- Oil and Gas: Safety control and management
- Chemical Processing and Petrochemicals: Safety systems for large-scale manufacturing
- Power Generation: Power management systems
- Pharmaceuticals & Manufacturing: Control of critical safety functions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Purpose: It converts a 24 Vdc input into a regulated and isolated 30 Vdc / 1 A output.
Target Devices: It specifically powers field termination assemblies such as the TSAI-1620m and TSHART-1620m.
LED Status:
ON: Indicates the local DC/DC output voltage is OK.
OFF: Indicates a fault or loss of output.
Monitoring: Includes a read-back relay contact
