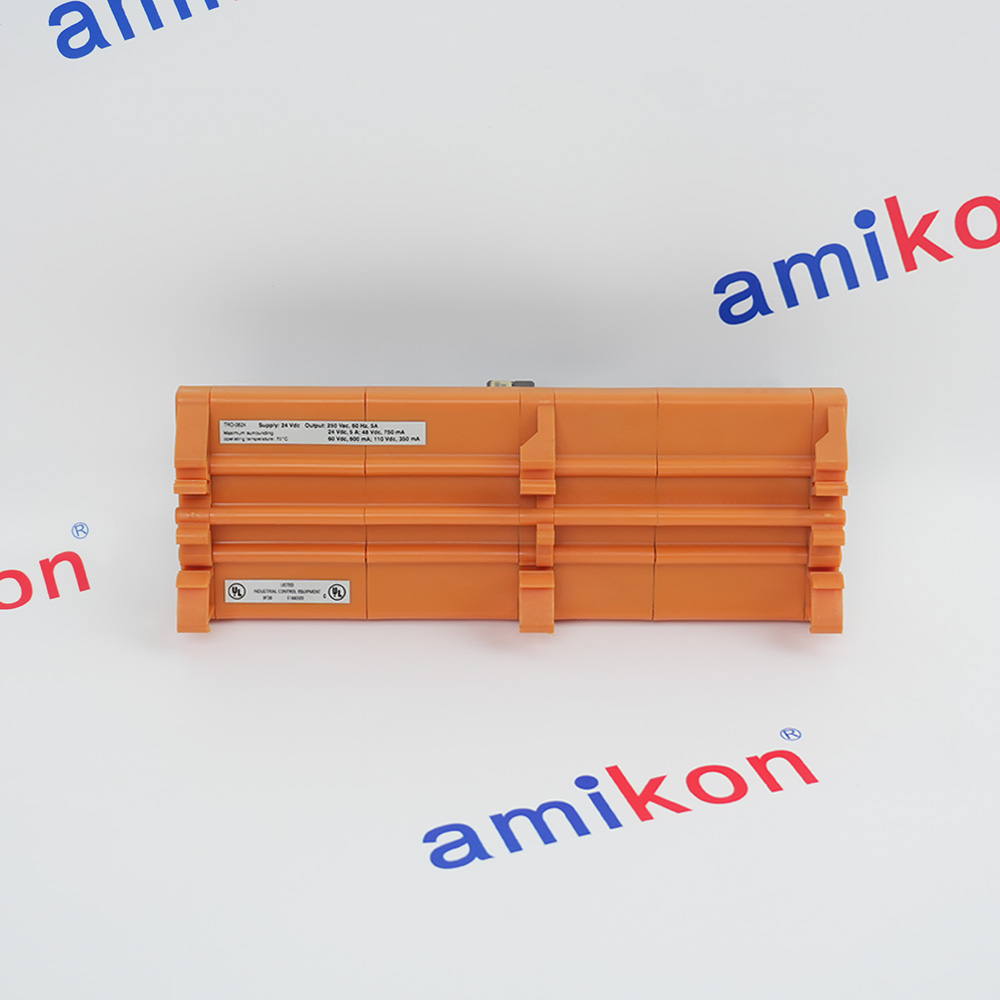

Technical specifications for FS-TRO-0824
-
Product ModelFS-TRO-0824
-
Product ParametersDigital output module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x6.5x11.8cm
-
ManufacturerHoneywell
-
Weight0.3 kg
-
ApprovalsCE, UL, TUV, CSA
-
Nominal input voltage24 V DC
-
Max. input voltage31 V DC
-
Relay cut-in voltage19 V DC
-
Input currenttypically 27 mA at 24 V DC
-
Number of outputchannels8
-
Max. output current5 A
-
Max. output voltage250 V AC / 300 V DC
-
Max. switched load1250 VA / 150 W at 30 V DC
Description
Non-safe dry digital output FTA
8 channels, NO/NC
interconnection cable
eight non-safe potential-free
relaychangeover contacts
8 channels, NO/NC
interconnection cable
eight non-safe potential-free
relaychangeover contacts
Information
Overview
Manuals
Technical notes
Product Applications
Installation and Safety Guidelines
Features:
- 8-Channel Non-Safe Dry Digital Output
- Potential-Free Changeover Contacts
- SICC-0001/Lx System Interconnection Cable Interface
- Redundant SDO-0824 Module Support
- Non-Safety Dry Contact Digital Output FTA

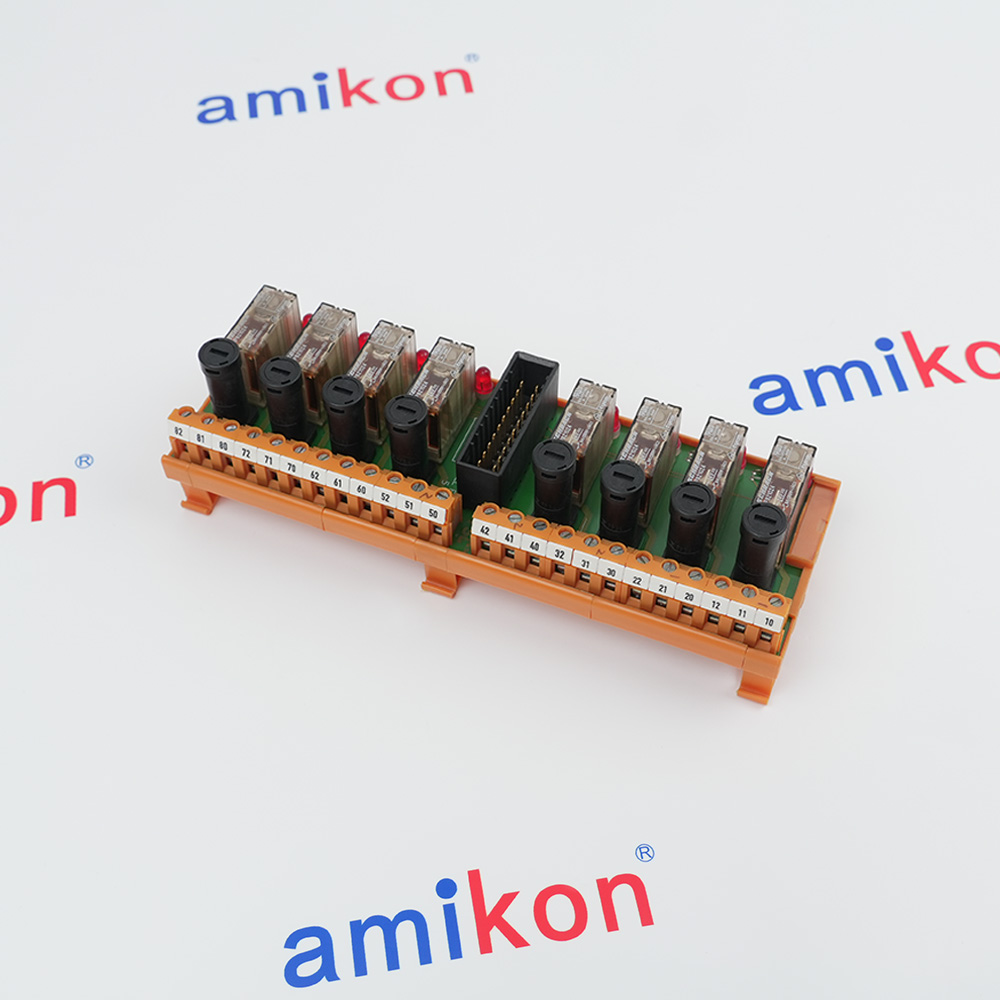

The TRO-0824 field wiring module is the interface between the system interconnect cable SICC-0001/Lx and external field wiring (screw terminals). It has eight non-safety passive relay changeover contacts (NO/NC). LEDs on the module indicate the relay's energization status. You can connect up to eight channels to the TRO-0824 via the system interconnect cable SICC-0001/Lx. This cable plugs into the SIC connector on the FTA module and connects to the (redundant pair) SDO-0824 module. The FTA module features a universal snap-on mounting method, is compatible with standard DIN EN rails, and is equipped with screw terminals for connecting field wiring.
The FS-TRO-0824 Honeywell Non-Safety Dry Contact Digital Output FTA may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TRO-0824 Non-Safety Dry Contact Digital Output FTA Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FS-TRO-0824 (often listed as FC-TRO-0824) is a Field Termination Assembly (FTA) 8-channel Digital Output (DO) module with relay contacts, specifically for safety-critical applications within the Honeywell Safety Manager™ system. It serves as an interface between the safety controller and field devices, providing high reliability and fail-safe operation. Certified up to SIL3 (Safety Integrity Level 3) according to IEC 61508.2A at 24Vdc or higher, depending on configuration (up to 250Vac/300Vdc).
- Chemical and Petrochemical: Chemical production, storage facilities, and loading terminals
- Turbine/Compressor Control: Monitors and controls turbo-machinery in energy applications
- Burner/Boiler Management Systems: Manages the safe startup and operation of large-scale industrial burners
- Process Control Systems: Provides high-reliability control of final elements, such as valves, actuators, and motors, especially in critical processes
- Safety and Emergency Shutdown Systems (ESD): Used in industrial settings to safely shut down processes upon detecting hazards
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Electrostatic Discharge (ESD): Use ESD-safe procedures (e.g., wrist straps) when handling the module to prevent damage to internal circuits.
Wiring: Connect field devices to the screw terminals on the FTA. Ensure the earth wire is properly grounded to the enclosure to maintain safety standards.
Mounting: The unit can generally be mounted horizontally or vertically within a standard chassis or cabinet environment.
FAQs
-
What is the Honeywell FS-TRO-0824?
+The FS-TRO-0824 is a 8-channel Digital Output Field Termination Assembly (FTA) with relay contacts. -
What are the main characteristics of the FS-TRO-0824 relay contacts?
+It has 8 channels and typically supports normally open (NO) and normally closed (NC) configurations. -
What are the voltage and current ratings for the outputs?
+The module supports a maximum switched voltage of 250 V AC or 300 V DC and a maximum current of 8 A -
What is the maximum switching frequency?
+The maximum switching frequency is 20 Hz -
What type of contacts does it have?
+It features 8 channels of relay contacts, typically supporting both Normally Open (NO) and Normally Closed (NC) configurations.
