Technical specifications for FS-TSDI-16UNI
-
Product ModelFS-TSDI-16UNI
-
Product ParametersTERMINAL CONNECTION BASE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9x7x6cm
-
ManufacturerHoneywell
-
Weight0.14 kg
-
ApprovalsCE, TUV, UL, CSA, FM
-
Number of channels16 (2 groups of 8)
-
Maximum voltage50 V DC - IEC 61010-1 (1990)
-
Fuse rating250 mA
-
Fuse dimensions5x20 mm
-
Voltage rating AC400 V
-
Voltage rating DC400 V
-
ManufacturerSOC
-
Manufacturer PNSHV12 250 mA
-
Maximum output currentper fuse175 mA
Description
FSTSDI16UNI
TERMINAL CONNECTION BASE
125VAC/150VDC
32 POSITION
TERMINAL CONNECTION BASE
125VAC/150VDC
32 POSITION
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- 16-Channel Safe Digital Input Interface
- Dual-Group Fused Protection (2×8 Channels)
- Universal Voltage Compatibility (24/48/60/110 VDC)
- Line Monitoring Capability
- Universal DIN Rail Mounting

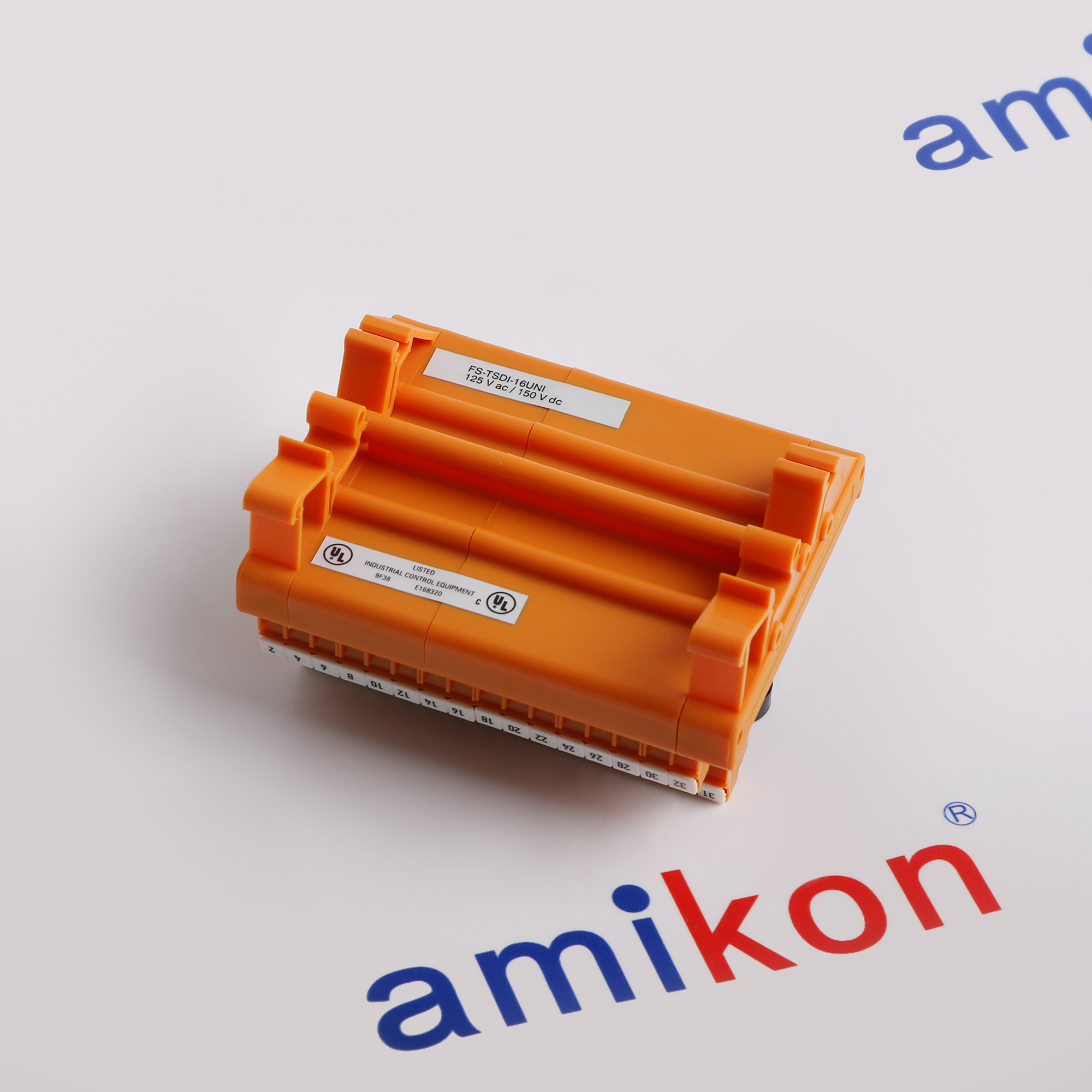

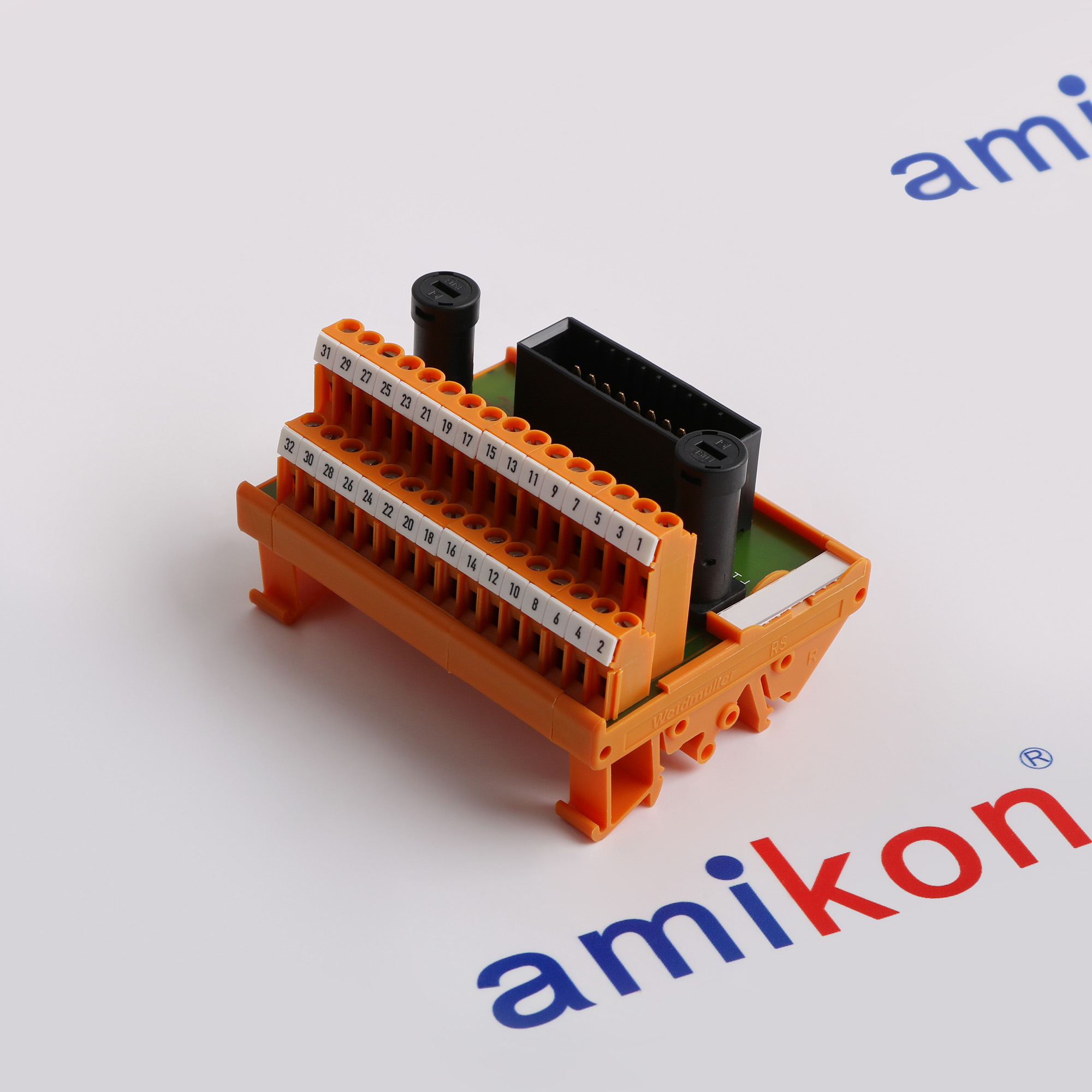

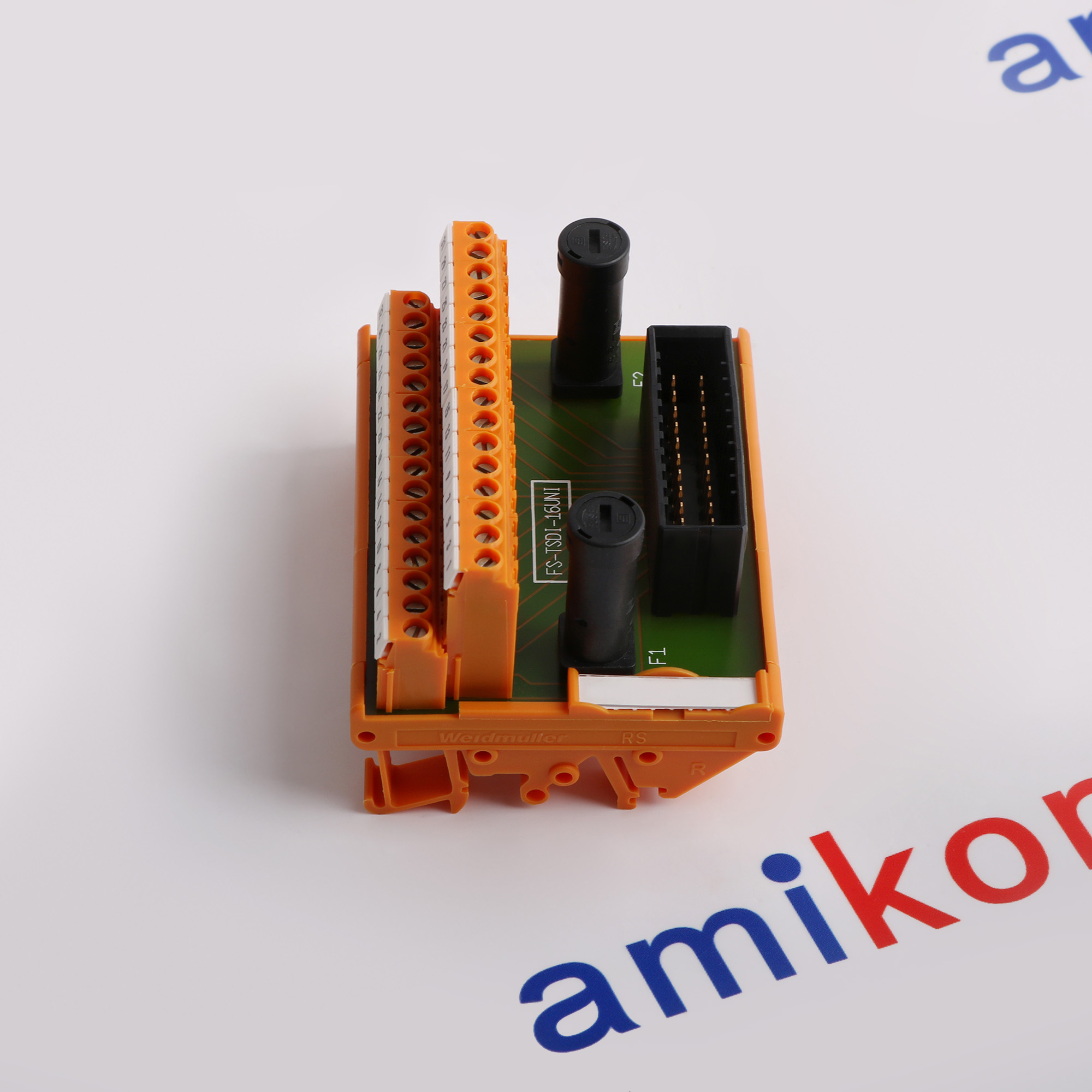

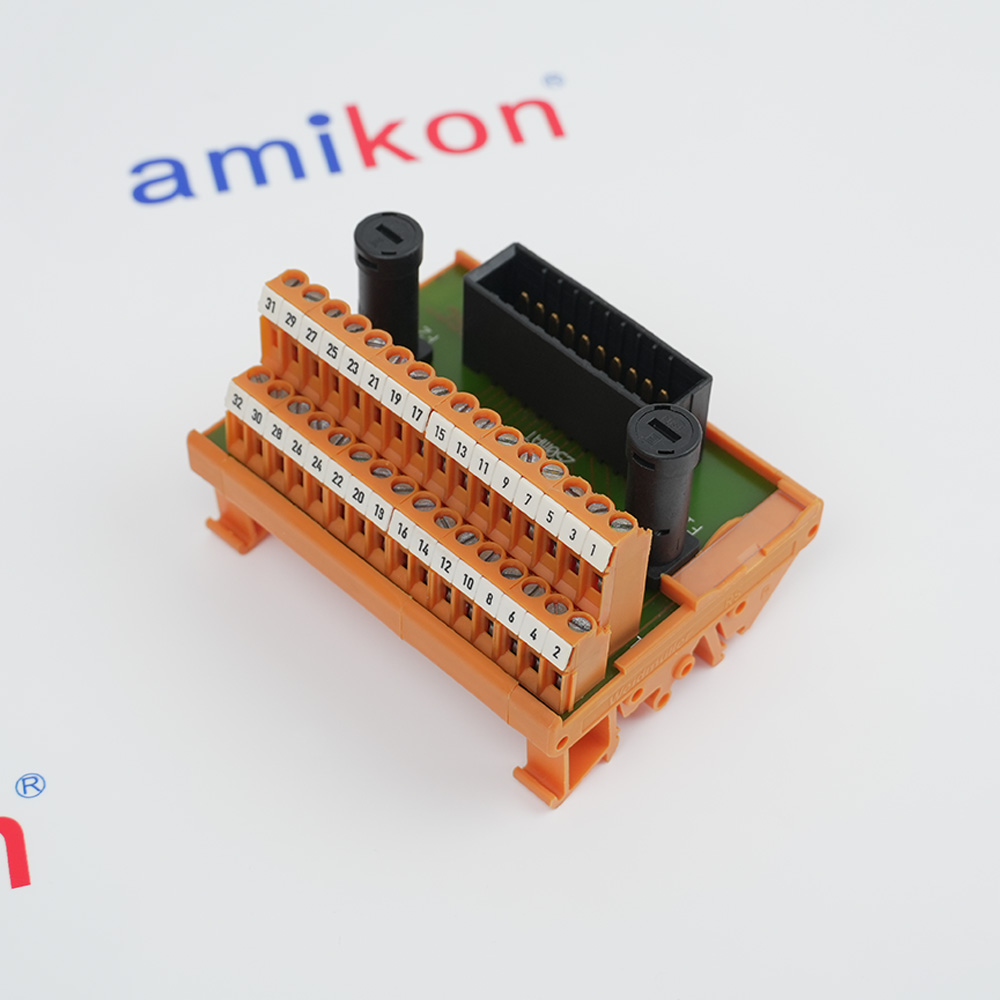

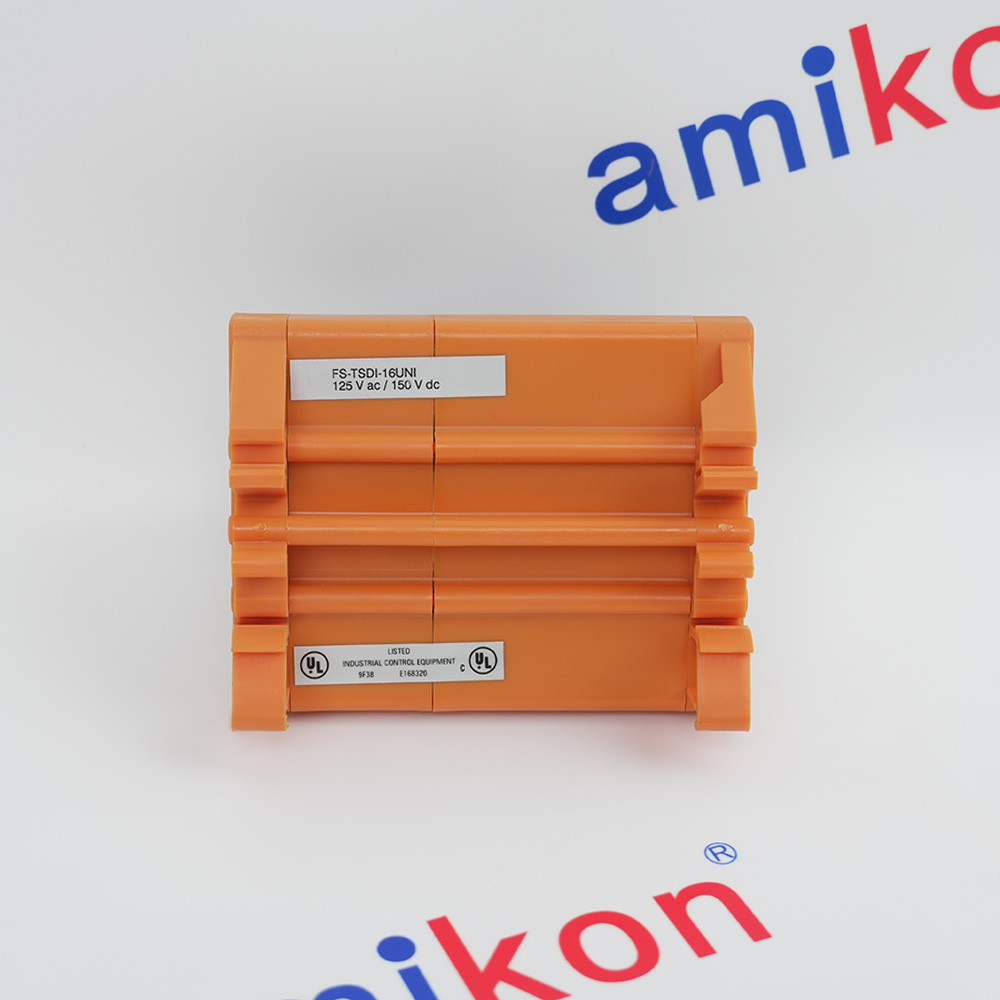

Field termination assembly module TSDI-16UNI is the interface between systeminterconnection cable SICC-0001/Lx and the external field wiring (screwterminals).Sixteen channels (separated into two groups of eight channels with a 250 mA fusein the common +) can be connected to the TSDI-16UNI module via a systeminterconnection cable (SICC-0001/Lx). This cable is plugged into the SICconnector on the FTA module, and connects to a (redundant pair of) SDIL-1608module(s).The FTA module has a universal snap-in provision for standard DIN EN rails, andscrew terminals for connecting field wiring
The FS-TSDI-16UNI Honeywell Safe digital input FTA may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSDI-16UNI Safe digital input FTA Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FS-TSDI-16UNI is a 16-channel Safe Digital Input Field Termination Assembly (FTA) module for use with the Honeywell Safety Manager platform. It serves as a critical interface between external field wiring and the system's interconnection cables.Features a 250 mA fuse in each group's common positive line.The "FS" prefix indicates that this module is non-conformal coated; the "FC" version (FC-TSDI-16UNI) is the conformal-coated equivalent for harsher environments
- Oil & Gas:Petrochemical plants & pipeline safety monitoring
- Power Generation:Process safeguarding, BMS & boiler control
- Chemical Processing:Safety-critical automation for complex control
- Marine Automation:Automated safety systems in marine environments
- Emergency Shutdown Systems (ESD):Automatically shuts down processes to prevent hazards
- Fire & Gas Detection:Controls output signals for detection & response
- Turbomachinery Control:Safeguards turbines/compressors from failure/damage
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The Honeywell FS-TSDI-16UNI is a "Universal" Field Termination Assembly (FTA) primarily distinguished by its ability to handle a broad range of digital signals (24/48 V DC, NAMUR). Related models in the Safety Manager series are typically differentiated by their coating, voltage specificity, or intended application.
FS-TSDI-16UNI: This is the non-conformal coated version. It is intended for standard environments where moisture or corrosive gases are not a primary concern.
FC-TSDI-16UNI: This is the conformal coated version. It is chemically treated to protect the circuitry, making it suitable for harsher industrial environments where it may be exposed to humidity or chemical contaminants
FAQs
-
What is the FS-TSDI-16UNI?
+It is a 16-channel Safe Digital Input Field Termination Assembly (FTA) that connects system interconnection cables to external field wiring via screw terminals. -
What is the difference between FS-TSDI-16UNI and FC-TSDI-16UNI?
+FS-type modules are non-conformal coated, while FC-type modules are conformal coated for harsh environments. -
What are the main applications?
+It is used in Honeywell Safety Manager systems for 24/48Vdc or NAMUR input signals. -
Is this product brand new?
+Yes, Honeywell FS-TSDI-16UNI is brand new, original, unused, and factory sealed
