Technical specifications for FS-TSRO-0824
-
Product ModelFS-TSRO-0824
-
Product ParametersDigital Output Field Termination Assembly
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size30x7x6.2cm
-
ManufacturerHoneywell
-
Weight0.5 kg
-
ApprovalsCE, UL, TUV, CSA
-
Safety classup to and including SIL3
-
Nominal input voltage24 V DC
-
Max. input voltage36 V DC
-
Relay pick-up voltage19.2 V DC
-
Input currentTypically 40 mA at 24 V DC
-
Number of outputchannels8
-
Max. output current5 A (fused)
-
Max. output voltage250 V AC / 250 V DC
-
Max. switched load1250 VA / 150 W
Description
Safe dry digital output FTA
for SIL3 applications
8 channels
floating, non commoned, output contacts
Three relays
A fused NO field contact (5 AT, slow-acting)
A status indication LED
for SIL3 applications
8 channels
floating, non commoned, output contacts
Three relays
A fused NO field contact (5 AT, slow-acting)
A status indication LED
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Instructions
Features:
- three relays
- fused NO field contact (5 AT, slow-acting), and
- status indication LED

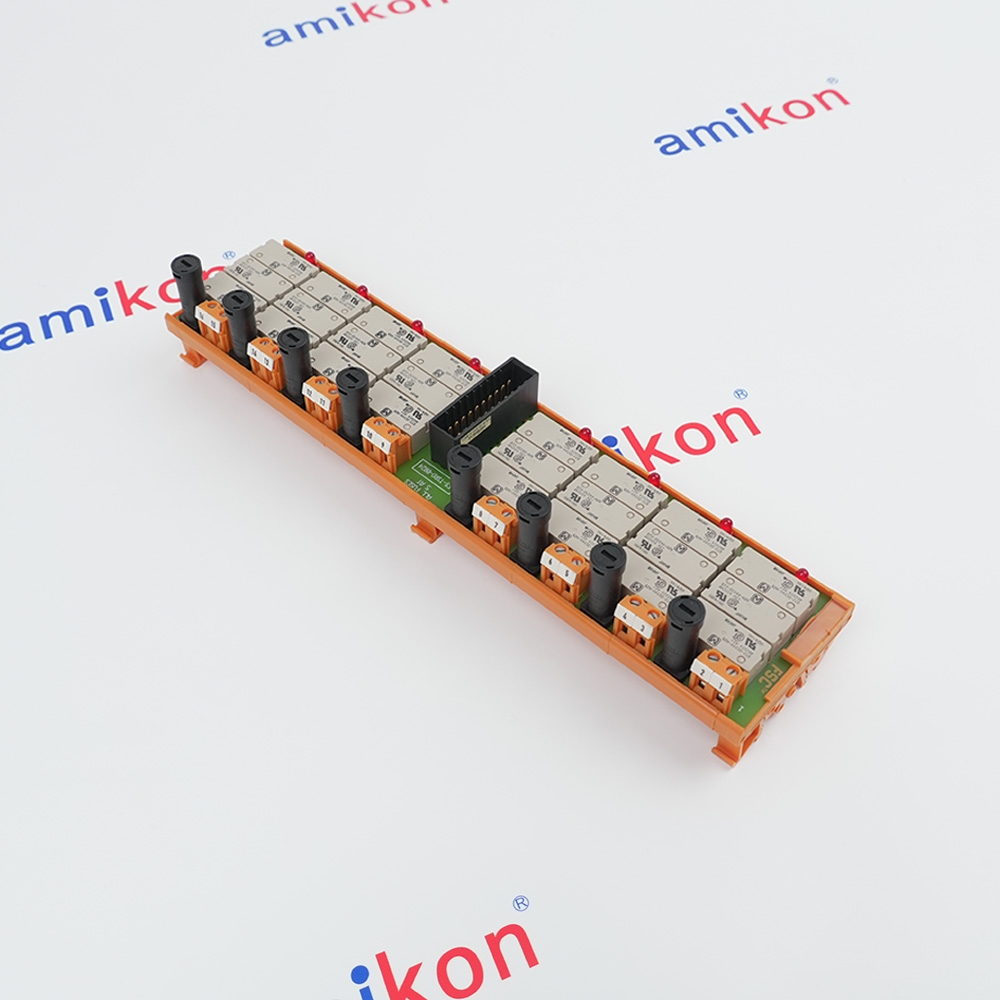

The field termination assembly module FS-TSRO-0824 is theinterface between the system interconnection cable SIC-C-12 and theexternal field wiring (screw terminals). It has eight relay-basedpotential-free output channels suitable for applications up to AK6without making use of fault exclusions.
The FS-TSRO-0824 Honeywell Digital output (relay) FTA may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSRO-0824 Digital output (relay) FTA Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FS-TSRO-0824 module complies with safety requirements forgeneral use in safety requirement classes AK5/6 as defined in DIN V19250.The relays are capable of driving a wide variety of loads including115/230 Vac, which gives the FSC system a 115/230 Vac outputcapability for AK5/6 applications. The energized state of the relay isindicated by an LED on the module

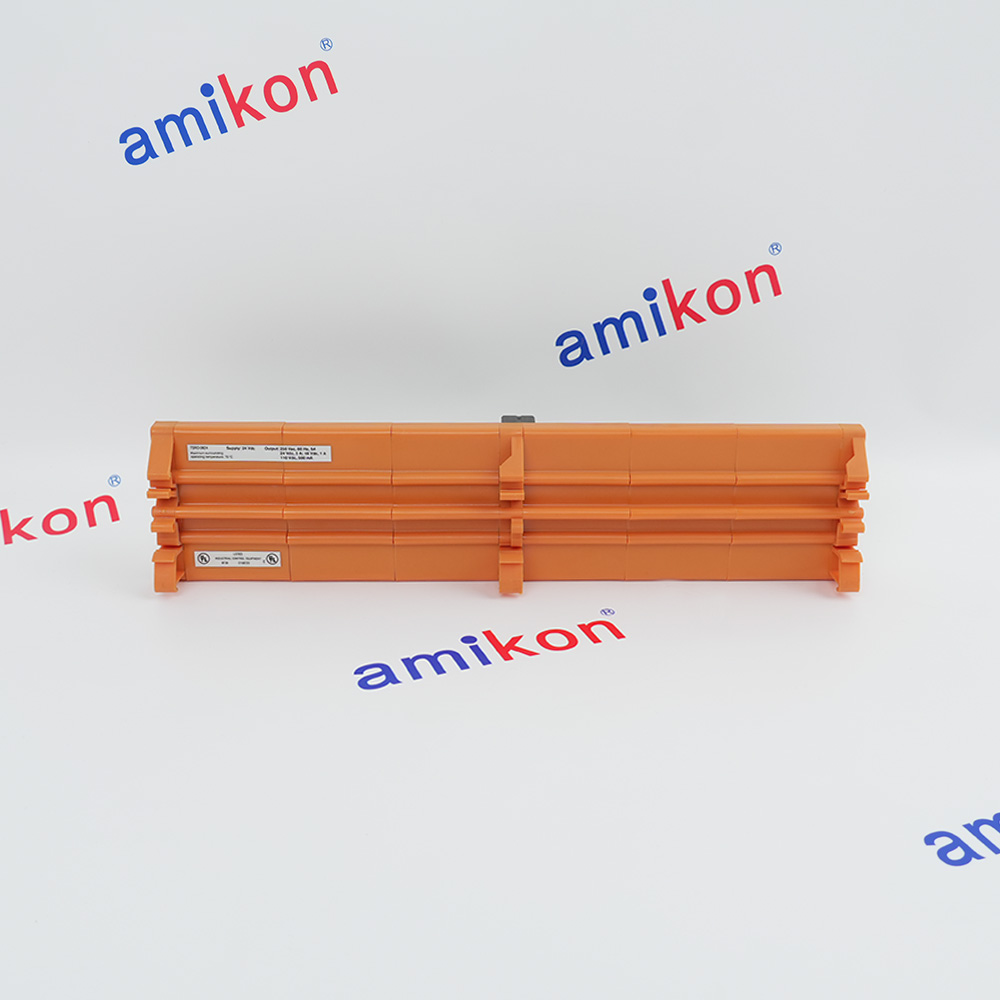

Eight channels can be connected to the FS-TSRO-0824 module via thesystem interconnection cable SIC-C-12.This cable is plugged into theSIC connector on the FTA module, and connects to a (redundant pairof) 10201/2/1 module(s).The FTA module has a universal snap-in facility for standard DIN ENrails, and screw terminals for connecting field wiring.
- Oil & Gas (Upstream & Downstream):SIL 3 integrity for offshore, refineries & tank farms
- Chemical & Petrochemical Plants:Manages volatile reactions & high-pressure processing
- Power Generation:Safety-critical circuits for turbine & steam distribution
- Water & Wastewater:Large-scale pumping & chemical dosing safety systems
- Food & Beverage Facilities:Batch mixing & pasteurization with regulatory data logging
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Field Connection: Use the dedicated screw terminal blocks for external field wiring.
Wire Size: Supports up to 2.5 mm² (AWG 14).
Strip Length: Strip wire ends to 7 mm (0.28 in) before insertion.
Torque: Tighten terminals to 0.5 Nm (0.37 ft-lb).
System Connection: Use a SICC-0001/Lx system interconnection cable to link the FTA to the Honeywell Safety Manager output modules.
Output Configuration: Each of the 8 channels is potential-free and independently wired (non-commoned)
FAQs
-
What is the FS-TSRO-0824?
+The Honeywell FS-TSRO-0824 (also known as FC-TSRO-0824) is an 8-channel Digital Output Field Termination Assembly (FTA) used primarily within the Honeywell Safety Manager and Fail Safe Control (FSC) systems. -
What is the function of the FS-TSRO-0824?
+It is a digital output termination assembly that acts as an interface between the safety controller and field devices, providing relay output switching. -
What makes it suitable for SIL3 applications?
+It complies with IEC 61508 SIL3 standards and features independent relay outputs, fuse protection, and diagnostic LEDs to ensure safety-related functions. -
How many channels does the FS-TSRO-0824 have?
+This module has 8 optically isolated digital output channels.
