Technical specifications for TC810R1024
-
Product ModelTC810R1024
-
Product ParametersRELAY CONTROL MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size14.5x15.5x4.2cm
-
ManufacturerHoneywell
-
Weight0.15 kg
-
Normal operating voltage15 to 32 VDC
-
Maximum current draw6.5 mA (LED on)
-
Average operating current230 μA direct poll; 255 μA grouppoll
-
EOL resistance:not used
-
Temperature range32°F to 120°F (0°C to 49°C)
-
Humidity range10% to 93% non-condensing
Description

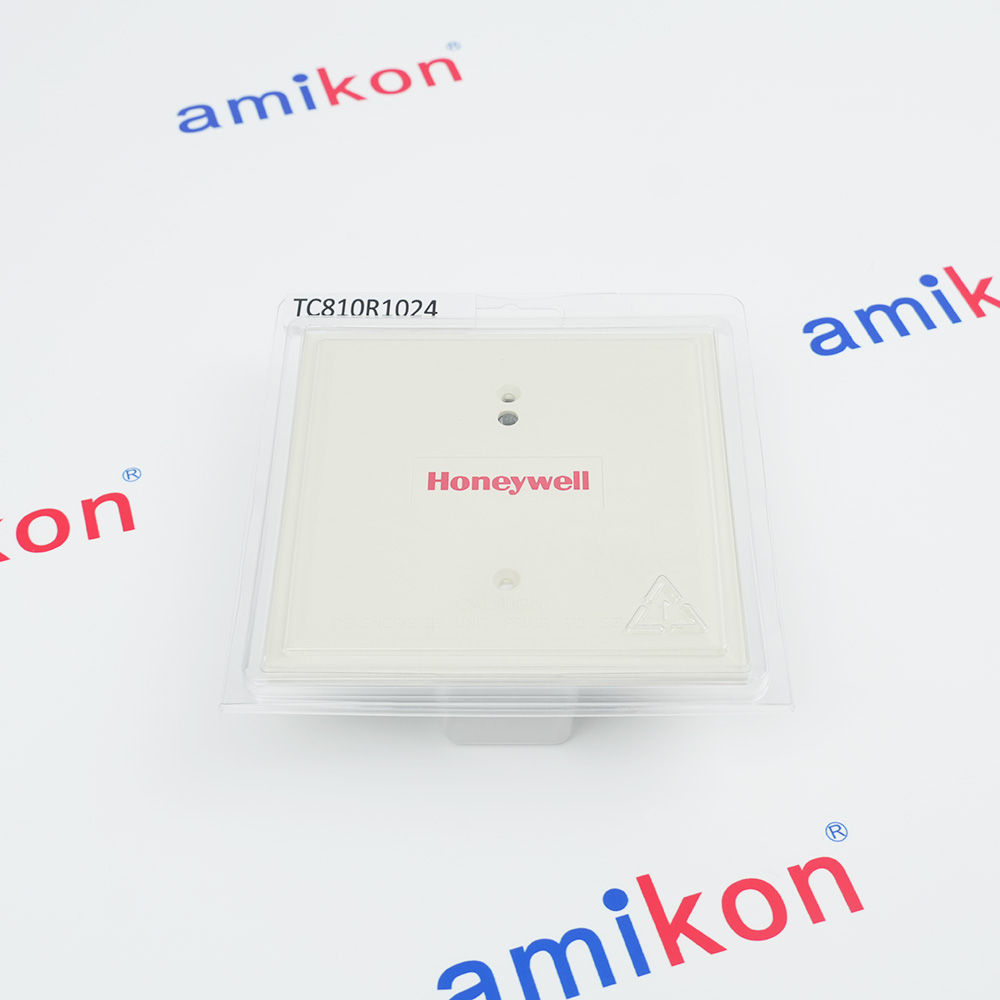

TC810R1024
RELAY CONTROL MODULE
FLASHSCAN SERIES
ADJUSTABLE
32VDC
6.5MA
SLC
WALL MOUNT
RELAY CONTROL MODULE
FLASHSCAN SERIES
ADJUSTABLE
32VDC
6.5MA
SLC
WALL MOUNT
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Mounting
Features:
- Auto‑identifies devices to panel
- 2‑wire SLC loop powers relay/circuitry
- Needs external power for horns/strobes/audio
- LED blinks green on com; steady red when on
- LED blink can be globally disabled
- High EMF/RFI noise immunity
- Switches 24 V NAC or 70.7 V audio
- Wide LED viewing angle
- SEMS screws with clamping plates
- Direct address entry (FlashScan/CLIP)
The TC810R1024 Honeywell RELAY CONTROL MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell TC810R1024 RELAY CONTROL MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each TC810N1013(CDN) or TC810R1024(CDN) uses one of159 possible module addresses on a SLC loop (99 on CLIPloops). It responds to regular polls from the control panel andreports its type and status, including the open/normal/shortstatus of its Notification Appliance Circuit (NAC). The LEDblinks with each poll received. On command, it activates itsinternal relay. The TC810N1013(CDN) supervises Class B(Style Y) or Class A (Style Z) notification or control circuits.Upon code command from the panel, the TC810N1013(CDN)will disconnect the supervision and connect the external powersupply in the proper polarity across the load device. The disconnection of the supervision provides a positive indication tothe panel that the control relay actually turned ON. The external power supply is always relay isolated from the communication loop so that a trouble condition on the external powersupply will never interfere with the rest of the system.Rotary switches set a unique address for each module. Theaddress may be set before or after mounting. The built-inTYPE CODE (not settable) will identify the module to the control panel, so as to differentiate between a module and a sensor address.
- Air Handling Unit (AHU) Shutdown:Shuts HVAC fans on smoke detection to prevent spread
- Door Holders:Releases magnetic door holders on fire alarm
- Auxiliary Equipment Control:Dry-contact outputs for shutters, dampers & gates
- Four-Wire Smoke Detector Reset:Temporarily cuts power to reset 4-wire detectors
- Elevator Recall:Initiates elevator recall with fire alarm panels
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Surface/Flush Mounting: Mounts directly to a 4-inch square electrical box with a minimum depth of 2.125 inches.
Separation of Circuits: If any wiring to terminals 4–10 is nonpower-limited, you must use the CB500 Module Barrier to separate them from power-limited SLC wiring.
Tightening: Do not exceed 9 in-lbs of torque on screw terminals to avoid damaging threads.
FAQs
-
What is TC810R1024 ?
+The Honeywell TC810R1024 is an intelligent addressable relay module designed for use with Honeywell FlashScan® signaling line circuits (SLC) to control auxiliary equipment. -
How do I set the address for the module?
+The module features two rotary switches that allow for direct-dial entry of the address, supporting up to 159 addresses (01-159) on FlashScan loops and up to 99 on CLIP mode loops. -
What are the primary applications for this module?
+It is typically used to activate auxiliary devices such as air handling unit (AHU) shutdowns, door holders, dampers, and fans. It can also be used to reset power for four-wire smoke detectors. -
How many addresses does the TC810R1024 support?
+The module uses one address on a Signaling Line Circuit (SLC) loop. It supports up to 159 addresses in FlashScan mode and up to 99 addresses in CLIP mode. -
Does the relay require an external power supply?
+No, the internal circuitry and the relay itself are powered directly from the two-wire SLC loop.
