PRODUCT DESCRIPTION

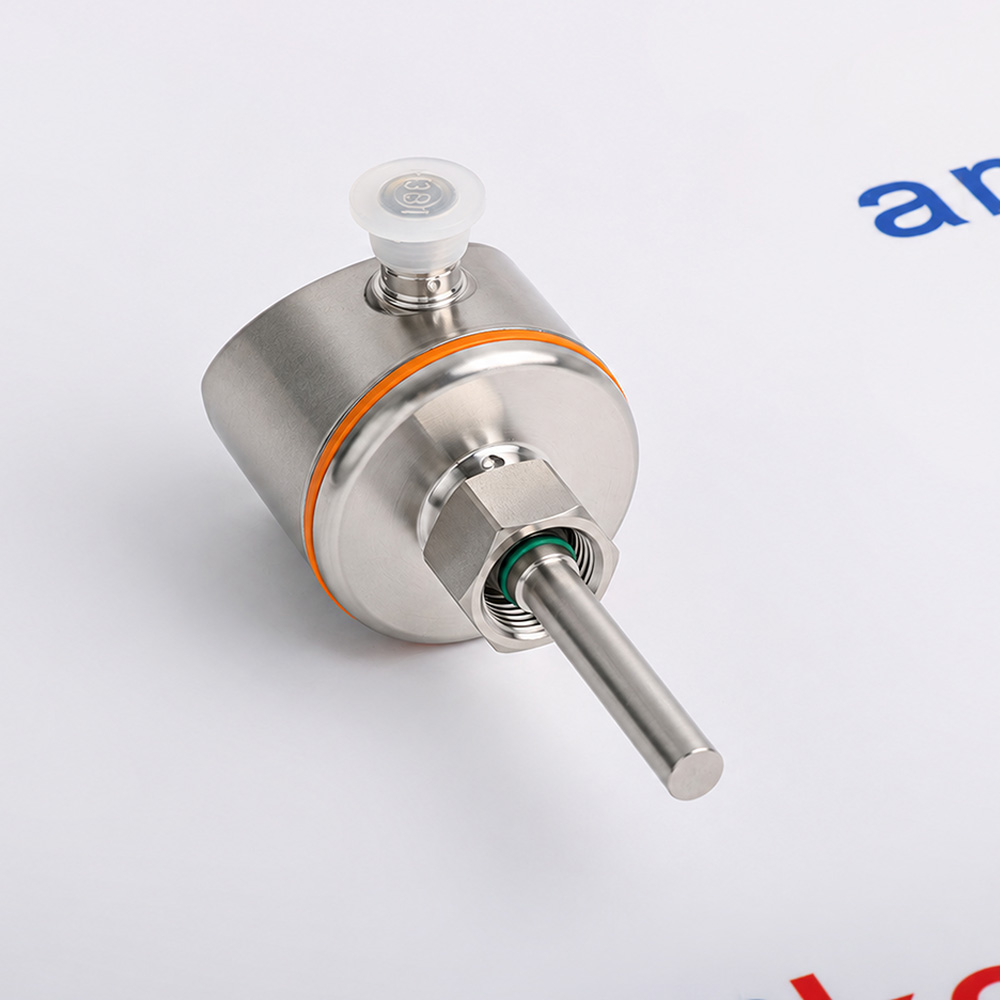

SI5010 Thermal flow monitor
The ifm SI5010 is a compact flow monitor from the SI5 sensor series for detecting liquid and gas flow in industrial pipes. It is used in water supply, cleaning processes and production cooling circuits where a configurable flow switch provides a process-status signal.

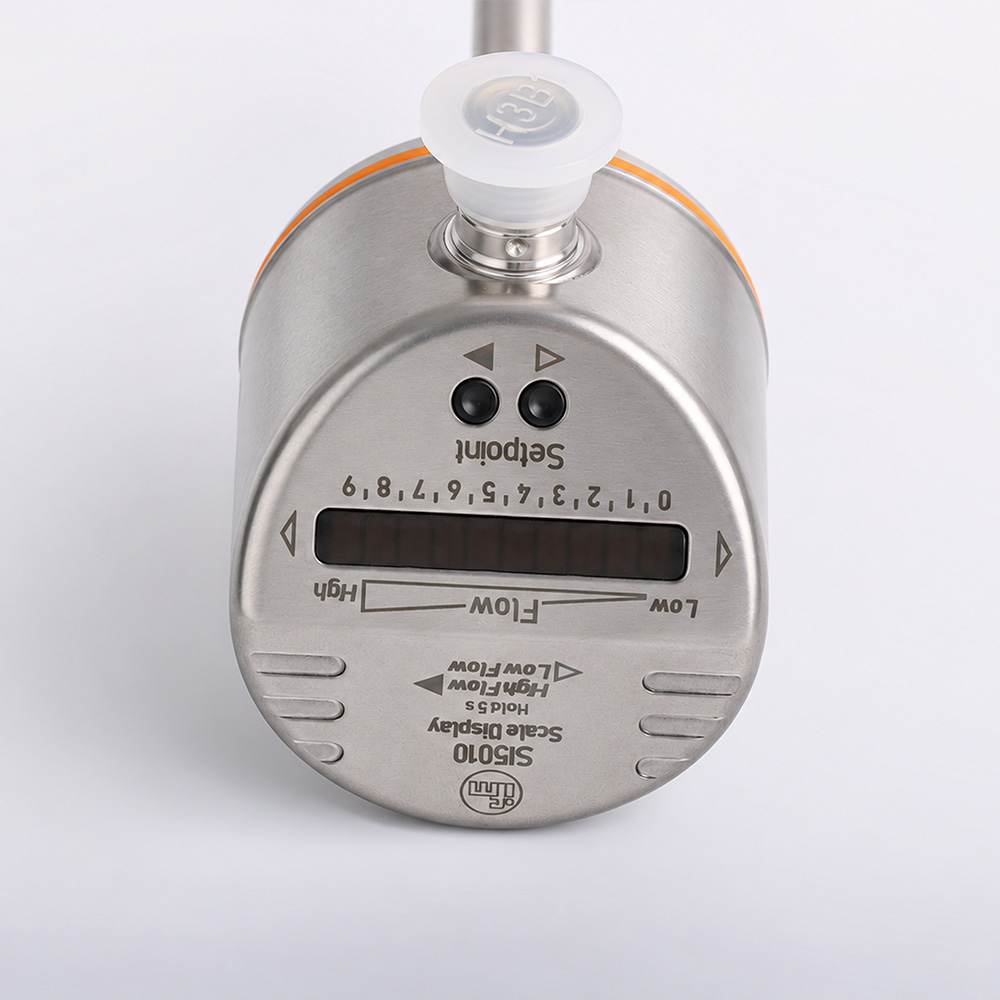

The sensor combines a stainless-steel probe, an M18 x 1.5 process connection and a ten-segment LED display with pushbutton adjustment. Its PNP switching output can be configured as normally open or normally closed, while IO-Link provides parameter access and process information. The liquid and gas setting ranges are 3 to 300 cm/s and 200 to 3000 cm/s respectively.
The sensor combines a stainless-steel probe, an M18 x 1.5 process connection and a ten-segment LED display with pushbutton adjustment. Its PNP switching output can be configured as normally open or normally closed, while IO-Link provides parameter access and process information. The liquid and gas setting ranges are 3 to 300 cm/s and 200 to 3000 cm/s respectively.
BEFORE YOU BUY
Confirm the complete thermal flow monitor
ACTUAL APPLICATIONS
Application context for SI5010
SI5010 is a thermal flow monitor in the SI5 flow sensors. It supports water management, food and beverage, automotive where the documented electrical limits, connected signals and equipment configuration are satisfied.
-
01 · WATER MANAGEMENT
Municipal and Industrial Water Supply Processing
Potable Water DistributionIndustrial Water Circulation -
02 · FOOD & BEVERAGE
Food and Beverage Processing and Cleaning
Food Production CleaningBeverage Processing and Cleaning -
03 · AUTOMOTIVE
Automotive Manufacturing and Metal Forming Production
Automotive Metal FormingProduction Cooling and Lubrication
Technical specifications for SI5010
-
Product ModelSI5010
-
Product ParametersThermal flow monitor
-
In stock8 units
-
ManufacturerIFM Electronic
-
Operating voltage18–36 V DC
-
Current consumption<60 mA
-
Digital outputs1 PNP
-
Output load current250 mA maximum
-
Output voltage drop2.5 V maximum
-
Liquid setting range3–300 cm/s
-
Gas setting range200–3000 cm/s
-
Medium temperature−25 to +80 ℃
-
Pressure rating300 bar
-
Process connectionM18 x 1.5 internal thread
-
Probe diameter8.2 mm
-
Probe length45 mm
-
Protection ratingIP65 / IP67
-
IO-Link cycle time3 ms minimum
-
Electrical connectorM12 A-coded, 4 contacts
View all additional
Alternative Names
SI5010
IFM Electronic Thermal flow monitor
SI5 flow sensors Thermal flow monitor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SI5010 thermal flow monitor
The ifm SI5010 is a compact flow monitor from the SI5 sensor series for detecting liquid and gas flow in industrial pipes. It is used in water supply, cleaning processes and production cooling circuits where a configurable flow switch provides a process-status signal.
Compare the documented operating voltage (18–36 V DC) and current consumption (<60 mA) with the installed configuration. Match the complete order code, terminal arrangement and required mating components before connection.
Follow the ifm instructions for mounting, wiring and configuration. Retain the existing parameter record, inspect connections and validate every affected signal before returning the equipment to operation.
Features:
- Operating voltage: 18–36 V DC
- Current consumption: <60 mA
- Digital outputs: 1 PNP
The SI5010 thermal flow monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify SI5010 thermal flow monitor
Replace SI5010 only after confirming the complete article number, product family and installed revision. The replacement must match the documented thermal flow monitor role and the connected equipment.
Record the installed SI5 flow sensors configuration, terminal assignments and cable connections before removal. Preserve the applicable program, parameter settings and diagnostic records for restoration.
After fitting SI5010, restore the approved configuration and perform the manufacturer-defined functional checks. Confirm the connected signal or power paths and record the final test results before release.
Features:
- Operating voltage: 18–36 V DC
- Current consumption: <60 mA
- Digital outputs: 1 PNP
The SI5010 thermal flow monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the SI5010 thermal flow monitor must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeØ5.00 × 11.30 cm
-
Shipping weight0.25kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8536500090
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SI5010
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is SI5010 used for?
The ifm SI5010 is a compact flow monitor from the SI5 sensor series for detecting liquid and gas flow in industrial pipes. It is used in water supply, cleaning processes and production cooling circuits where a configurable flow switch provides a process-status signal. -
What is the documented operating voltage?
18–36 V DC. -
What current consumption applies to SI5010?
<60 mA. -
Which digital outputs is specified?
1 PNP. -
What is the output load current specification?
250 mA maximum. -
Which documentation covers SI5010?
ifm SI5 flow sensors official technical documentation. -
What should be confirmed before ordering SI5010?
Confirm the complete SI5010 label, quantity, condition and compatibility with the installed SI5 flow sensors equipment. -
What warranty applies to the quoted SI5010?
The quoted SI5010 is covered by the AMIKON twelve-month warranty under the agreed sale and return terms.
