- 341-710-200
In Stock
Ships by Monday, July 20
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 341-710-200
-
Product Model341-710-200
-
Product ParametersDigital I/O Analog Board
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x18.6x12.7cm
-
ManufacturerINDUSTRONIC
-
Weight0.12 kg
-
Plug typesPC612-C64/Sub-D 25
-
Operating voltage of thecontrol electronics5 V
-
Current consumption0.4 A
-
Service interfaceRS232
-
Operating voltage of theintercom station terminal48 V to 72 V
-
Max. admissible feedingcurrent100 mA
-
Short circuit current350 mA
-
Ambient temperature duringoperation0 °C to +50 °C(+32 °F to +122 °F)
Description

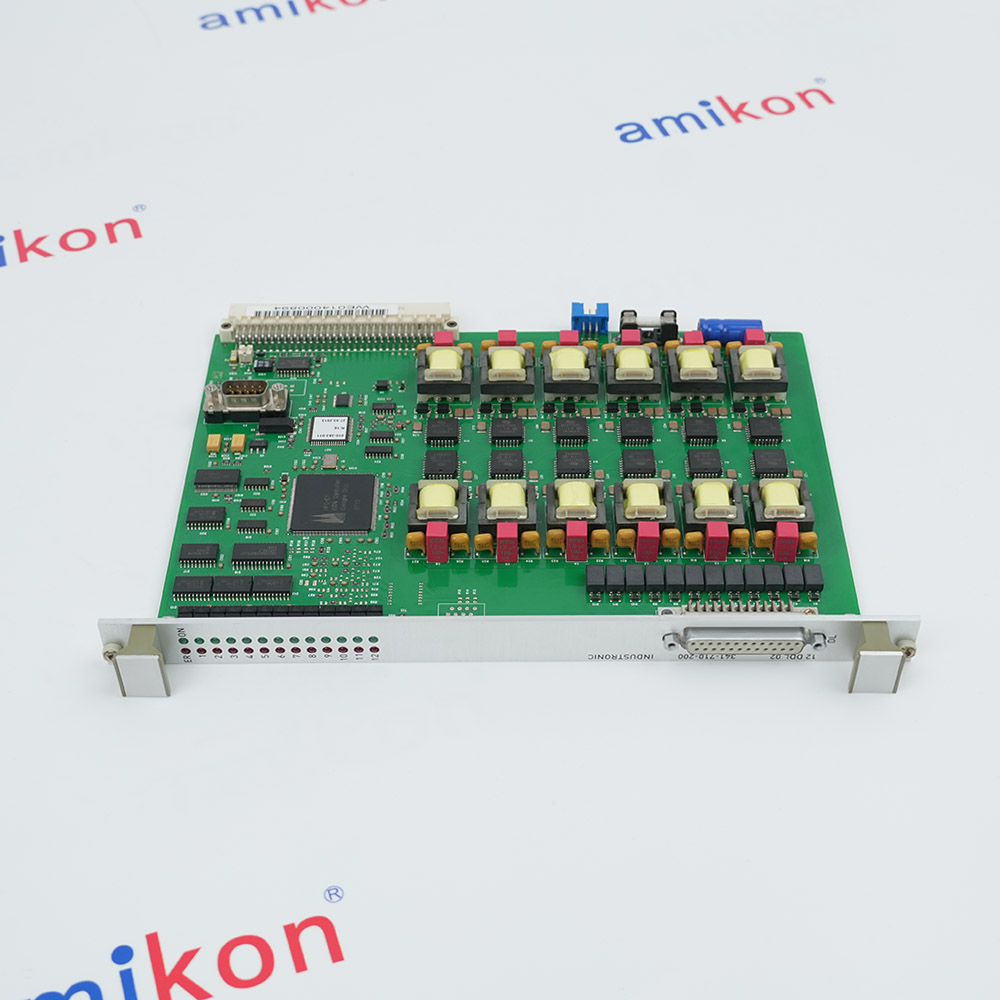

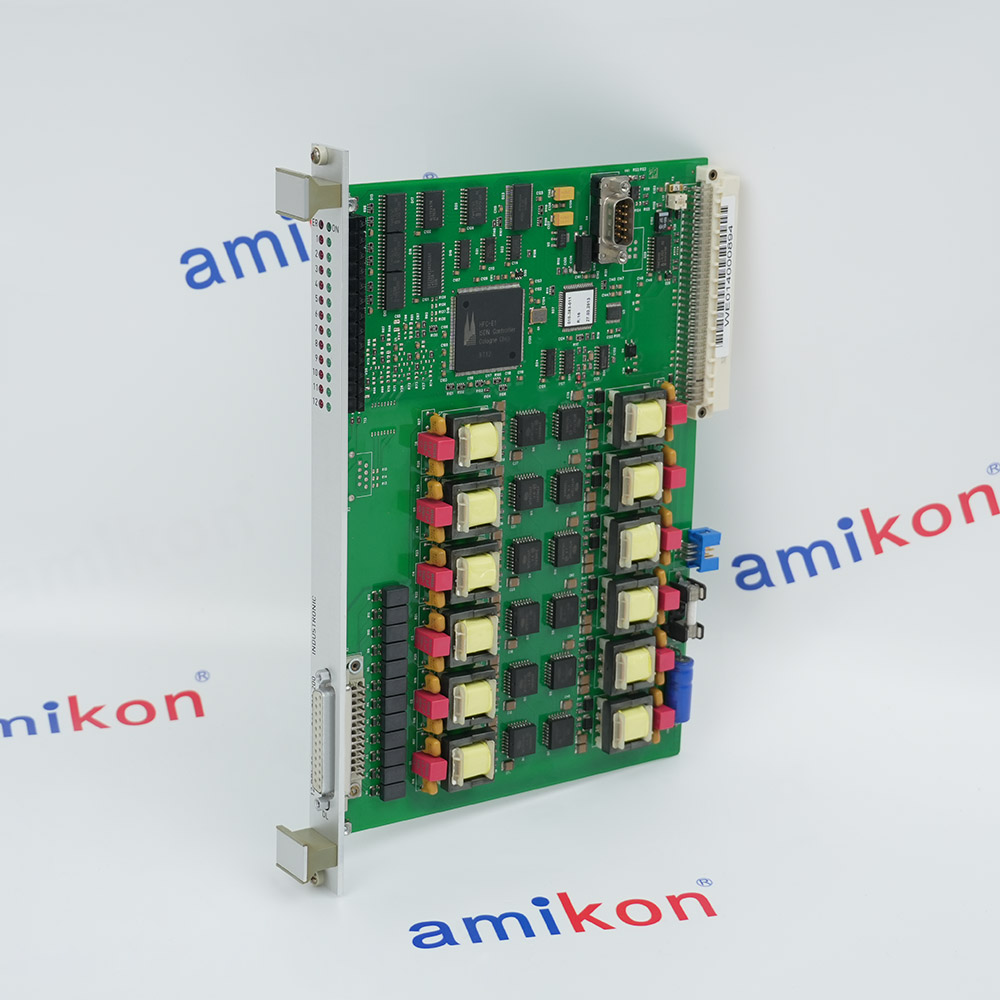

The INDUSTRONIC 341-710-200 Digital Line Card is a core system component within the INTRON-D plus digital intercom system, specifically to serve as the interface between up to 12 digital intercom stations and the DXC controller. The 341-710-200 passes on digitized AF signals as well as control signals between the connected field devices and the central controller, ensuring seamless voice communication and command transmission across the intercom network.
The 341-710-200 supplies the connected intercom stations with power, delivering a maximum current of 100 mA to support the operational requirements of each station. The 341-710-200 is equipped with a dedicated digital line interface for each connectable intercom station, enabling precise transmission of digitized audio frequency signals and control data. This architecture ensures high-quality signal integrity and reliable communication paths for every connected device in the system.
The 341-710-200 supplies the connected intercom stations with power, delivering a maximum current of 100 mA to support the operational requirements of each station. The 341-710-200 is equipped with a dedicated digital line interface for each connectable intercom station, enabling precise transmission of digitized audio frequency signals and control data. This architecture ensures high-quality signal integrity and reliable communication paths for every connected device in the system.
Information
Overview
Manuals
Application Notes
Product Applications
Connection Interface
Features:
- Interface for 12 Digital Intercom Stations
- Permanent Monitoring of Stations and Cables
- Galvanic Separation
- HDLC Interface for DXC Controller Communication
The 341-710-200 provides a green LED to indicate normal operation and a red LED to indicate general failures. Additionally, the 341-710-200 includes one green LED per intercom station to indicate incoming and outgoing AF signals, and one red LED per intercom station to indicate specific intercom station failures. This granular LED feedback allows technicians to quickly identify operational status and localize faults at both the card level and individual station level.
The 341-710-200 INDUSTRONIC DIGITAL LINE CARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
INDUSTRONIC 341-710-200 DIGITAL LINE CARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The INDUSTRONIC 341-710-200 is a 12 DDL 02 Digital Line Card used in INDUSTRONIC digital communication and public address systems. It functions as an interface module between the digital intercom stations and the exchange control board, transmitting digitized audio signals and control information while also providing power supply to connected digital intercom stations.
The module supports connection and management of up to 12 digital intercom stations. Each connected station has an independent digital line interface for audio and control signal transmission. The card provides continuous monitoring of connected stations and cables, detecting faults such as open circuits
- Oil & Gas Sector: Onshore/offshore fields and petrochemical plants
- Chemical & Pharmaceutical: High-risk production environments
- Heavy Industry: Steelworks and manufacturing plants
- Marine & Automation: Used on ships and offshore platforms for high-reliability paging and intercom
- Energy & Utilities: Wind farms and renewable energy sites
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Intercom Station Array: A high-density 25-pin Sub-D female connector anchors the primary connection bundle. This interface breakout routes power (48V to 72V DC) and digital Audio Frequency (AF) signals out to 12 individual digital call stations.
System Bus: A dedicated bus interface plugs the line card into the central communication network.
Maintenance & Service: An integrated RS232 port serves as a direct diagnostic connection for servicing and configuration.
Firmware Port: A dedicated plug-in slot allows for local software and system updates.
Alternative Names
341-710-20O
341-710-2O0
341-710-Z00
341-71O-200
341-7I0-200
34I-710-200
3A1-710-200
341 710 200
341 710 2OO
341 71O 200
341 7I0 200
34I 710 200
Technical notes
The 341-710-200 is designed for easy servicing, with intercom stations connected via a 25-pin Sub-D female connector located at the front plate of the card. This front-accessible connector simplifies installation, troubleshooting, and maintenance procedures. The 341-710-200 also includes an RS232 service interface and a bus interface on the front panel, along with a plug-in slot for software updates, ensuring long-term adaptability and serviceability.
FAQs
-
What is the 341-710-200 ？
+The INDUSTRONIC 341-710-200 (also known as the 12 DDL 02) is a digital line card used in INDUSTRONIC communication and public address systems -
What is the primary function of this card?
+It connects 12 digital intercom stations to the system controller, passing digitized audio and control data back and forth. -
How can a technician spot a station fault?
+The front panel features individual red LED status lights assigned to each of the 12 stations to flag immediate transmission or hardware failures. -
What physical connectors are on the board?
+It uses PC612-C64 plugs and a 25-pin Sub-D female connector.
