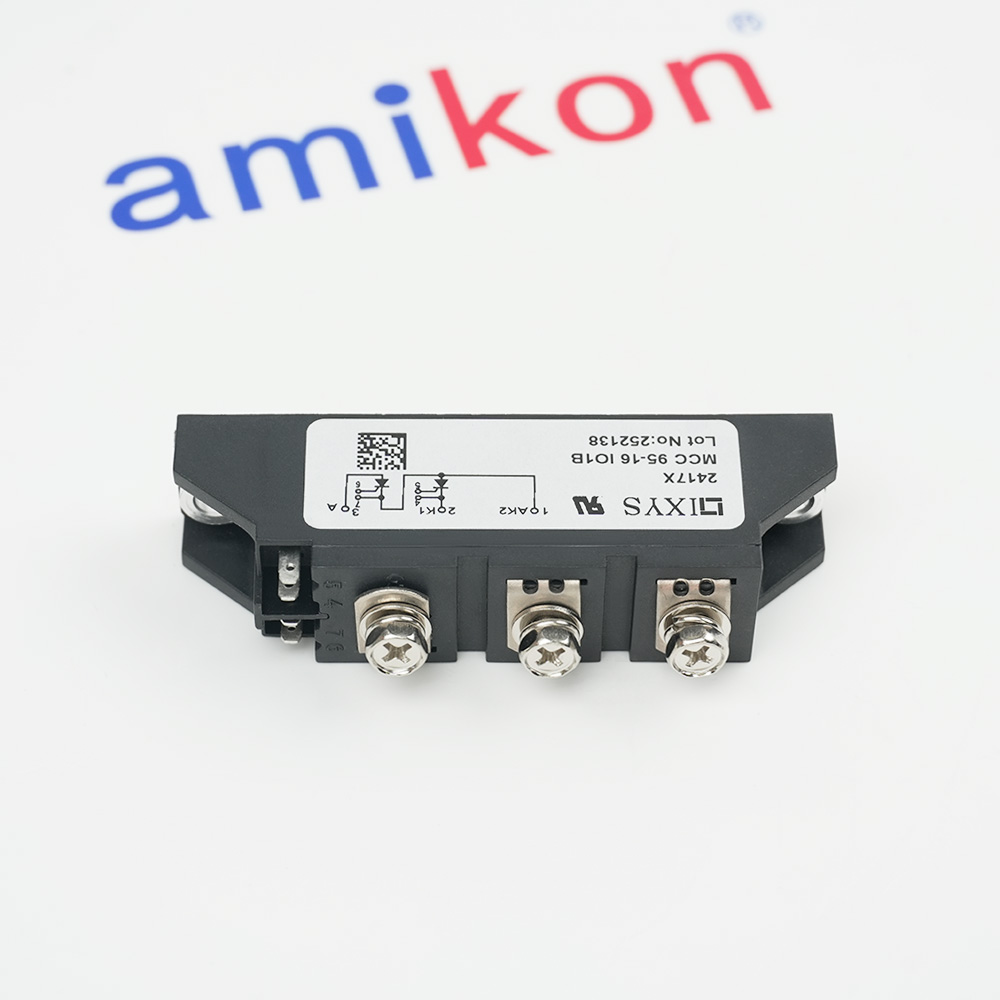

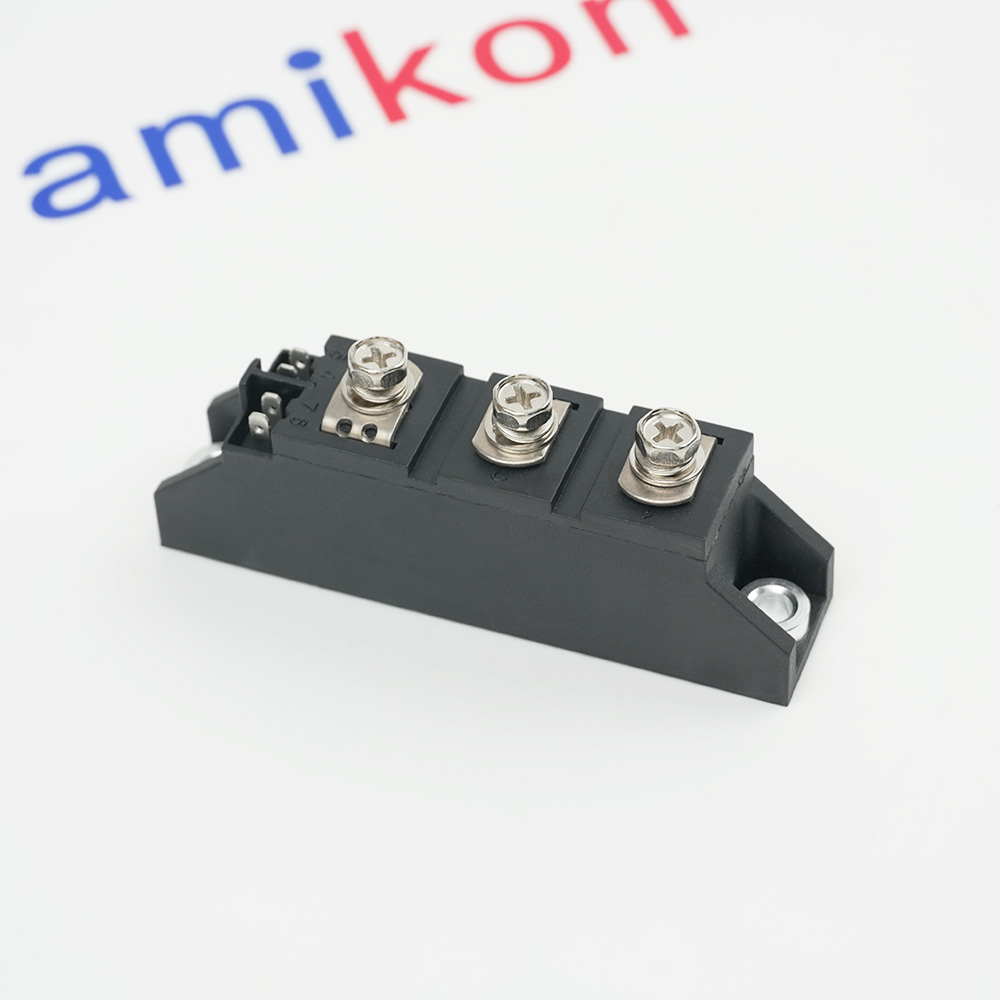

MCC95-16IO1B
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
MCC9516IO1B
THYRISTOR POWER MODULE
SCR
95A
1600V
1-PHASE CONTROLLER
TO-240AA
THYRISTOR POWER MODULE
SCR
95A
1600V
1-PHASE CONTROLLER
TO-240AA
Technical specifications for MCC95-16IO1B
-
Product ModelMCC95-16IO1B
-
Product ParametersTHYRISTOR POWER MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.2x2x3.4cm
-
ManufacturerIXYS
-
Weight0.05 kg
-
Rated Average On-State Current116A
-
Thyristor TypeSCR Module
-
Package TypeTO-240AA
-
Repetitive Peak Reverse Voltage1600V
-
Surge Current Rating2.4kA
-
Mounting TypePanel Mount
-
Maximum Gate Trigger Current150mA
-
Maximum Gate Trigger Voltage2.5V
-
Maximum Holding Current200mA
-
Pin Count7
-
Repetitive Peak Forward Blocking Voltage1600V
-
Repetitive Peak Off-State Current5mA
-
Maximum Operating Temperature+125 °C
-
Minimum Operating Temperature-40 °C
-
Peak On-State Voltage1.5V
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the IXYS MCC95-16IO1B?+It is a high-performance, phase-leg dual thyristor module used for AC power control, soft-start motor control, and rectification.
-
Is this product brand new?+Yes, IXYS MCC95-16IO1B is brand new, original, unused, and factory sealed
-
Do you offer global delivery?+Yes. We delivery the MCC95-16IO1B to the worldwide. and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account.
-
What are typical applications?+Used in AC power control, lighting and temperature control, and soft-start motor controllers.
-
What is the operating temperature?+The maximum operating junction temperature is 125°C.
Get a quick price fo MCC95-16IO1B
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Manuals
Overview
Technical notes
Product Applications
Mounting to the Heatsink
IXYS MCC95-16IO1B Dual Thyristor Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Features:
- Thyristor for line frequency
- Planar passivated chip
- Long-term stability
- Direct Copper Bonded Al2O3-ceramic
- Line rectifying 50/60 Hz
The MCC95-16IO1B IXYS Dual Thyristor Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
The IXYS MCC95-16IO1B is a 116A, 1600V dual thyristor module (SCR) in a TO-240AA package designed for phase control, rectifying, and soft-start applications. It features planarly passivated chips, high-reliability direct copper bonded (DCB) ceramic base plates, and 3600V isolation.
- DC Motor Controllers:Drives for heavy machinery with precise speed & torque control
- AC Motor Soft Starters:Reduces mechanical stress in pumps, fans & compressors via gradual voltage ramp
- Variable Frequency Drives (VFDs):Input rectifier for PWM inverters in high-power motor systems
- Industrial Welders:High-current control for arc and resistance welding machines
- Electroplating Equipment:Large, stable DC currents for chemical plating processes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Surface Preparation: Ensure the heatsink surface is clean and free of burrs or dust.
Thermal Compound: Apply a uniform layer of high-quality thermal grease (not less than 0.5 W/mK) to the base plate. A thickness of approximately 0.08 mm is recommended for optimal thermal resistance.
Fixing Screws: Use M5 screws for the mounting holes. Tighten them evenly to a torque of 2.5 – 4.0 Nm (22 – 35 lb.in).
