PRODUCT DESCRIPTION

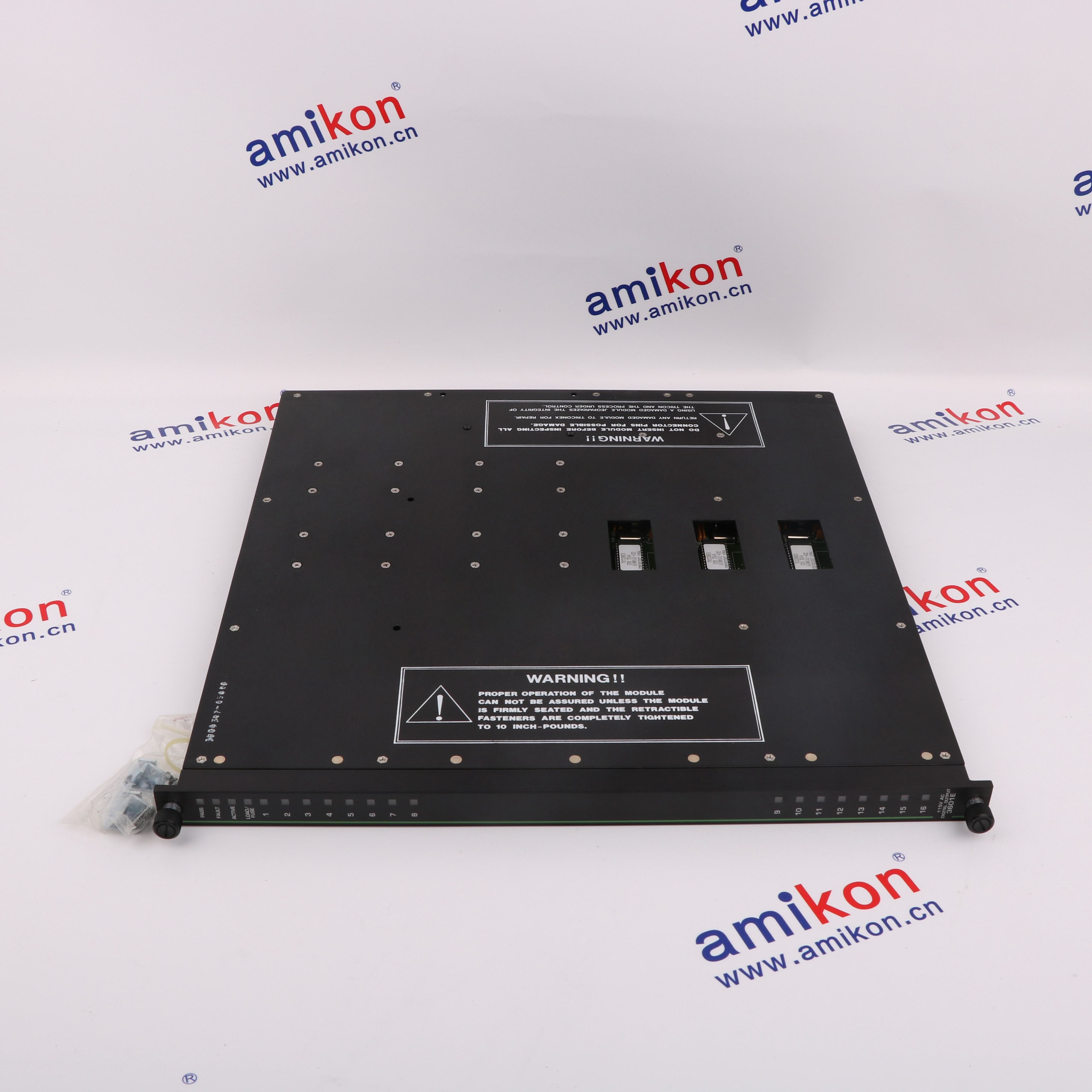

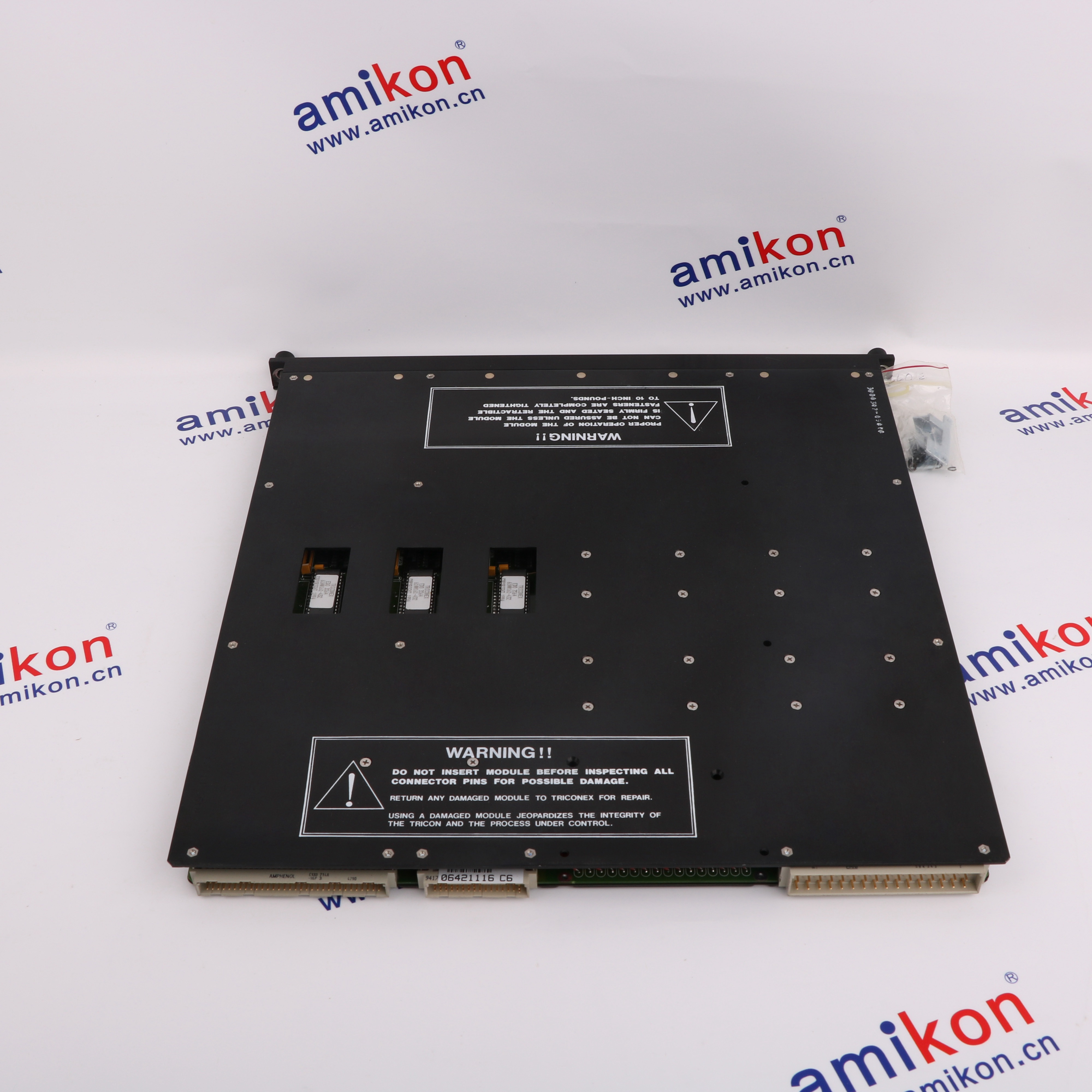

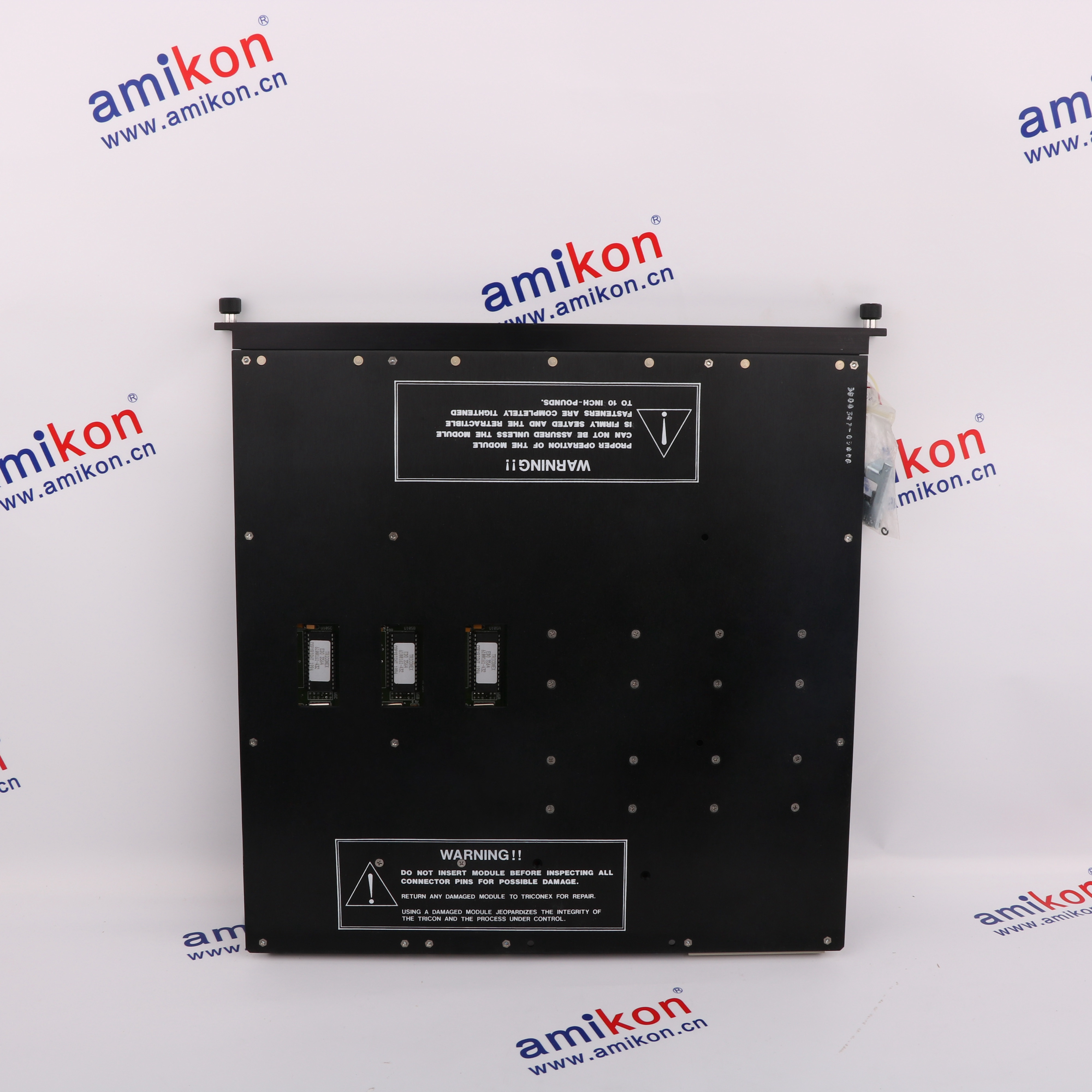

3601E - TMR Digital Output Module
The Triconex 3601E is a 16-point, non-commoned TMR Digital Output Module with optically isolated outputs for nominal 115 VAC field circuits.
It operates across 80-155 VAC and 47-63 Hz, with per-point output indication, field fusing and continuous module diagnostics.
It operates across 80-155 VAC and 47-63 Hz, with per-point output indication, field fusing and continuous module diagnostics.
BEFORE YOU BUY
Check the complete ordered configuration
ACTUAL APPLICATIONS
Where 3601E supports measurement tasks
Manufacturer literature supports the following measurement arrangements. Confirm the complete installed system and the exact ordered configuration before selecting this component.
-
01 · AC OUTPUTS
Command 115 VAC field loads
115 VAC solenoid and actuator control. Verify the documented field interface, configured limits and approved safety function before service. -
02 · TRIP ACTUATION
Operate shutdown final elements
AC relay and contactor command outputs. Verify the documented field interface, configured limits and approved safety function before service. -
03 · INTERLOCK CONTROL
Drive protected relay circuits
Alarm, annunciator and interlock outputs. Verify the documented field interface, configured limits and approved safety function before service.
Technical specifications for 3601E
-
Product Model3601E
-
Product ParametersTMR Digital Output Module
-
In stock1 unit
-
ManufacturerInvensys
-
Output Signals16, non-commoned
-
Frequency Range47-63 Hz
-
Voltage Range80-155 VAC
-
Current Rating2 A per point maximum
-
Surge Current12 A per cycle maximum
-
Load Leakage2 mA maximum at 60 Hz
-
Chassis Leakage4 mA maximum at 60 Hz
-
Field FusesOne 3 A fast fuse per output
-
Point Isolation1,000 VAC / 1,500 VDC minimum
-
Logic Power<10 W
View all additional
Alternative Names
3601E
115 VAC TMR Digital Output Module
16-Point Non-Commoned Output Module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed measurement arrangement
The Triconex 3601E is a 16-point, non-commoned TMR Digital Output Module with optically isolated outputs for nominal 115 VAC field circuits.
Use 3601E only with the compatible Tricon configuration identified by the complete model number.
Match the exact module type and system version.
Confirm the chassis, logical slot and mechanical keying.
Verify the 115 VAC load, field fuses, termination and Output Voter Diagnostics.
Check firmware, application configuration and hazardous-area requirements.
Do not treat another Tricon family module as interchangeable without controlled Triconex verification.
Every point on non-commoned termination panels must receive field power, including unused points. Output testing and any Output Voter Diagnostics changes must follow the controlled safety procedure.
Features:
- 16 non-commoned outputs
- 80-155 VAC
- 47-63 Hz
The 3601E requires exact configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm the complete 3601E model number before replacement because related Tricon modules may have different electrical and diagnostic behavior.
Record the installed chassis, slot, system version, firmware and termination arrangement.
Inspect the connectors, keys, terminals and mounting hardware.
Preserve the approved field wiring, scaling, application logic and safety function.
Verify current controlled Triconex documentation and hazardous-area requirements.
Contact Amikon with 3601E for availability and replacement support.
It operates across 80-155 VAC and 47-63 Hz, with per-point output indication, field fusing and continuous module diagnostics.
Retain the validated safety logic, termination arrangement and proof-test records. Recommission every affected channel before the safety function is returned to service.
Features:
- 16 non-commoned outputs
- 47-63 Hz
- 2 A per point maximum
The 3601E requires replacement verification of the complete ordered configuration and installed measurement system before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.
Features:
- Sources: Existing verified Triconex model documentation and saved model PDFs
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3601E is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
