PRODUCT DESCRIPTION

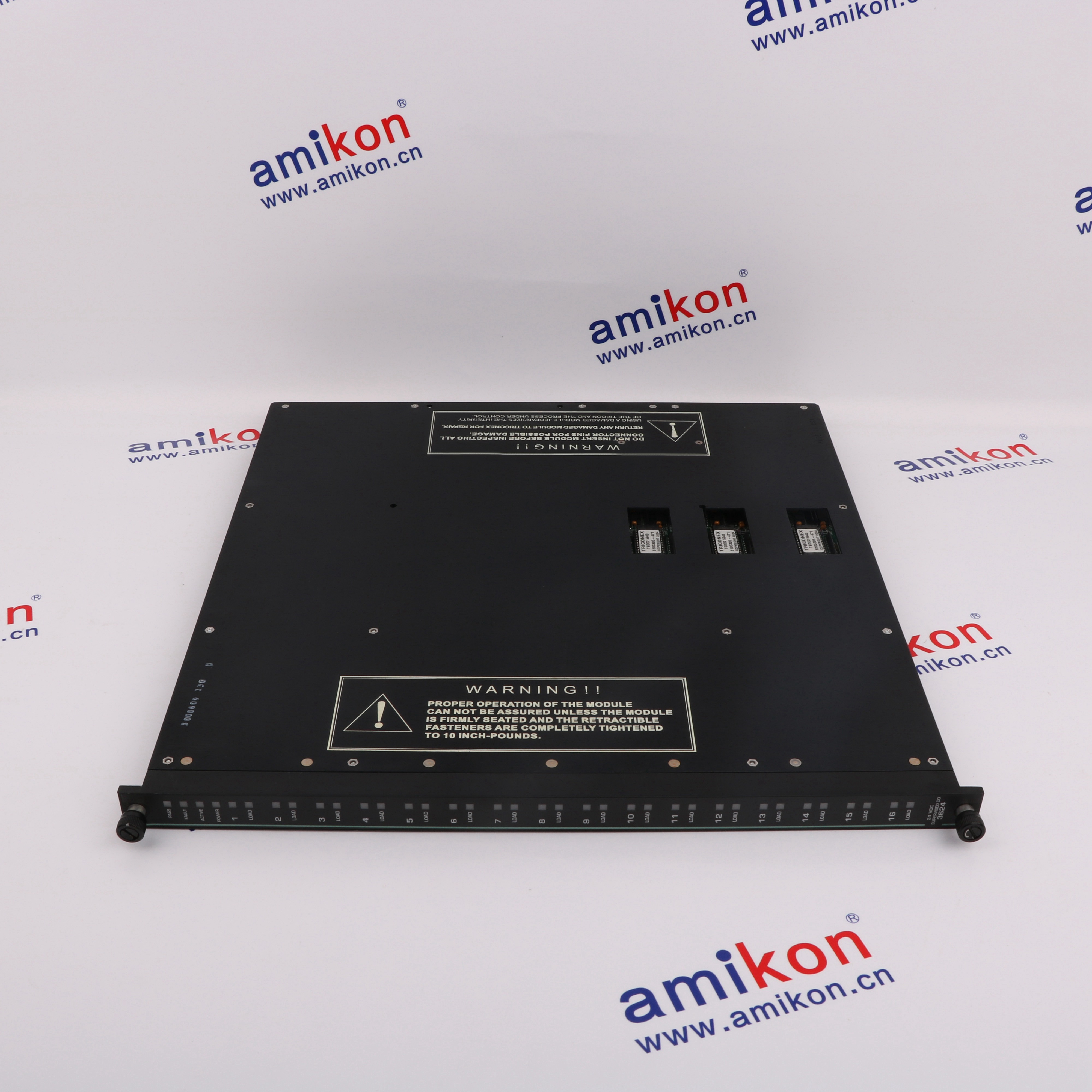

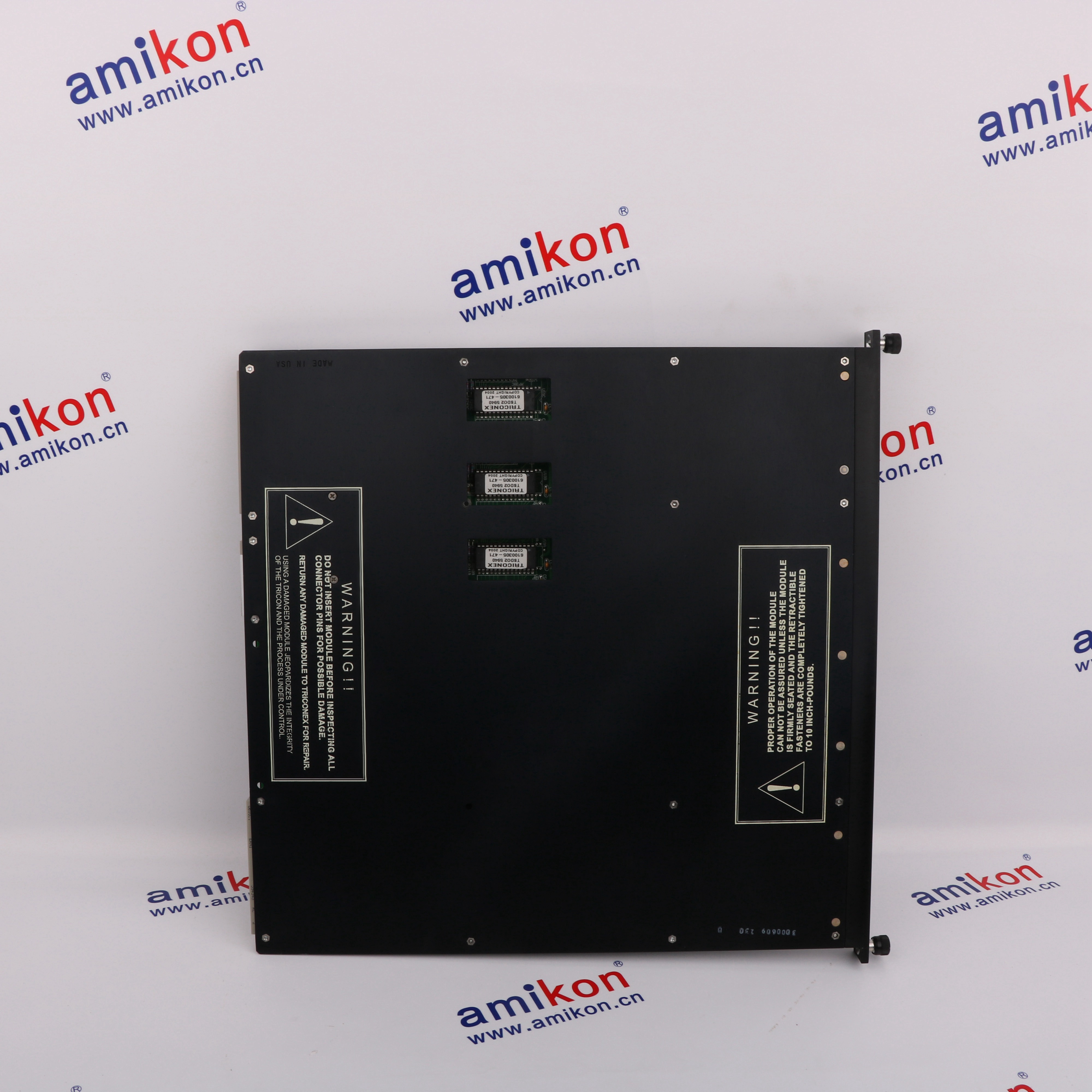

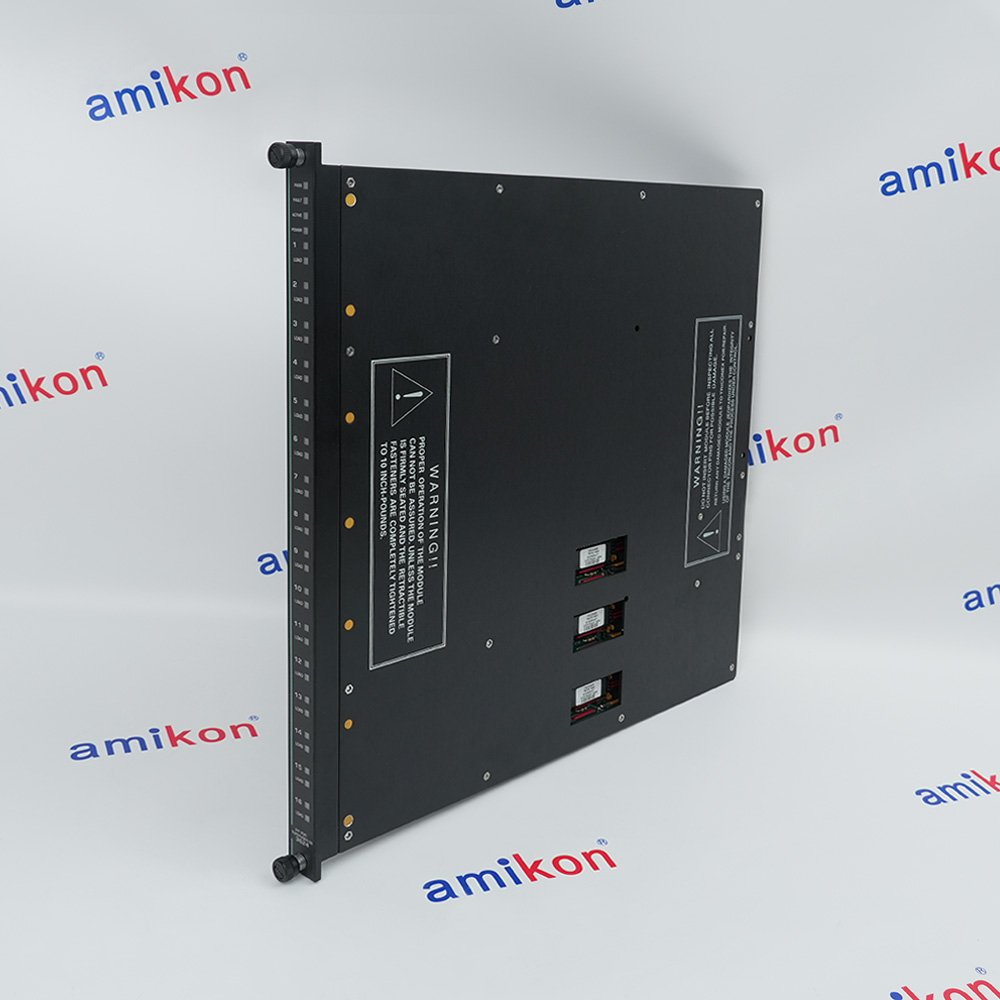

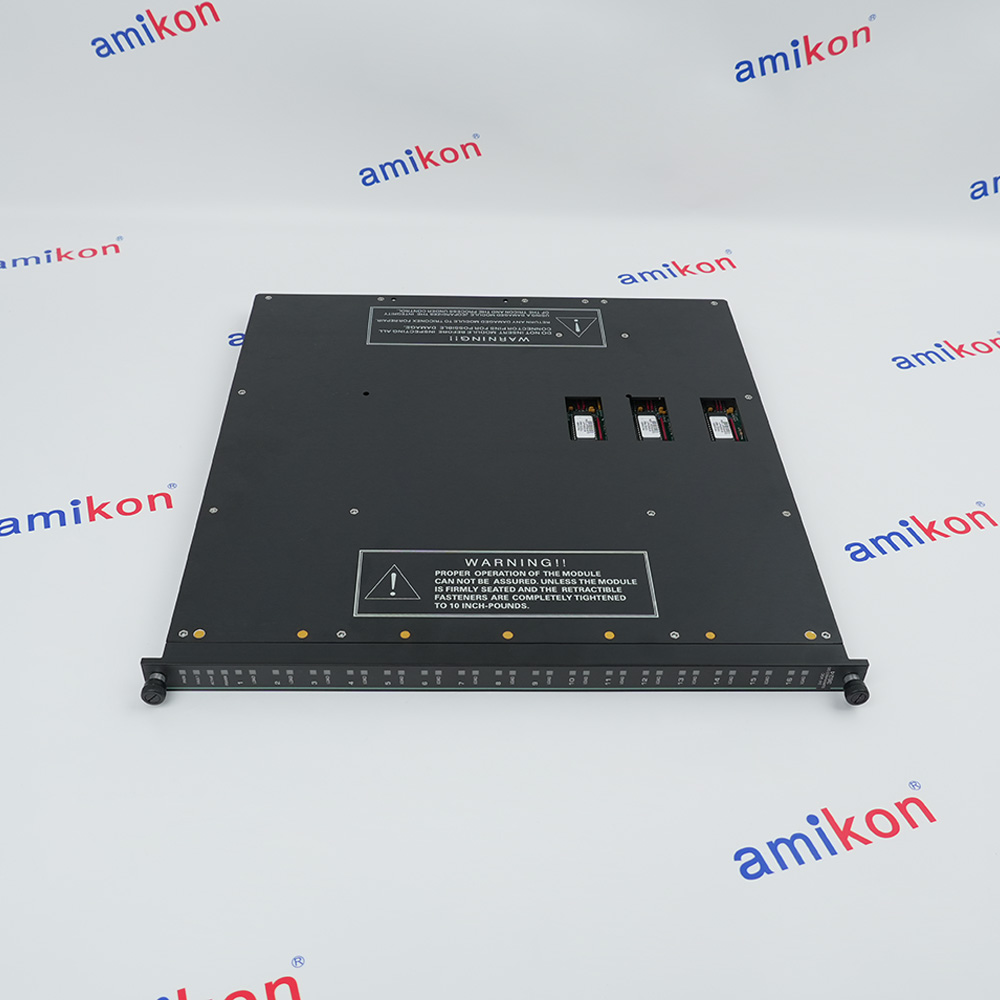

3624 - Supervised Digital Output Module
Triconex 3624 is a nominal 24 VDC TMR supervised digital output module with sixteen commoned outputs. It provides per-point load supervision and self-protected output switches for the documented field circuits.
Use the recommended 16-30 VDC range and verify the minimum 30 mA load, maximum 0.7 A continuous current and non-disableable output diagnostics. Commoned wiring and supervision requirements must match the installed termination arrangement.
Use the recommended 16-30 VDC range and verify the minimum 30 mA load, maximum 0.7 A continuous current and non-disableable output diagnostics. Commoned wiring and supervision requirements must match the installed termination arrangement.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 3624 supports field I/O tasks
The manufacturer documents the following circuit functions. Validate the complete safety function and field wiring before service.
-
01 · SUPERVISED LOADS
Operate monitored DC final elements
Command approved DC loads while retaining per-point load supervision. Match the connected current to the 30 mA minimum and 0.7 A maximum before accepting the circuit. -
02 · CIRCUIT INTEGRITY
Detect field-circuit abnormalities
Use the documented load and power indications to investigate field-circuit conditions. The off-state short-circuit detection threshold is below 5 ohm; verify the complete termination and return path. -
03 · REDUNDANT MAINTENANCE
Check active and spare output indications
During controlled maintenance, distinguish the primary module from its spare when reading the point LEDs. The manufacturer states that only the primary module asserts the point indicators.
Technical specifications for 3624
-
Product Model3624
-
Product ParametersSupervised Digital Output Module
-
In stock1 unit
-
ManufacturerInvensys
-
Output signals16, commoned
-
Recommended voltage range16-30 VDC
-
Maximum field voltage36 VDC
-
Continuous output current0.7 A per point maximum
-
Surge output current4.8 A for 10 ms maximum
-
Minimum required load30 mA
-
Off-state load leakage4 mA maximum
-
Output protectionSelf-protected against over-voltage, over-temperature and over-current
-
Field fusesNot required by the module specification
-
Point isolation1500 VDC minimum
-
Off-state short detectionLess than 5 ohm
-
Diagnostic pulse duration2 ms maximum; 500 microseconds typical; OVD cannot be disabled
-
Logic powerLess than 10 W
-
Field alarm indicatorsPower and individual Load indicators
-
Output toggle interval for diagnostics100 ms plus one scan
View all additional
Alternative Names
3624
Triconex 3624
Tricon 3624
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed field I/O arrangement
Triconex 3624 is a nominal 24 VDC TMR supervised digital output module with sixteen commoned outputs. It provides per-point load supervision and self-protected output switches for the documented field circuits.
Use the recommended 16-30 VDC range and verify the minimum 30 mA load, maximum 0.7 A continuous current and non-disableable output diagnostics. Commoned wiring and supervision requirements must match the installed termination arrangement.
Document field wiring and the approved application settings before exchange. Use the complete Tricon system installation procedure and verify affected circuits after replacement.
Features:
- 16 commoned supervised outputs
- 16-30 VDC recommended field range
- 30 mA minimum connected load
The 3624 requires field configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Preserve the exact 3624 identity and the installed field termination. A similar Tricon module number does not establish interchangeability.
Use the recommended 16-30 VDC range and verify the minimum 30 mA load, maximum 0.7 A continuous current and non-disableable output diagnostics. Commoned wiring and supervision requirements must match the installed termination arrangement.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- 16 commoned supervised outputs
- 30 mA minimum connected load
- Self-protected output switching
The 3624 requires replacement verification of field wiring, load or signal limits, termination and configured diagnostics before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3624 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.2 × 40.8 × 40 cm
-
Shipping weight2.15 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3624
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can a 10 mA electronic input serve as the only load on 3624?
It does not meet the stated minimum required load of 30 mA. The load and supervision circuit require engineering review before connection. -
Is the 36 V figure a recommended operating setpoint?
No. The recommended range is 16-30 VDC; 36 VDC is the maximum voltage. Design around the recommended range and the actual supply tolerance. -
Why does the spare module show no point LEDs?
The manufacturer notes that only the primary 3624 module asserts the point LEDs. Check primary/spare status before diagnosing dark spare indicators as a failure. -
Does 3624 need a replaceable fuse for each field point?
Its specification states field fuses are not required because the output switches protect against over-voltage, over-temperature and over-current. Follow the overall approved circuit-protection design. -
Can OVD glitching be disabled to suit a sensitive receiver?
No. The manual expressly states that OVD glitching cannot be disabled for 3624. Assess the receiver against the typical 500 microsecond and maximum 2 ms diagnostic pulse. -
At what resistance does off-state short-circuit detection apply?
The specified threshold is below 5 ohm. Include cable and termination resistance when investigating a short-circuit indication. -
How does the 4.8 A surge figure differ from the normal load limit?
The surge rating applies for 10 ms only. Maximum continuous current is 0.7 A per point, so the two ratings must not be interchanged. -
What distinguishes the front-panel Power and Load indications?
Power indicates the field-power condition while the module provides a separate Load indication per point. Diagnose these alongside Pass, Fault and Active rather than using a single LED as a full system-health test.
