PRODUCT DESCRIPTION

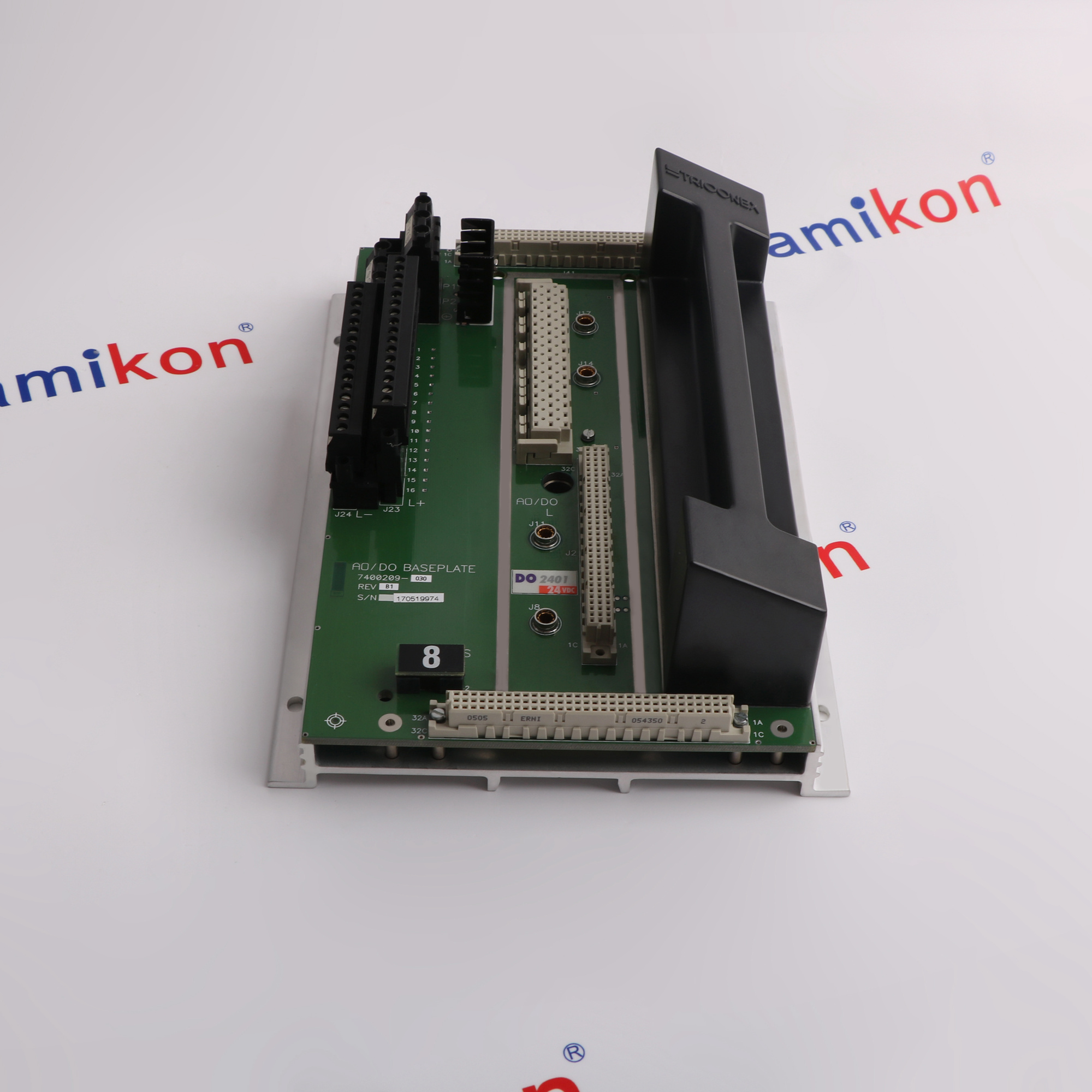

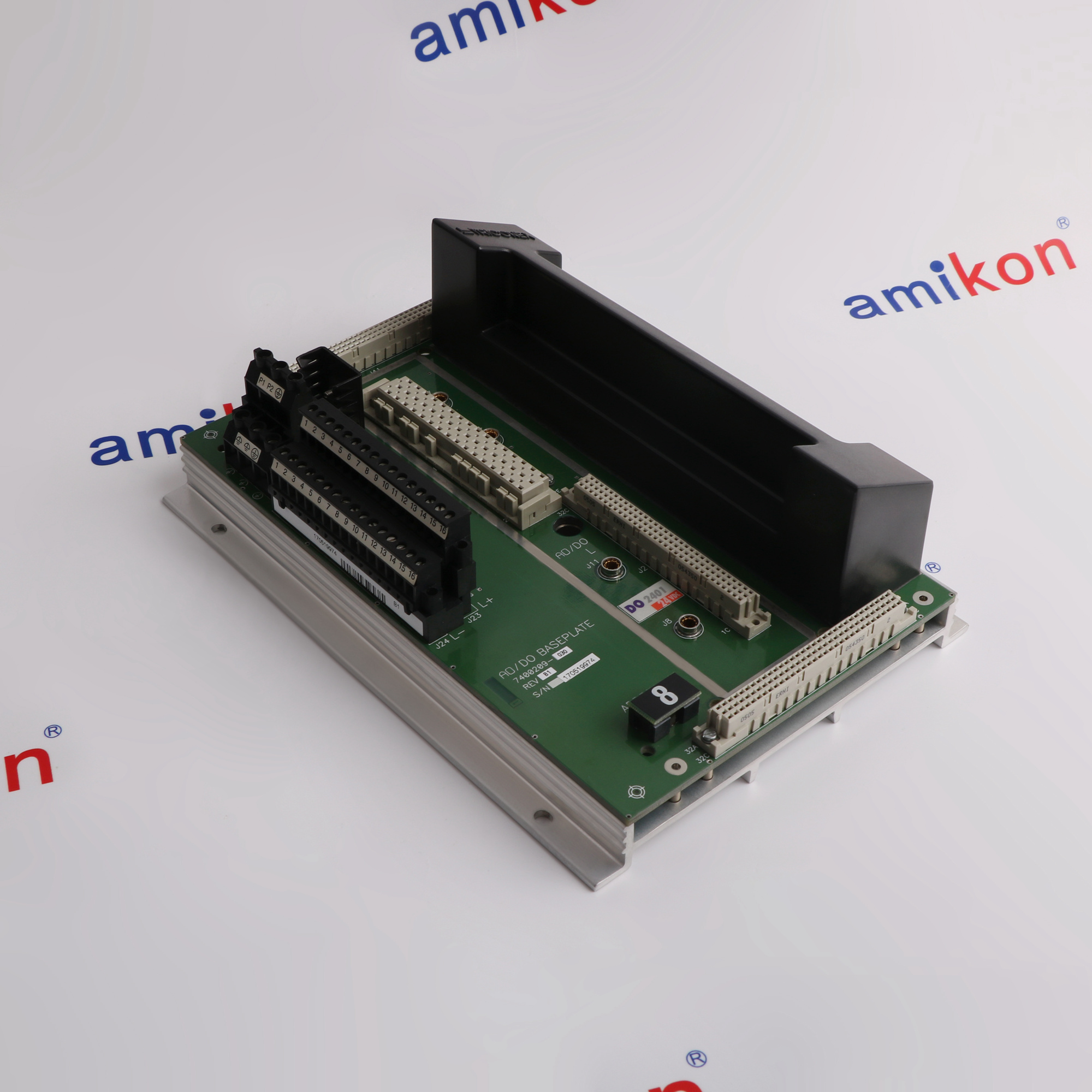

7400209-030 DO2401 Digital output baseplate for the Trident safety system
Triconex 7400209-030 DO2401 is a Digital output baseplate used with the Trident safety system. The complete order reference identifies the required hardware and must be matched to the installed chassis, baseplate, cable or field termination.
Manufacturer documentation lists the applicable electrical, signal and installation characteristics. Verify the nameplate, hardware revision, connector layout and project records before replacement.
Manufacturer documentation lists the applicable electrical, signal and installation characteristics. Verify the nameplate, hardware revision, connector layout and project records before replacement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
DO2401 distributes sixteen commoned Trident output circuits
The direct-termination baseplate joins a 3401 output module to 24 V DC loads, redundant field power and loopback paths.
- 01 · LOAD TERMINATION
Connect sixteen final-element circuits
Land each solenoid or interposing relay on its assigned output and preserve the original return arrangement. - 02 · DUAL FIELD SUPPLY
Maintain both output-power feeds
Check source polarity, fuse protection and safety-ground bonding before the 3401 module is inserted. - 03 · COMMAND CHECK
Compare demand, voltage and feedback
Operate each permitted output and verify the field response together with the module's loopback indication.
Technical specifications for 7400209-030 DO2401
-
Product Model7400209-030 DO2401
-
Product ParametersDigital output baseplate
-
Place of shipmentXiamen, China
-
In stock1 unit
-
ManufacturerInvensys
-
Component TypeDigital output baseplate
-
Assembly Number7400209-030
-
Baseplate Model2401
-
Compatible ModuleTrident 3401 DO module
-
Channel Capacity16 discrete outputs
-
Signal Service24 V DC commoned output
-
Termination MethodDirect field terminal blocks
-
Field Power InputsTwo redundant supply connections
-
Protective ConnectionDedicated safety-ground terminal
-
Module KeyingMechanically keyed I/O location
-
Mounting StylePanel-mounted Trident baseplate
-
Wiring IdentificationNumbered point terminals
-
Spare PositionSupports online hot-spare module
-
Inspection PointVerify jumpers and terminal torque
-
Commissioning ScopeTest every connected field channel
