RMP201-8
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

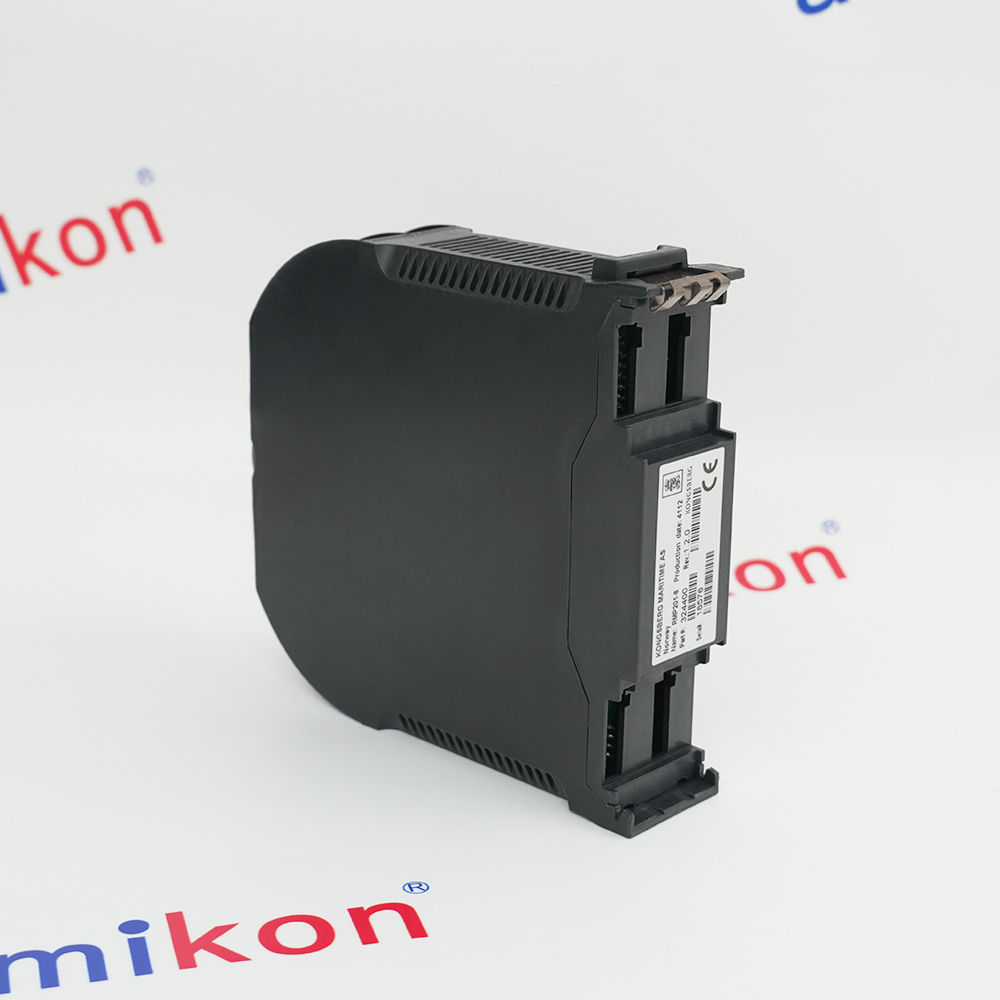

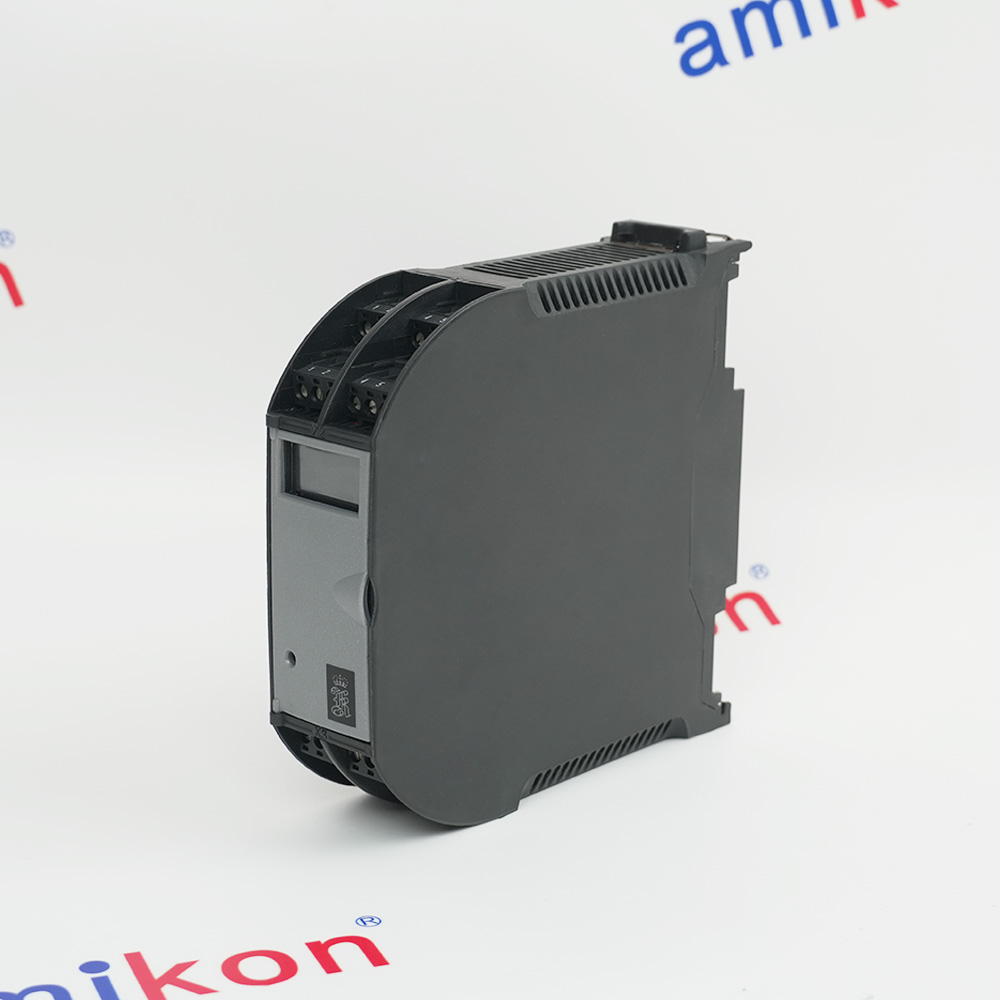

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
RMP2018
DIGITAL INPUT MODULE
MSD/LSD USER ADJUSTABLE
SCREW CLAMP TERMINALS
STATUS INDICATION
(324400)
Technical specifications for RMP201-8
-
Product ModelRMP201-8
-
Product ParametersRemote Multi-Purpose Input/Output Module
-
Tariff Code8537101190
-
Country of originNorway
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.4x14x13.5cm
-
ManufacturerKONGSBERG
-
Weight0.4 kg
-
Input voltage+24 VDC nominal (+18 - +32 VDC)
-
Start-up voltageMinimum 21.6 VDC for minimum 20 ms
-
Power ON rise timeMaximum 20 ms/V monotonic.
-
Current consumptionStand-by current 0.25 A Typical power ON surge at 24 VDC: 1.2 A for 20 ms.
-
Power ON inrush currentMaximum 1.2 A
-
Short circuit currentMaximum 1.2 A for 50 ms
-
Galvanic isolation (power input to module logic)500 V
-
Operating temperature-15 °C - +70 °C
-
Storage temperature-25 °C - +70 °C
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the supply voltage range of the RMP201-8?+The RMP201-8 nominal supply voltage is 24 VDC, with an allowable range of 18–32 VDC. The minimum startup voltage is 21.6 VDC (for at least 20 ms).
-
What are the analog resolution and range of the RMP201-8?+The RMP201-8 uses a 16-bit ADC/DAC, with a voltage range of ±10 V and a current range of 0–20 mA.
-
What is the maximum output current of a single digital output channel?+The maximum output current of each digital output channel of the RMP201-8 is 0.1 A (100 mA). The total current of all digital outputs operating simultaneously does not exceed 0.3 A.
-
What is the Kongsberg RMP201-8?+It is a Remote Multi-Purpose Input/Output (I/O) module used for ship automation, control, and data acquisition. It is designed for industrial environments to monitor operating status and control parameters
-
Does it support hot-swapping?+Yes, the RMP201-8 supports hot-plug functionality, allowing for maintenance without shutting down the entire system.
Get a quick price fo RMP201-8
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Installation Instructions
Features:
- Multiple digital & analog channels for flexible integration
- Control & monitoring from remote via network interfaces
- Reliable operation in demanding environments with high durability
The RMP201-8 Kongsberg Remote multipurpose I/O module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Kongsberg RMP201-8 Remote multipurpose I/O module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Kongsberg RMP201-8 (Part No. 324400) is an eight-channel Remote MultiPurpose Input/Output module designed for marine automation, alarm, and monitoring systems, commonly used within the K-Chief 700 or K-Pos Dynamic Positioning systems. It acts as a node for collecting and controlling data from field sensors and equipment.Supports both digital and analog signal reception/transmission.LED status indication provided.
- Marine & Offshore Automation:Controls propulsion, generators, ballast & cargo on Kongsberg vessels
- Remote Data Acquisition (SCADA):Remote I/O collecting sensor data for central systems
- Engine Control Systems:Functions in marine diesel genset & engine alarm systems
- Industrial Process Control:Fast reliable signal switching for production line automation
- Environmental & Equipment Monitoring:Monitors remote equipment status in marine science applications
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Preparation: Ensure the control cabinet is clean, dry, and properly grounded before installation.
Mounting: Secure the module onto dual DIN rails. The module features plug-and-play RBUS power and communication connectors for easy integration.
Addressing: Use the rotary address switches on the module to set a unique bus address to avoid communication errors.
Wiring: Connect signal and power lines via the Phoenix terminal blocks (screw clamp terminals) on the front panel.
Grounding: For noisy environments, use double-shielded cables and ensure the module is correctly grounded according to the system configuration (floating vs. ground-referenced).
