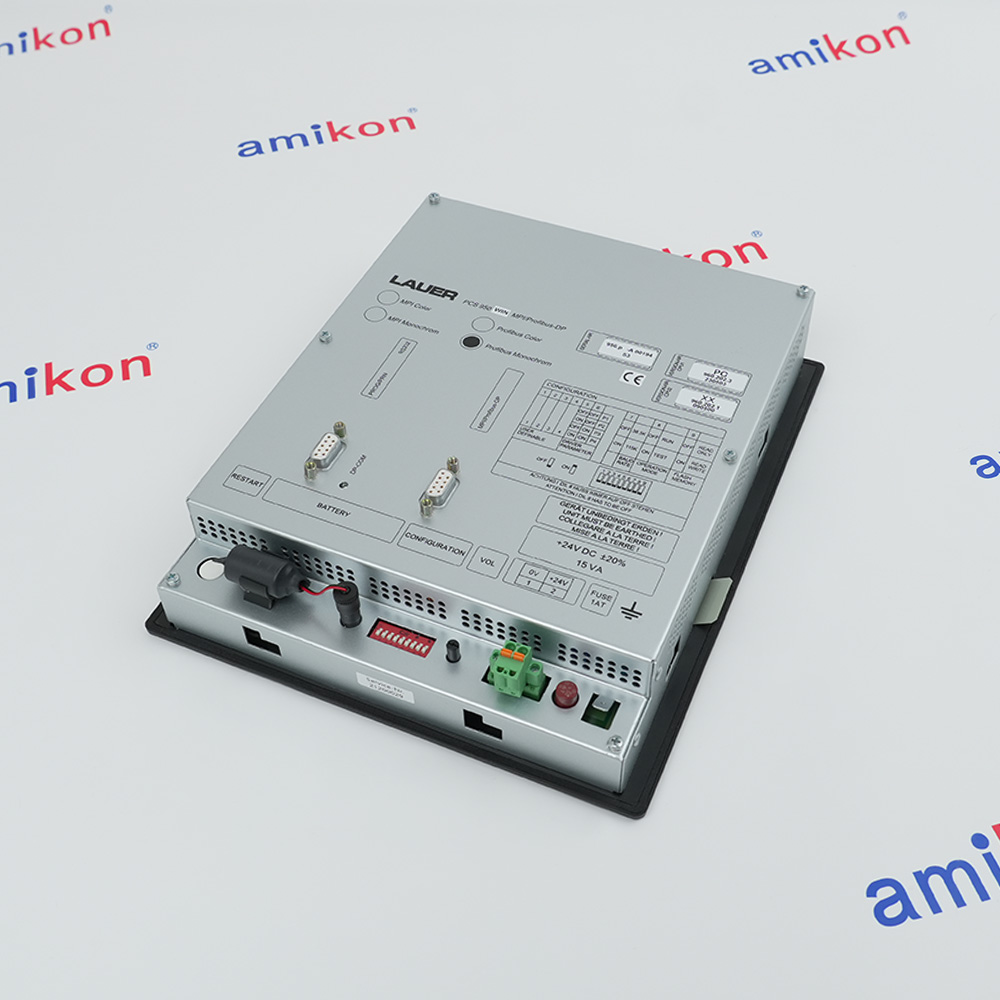

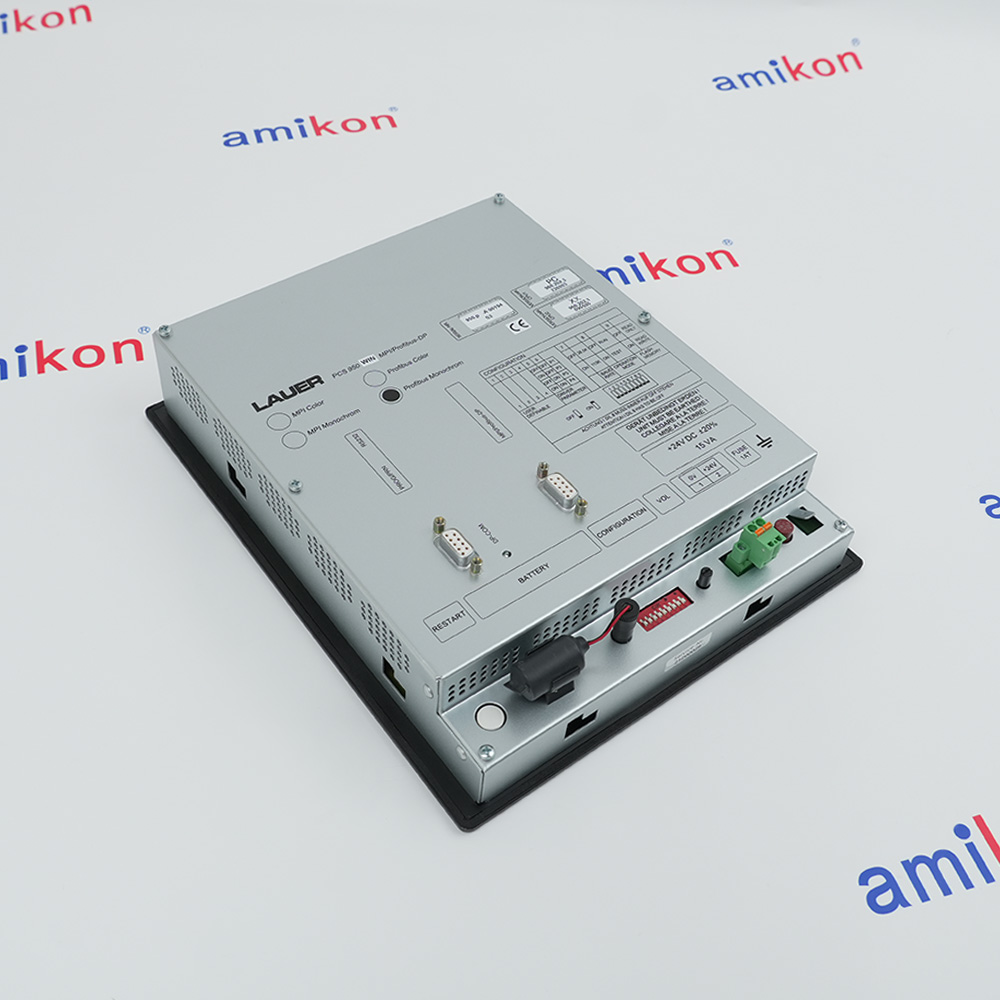

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for PCS 950
-
Product ModelPCS 950
-
Spare ModelPCS 950 WIN MPI/Profibus-DP
-
Product ParametersOperator Panel
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size22.3x27x5.8cm
-
ManufacturerLauer
-
Weight1.9 kg
-
Operating voltage+24 VDC ± 20%
-
Current consumptionIav @ 24 VDC 800 mAI max @ 19 VDC
-
Data storageflash EEPROM, min. 10000 write cycles
-
Humidity0...75%, exposure time of at least 48 hours
-
Temperature storage-25...+70 °C
-
Temperature operation0...+50 °C
-
Front foilpolyester
-
Pushbuttonsmechanical with tactile touch
Description
PCS950
OPERATOR INTERFACE
WIN MPI/Profibus-DP
PG960.202.2150503
LCD DISPLAY
NUMERIC KEYPAD
F1-F20
OPERATOR INTERFACE
WIN MPI/Profibus-DP
PG960.202.2150503
LCD DISPLAY
NUMERIC KEYPAD
F1-F20
Information
Overview
Manuals
Technical notes
Product Applications
Communication & Interface
Features:
- Graphic LCD display, 320 x 240 pixels, 24 lines x 40 characters
- Function keys F1...F20,each containing two status LEDs
- 8 control keys formenu operation and preset value input, cursor keys with LED
- Function key labeling 6Important information about the PCS status
The PCS 950 LAUER Operator Panel may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
LAUER PCS 950 Operator Panel Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The LAUER PCS-950 (part of the topline midi family) is a German-manufactured industrial operator panel (HMI) designed for monitoring and controlling automation processes. It is typically used for displaying data, managing machine statuses, and setting PLC parameters. Supports 128 operating pages, 8 timers with 8 cams, and handles up to 214 PLC words for variable display.40 freely usable LEDs, with separate green and yellow LEDs for each function key (supporting ON, DARK, FLASHING, INVERS FLASHING).
- Automotive Manufacturing:Robotic arm control, speed/diagnostics for welding/painting
- Food and Beverage Processing:Production rates & recipes for consistent flavor in snacks/beverages
- Pharmaceutical Production:Monitors temp/pressure for safety compliance in medicine production
- Energy & Utilities:Real-time monitoring, filtration & fault detection for plants
- Textile Machinery:Rieter machines: manages textile production cycles
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Protocol Support: Installation varies by interface module, commonly utilizing Profibus-DP or MPI for direct connection to Siemens S7 or VIPA controllers.
Wiring: Use shielded cables for all communication lines to minimize signal cross-talk and electrical noise.
Interface Selection: The unit may feature DIL switches to set baud rates and interface types like RS-232, RS-422, or RS-485.
Programming Port: A dedicated serial interface is used for project transfers from a PC running PCSPRO software
FAQs
-
What is LAUER PCS 950?
+The LAUER PCS 950 is a modular operating console used for PLC monitoring and control, typically featuring a 320 x 240 pixel graphic LCD display and up to 20 function keys with status LEDs. -
What software is needed to program the PCS 950?
+The standard software for this series is PCSPRO. Note that older versions were designed for DOS or early Windows (95/98) and often require a native serial port (COM port) rather than a USB adapter to communicate reliably. -
Which communication protocols are supported?
+Depending on the specific module installed, it supports MPI/Profibus-DP (common in Siemens environments) and standard serial interfaces like RS 232/TTY or RS 422/485. -
How do I manage setpoint values?
+The PCS 950 features a numeric keypad specifically for entering preset values (nominal values), along with cursor keys for navigating the menu.
