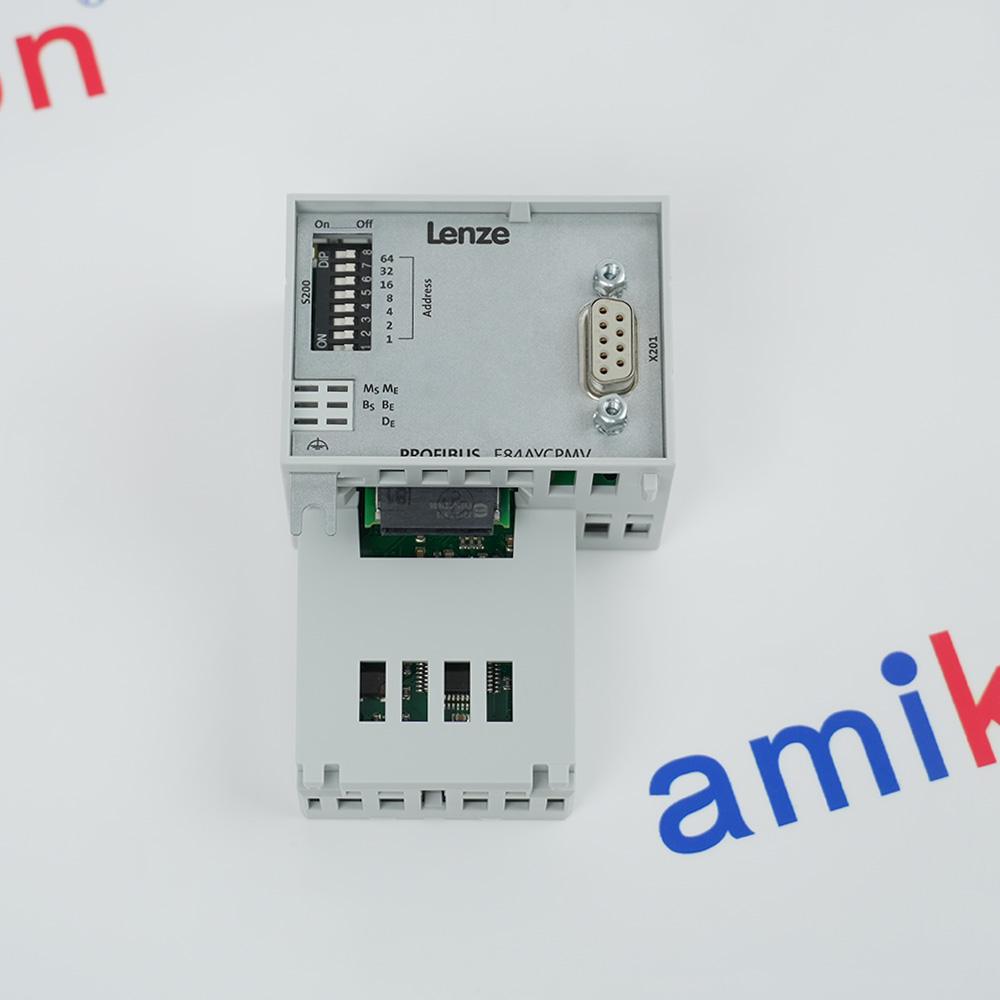

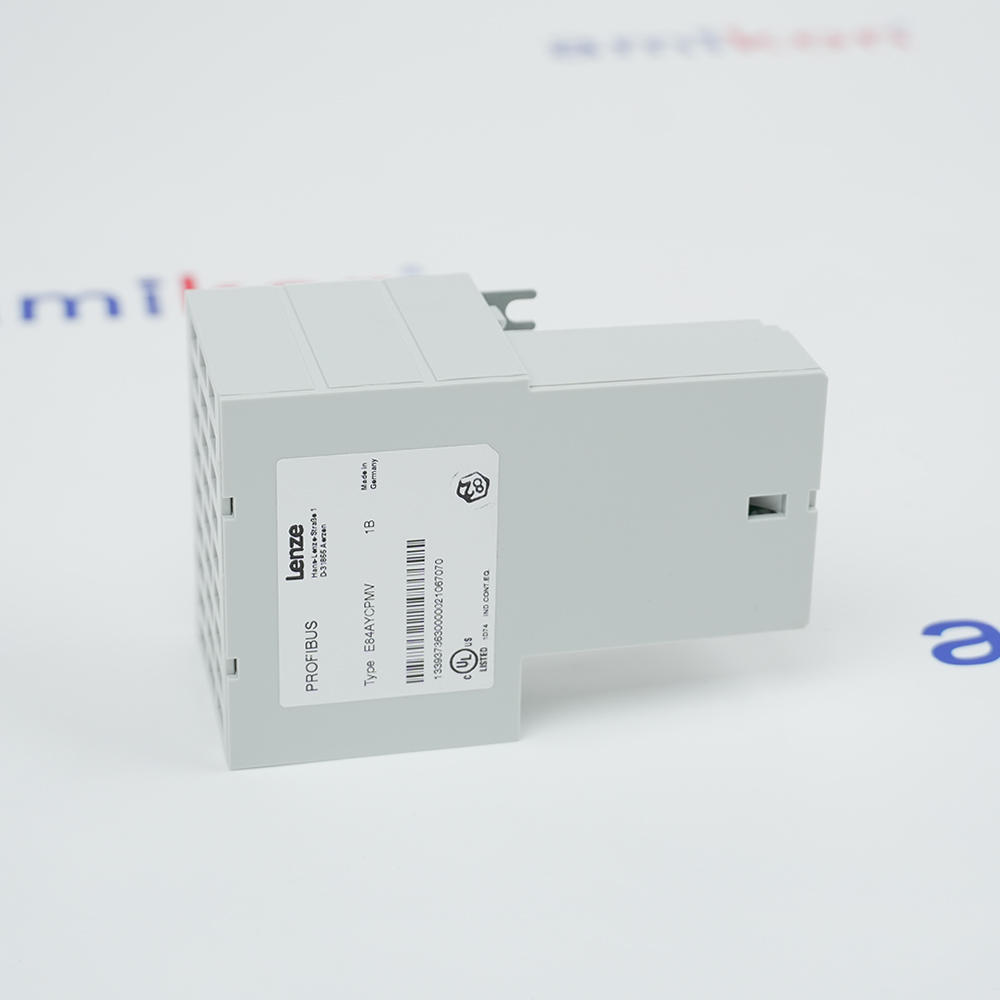

Technical specifications for E84AYCPMV
-
Product ModelE84AYCPMV
-
Product ParametersProfibus Communication Module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6.6x9.9x4.8cm
-
ManufacturerLenze
-
Weight0.1 kg
-
MediumRS 485
-
Communication profilePROFIBUS-DP-V1
-
Baud rate9.6 ... 12 000
-
Process data words16 Bit
-
Interface9-pole Sub-D socket
Description
The E84AYCPMV is a Lenze PROFIBUS communication module as an accessory for Inverter Drives 8400 series. The E84AYCPMV serves as an interface module for the PROFIBUS communication system, connecting to the expansion slots of the standard device to enable network-based control and monitoring. The E84AYCPMV supports both DRIVECOM parameter data channel (DP-V0) and PROFIDrive parameter data channel (DP-V1), providing flexible communication options for different industrial control system architectures.
The E84AYCPMV can exchange up to 16 process data words per direction, enabling comprehensive real-time data transfer for motor control, status monitoring, and parameter access. The E84AYCPMV features automatic detection of the baud rate from 9.6 kbps to 12 Mbps, ensuring seamless integration into existing PROFIBUS networks without requiring manual baud rate configuration. The E84AYCPMV allows setting of the station address either via DIP switches (S200) located on the module or through software configuration, providing flexible addressing options for various network topologies.
The E84AYCPMV can exchange up to 16 process data words per direction, enabling comprehensive real-time data transfer for motor control, status monitoring, and parameter access. The E84AYCPMV features automatic detection of the baud rate from 9.6 kbps to 12 Mbps, ensuring seamless integration into existing PROFIBUS networks without requiring manual baud rate configuration. The E84AYCPMV allows setting of the station address either via DIP switches (S200) located on the module or through software configuration, providing flexible addressing options for various network topologies.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Installation & Bus Coupling
Features:
- PROFIBUS compatibility
- Robust construction
- Easy installation that features a 9-pole sub-D socket
- High data transfer rates
- Compact design
- Suitable for use with Lenze's 8400 series inverter drives
- User-friendly interface
The E84AYCPMV Lenze PROFIBUS DP communication module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Lenze E84AYCPMV PROFIBUS DP communication module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Once installed, the module enables cyclic data exchange between the PLC master and the drive slave, while also supporting diagnostic and parameter access functions. This allows engineers to remotely configure and monitor drive behavior without direct interaction with the inverter hardware.
With DIP-switch address configuration and integrated LED diagnostics, commissioning is straightforward, even in multi-drive network architectures. Its robust design and galvanic isolation ensure stable operation in electrically noisy industrial environments.
- Packaging & Dosing Systems:PROFIBUS DP-V1 for filling/dosing precise speed & throughput
- Material Handling & Intralogistics:Remote control for palletizers, conveyors & warehouse positioning
- Plastics & Processing:Extruders: consistent motor speed & bus-based torque/temp monitoring
- Automated Access Controls:Gate/door position & status data to facility control system
- Rotary & Lifting Units:High-dynamic indexing/indexing tables: rapid PROFIBUS data exchange
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Bus Connection: Connect the PROFIBUS cable using a standard 9-pin Sub-D connector.
Termination: If the drive is the first or last station in the segment, you must activate the bus terminating resistor on the PROFIBUS connector.
Station Address: Set the address (1 to 125) using the DIP switches located on the module or via software code C13899.
Power Supply: The module is internally powered by the drive; no external power is required for standard operation, though an external 24V supply can maintain communication if the main drive power fails
Technical notes
The E84AYCPMV is the conformal coated version (indicated by V suffix), providing enhanced protection against moisture, dust, and corrosive contaminants for operation in harsh industrial environments. The E84AYCPMV is supplied with voltage via the standard device, eliminating the need for a separate power supply.The E84AYCPMV features bus coupling via remote bus according to the RS485 standard, with a 9-pin Sub-D socket (X201) for PROFIBUS connection. The E84AYCPMV includes 5 LED status displays (MS, ME, BS, BE, DE) for module and fieldbus diagnostics, enabling quick visual identification of operational status and faults.
FAQs
-
What is the function of the E84AYCPMV?
+It is a communication module that enables the Lenze 8400 inverter drive to connect to a PROFIBUS DP network, allowing for monitoring and control. -
Which drives is this module compatible with?
+The module is designed for the Lenze 8400 series, including the 8400 BaseLine, StateLine, HighLine, and TopLine drives. -
What is the difference between E84AYCPMV and E84AYCPMS?
+The E84AYCPMV generally refers to a coated version designed for harsher environments, while E84AYCPMS is the standard version. -
What communication protocol does it use?
+It uses the PROFIBUS DP protocol, enabling high-speed data exchange between the inverter and a PLC or other master control systems.
