What is the purpose of SST-PB3-CLX?

It allows ControlLogix PLCs to communicate with Profibus DP slave devices, typically used for connecting Rockwell networks and Siemens environments.

How many SST-PB3-CLX units can be installed in a single rack?

A maximum of 8 SST-PB3-CLX-RLL units can be installed in each rack.

What does the module do?

It acts as a PROFIBUS DP Scanner/Master or Slave, allowing ControlLogix to communicate with PROFIBUS devices (e.g., drives, sensors)..

What software is used to configure it?

The SST Profibus Configuration Tool is used to define network parameters and cycle data. It also provides an Add-On-Profile (AOP) for easy integration into RSLogix 5000.

Get Parts Quote

Name

Company *

Phone *

Email *

Address

City

State / Province / Region

Zipcode

Country

Quantity *

Part Number *

Manufacturer

Preferred Condition

Additional Information

Cancel

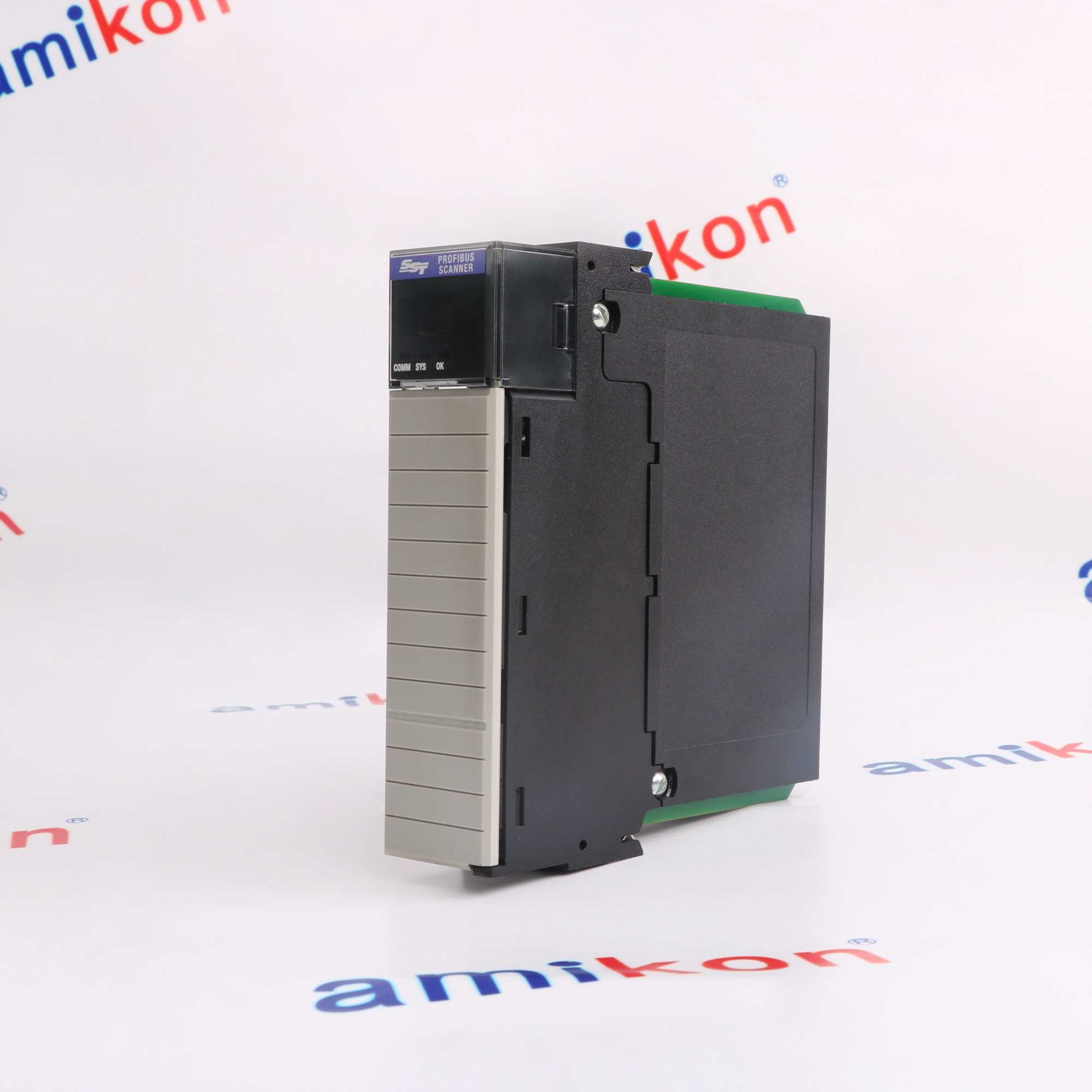

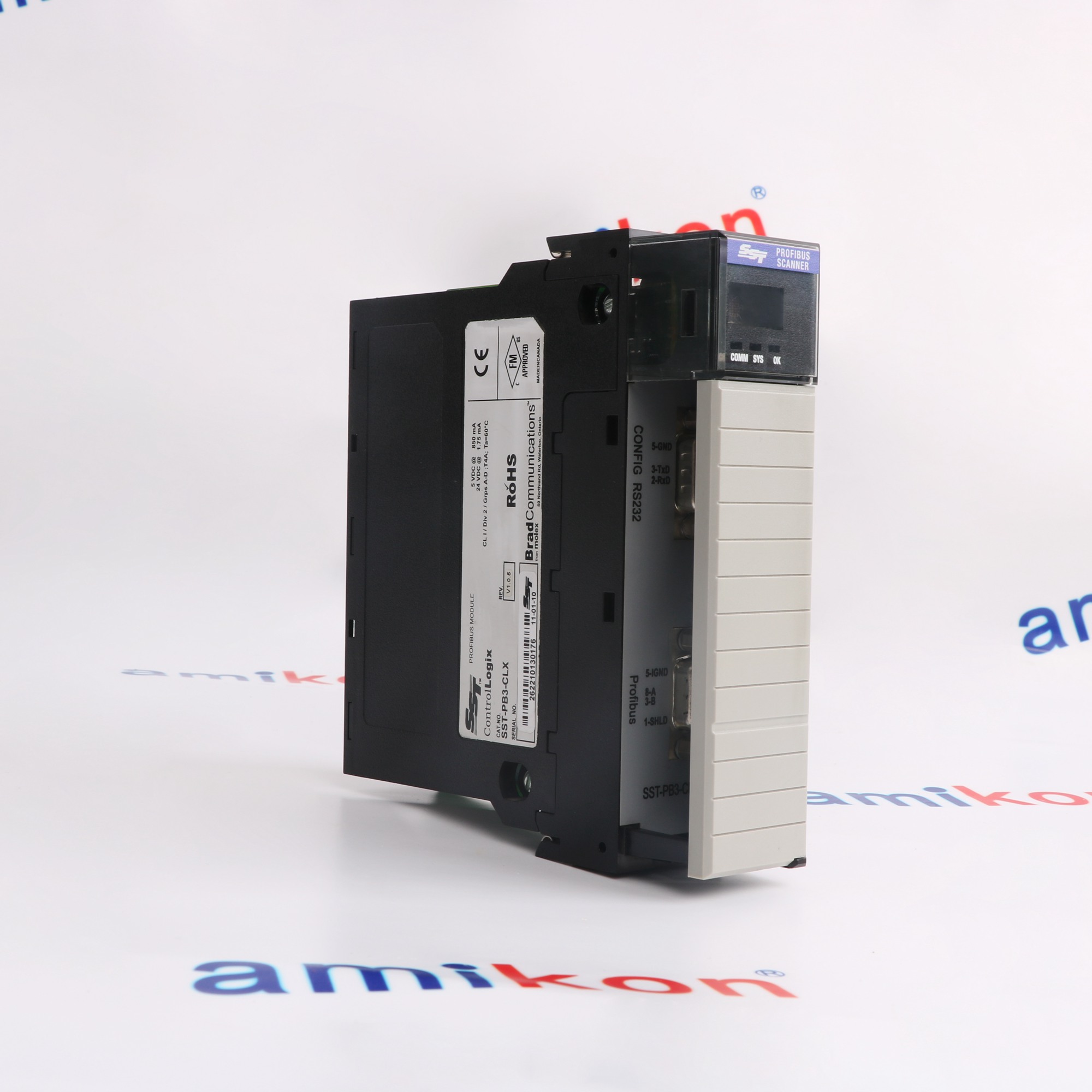

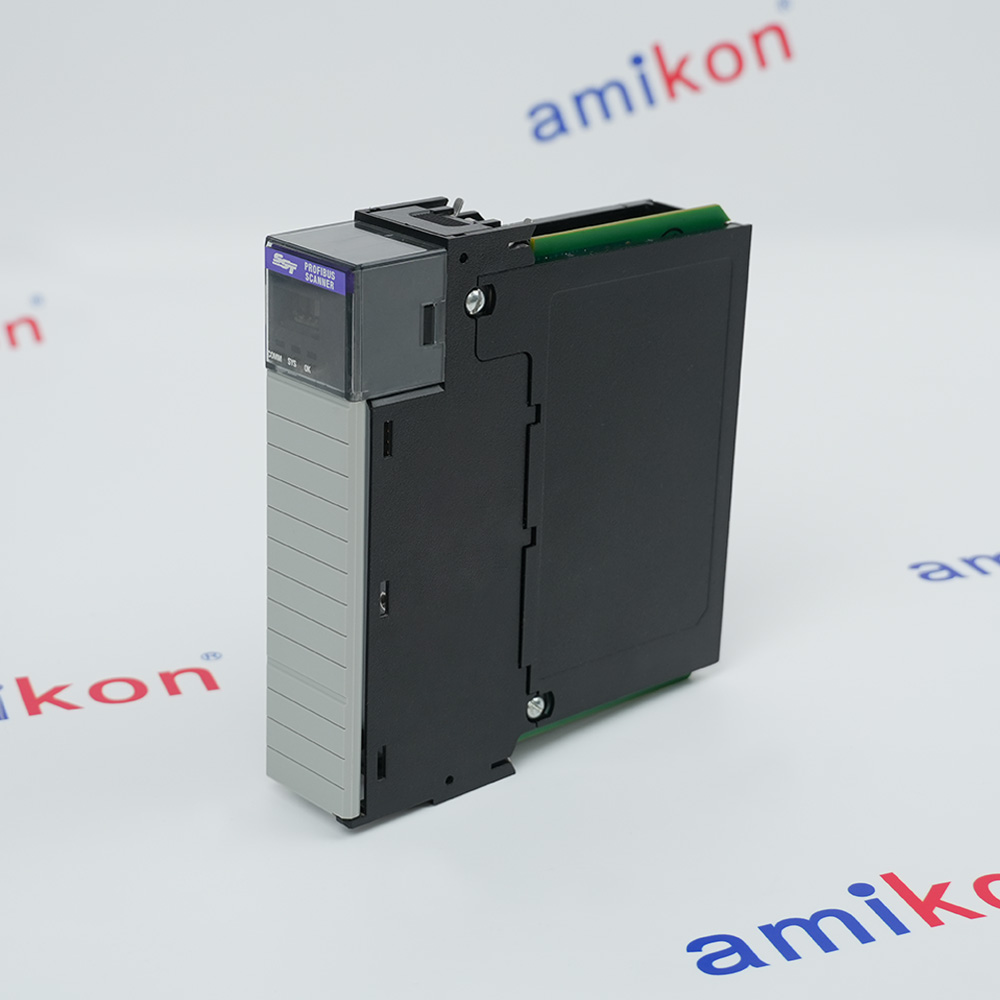

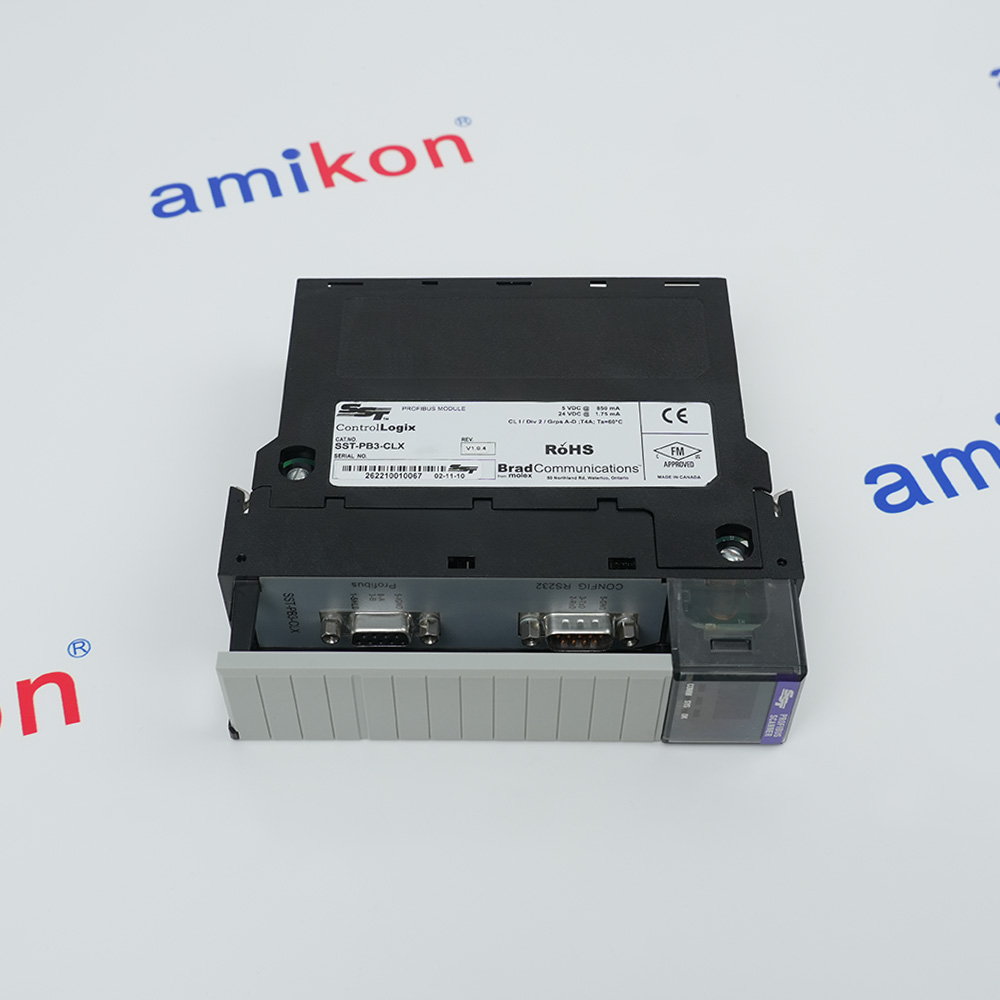

SST-PB3-CLX

Name: SST-PB3-CLX
Brand: Molex Woodhead

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Information

Product Describe

SSTPB3CLX
PROFIBUS MODULE
CONTROLLOGIX COMMUNICATION MODULE
5 VDC AT 850 MA
24 VDC AT 1.75 MA

Technical specifications for SST-PB3-CLX

Product Model

SST-PB3-CLX
Product Parameters

PROFIBUS Scanner
Tariff Code

8537101190
Country of origin

USA
Place of shipment

Xiamen, China
Estimated Shipping Size

3.5x14x14.5cm
Manufacturer

Molex Woodhead
Weight

0.24 kg
Power Supply

5 V DC
Power Consumption

8-20 W (typical)
Isolation

1500 V AC
Network Speed

9.6 kbps to 12 Mbps
Current Consumtion

850 mA @ 5V or 1.75 mA @ 24V
Operating Temperature

0 to +60°C
Storage Temperature

-40 to +85°C

Factory New

These are new and current items that are procured from the manufacturer.
New No Package

These parts are new. They have not been used, but their original packaging is no longer available.
New In Opened Package

These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.
New In Sealed Package

Parts are new. They have not been used and still have their original package seal intact.
New in Original Package

These parts are new. The packages were not originally sealed by their original manufacturer.

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is the purpose of SST-PB3-CLX?+

It allows ControlLogix PLCs to communicate with Profibus DP slave devices, typically used for connecting Rockwell networks and Siemens environments.
How many SST-PB3-CLX units can be installed in a single rack?+

A maximum of 8 SST-PB3-CLX-RLL units can be installed in each rack.
What does the module do?+

It acts as a PROFIBUS DP Scanner/Master or Slave, allowing ControlLogix to communicate with PROFIBUS devices (e.g., drives, sensors)..
What software is used to configure it?+

The SST Profibus Configuration Tool is used to define network parameters and cycle data. It also provides an Add-On-Profile (AOP) for easy integration into RSLogix 5000.

Get a quick price fo SST-PB3-CLX

*Quantity

*E-mail

Company

*Mobile

*Content

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Amikong please read our privacy policy.

Inquiry

Control system parts

Required delivery time

ask

Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

Product

MORE INFORMATION

Overview Manuals Technical notes Software & Configuration

Features:

Advanced Windows Engineering Configuration and Diagnostics Console
Automatic PROFIBUS Devices Detection
Up to (8) Modules can be Used
Support Local and Remote ControlLogix Chassis

The Woodhead SST-PB3-CLX Series PROFIBUS Master and Slave ControlLogix Communication Modules connect to the Rockwell ControlLogix controller to PROFIBUS networks. Each module has a communication port that act as PROFIBUS-DP Master and/or Slave protocols to exchange data with other PROFIBUS compatible devices.

The SST-PB3-CLX-RLL module is delivered with its "Add-On-Profile" (AOP) for easy integration into the ControlLogix system using the RSLogix 5000 software. The data transfer from the SST module to the ControlLogix processor supports 2 modes; a "direct mode" allowing mapping of PROFIBUS data in I/O processor image (496 inputs bytes / 496 output bytes) and a "pagging mode" allowing access to 1984 Input bytes and 1968 Output bytes of PROFIBUS data from of user-defined data space set up into Logix CPU memory.

The SST-PB3-CLX Woodhead CONTROLLOGIX COMMUNICATION MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

Woodhead SST-PB3-CLX CONTROLLOGIX COMMUNICATION MODULE Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

The Remote Link Library software provides added functionality to the BradCommunications SST Profibus module by allowing you to remotely monitor or download changes to your Profibus configuration. This is done by routing data from the BradCommunications SST Profibus DP Master Configuration software through Rockwell Automation's RSLinx software via Ethernet to the Allen-Bradley ControlLogix backplane. The Profibus Scanner can be used on a Local Rack or on a Remote Rack through CIP networks like EtherNet / IP or ControlNet.

Configuration is handled through two primary tools: the SST PROFIBUS Configuration Tool and RSLogix 5000 / Studio 5000

Required Tooling: Use the SST Configuration Tool (version 3.13.13 or newer recommended) to define your PROFIBUS network, import GSD files, and set up I/O mapping.

Logix Integration:

Install the Add-On Profile (AOP) to allow the module to appear in the Logix IO Configuration tree.
