PRODUCT DESCRIPTION

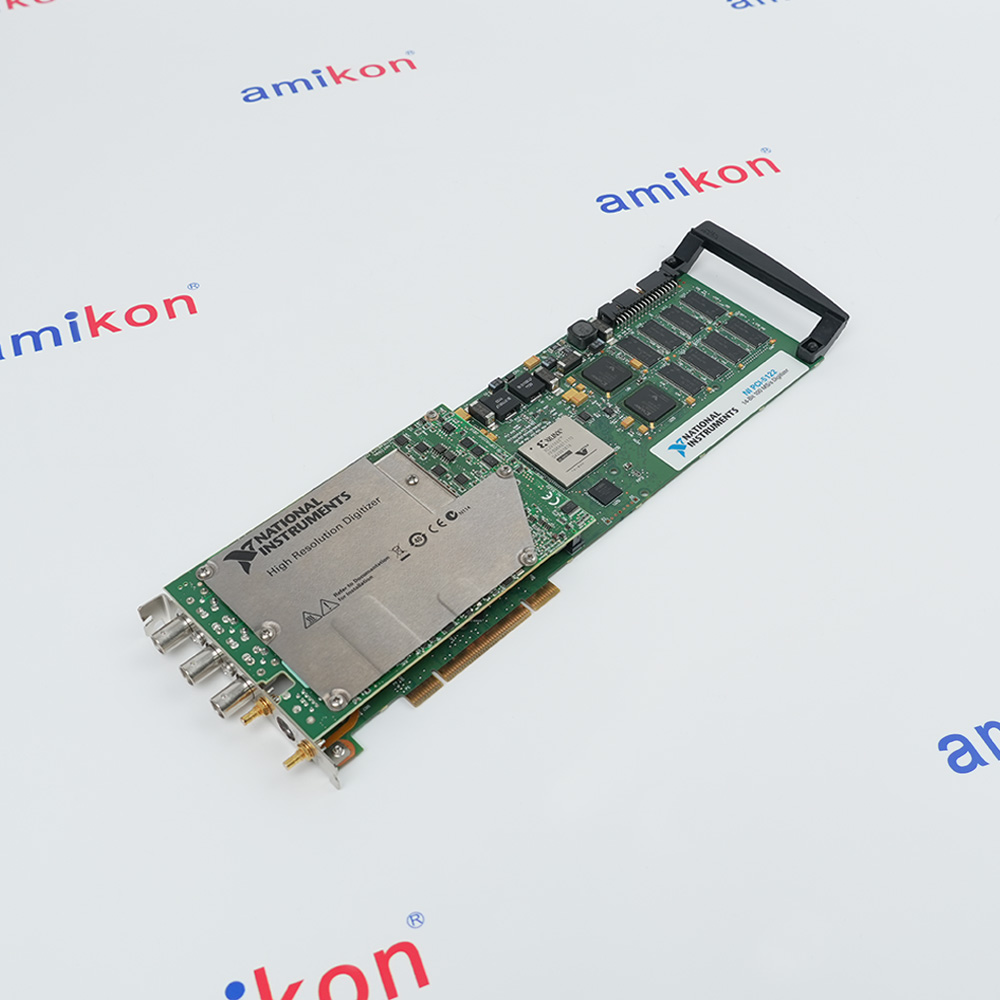

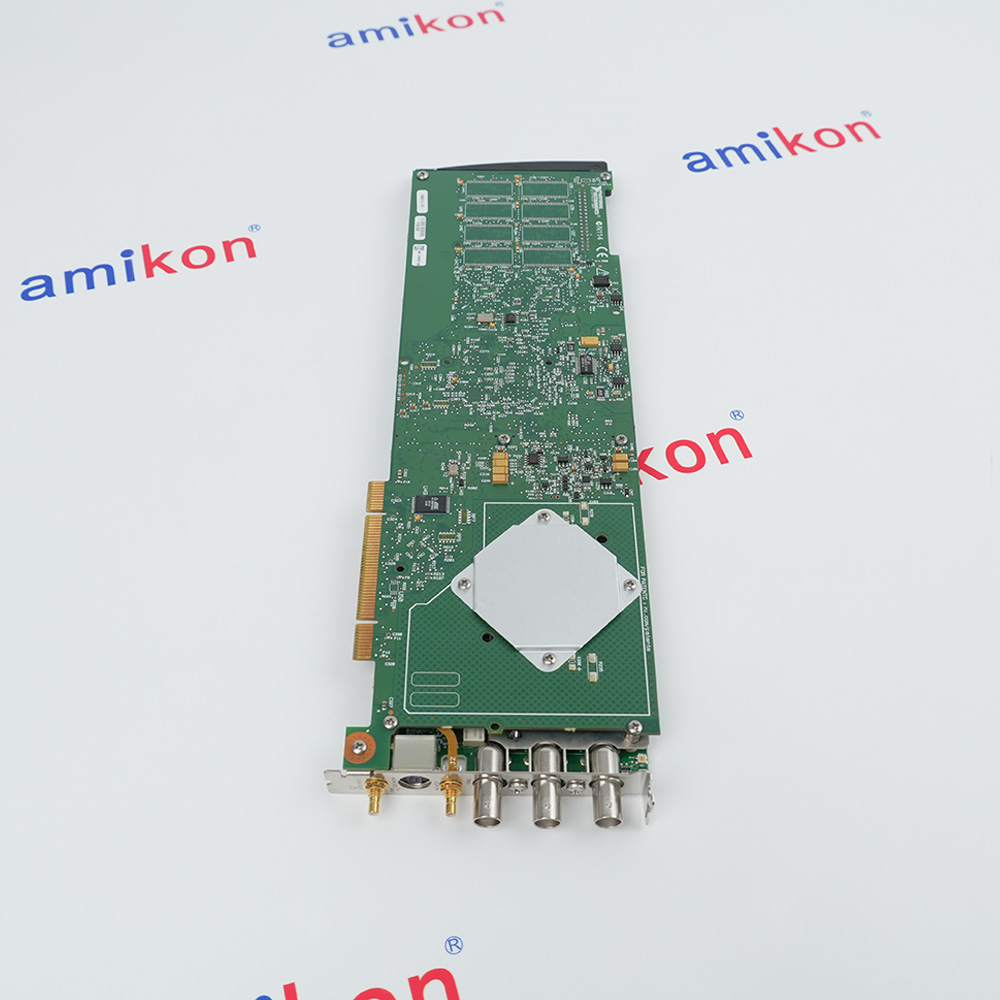

PCI-5122 100 MHz PCI Oscilloscope Device
National Instruments PCI-5122 is a two-channel, simultaneously sampled PCI oscilloscope and digitizer with 14-bit resolution, 100 MHz analog bandwidth and a maximum real-time sampling rate of 100 MS/s.
Software-selectable 50 ohm and 1 Mohm inputs, AC/DC coupling, programmable input ranges, external triggering and model-dependent onboard memory support high-resolution waveform acquisition and frequency-domain measurement. Confirm the complete article number, installed PCI slot, connector allocation and NI-SCOPE configuration before ordering.
Software-selectable 50 ohm and 1 Mohm inputs, AC/DC coupling, programmable input ranges, external triggering and model-dependent onboard memory support high-resolution waveform acquisition and frequency-domain measurement. Confirm the complete article number, installed PCI slot, connector allocation and NI-SCOPE configuration before ordering.
BEFORE YOU BUY
Confirm the complete PCI-5122 digitizer configuration
ACTUAL APPLICATIONS
Application context for PCI-5122
PCI-5122 supports high-resolution waveform acquisition across avionics verification, electronics validation and scientific measurement. The complete article and NI-SCOPE configuration determine the available memory and measurement setup.
-
01 · AEROSPACE & DEFENSE
Avionics and Radar Verification
Flight electronics verification laboratoriesRadar and electronic warfare test programs -
02 · ELECTRONICS & SEMICONDUCTOR
Electronic Component and Mixed Signal Validation
Semiconductor characterization laboratoriesMixed signal design verification -
03 · ENERGY & RESEARCH
Power Electronics and Scientific Measurement
Power conversion development laboratoriesScientific waveform research facilities
Technical specifications for PCI-5122
-
Product ModelPCI-5122
-
Product Parameters100 MHz, 100 MS/s, 14-Bit PCI Oscilloscope Device
-
In stock1 unit
-
ManufacturerNI
-
Product TypePCI oscilloscope and digitizer
-
Bus Interface32-bit 33 MHz PCI
-
Analog Input ChannelsTwo simultaneously sampled channels
-
Vertical Resolution14 bits
-
Analog Input ConnectorsBNC female
-
Input Impedance50 ohm or 1 Mohm software selectable
-
Input CouplingAC, DC or GND
-
Full-Scale Input Ranges0.2 to 20 V peak-to-peak
-
Analog Bandwidth100 MHz on ranges above 0.2 V
-
Rise and Fall Time3.5 ns on ranges above 0.2 V
-
Real-Time Sample Rate1.526 kS/s to 100 MS/s
-
Random Interleaved Sampling200 MS/s to 2 GS/s
-
Onboard Memory Options8, 64 or 256 MB per channel
-
External Trigger RangePlus or minus 5 V
-
External Calibration IntervalTwo years
View all additional
Alternative Names
NI PCI 5122
National Instruments PCI-5122
778758-01 / 778758-02 / 778758-03
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match PCI-5122 to the measurement configuration
National Instruments PCI-5122 is a two-channel 14-bit PCI oscilloscope and digitizer with 100 MHz analog bandwidth and 100 MS/s real-time sampling.
Engineering should match the 32-bit PCI bus, 50 ohm or 1 Mohm input configuration, 0.2 to 20 V peak-to-peak range and selected memory option to the measurement plan.
Use the official getting started guide for installation and NI-MAX verification. Validate channel scaling, trigger behavior, sample clock selection and NI-SCOPE acquisition before release.
Features:
- Exact identity: PCI-5122
- Input channels: 2 simultaneous
- Resolution and bandwidth: 14 bit / 100 MHz
The National Instruments PCI-5122 requires documented system integration before energising the computer and connected measurement circuit.
REPLACEMENT CONTROL
Verify the complete PCI-5122 identity before exchange
Replace PCI-5122 only after matching the PCI form factor, complete article number, onboard memory option and supported NI-SCOPE environment. PXI and PXIe variants are mechanically different.
Photograph the board label, PCI slot, mounting bracket, BNC and SMB cabling, AUX I/O and RTSI routing. Record the NI-MAX device name and export the measurement configuration before removal.
After installation, verify mechanical seating and cooling, restore all connections, confirm device discovery in NI-MAX, run the self-test and complete controlled channel and trigger checks.
Features:
- Exact identity: PCI-5122
- Bus form: PCI add-in card
- Memory option and driver support
The National Instruments PCI-5122 requires documented replacement verification before energising the computer and connected measurement circuit.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Official CA-H200C product references are checked before order
- Confirm camera and controller compatibility in current manuals
- Accessories are supplied only when listed in the quotation
Documentation for the KEYENCE CA-H200C cable must be matched to the connected camera and controller; confirm manual availability in the written quotation.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size35.5 x 2.0 x 11.3 cm
-
Shipping weight0.46 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9030201000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about PCI-5122
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which PCI-5122 details should engineering compare before integration?
Compare the complete PCI-5122 article number, PCI slot clearance, input impedance, connector allocation, memory option and supported NI-SCOPE environment. -
What should be recorded before removing a PCI-5122?
Record the installed slot, cable labels, channel assignments, trigger routing, RTSI connections, NI-MAX device name and the saved NI-SCOPE configuration. -
How should a PCI-5122 be handled during replacement?
Use ESD controls, handle the board by its edges or metal bracket, isolate computer power and avoid forcing the card into the PCI connector. -
Which checks are needed after installing a PCI-5122?
Confirm secure mechanical seating, restore cabling, verify appearance in NI-MAX, run the self-test and complete a controlled channel and trigger functional check. -
How often does PCI-5122 require external calibration?
The official PCI-5122 specification gives a two-year external calibration interval and a fifteen-minute warm-up time. -
Can a related NI 5122 variant directly replace PCI-5122?
Do not assume interchangeability with PXI or PXIe variants. Match the PCI form factor, complete article, memory option, software support and physical interfaces. -
What information should a distributor include in a PCI-5122 quotation?
Include the exact model and article number, memory option, quantity, condition, destination, requested documentation and clear front and rear label photographs. -
Which receiving checks apply to PCI-5122 orders?
Inspect the model label, PCI edge connector, BNC and SMB connectors, bracket, auxiliary connector and packaging condition before acceptance.
