- NS5-MQ00-V2

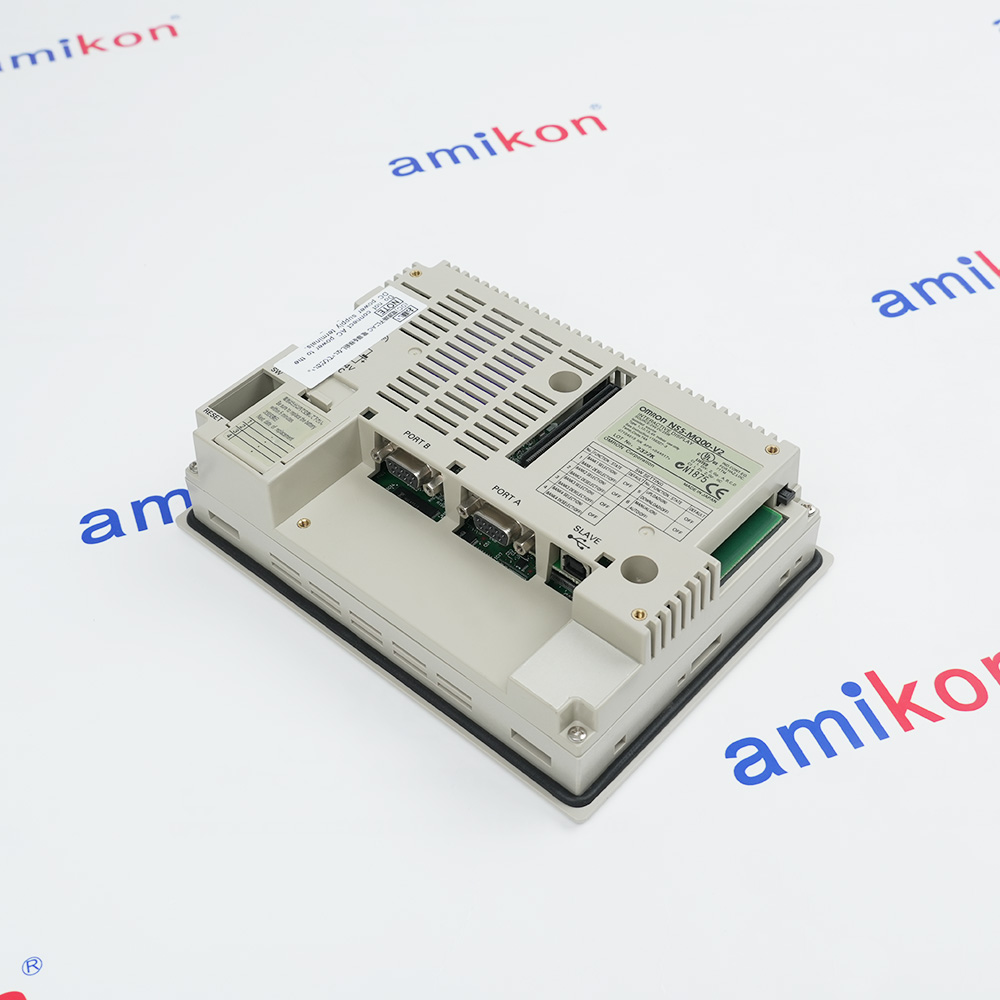

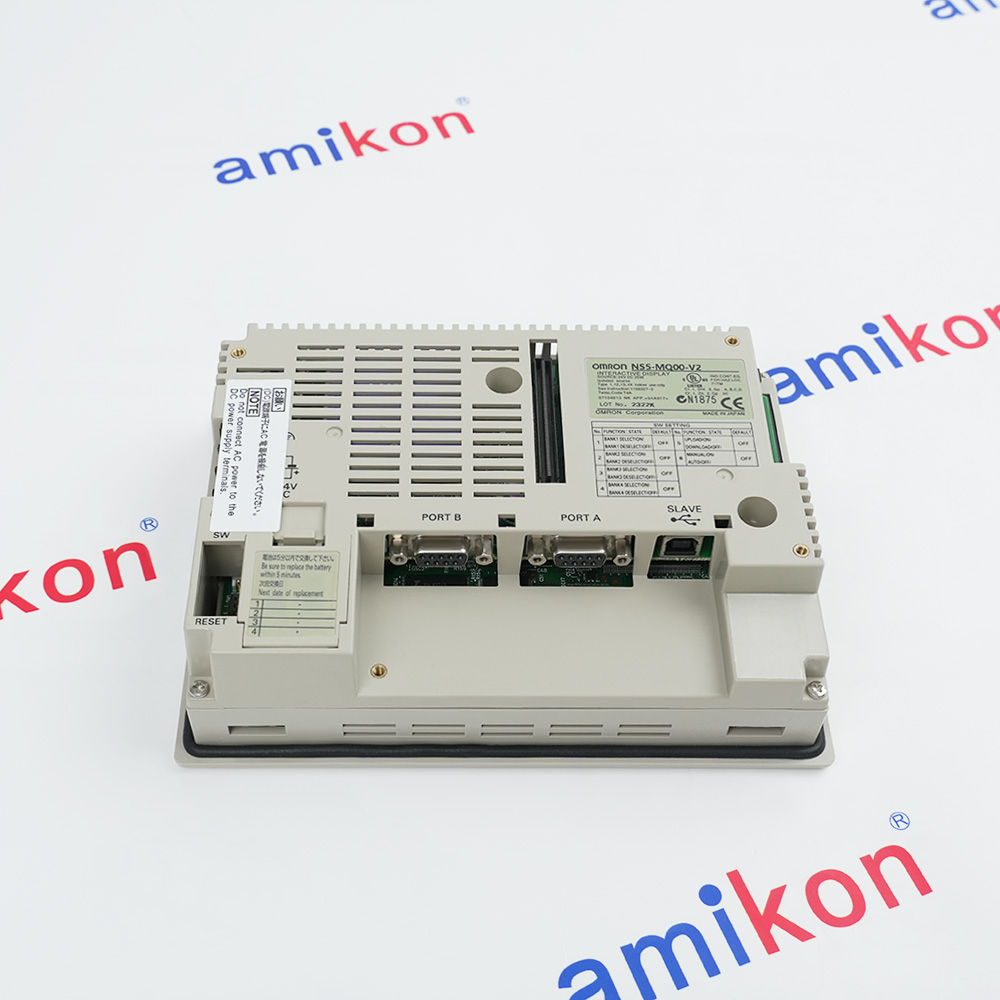

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for NS5-MQ00-V2
-
Product ModelNS5-MQ00-V2
-
Product ParametersTouch Screen Panel
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size19.5x14.2x5.4cm
-
ManufacturerOmron
-
Weight0.8 kg
-
Display deviceMonochrome LCD
-
Case colorIvory
-
Display colors16 gradations
-
Number of dots320 dot horizontal × 240 dot vertica
-
Screen data capacity20 Mbytes
-
Image data16 gradations
-
Memory CardSupported
-
Service life50,000 hours min
-
MethodResistive membrane
Description
NS5MQ00V2
OPERATOR INTERFACE
5.7 INCH STN SCREEN
MONOCHROME
320 X 240
24 VDC
15 W
WITHOUT ETHERNET
IVORY
OPERATOR INTERFACE
5.7 INCH STN SCREEN
MONOCHROME
320 X 240
24 VDC
15 W
WITHOUT ETHERNET
IVORY
Information
Overview
Manuals
Technical notes
Product Applications
Programming Core Functions
Features:
- 16 monochrome gradations
- QVGA 320 x 240 pixels
- Screen memory size: 20 MB
The NS5-MQ00-V2 OMRON OPERATOR INTERFACE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
OMRON NS5-MQ00-V2 OPERATOR INTERFACE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Omron NS5-MQ00-V2 is a 5.7-inch monochrome industrial HMI(touch screen operator interface) with a 320 x 240 pixel resolution, part of the Ns Series V2 line. Key features include 24vDc input, 16-gradation gray-scale monochrome display, 15W power consumption, and dual RS-232C interfaces. The V2 models are enhanced versions that accept conventional STN screen data, displaying it in 16 shades of gray.Supports direct connection to Omron PLC systems via serial (RS-232C/RS-422A) or USB ports.
- Packaging & Labeling Machines:Controls conveyor speeds, label application, and recipe selection.
- Material Handling Systems:Tracks product counts & displays system status for sorters & palletizers.
- Environmental & Process Control Units:Manages HVAC, pumping stations, and chemical dosing with controllers.
- Assembly & Testing Benches:Guides operators & displays pass/fail results from vision sensors.
- Small CNC & Metalworking Tools:Adjusts feed rates & cycle times on drill presses, lathes, and grinders.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Screen Switching: Screens can be changed manually using a "Multifunction Button" in CX-Designer or programmatically by assigning a Screen Select Variable (e.g., address D500) in the PLC.
Language Support: You can register up to 16 language labels for each button or label, which are switched instantly by changing a designated label number in the PLC.
FAQs
-
What is NS5-MQ00-V2?
+The OMRON NS5-MQ00-V2 is a 5.7-inch monochrome STN touchscreen HMI with 320 x 240-pixel resolution, featuring Ethernet and USB ports for project transfers and networking. -
How do I transfer projects to the NS5-MQ00-V2?
+Projects can be transferred using a USB cable (connecting via the USB slave port) or via Ethernet, facilitating easy screen data updates. -
Does it support graphing?
+Yes, it features trend graphs, line graphs, and can display logged PLC data. -
What is the screen resolution and type?
+The screen is a 5.7-inch monochrome (16 gradations) STN LCD with 320 x 240-pixel resolution (QVGA). -
What are the key connectivity options?
+It supports Ethernet, USB Host (for printing/memory), and serial communication (RS-232C/422A).
