POWER SUPPLY
AC-DC
24V
20A
NO. OF OUTPUTS:1 OUTPUT
OUTPUT POWER MAX:480W
OUTPUT VOLTAGE - OUTPUT 1:24V
OUTPUT CURRENT - OUTPUT 1:20A
OUTPUT VOLTAGE - OUTPUT 2:-
OUTPUT CURRENT - OUTPUT 2:-
OUTPUT VOLTAGE - OUTPUT 3:- ROHS COMPLIANT: YES
AC-DC
24V
20A
NO. OF OUTPUTS:1 OUTPUT
OUTPUT POWER MAX:480W
OUTPUT VOLTAGE - OUTPUT 1:24V
OUTPUT CURRENT - OUTPUT 1:20A
OUTPUT VOLTAGE - OUTPUT 2:-
OUTPUT CURRENT - OUTPUT 2:-
OUTPUT VOLTAGE - OUTPUT 3:- ROHS COMPLIANT: YES

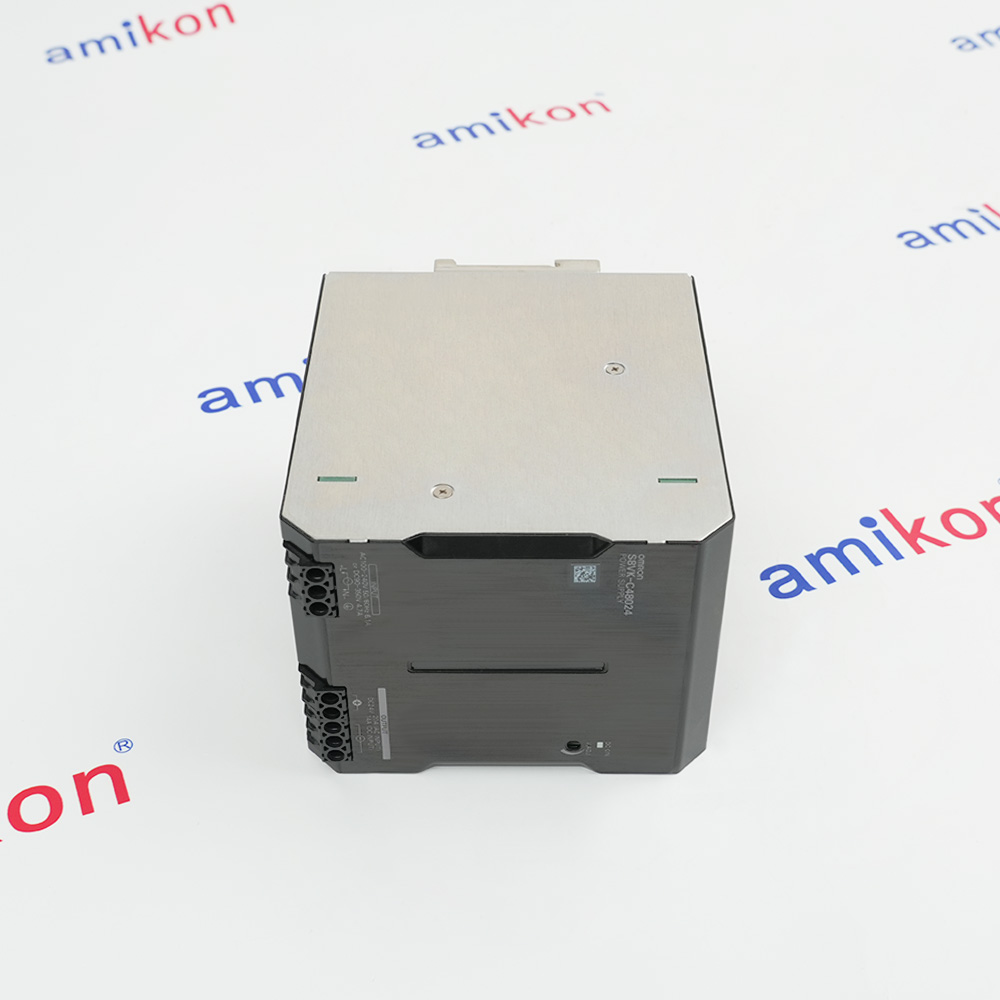

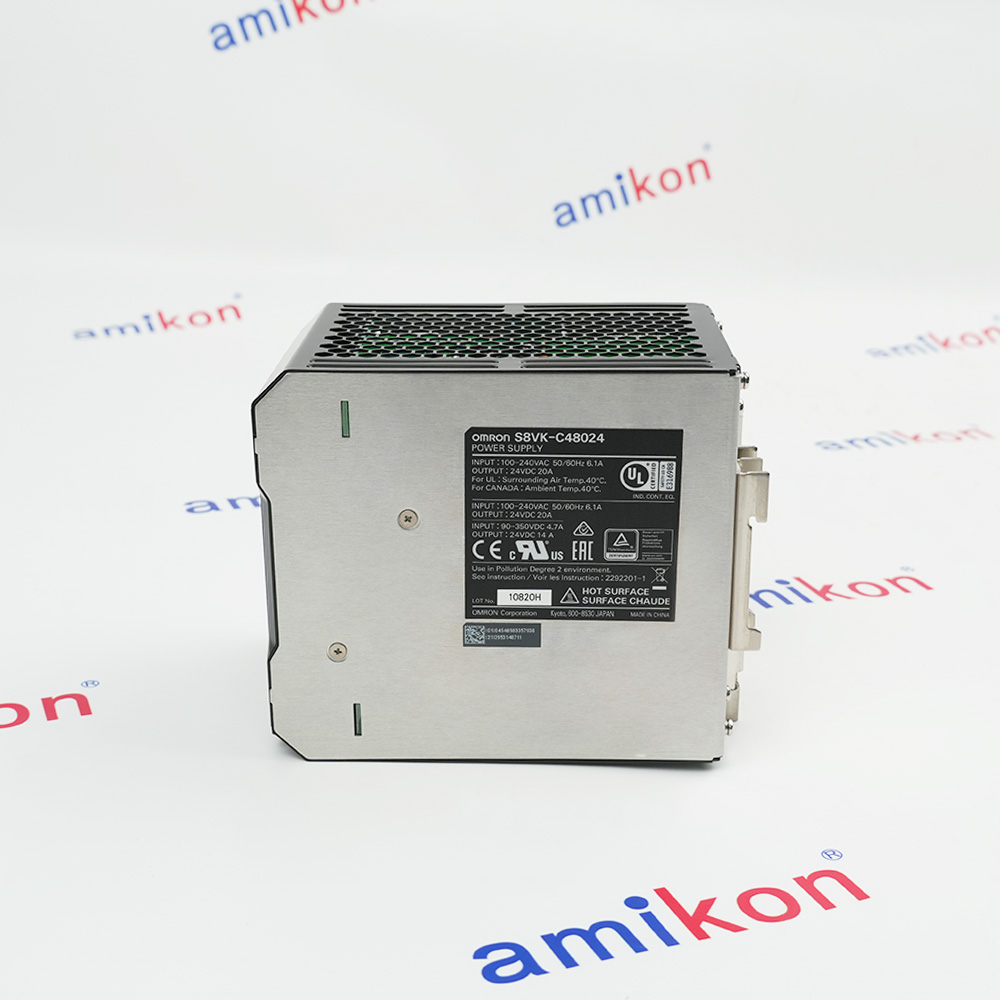

Technical specifications for S8VK-C48024
-
Product ModelS8VK-C48024
-
Product ParametersPOWER SUPPLY
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.5x15x13cm
-
ManufacturerOmron
-
Weight1.45 kg
-
TypeDIN-rail
-
Mounting methodDIN rail
-
PhaseSingle
-
Output voltage24 V
-
Power output480 W
-
Rated output current20 A
-
Temperature range-25-60 °C
-
Terminal typeScrew
-
Efficiency92 %
-
Rated supply voltage at AC 50 Hz100-240 V
-
Allowable supply voltage AC85-264 V
-
Allowable supply voltage DC90-350 V
View all additional
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about S8VK-C48024
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What type of power supply is it?
It is a single-phase, switch-mode, DIN rail mounted power supply with screw terminals and natural air cooling. -
Can it be used with a DC input?
Yes, a DC input of 90 to 350 VDC is available. For DC input, safety is ensured by an external fuse (a 12A fuse for the S8VK-C48024). -
What does it mean if the output voltage is shut OFF?
This usually indicates that the overvoltage protection has been activated, typically if the output reaches approximately 130% of the rated voltage or more.
