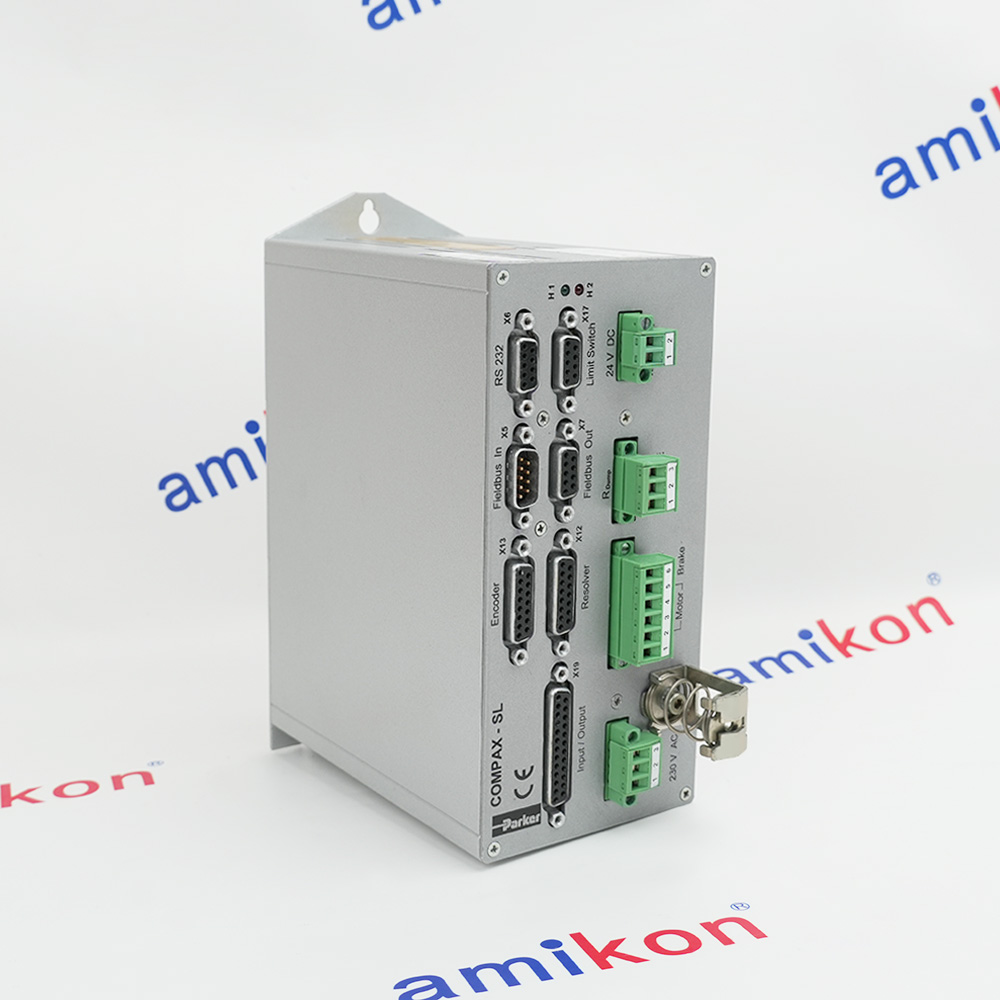

- CPX1000SL/F5/CG
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CPX1000SL/F5/CG
-
Product ModelCPX1000SL/F5/CG
-
Product ParametersSERVO CONTROLLER
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size8.5x17.5x20.6cm
-
ManufacturerPARKER
-
Weight1.65 kg
-
Continuous rated current2.5A RMS
-
Peak current5A RMS
-
Rated power1kVA
-
Mains supply230V AC single-phase
-
Control voltage:24V DC
-
Resolution at the motor shaft16 bit
-
Absolute accuracy+/-15 arc-minutes
-
Bus capacitance660µF
-
Storable energy17Ws
Description
SERVO CONTROLLER
1 PHASE
120-230 VAC INPUT
50/60 HZ
170/325 VDC OUTPUT
10 KHZ OUTPUT
2.5 AMP CONTINUOUS OUTPUT
5 AMP PEAK OUTPUT
50 W POWER DISSIPATION
24 VDC CONTROL VOLTAGE
8 X DIGITAL INPUT/OUTPUT
LED INDICATORS
1 PHASE
120-230 VAC INPUT
50/60 HZ
170/325 VDC OUTPUT
10 KHZ OUTPUT
2.5 AMP CONTINUOUS OUTPUT
5 AMP PEAK OUTPUT
50 W POWER DISSIPATION
24 VDC CONTROL VOLTAGE
8 X DIGITAL INPUT/OUTPUT
LED INDICATORS
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- 1 kVA Compact Servo Controller with 230 VAC Single-Phase Input
- High-Speed Digital Servo Control with 100 µs Update Rate
- Integrated Standalone Controller & Drive in One Package
- Versatile Feedback & Command Input Options
- 8 Digital Inputs/Outputs, Analog Override & RS232 Communication
The CPX1000SL/F5/CG Parker Compact Servo Controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Parker CPX1000SL/F5/CG Compact Servo Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At its core, the CPX1000SL is a fully integrated standalone servo controller and drive housed in a single compact enclosure. This integration eliminates the traditional separation between motion controller and power amplifier, reducing wiring complexity, minimizing cabinet footprint, and improving overall system reliability. The drive operates from a single-phase 230 VAC supply (+10% / –15%, 45–65 Hz) and requires an external 24 VDC control power supply (±10%, ripple <1 Vpp). Its internal DC bus voltage is 300 VDC, and it delivers a continuous output current of 2.5 A RMS with a peak current of 5 A RMS for up to 5 seconds, corresponding to its 1 kVA power rating. Input power is protected by a 16 A fuse (K-type circuit breaker or Neozed fuse), ensuring safe operation within industrial electrical environments.
- Packaging Machinery: Suitable for roller feeds, electronic cams, and main drives
- Assembly Systems: Used in rotary tables and continuous assembly conveyors
- Production Machinery: Ideal for flying saws, coiling, and rotating cutters
- Special-Purpose Machines: Used in dosing units and electronic gearboxes
- Machine Tools: Applied in tool positioning, synchronous machining, and tool drives
- Material Handling: Used in transverse stop adjustments and feeding
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cabinet Integration: Panel mount explicitly inside an industrial equipment cabinet.Fasteners: Secure the unit via 3 x M4 screws.Orientation: Mount vertically to maximize natural convective cooling.Depth Clearance: Ensure a minimum panel depth clearance of 146 mm for the unit body and 183 mm to safely accommodate mating terminal connectors.Weight Load: Ensure the mounting plate supports approximately 2 kg per drive.
FAQs
-
What is the X20CP1486 ？
+It is a Parker Compact Servo Controller (COMPAX-SL), often used in industrial motion control systems. -
What are the ambient conditions?
+The operational temperature range is 0° - 45°C, with a maximum relative humidity of 75% (non-condensing). -
What is the power range?
+The series supports power output stages from 1.0 kW to 35 kW. -
What motor types can be used?
+The hardware allows for different motor types (like HJ synchronous servo motors) without changing the physical unit; parameters are set digitally.
