PRODUCT DESCRIPTION

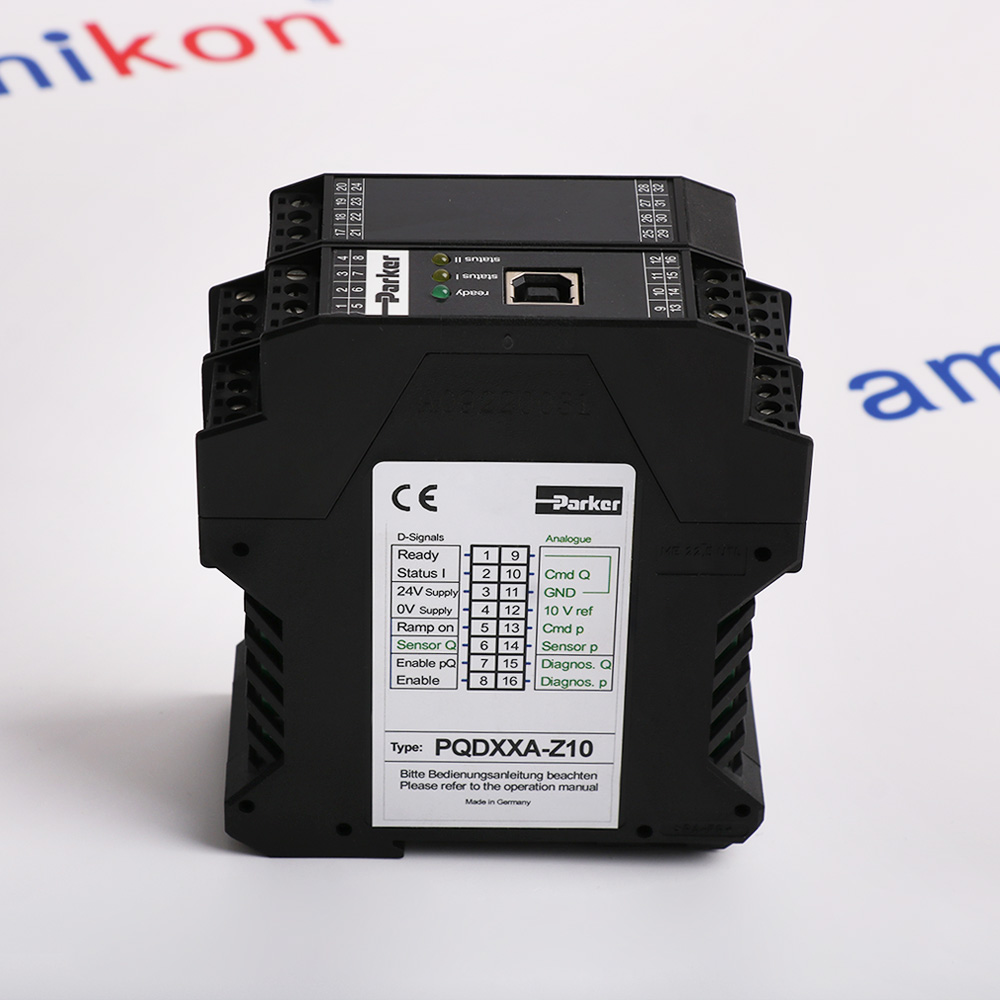

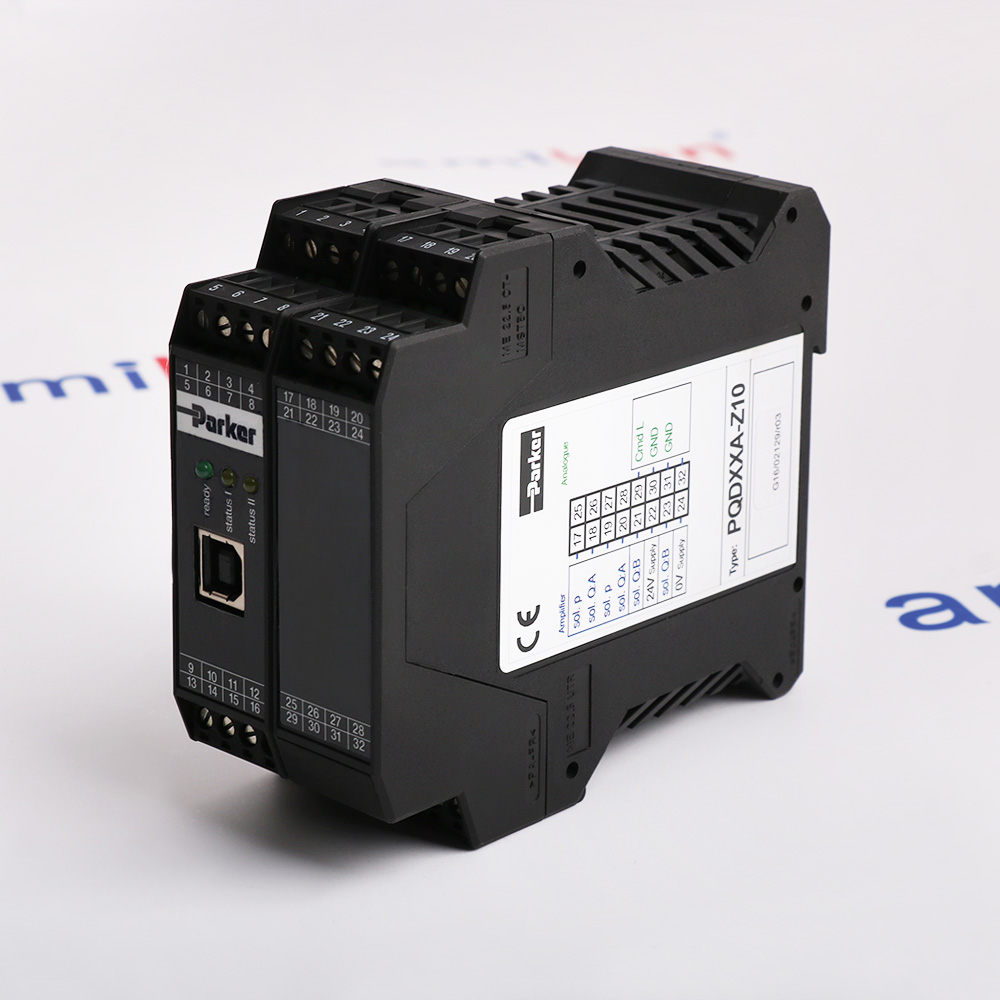

PQDXXA-Z10 Pump control module
Parker PQDXXA-Z10 is an electronic pressure and displacement-control module for compatible PVplus hydraulic pumps. It coordinates pump output with configured pressure and flow demands in an engineered hydraulic circuit.
The module accepts documented analog command and feedback signals and controls the associated pump-control valves. Its configuration links pressure sensing and displacement demand to the selected control strategy. An RS-232 interface supports parameter configuration, while available functions depend on the pump, sensors, valves and control setup.
The module accepts documented analog command and feedback signals and controls the associated pump-control valves. Its configuration links pressure sensing and displacement demand to the selected control strategy. An RS-232 interface supports parameter configuration, while available functions depend on the pump, sensors, valves and control setup.
BEFORE YOU BUY
Confirm the complete pump control module
ACTUAL APPLICATIONS
Application context for PQDXXA-Z10
PQDXXA-Z10 is an electronic module for compatible PVplus pressure and displacement control. The associated hydraulic platform serves plastics production, metalworking and material handling. Suitability depends on the pump, sensors, control valves, wiring and selected configuration.
-
01 · PLASTICS PROCESSING
Industrial Plastic Molding and Polymer Processing
Plastic Injection MoldingIndustrial Polymer Product Forming -
02 · METALWORKING
Metal Forming and Sheet Metal Fabrication
Industrial Metal FormingSheet Metal Cutting -
03 · MATERIAL HANDLING
Bulk Material Handling and Industrial Logistics
Industrial Material TransportBulk Material Unloading
Technical specifications for PQDXXA-Z10
-
Product ModelPQDXXA-Z10
-
Product ParametersPump control module
-
In stock1 unit
-
ManufacturerPARKER
-
Supply Voltage18–30 V DC
-
Maximum Supply Ripple<5% effective
-
Typical Inrush Current22 A for 0.2 ms
-
Current Consumption<2 A displacement control; <4 A p/Q control
-
Supply Fuse5 A, medium slow-blow
-
Analog Command Inputs0–10 V / 4–20 mA
-
Command Input Impedance25 kΩ voltage / 250 Ω current
-
Command Resolution<0.025%
-
Enable Input ThresholdsLogic 0: <2 V; logic 1: >10 V and <30 V
-
Diagnostic Output0–10 V, maximum 10 mA
-
Serial InterfaceRS-232C, 9,600–57,600 baud
-
Operating Temperature−20 to +55 ℃
-
Storage Temperature−20 to +70 ℃
-
Duty Ratio100%
-
Degree of ProtectionIP20
View all additional
Alternative Names
PQDXXA-Z10
PARKER Pump control module
Pump control module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match PQDXXA-Z10 to the installed Parker industrial hydraulic controls
Parker PQDXXA-Z10 is a pump control module for the Parker industrial hydraulic controls. Its complete article identity determines the documented interface, operating role and approved host equipment.
Engineering should compare the installed interface, supply requirements, mounting, connected signals and host configuration. Confirm connectors, wiring, addressing and configuration support before connection.
Use the applicable manufacturer documentation for the complete wiring and configuration sequence. Validate communication or signal response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact product identity: PQDXXA-Z10
- Product class: Pump control module
- Model-specific configuration verified
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires appropriate configuration before system integration and commissioning.
REPLACEMENT CONTROL
Verify the complete PQDXXA-Z10 identity before exchange
Replace PQDXXA-Z10 only after matching the complete article code, pump control module role, installed Parker industrial hydraulic controls equipment and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive, network or instrument configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Match the complete PQDXXA-Z10 identity
- Compare revision, interfaces and mating hardware
- Test diagnostics and field operation before service
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size4.5 × 11.3 × 9.8 cm
-
Shipping weight0.25 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about PQDXXA-Z10
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Where is PQDXXA-Z10 used within Parker industrial hydraulic controls?
PQDXXA-Z10 is used for its documented pump control module role in compatible Parker industrial hydraulic controls equipment. Confirm the installed host and complete order identity. -
What should engineers verify before replacing PQDXXA-Z10?
Check the complete label, hardware revision, connectors, mounting, power requirements and approved Parker industrial hydraulic controls configuration before removal. -
How can distributors identify the correct PQDXXA-Z10 version?
Use the full model string, manufacturer label, suffixes, revision marks and clear nameplate photographs when preparing a quotation. -
Which compatibility details matter for this pump control module?
Compatibility depends on the documented host platform, interfaces, electrical ratings, mating hardware and project configuration rather than appearance alone. -
What records should maintenance keep for PQDXXA-Z10?
Retain terminal labels, connector orientation, wiring photographs, configuration backups, alarm records and the final functional-test result. -
Can a similar Parker industrial hydraulic controls part replace PQDXXA-Z10 directly?
A similar family designation does not prove interchangeability. Compare the complete article code and applicable manufacturer documentation before substitution. -
What should be inspected when receiving PQDXXA-Z10?
Inspect the model label, packaging, connectors, enclosure or circuit board, mounting points and included accessories for damage or mismatch. -
Which checks are required after installing PQDXXA-Z10?
Verify power, communication or signal paths, diagnostics, alarms and the complete controlled function before returning the equipment to service.
