Technical specifications for AFP2441 FP2-HSCT
-

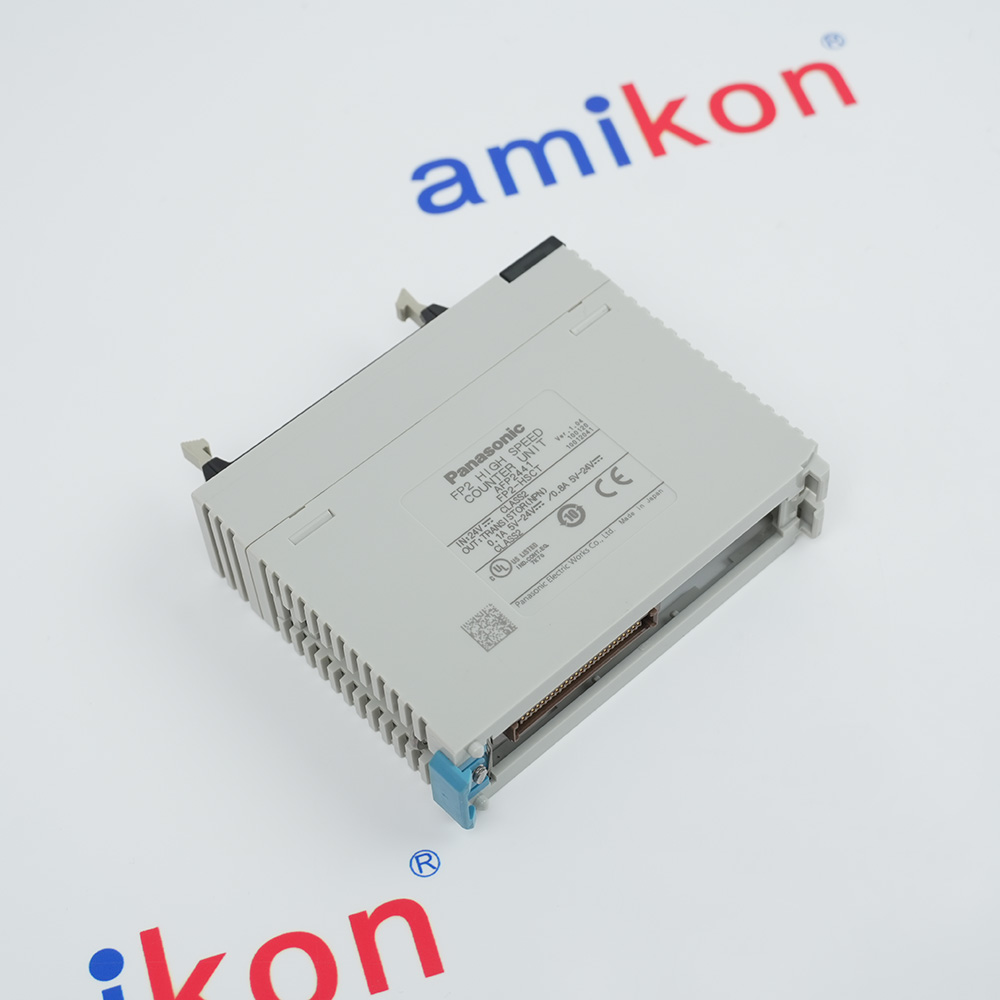

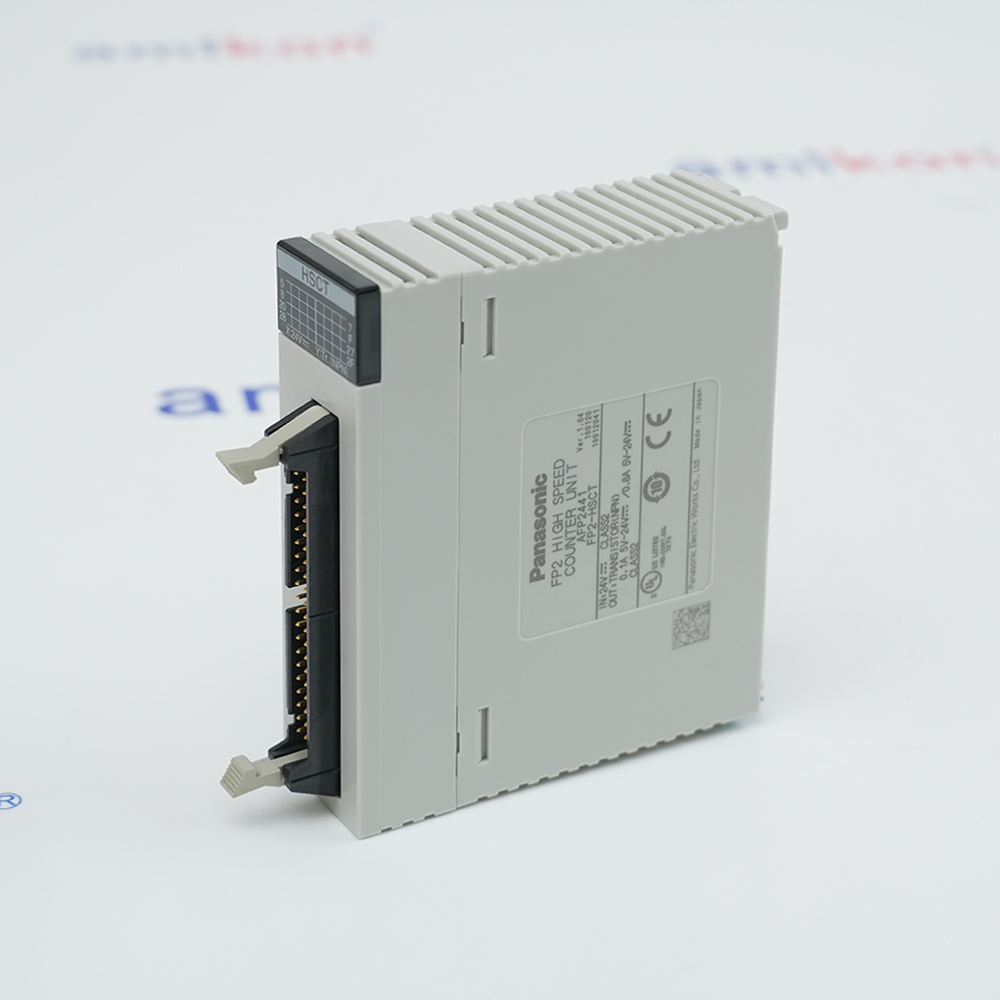

Product ModelAFP2441 FP2-HSCT
-
Product ParametersFP2High-speed Counter Unit
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size25.5x10x6.5cm
-
ManufacturerPanasonic
-
Weight0.45 kg
-
No. of dedicated inputs/outputs32 inputs, 32 outputs (32SX, 32SY)
-
Internal currentconsumption450 mA or less (at 5 VDC)
-
Operation display32−point LED display (lighted when on)
-
Rated input voltage24 VDC
-
Usage voltage range20.4 to 26.4 VDC
-
Common method16 points/common Common method
-
No. of counter channels4 channels
-
Calculation range32−bit with sign
-
Input modes3 modes
-
Rated load voltage5 to 24 VDC
-
Rated load voltage range4.75 to 26.4 VDC
Description
The FP2 High−speed Counter Unit and FP2 Pulse I/O Unit may be installed on either thebackplane on the CPU side, or the backplane on the expansion side. Multiple units maybe installed as long as the overall current consumption is within the range describedabove. However, these units should be installed to the right of the power supply unit andthe CPU unit
The FP2-HSCT is a Panasonic FP2 High-speed Counter Unit designed as an intelligent unit that can be installed in the FP2 programmable controller to enable easy access to high-speed counter functions. The FP2-HSCT provides 4 channels of high-speed counter functionality with a maximum calculation speed of 200 kHz, enabling precise counting of high-frequency pulse signals from encoders and other pulse-generating devices.
The FP2-HSCT features 8 comparison outputs that can be set to any of 8 target values, allowing flexible comparison control for position and motion applications. The FP2-HSCT supports up to 8 interrupt inputs per unit, with interrupt programs triggered by either external input signals (X8 to XF) or comparison matching signals (EQ0 to EQ7), providing versatile interrupt control capabilities.
The FP2-HSCT is a Panasonic FP2 High-speed Counter Unit designed as an intelligent unit that can be installed in the FP2 programmable controller to enable easy access to high-speed counter functions. The FP2-HSCT provides 4 channels of high-speed counter functionality with a maximum calculation speed of 200 kHz, enabling precise counting of high-frequency pulse signals from encoders and other pulse-generating devices.
The FP2-HSCT features 8 comparison outputs that can be set to any of 8 target values, allowing flexible comparison control for position and motion applications. The FP2-HSCT supports up to 8 interrupt inputs per unit, with interrupt programs triggered by either external input signals (X8 to XF) or comparison matching signals (EQ0 to EQ7), providing versatile interrupt control capabilities.
Alternative Names
AFP2441 FP2 HSCT
AFP244I FP2-HSCT
AFP2441-FP2-HSCT
AFP2441 FP2HSCT
AFP244I FP2 HSCT
Information
Overview
Manuals
Application Notes
Product Applications
Module Mounting Instructions
Features:
- 4-Channel High-Speed Counter with 200 kHz Maximum Speed
- 8 Comparison Outputs with Flexible Target Value Setting
- 8 Interrupt Inputs with Multiple Trigger Sources
- Input Time Constant Function for Noise Filtering
- Mixed I/O Capability with 16 Inputs and 16 Outputs
Two comparison match outputs are provided as transistor outputs (NPN or PNP selectable) with 0.3 A current capacity per point. These outputs can be used for position-based control, cut-to-length applications, and high-speed positioning.
The FP2-HSCT includes preset, capture, and latch functions configurable via FPWIN Pro or FPWIN GR programming software. The module mounts directly on FP2 base units or expansion units and is accessed directly by the FP2 CPU.
The AFP2441 FP2-HSCT Panasonic FP2High-speed Counter Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Panasonic AFP2441 FP2-HSCT FP2High-speed Counter Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Panasonic AFP2441 FP2-HSCT is a high-speed counter module for FP2 PLC systems, capable of counting up to 200 kHz pulse signals with 32-bit resolution. It is widely used in motion control, encoder feedback, and high-speed industrial counting applications, though it is now a discontinued model with FP7 series recommended as replacement.
- Length Measurement/Cutting: Interfaces with encoders to measure materials and activate shears at exact lengths
- Packaging/Bottling: Counts incoming products at high speed and triggers diverters or labelers at batch quantities
- Conveyor Sorting: Tracks products and synchronizes sensors to divert items to specific bins or stations
- Rotary Indexing: Monitors encoders to ensure precise, repeatable stopping positions for assembly or drilling
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Backplane Compatibility: The FP2-HSCT is designed to be installed in available expansion slots on the FP2 or FP2SH series CPU backplanes.
Inserting the Module: Align the module's PCB edge with the guide rails of the backplane slot. Push it straight back until the module securely locks into the backplane connector.
Securing: Tighten the mounting screws on the top and bottom of the module front panel to secure it to the chassis.
Technical notes
The FP2-HSCT features 24V DC + common (NPN output) input configuration with NPN 5 to 24V DC outputs rated at 0.1A for 12 points and 0.8A for 4 points, compatible with standard industrial sensors and actuators. The FP2-HSCT uses a 40-pin wire-pressed terminal type connector (AFP2801) for field wiring connections. The FP2-HSCT requires FP2 CPU unit version 1.09 or later for proper operation.
FAQs
-
What is the AFP2441 (FP2-HSCT) ?
+The Panasonic AFP2441 (FP2-HSCT) is a high-speed counter module designed for the FP2-series Programmable Logic Controller (PLC). -
What are the wiring requirements?
+The unit utilizes a pressure-welding socket. Because of this specific connection type, a special pressure-welding tool is generally required for proper wiring. Standard flat cable connectors or direct terminal connections might also require specific Panasonic socket accessories. -
What is the maximum counting frequency of the FP2-HSCT?
+The unit supports high-speed counting up to 200 kHz. This allows it to capture rapid pulses without missing counts during high-speed manufacturing processes.. -
What type of output transistor logic does the AFP2441 use?
+The AFP2441 (FP2-HSCT) features NPN transistor outputs. If your system requires PNP logic, you must look for the alternative AFP2451 model.
