PRODUCT DESCRIPTION

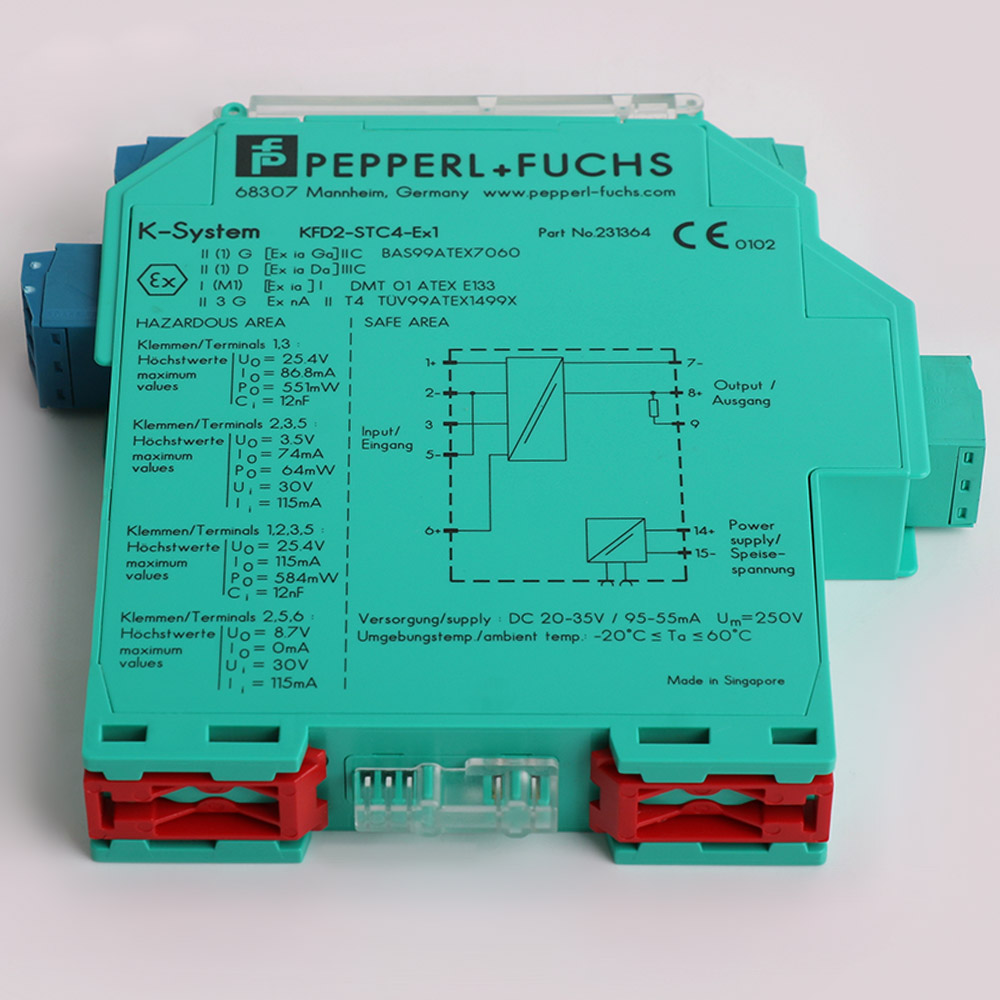

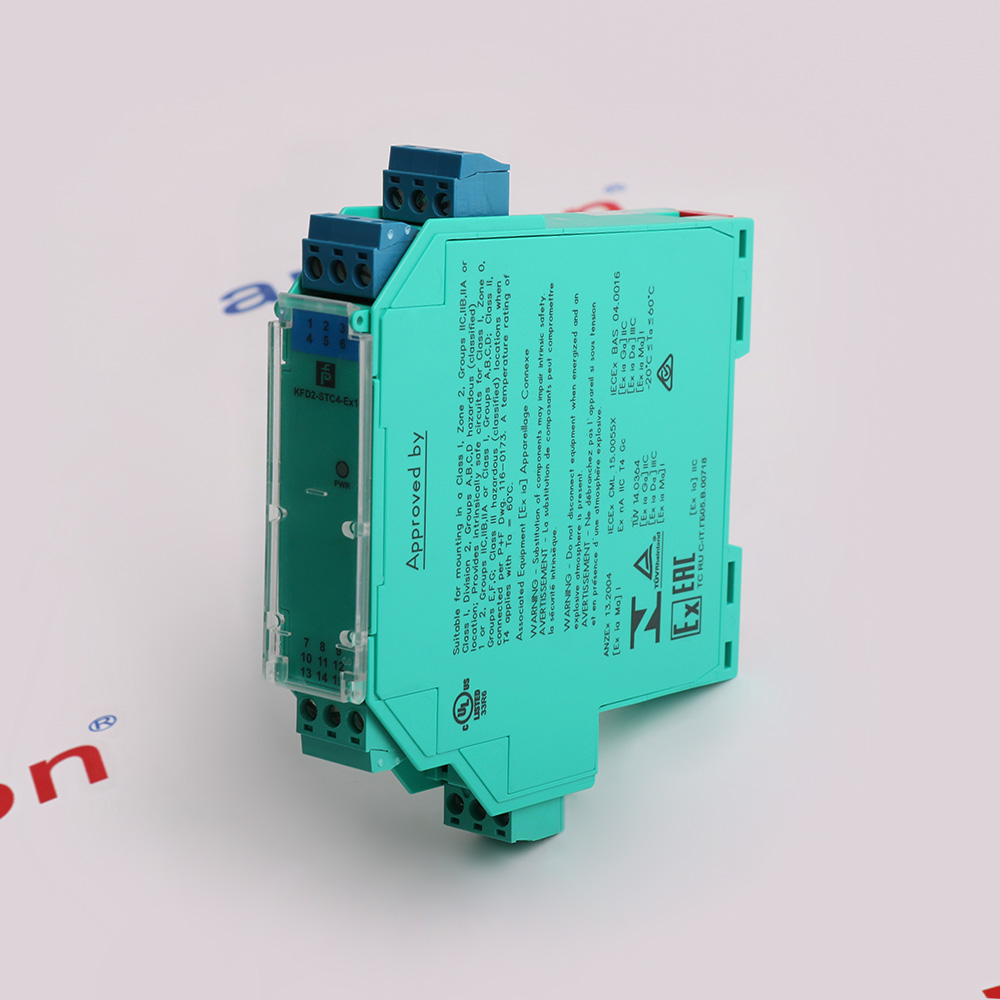

KFD2-STC4-EX1 SMART Transmitter Power Supply
Pepperl+Fuchs KFD2-STC4-EX1 is a single-channel SMART transmitter power supply and isolated barrier in the K-System. It powers a compatible field transmitter and transfers its analog current signal to the control side while supporting documented bidirectional SMART communication.
The unit uses a 20–35 V DC supply and supports 0/4–20 mA output with the specified load limits. Screw terminals, DIN-rail mounting and the documented intrinsically safe field circuits support process instrumentation; electrical entity parameters and hazardous-location markings must be matched to the connected device.
The unit uses a 20–35 V DC supply and supports 0/4–20 mA output with the specified load limits. Screw terminals, DIN-rail mounting and the documented intrinsically safe field circuits support process instrumentation; electrical entity parameters and hazardous-location markings must be matched to the connected device.
BEFORE YOU BUY
Confirm the complete smart transmitter power supply
ACTUAL APPLICATIONS
Application context for KFD2-STC4-EX1
KFD2-STC4-EX1 supports transmitter signal isolation in compatible process-instrumentation systems. Typical contexts include chemical production, oil and gas processing and industrial energy. Transmitter wiring, circuit entity parameters and control-side load determine suitability.
-
01 · CHEMICAL PROCESSING
Chemical Production and Process Manufacturing
Industrial Chemical ProductionPetrochemical Production and Processing -
02 · OIL & GAS
Petroleum Production and Natural Gas Processing
Petroleum Refining and ProcessingNatural Gas Process Production -
03 · POWER GENERATION
Electricity Generation and Industrial Energy Production
Thermal Electric Power GenerationIndustrial Cogeneration and Heating
Technical specifications for KFD2-STC4-EX1
-
Product ModelKFD2-STC4-EX1
-
Product ParametersSMART Transmitter Power Supply
-
In stock7 units
-
ManufacturerPepperl + Fuchs
-
Signal channels1
-
Rated supply range20 to 35 V DC
-
Maximum power consumption1.8 W
-
Power dissipation1.4 W
-
Transmitter voltage availableAt least 16 V at 20 mA, terminals 1/3
-
Output signal0/4 to 20 mA
-
Output load0 to 800 Ω at 20 mA
-
Output overload limitGreater than 25 mA
-
Output rippleMaximum 50 µA RMS
-
Transfer deviationAt most 10 µA
-
Temperature influence0.25 µA/K
-
Settling time200 µs
-
Rise/fall time20 µs
-
Ambient temperature-20 to +60 ℃
-
Ingress protectionIP20
View all additional
Alternative Names
KFD2-STC4-EX1
K-System SMART Transmitter Power Supply
SMART Transmitter Power Supply KFD2-STC4-EX1
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate KFD2-STC4-EX1 smart transmitter power supply
Match the exact KFD2-STC4-EX1 variant and transmitter arrangement. Compare the intrinsically safe circuit parameters with the connected device and cable.
Allocate a 20–35 V DC supply and the documented 0/4–20 mA control-side load. Use the applicable terminal allocation for the transmitter or current-source configuration.
Validate the configured analog signal and SMART communication path. Retain the final circuit assessment, wiring and hazardous-location documentation.
Features:
- Single-channel transmitter power and signal isolation
- 20–35 V DC supply and 0/4–20 mA output
- Matched intrinsic-safety circuit parameters
The KFD2-STC4-EX1 smart transmitter power supply requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify KFD2-STC4-EX1 smart transmitter power supply
Compare plain Ex1 with any proposed .H, .2O or other suffix variant. Different wiring and output arrangements require an explicit compatibility check.
Record supply, field terminals, control-side load and hazardous-location marking. Follow the manufacturer isolation and qualified-personnel instructions.
After replacement, verify transmitter power, signal transfer and communication under the documented circuit limits. Archive the accepted wiring and model identity.
Features:
- Plain Ex1 suffix and terminal configuration
- Preserved field circuit and control-side load
- Analog transfer and SMART communication checks
The KFD2-STC4-EX1 smart transmitter power supply requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Pepperl+Fuchs English applicable instruction sheet
- Exact Ex1 transfer and output-load data
- Hazardous-location markings and circuit conditions
Documentation for the KFD2-STC4-EX1 smart transmitter power supply must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2 × 12.4 × 11.5cm
-
Shipping weight0.20kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8543709990
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about KFD2-STC4-EX1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How many transmitter channels does the plain Ex1 version support?
KFD2-STC4-Ex1 is a single-channel unit. Do not replace its data with the Ex1.2O or .H version without checking the exact variant. -
What DC supply range applies to KFD2-STC4-EX1?
The documented rated range is 20–35 V DC. -
What analog output and load limits are specified?
The product data lists 0/4–20 mA with a 0–800 Ω load at 20 mA. -
What voltage is available to the transmitter at 20 mA?
The exact product data specifies at least 16 V at terminals 1 and 3. -
Does the barrier specification replace an intrinsic-safety circuit calculation?
No. The applicable field-circuit entity parameters and connected-device/cable limits must be checked together. -
What is the stated settling time for this barrier?
The product data specifies 200 µs, with 20 µs rise/fall time. -
What transmitter and entity details should accompany an Ex1 barrier request?
Specify the plain KFD2-STC4-EX1 variant, transmitter circuit, hazardous-location marking, field entity parameters and required output load. -
Which barrier markings and circuit connectors should be checked upon receipt?
Compare the plain Ex1 suffix and approval markings, inspect field/control/supply terminals and verify the permitted transmitter wiring. Retain the circuit assessment before connection.
READY TO VERIFY YOUR PART?
Get a KFD2-STC4-EX1 quote with price, lead time and revision check.
