Technical specifications for KFD2-SOT3-EX1.LB
-

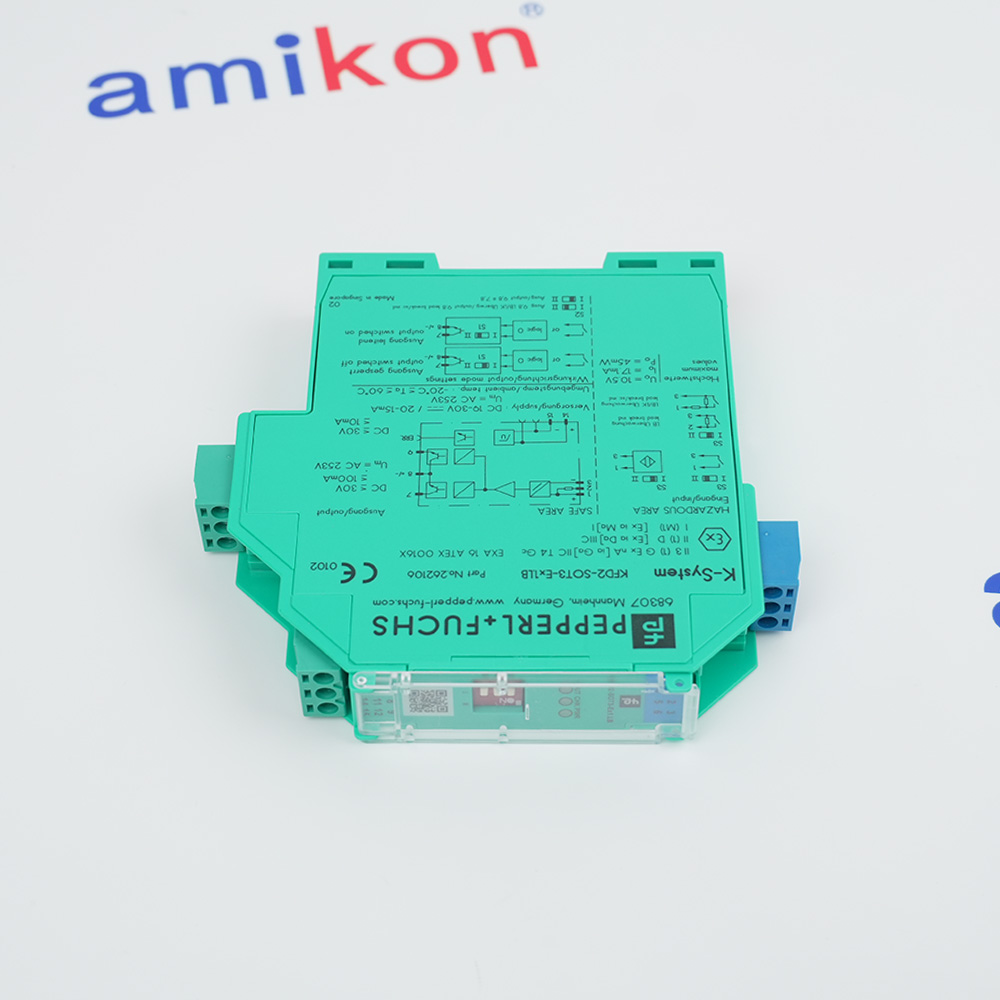

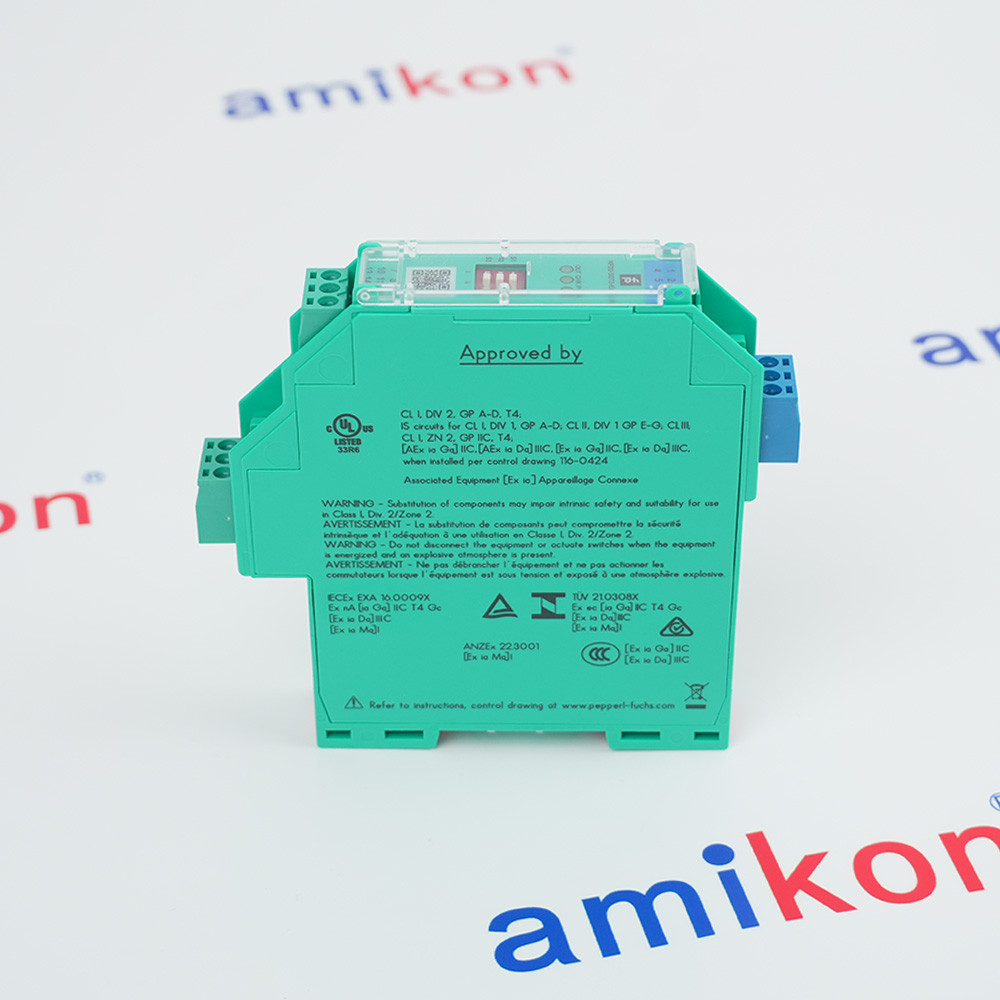

Product ModelKFD2-SOT3-EX1.LB
-
Product ParametersSWITCH AMPLIFIER
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x11.3x12cm
-
ManufacturerPepperl + Fuchs
-
Weight0.1 kg
-
ConnectionPower Rail or terminals 14+, 15-
-
Rated voltage19 ... 30 V DC
-
Rated current20 ... 15 mA
-
Power dissipation≤ 1 W including maximum power dissipation in the output
-
Response time≤ 200 µs
-
Switching frequency≤ 5 kHz
-
Ambient temperature-20 ... 60 °C (-4 ... 140 °F)
-
Voltage10.5 V
-
Current17.1 mA
-
Power45 mW
Description
The Pepperl+Fuchs KFD2-SOT3-EX1.LB is a single-channel switch amplifier and isolated barrier designed for the safe transfer of digital signals between hazardous and non-hazardous areas. The module accepts inputs from NAMUR proximity sensors or mechanical contacts installed in hazardous locations and converts them into isolated transistor outputs for control systems, PLCs, DCS platforms, and safety instrumented systems.
Operating from a 24 V DC power supply, the amplifier incorporates galvanic isolation between the field circuit, control circuit, and power supply. This isolation helps protect connected equipment from electrical interference and ground potential differences while maintaining signal integrity. The unit supports line fault detection, allowing automatic monitoring for open-circuit and short-circuit conditions in field wiring. Fault conditions can be transmitted through the dedicated passive fault output for rapid diagnostics and maintenance.
Operating from a 24 V DC power supply, the amplifier incorporates galvanic isolation between the field circuit, control circuit, and power supply. This isolation helps protect connected equipment from electrical interference and ground potential differences while maintaining signal integrity. The unit supports line fault detection, allowing automatic monitoring for open-circuit and short-circuit conditions in field wiring. Fault conditions can be transmitted through the dedicated passive fault output for rapid diagnostics and maintenance.
Information
Overview
Manuals
Technical notes
Product Applications
Mounting and Installation
Features:
- 1-channel isolated barrier
- 24 V DC supply (Power Rail)
- Dry contact or NAMUR inputs
- Passive transistor output, non-polarized
- Passive fault output, non-polarized
- Line fault detection (LFD)
- Reversible mode of operation
- Up to SIL 2 (SC 3) acc. to IEC/EN 61508
This isolated barrier is used for intrinsic safety applications.The device transfers digital signals (NAMUR sensors or drycontacts) from a hazardous area to a safe area.The input controls two passive transistor outputs.Via switches the mode of operation can be reversed and theline fault detection can be switched off.Via switch the function of the second output can be defined asa signal output or a fault indication output.A fault is signalized by LEDs acc. to NAMUR NE44 and aseparate collective error message output..
The KFD2-SOT3-Ex1.LB Pepperl+Fuchs Switching Amplifier may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Pepperl+Fuchs KFD2-SOT3-Ex1.LB Switching Amplifier Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Pepperl+Fuchs KFD2-SOT3-Ex1.LB is a high-performance switch amplifier designed for transmitting digital signals from hazardous areas to safe environments. Below are the key technical notes regarding its configuration, wiring, and safety performance.Reverses the output logic. In "Normal" mode, the transistor is energized when the input is closed; in "Reversed" mode, it is energized when the input is open.Defines whether Output II acts as a Signal Splitter (mirroring Output I) or as a dedicated Fault Indication Output.Enables or disables monitoring for lead breakage and short circuits in the field wiring.
- Pumps & Turbines:Monitors shaft speed & status with NAMUR sensors
- Valve Positioners & Actuators:Tracks open/closed states & limits for chemical/oil pipelines
- Vessels & Tank Farms:Limit detection & overfill prevention for pharma/chemical tanks
- Conveyor Systems:Monitors speed, position & belt alignment in combustible dust environments
- Elevators & Hoists:Detects end-of-stroke & platform position in hazardous factory zones
- Heavy Mobile Machinery:Functional safety for forestry, mining & agriculture without ignition risk
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Location: Install in a safe area or Zone 2, ensuring protection against mechanical hazards.
Environment: The device requires a controlled environment with Pollution Degree 2 and a temperature range of -20 °C to 60 °C.
DIN Rail: Mount onto a standard 35 mm DIN mounting rail (EN 60715).
Cabling: Use stranded conductors with crimped wire end ferrules and strictly follow IEC/EN 60079-14 for separation between intrinsically safe and non-intrinsically safe circuits
Alternative Names
KFD2-SOT3-EX1 LB
KFD2 SOT3 EX1.LB
KFD2-SOT3-EXI.LB
KFD2-S0T3-EX1.LB
KFDZ-SOT3-EX1.LB
KFD2 SOT3 EXI LB
KFD2 S0T3 EXI LB
Technical notes
The module accepts dry contact or NAMUR proximity sensor inputs on the field side (terminals 1+, 2+, 3-) in accordance with EN 60947-5-6. The input circuit provides an open-circuit voltage of approximately 10 V DC and a short-circuit current of approximately 8 mA. The switching threshold is set between 1.2 and 2.1 mA with a hysteresis of approximately 0.2 mA. Line fault detection is integrated, identifying wire breakage at currents ≤ 0.1 mA and short-circuits at currents ≥ 6.5 mA.
FAQs
-
What is the KFD2-SOT3-Ex1.LB?
+The Pepperl+Fuchs KFD2-SOT3-Ex1.LB is a 1-channel, SIL 2-rated isolated switch amplifier used to transfer digital signals from NAMUR sensors or dry contacts in hazardous areas to safe areas. -
What type of signals does it handle?
+It operates with NAMUR sensors or dry contacts and features passive transistor outputs. -
What is the Safety Integrity Class (SIL) of KFD2-SOT3-Ex1.LB?
+According to the IEC/EN 61508 standard, the SIL class of this device is 2. -
What is the supply voltage of the KFD2-SOT3-Ex1.LB?
+This device is powered by 19 to 30 volts DC, typically via a power rail. -
What are the output types of KFD2-SOT3-Ex1.LB?
+It has a passive transistor output, and a second output can be configured as a fault information output.
