- KFD2-STC5-1

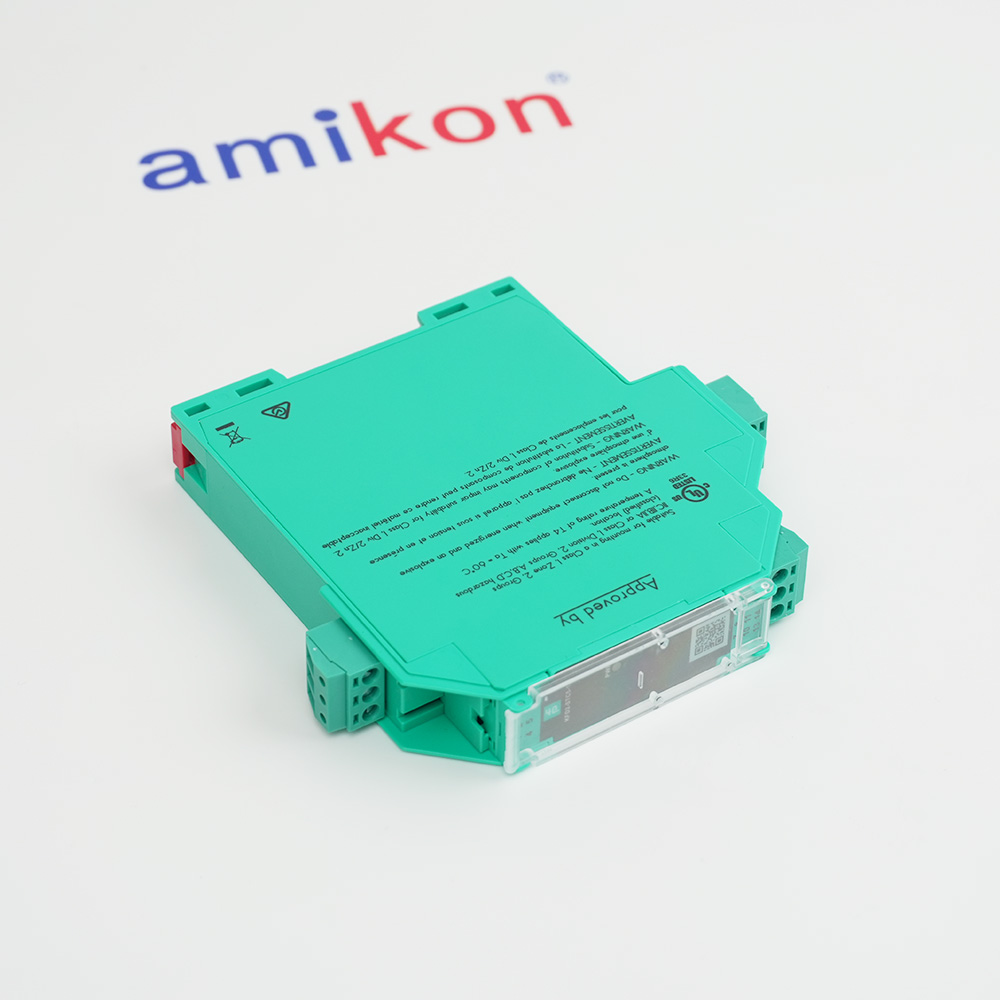

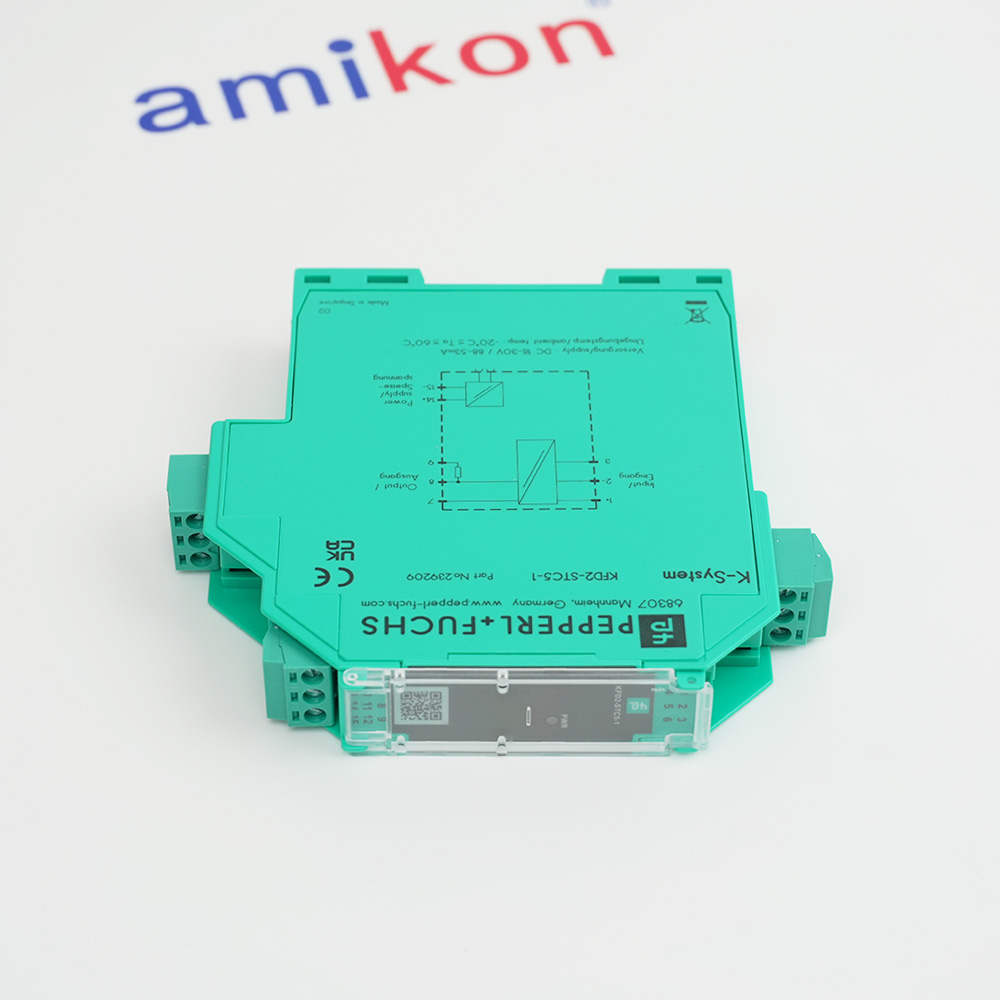

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for KFD2-STC5-1
-
Product ModelKFD2-STC5-1
-
Product ParametersTRANSMITTER POWER SUPPLY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x11.5x12.3cm
-
ManufacturerPepperl + Fuchs
-
Weight0.1 kg
-
Power Supply19-30 V DC
-
Power Consumption1-3 W
-
Output Voltage12-28 V DC
-
Output Current4-20 mA
-
ConnectionPower Rail or terminals 14+, 15-
-
Ripplewithin the supply tolerance
-
Power dissipation≤ 1 W at maximum load
-
Power consumption≤ 1.6 W at maximum load
-
Input signal4 ... 20 mA
-
Available voltage≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3
Description
TRANSMITTER POWER SUPPLY
SMART
1-CHANNEL
24 VDC
INPUT 2-WIRE
4-20 MA OUTPUT
TERMINALS WITH TEST POINTS
SIL2
DIN RAIL MOUNT
SMART
1-CHANNEL
24 VDC
INPUT 2-WIRE
4-20 MA OUTPUT
TERMINALS WITH TEST POINTS
SIL2
DIN RAIL MOUNT
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting & Environment
Features:
- 1-channel signal conditioner
- 24 V DC supply (Power Rail)
- Input 2-wire and 3-wire SMART transmitters and 2-wire SMARTcurrent sources
- Output 4 mA ... 20 mA current sink/current source
- Terminals with test points
- Up to SIL 2 (SC 3) acc. to IEC/EN 61508
The KFD2-STC5-1 Pepperl+Fuchs SMART Transmitter Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Pepperl+Fuchs KFD2-STC5-1 SMART Transmitter Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At its core, the KFD2-STC5-1 is a SMART Transmitter Power Supply that energizes and communicates with 2-wire and 3-wire SMART transmitters as well as 2-wire SMART current sources. It accepts a standard 4–20 mA analog input signal from the field device and reproduces it as an isolated 4–20 mA output on the control side. The module's power supply input accepts 18–30 V DC (nominal 24 V DC) with ripple tolerance within the supply range, and can be connected via conventional screw terminals (14+, 15–) or through the Power Rail system—a busbar solution that daisy-chains power across multiple K-System modules, significantly reducing wiring complexity in large installations. Maximum power consumption is ≤1.6 W and power dissipation is ≤1 W at full load, ensuring minimal thermal impact on densely packed control cabinets.
- Packaging Machinery: Suitable for roller feeds, electronic cams, and main drives
- Assembly Systems: Used in rotary tables and continuous assembly conveyors
- Production Machinery: Ideal for flying saws, coiling, and rotating cutters
- Special-Purpose Machines: Used in dosing units and electronic gearboxes
- Machine Tools: Applied in tool positioning, synchronous machining, and tool drives
- Material Handling: Used in transverse stop adjustments and feeding
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Matching: Snap the module vertically onto a standard 35 mm DIN mounting rail conforming to EN 60715.Orientation: Install the unit vertically to optimize passive cooling across its 20 mm wide housing.Spacing & Climate: Maintain an ambient operating temperature between -20 °C and 70 °C. Avoid enclosing it alongside high-heat-generating factory equipment without active ventilation.
FAQs
-
What is the power supply requirement?
+The device runs on a 24V DC supply, typically via a Power Rail or terminals 14+ and 15-. -
What is the KFD2-STC5-1？
+The Pepperl+Fuchs KFD2-STC5-1 is a 1-channel SMART transmitter power supply designed to power 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources, providing galvanic isolation. -
Is it safe for hazardous areas?
+Yes, it is often rated for SIL 2 or SIL 3, depending on the specific model variation. -
How does it handle HART communication?
+It allows for bidirectional transmission of digital signals for SMART transmitters. -
What is the primary function of this device?
+It acts as an isolated barrier/signal conditioner that powers field transmitters and bi-directionally transfers high-frequency digital HART communication signals superimposed on the 4–20 mA current loop.
