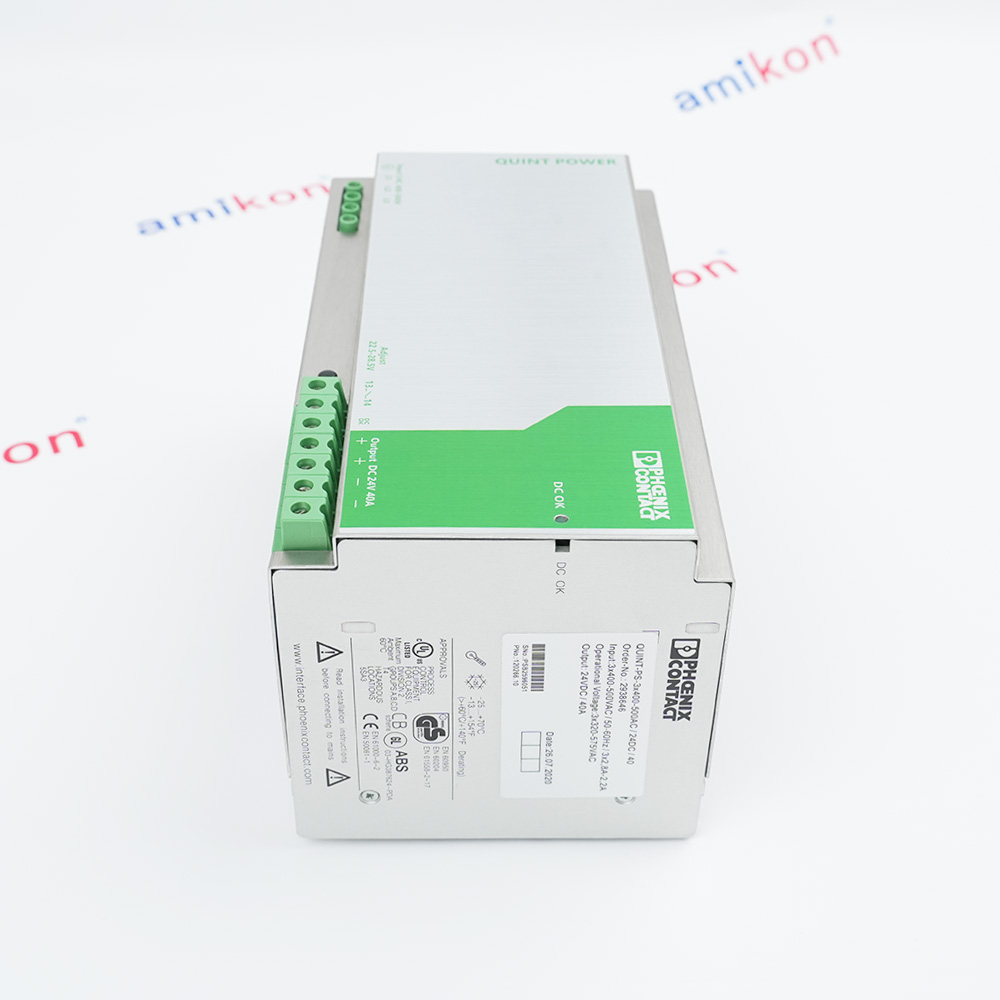

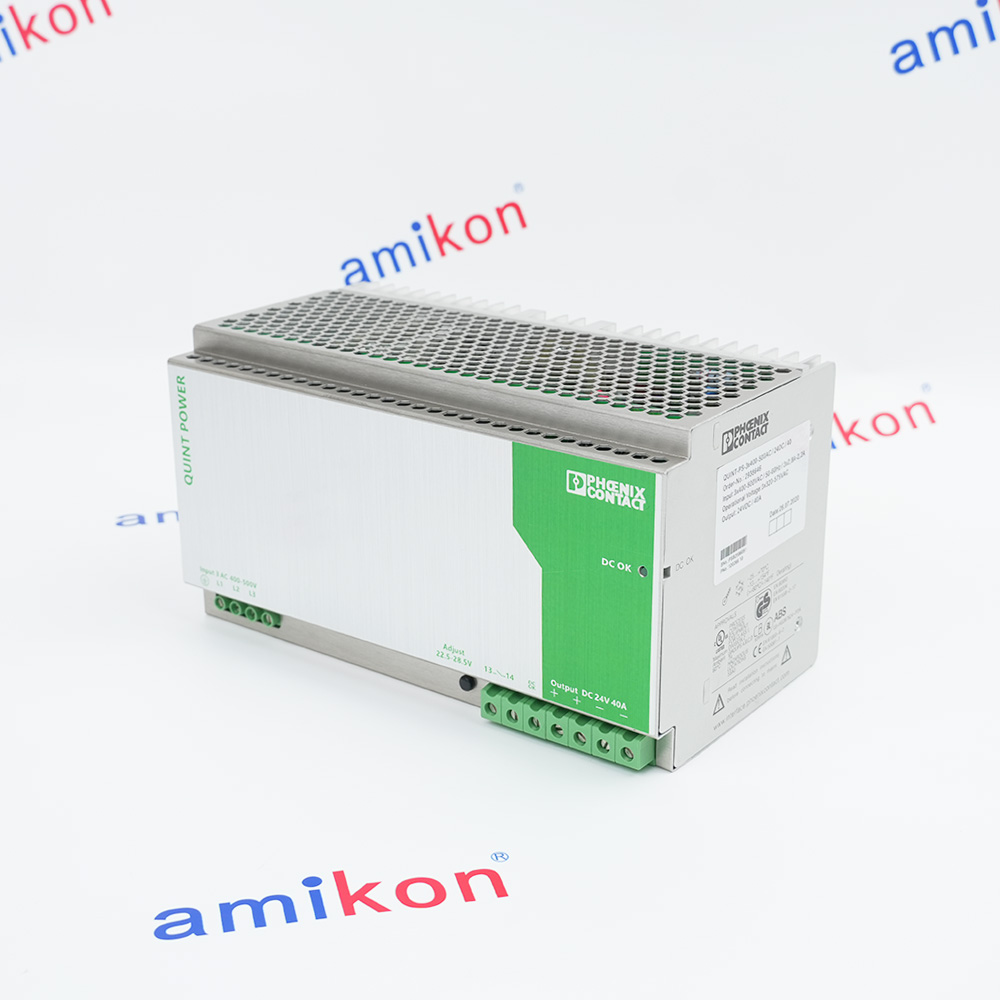

QUINT-PS-3X400-500AC/24DC/40 2938646
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
QUINTPS3X400500AC24DC40
POWER SUPPLY
40 AMP
3 PHASE
500 VAC
24 VDC OUT
DIN RAIL MOUNT
(2938646)
POWER SUPPLY
40 AMP
3 PHASE
500 VAC
24 VDC OUT
DIN RAIL MOUNT
(2938646)
Technical specifications for QUINT-PS-3X400-500AC/24DC/40 2938646
-
Product ModelQUINT-PS-3X400-500AC/24DC/40 2938646
-
Spare ModelQUINT-PS-3X400-500AC/24DC/40
-
Product ParametersQUINT-PS-3X400-500AC/24DC/40 Power Supply
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size25.4x15.2x12.7cm
-
ManufacturerPhoenix Contact
-
Weight4.1 kg
-
Nominal input voltage range3x 400 V AC ... 500 V AC
-
Input voltage range3x 320 V AC ... 575 V AC
-
Inrush current< 15 A (typical)
-
AC frequency range45 Hz ... 65 Hz
-
Nominal power consumption1048 W
-
Efficiency> 91 %
-
Nominal output voltage24 V DC ±1 %
-
Feedback voltage resistance35 V DC
-
Output power960 W
-
Maximum switching voltage≤ 24 V
-
Maximum inrush current≤ 40 mA
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What are the Input Voltage Requirements?+The unit accepts a wide-range input of 3x 320 V AC ... 575 V AC (or 450 V DC ... 800 V DC) and operates between 45 Hz ... 65 Hz.
-
What is the boost function of QUINT-PS-3X400-500AC/24DC/40?+It can provide a continuous current of 45 A for loads with high inrush current and can operate at ambient temperatures up to +40°C.
-
What is QUINT-PS-3X400-500AC/24DC/40?+The QUINT-PS-3X400-500AC/24DC/40 (Order No. 2938646) is a 3-phase DIN rail power supply from Phoenix Contact providing 24V DC at 40A (960W).
-
What are the Environmental Limits?+It operates between -25°C and 70°C, with power derating of 2.5% per Kelvin required above 60°C. The casing is IP20 rated.
-
Does it Support Parallel Operation?+Yes, it supports parallel connection for redundancy or power extension.
Get a quick price fo QUINT-PS-3X400-500AC/24DC/40 2938646
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring & Electrical Connections
Features:
- Accepts 3-phase AC input (400–500 V AC)
- Stable 24 V DC Output
- Advanced Boost and Reserve Functionality
- Wide Operating Temperature Range
- Comprehensive Protection Features
QUINT POWER is the powerful 60 - 960 W DC power supply unit for universal use. With its wide-range input, single and three-phase versions,and international approval package, this solution is unrivalled. QUINT POWER provides reliable power supply: generously dimensioned capacitorsensure mains buffering of over 20 ms at full load. Full output power is provided by all three-phase devices, even in the event of a permanentphase failure.
The QUINT-PS-3X400-500AC/24DC/40 Phoenix Contact Power supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Phoenix Contact QUINT-PS-3X400-500AC/24DC/40 Power supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Power Boost power reserve function easily starts loads with high inrush current and ensures reliable fuse tripping. Preventative monitoring functions diagnose abnormal operating conditions, minimizing system downtime. Remote monitoring is achieved through active transistor switch outputs and floating relay contacts. All devices feature no-load and short-circuit protection and offer regulated adjustable output voltages of 12, 24, and 48 V DC, and output currents of 2.5, 5, 10, 20, 30, and 40 A. Additionally, this series includes power supplies for Ex 2 zones, uninterruptible power supply solutions, AS-i power supplies, and QUINT diodes.
- Heavy Load Starting:POWER BOOST reserve for high inrush currents (large motors/machinery)
- Process Industry & Mining:Robust reliable power for demanding environments
- Automotive Production Lines:3-phase design: continues operation if one phase fails
- Special Engineering & Control Systems:Stable adjustable 24V DC for space-limited DIN rail boxesc
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connect to 3x 400 V AC ... 500 V AC via screw terminals L1, L2, and L3.
Use conductor cross-sections between 0.2 mm² to 6 mm² (24 - 10 AWG).
Fuse Protection: Requires 3x external circuit breakers (6 A, 10 A, or 16 A, Characteristic B).
Connect the 24 V DC load to the output terminals.
Voltage is adjustable between 22.5 V DC and 28.5 V DC via the front-facing potentiometer.
Conductor cross-sections for output should be between 0.5 mm² to 16 mm².
