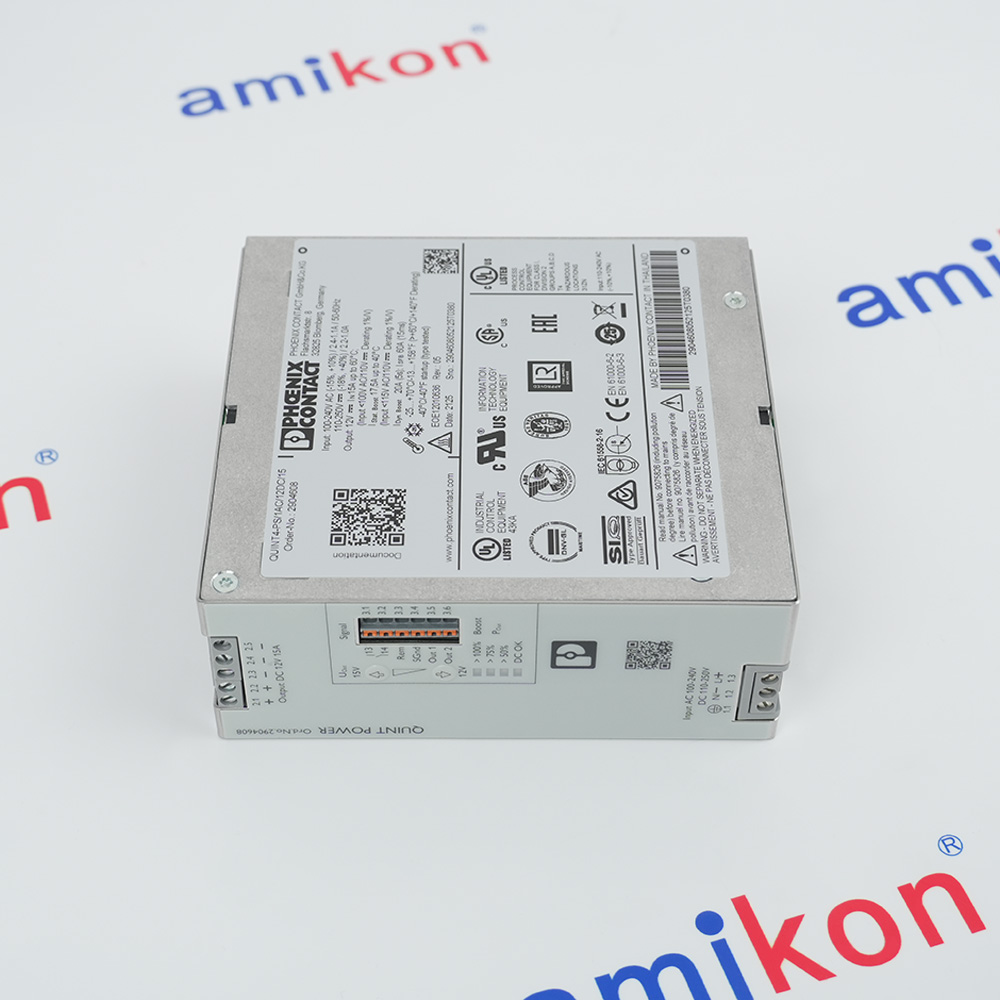

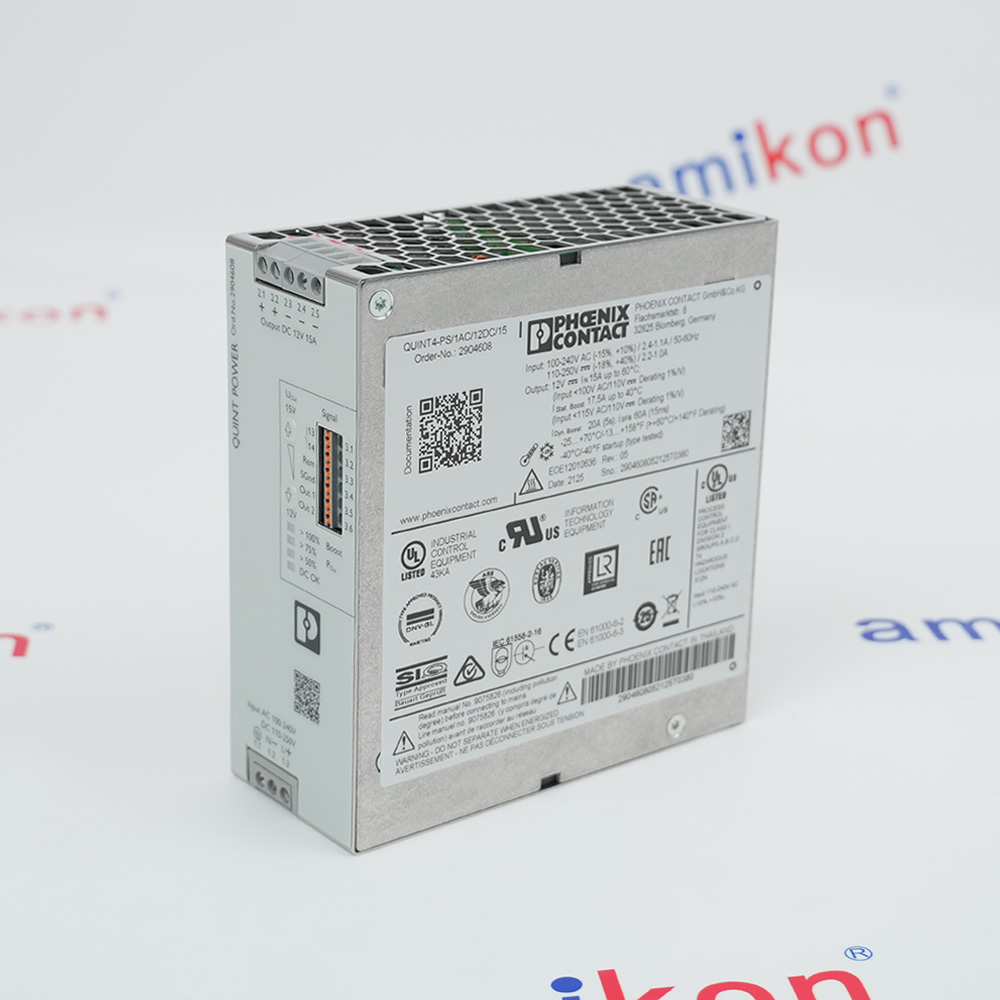

- QUINT4-PS/1AC/12DC/15 2904608
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for QUINT4-PS/1AC/12DC/15 2904608
-
Product ModelQUINT4-PS/1AC/12DC/15 2904608
-
Spare ModelQUINT4-PS/1AC/12DC/15
-
Product ParametersPower supply unit
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5x13.2x13cm
-
ManufacturerPhoenix Contact
-
Weight0.9 kg
-
Input voltage range100 V AC ... 240 V AC -15 % ... +10 %
-
Electric strength, max300 V AC 60 s
-
Inrush current typ15 A (at 25 °C)
-
Inrush current limitation15 A
-
AC frequency range50 Hz ... 60 Hz -10 % ... +10 %
-
Nominal power consumption221 VA
-
Typical response time300 ms
Description
QUINT4PS1AC12DC15
POWER SUPPLY
PRIMARY-SWITCHED
INPUT VOLTAGE 100-240VAC
OUTPUT VOLTAGE 12 VDC
15 AMP
DIN RAIL
REPLACES QUINT-PS-100-240AC/12DC/10
POWER SUPPLY
PRIMARY-SWITCHED
INPUT VOLTAGE 100-240VAC
OUTPUT VOLTAGE 12 VDC
15 AMP
DIN RAIL
REPLACES QUINT-PS-100-240AC/12DC/10
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Setup
Features:
- Preventive function monitoring indicates critical operating states before errors occur
- Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
- High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
- Robust design thanks to metal housing and wide temperature range from -40°C to +70°C
- Worldwide use thanks to the wide range input and international approval package
The QUINT4-PS/1AC/12DC/15 Phoenix Contact Power Supply Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Phoenix Contact QUINT4-PS/1AC/12DC/15 Power Supply Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A primary differentiator of this unit is its SFB Technology, which intelligently manages high-current surges to ensure that only the faulty branch of a circuit is disconnected in the event of a short circuit. This prevents the "all-stop" scenario common with standard power supplies. Furthermore, the inclusion of an NFC interface represents a shift toward Industry 4.0, enabling technicians to set precise parameters—such as characteristic curves and specific alarm thresholds—without needing a physical connection to the device while it is in the box.
- Automotive Industry:Powers assembly line robotics, sensors & critical controls
- Machine Building (OEM):Vibration-resistant power & heavy load starting for industrial machinery
- Process Industry:-40°C to +70°C with gas-filled surge arrester
- Railway & Infrastructure:Interference immunity & >20ms buffering for signaling/traffic
- Battery Storage Systems:Stable power for monitoring/control in large-scale storage
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Input (AC): Connect L, N, and Ground (PE) to the top terminal block. Ensure input is 100-240 V AC.
Output (DC): Connect + and - to the bottom terminal block. Nominal output is 12 V DC, adjustable from 12 V DC to 15 V DC.
Signaling: The device features signaling outputs for monitoring output voltage and current (preventive function monitoring).
Configuration: The device supports individual adjustments via NFC interface for signaling thresholds and characteristic curves.
FAQs
-
What is QUINT4-PS/1AC/12DC/15?
+The Phoenix Contact QUINT4-PS/1AC/12DC/15 (2904608) is a 12V DC, 15A (180W) DIN-rail power supply designed for high system availability with 1AC input -
What is the output power of the QUINT4-PS/1AC/12DC/15?
+The nominal output is 12V DC, 15A. It provides 18.75A of quiescent boost current (for continuous loads) and 22.5A of dynamic boost current (for 5 seconds) for starting heavy loads. -
What input voltage does it support?
+It accepts a wide-range input of 100 V AC ... 240 V AC (110 V DC ... 250 V DC) -
What is SFB Technology?
+SFB (Selective Fuse Breaking) technology can trip standard circuit breakers selectively in 15 ms, allowing other loads connected in parallel to continue operating without disruption.
