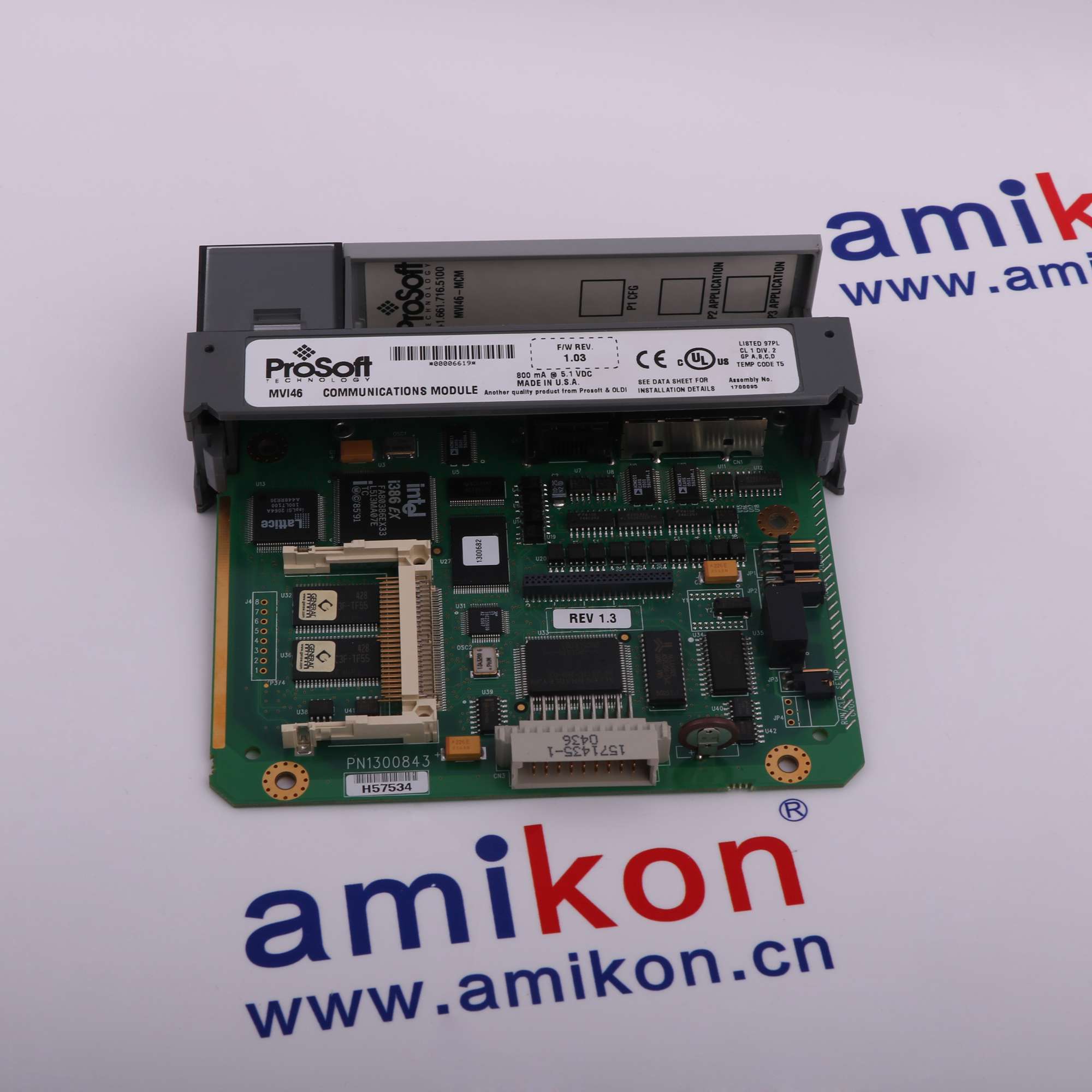

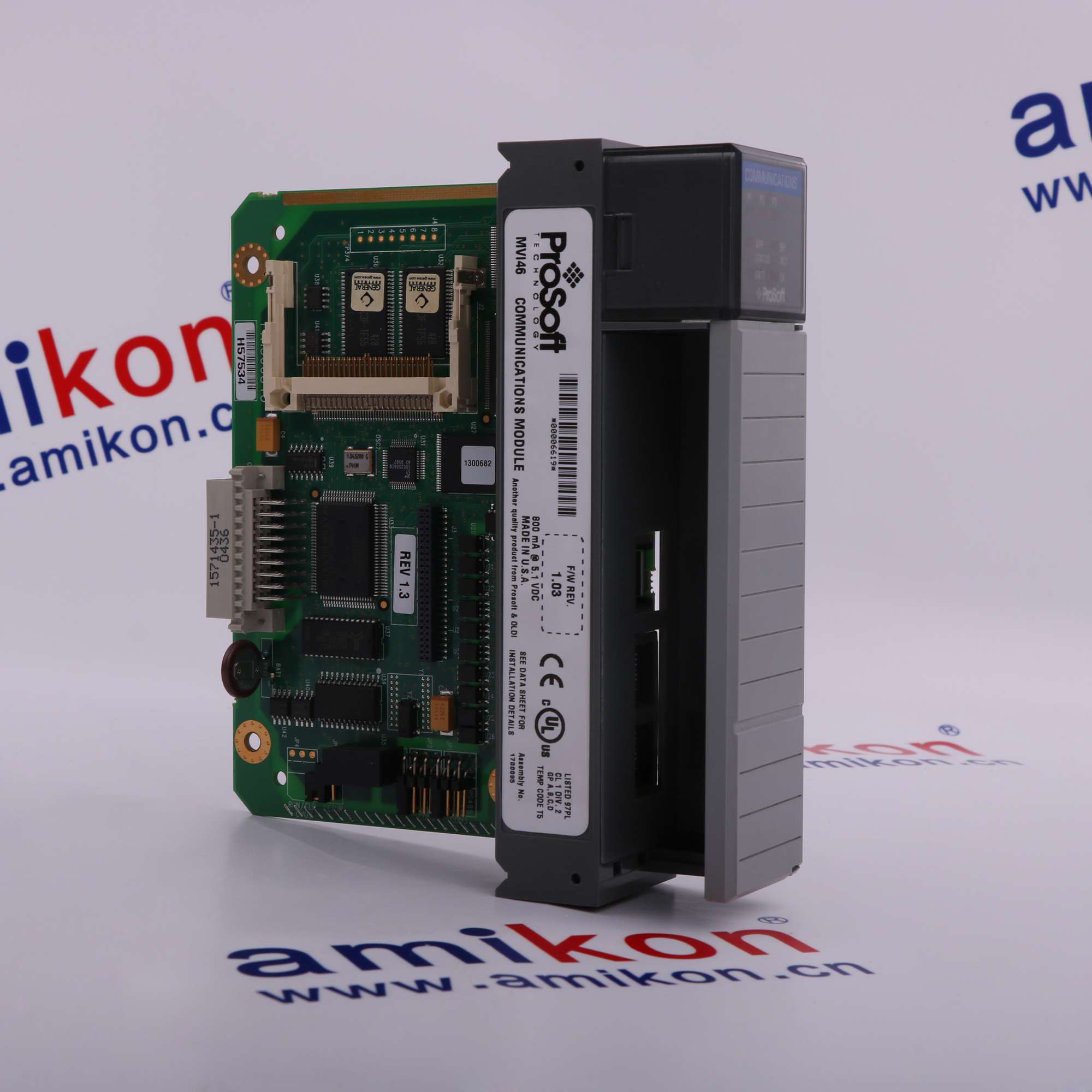

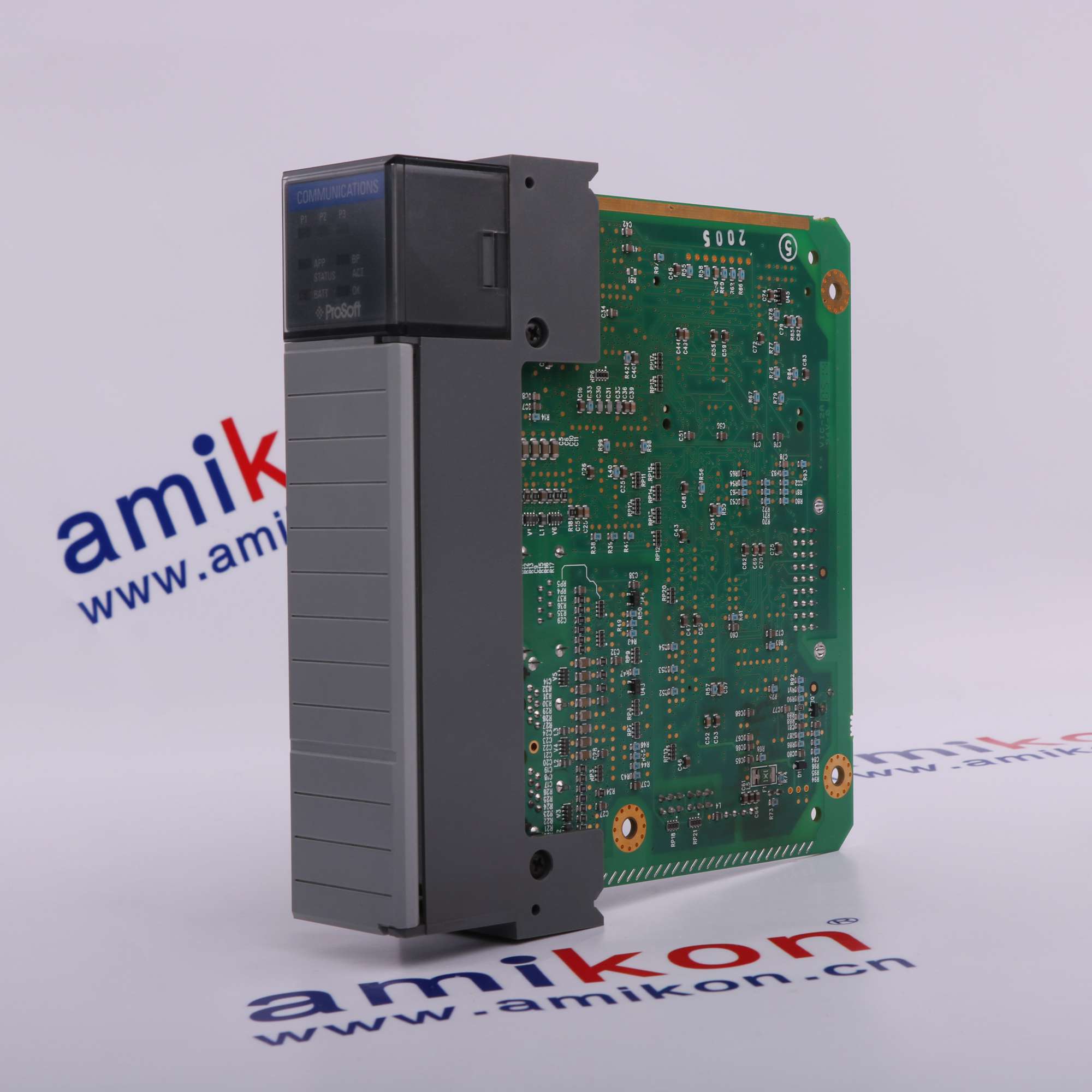

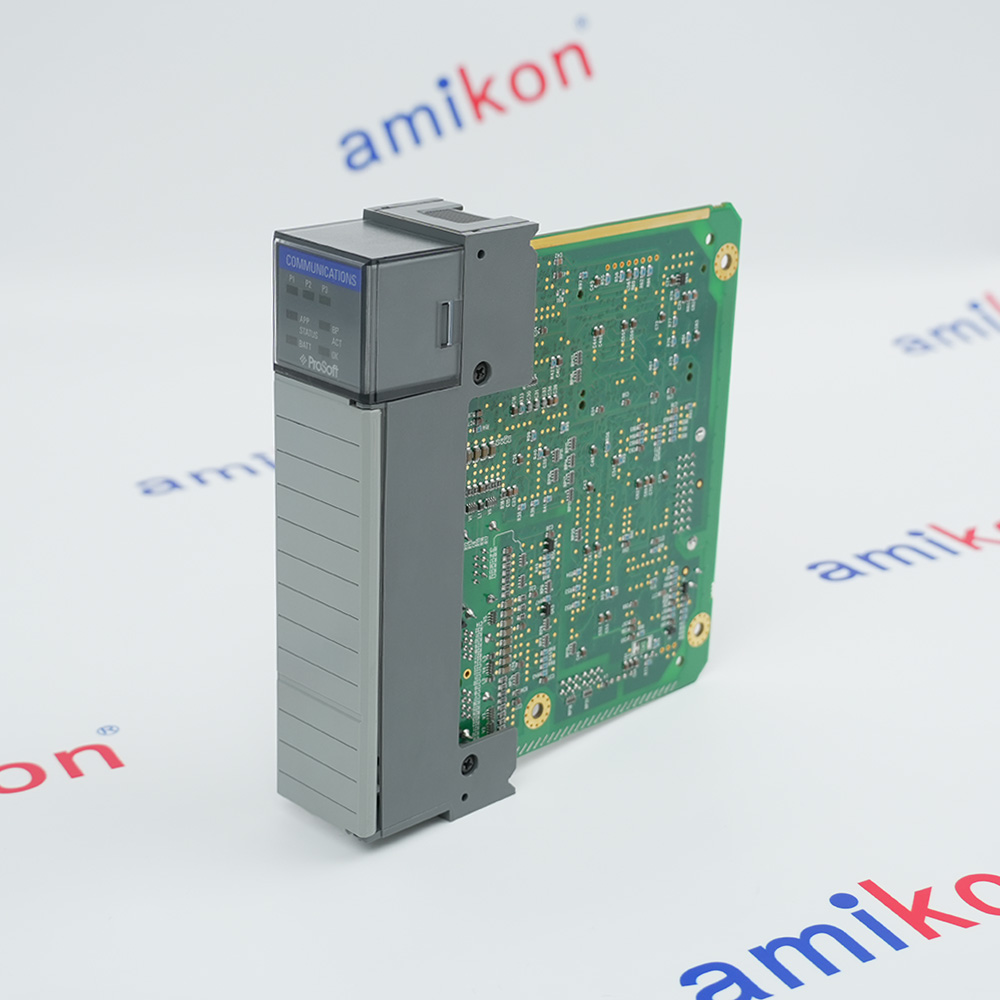

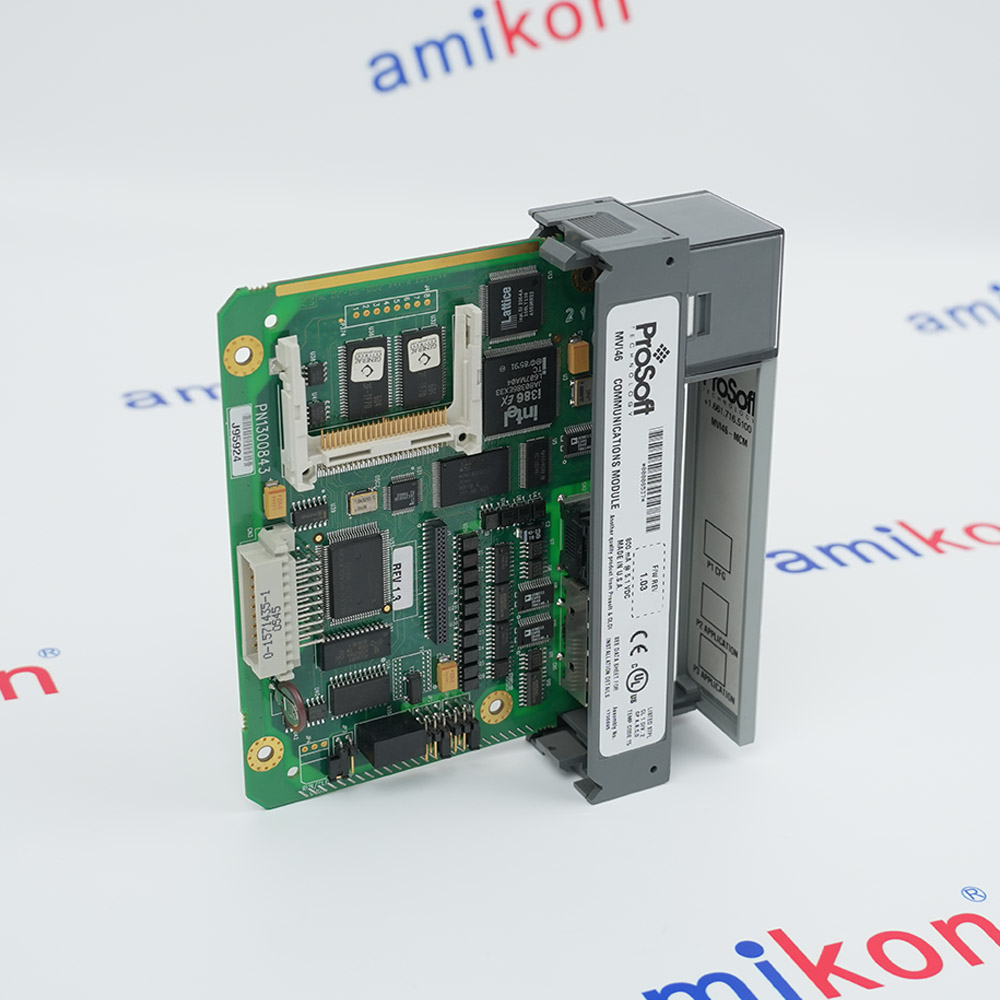

MVI46-MCM
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
MVI46MCM
COMMUNICATION MODULE
MODBUS MASTER/SLAVE INTERFACE
800MA AT 5.1VDC
0-60 DEGREE C
5G FROM 10150 HZ
COMMUNICATION MODULE
MODBUS MASTER/SLAVE INTERFACE
800MA AT 5.1VDC
0-60 DEGREE C
5G FROM 10150 HZ
Technical specifications for MVI46-MCM
-
Product ModelMVI46-MCM
-
Spare ModelMVI46MCM 1700095
-
Product ParametersCOMMUNICATION MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13.2x14.5cm
-
ManufacturerProSoft
-
Weight0.15 kg
-
Backplane Current Load800 ma @ 5V
-
Operating Temperature0 to 60°C (32 to 140°F)
-
Storage Temperature–40 to 85°C (–40 to 185°F)
-
Relative Humidity5 to 95% (non-condensing)
-
Vibration5 g from 10150 Hz
-
Module widthSingle slot
-
Compatible rack1746 chassis
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the MVI46-MCM？+The ProSoft Technology MVI46-MCM is a Modbus Communication Module for Allen-Bradley SLC 500 systems, supporting Master or Slave protocols on two RS-232/422/485 ports.
-
Can the MVI46-MCM be placed in a remote rack?+No, it must reside in the local or extended I/O rack (0-3) of the SLC 500 system.
-
Does the MV146-MCM support Remote I/O communication?+No. It only supports installation to a local or extended rack.
-
What is the difference between MVI46-MCM and 3150-MCM?+The MVI46-MCM is a newer, faster module with 115.2 kbps capability, 100 commands per port, and easier setup, whereas the 3150-MCM is an older, slower, legacy version.
-
Can I use the MV146-MCM for SCADA communication?+Yes. It may bay used to bridge communication between the controller and SCADA systems.
Get a quick price fo MVI46-MCM
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Master Specifications
Features:
- Foreign device data concentrator
- Pipelines and offshore platforms
- Food processing
- Mining
- Pulp and paper
- SCADA communications
The MVI46-MCM module acts as an input/output modulebetween the Modbus network and the RockwellAutomation backplane. The data transfer from the SLCprocessor is asynchronous from the actions on theModbus network. A 5000-word register space in themodule exchanges data between the processor and theModbus network.
The MV146-MCM Prosoft Slave Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Prosoft MV146-MCM Slave Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The inRAx Modbus Master/Slave Communicationsmodule is designed to allow SLC processors to interfaceeasily with Modbus protocol-compatible devices andhosts.The MVI46-MCM module acts as an input/output modulebetween the Modbus network and the RockwellAutomation backplane. The data transfer from the SLCprocessor is asynchronous from the actions on theModbus network. A 5000-word register space in themodule exchanges data between the processor and theModbus network.Many host SCADA packages support the Modbusprotocol, while devices commonly supporting theprotocol include several PLCs, as well as many otherthird party devices in the marketplace. (For a partial listof devices that speak Modbus, please visit the ProSoftTested section of the ProSoft Technology web site).
- Pulp & Paper Mills: Managing large-scale motor drives and wet-end chemical delivery systems
- Mining & Heavy Material Handling: Linking conveyor systems and crushing equipment in harsh industrial environments
- Burner/Boiler Management Systems: Manages the safe startup and operation of large-scale industrial burners
- Automotive & Parts Manufacturing: Integrating robotic welding cells or CNC stations that require high-speed data exchange (up to 115,200 baud) for performance monitoring.
- Food & Beverage Processing: Coordinating temperature controllers, weigh scales, and packaging machinery that use Modbus RTU to communicate with the main PLC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
A port configured as a virtual Modbus master device onthe MVI46-MCM module actively issues Modbuscommands to other nodes on the Modbus network. Onehundred (100) commands are supported on each port.Additionally, the master ports have an optimized pollingcharacteristic that polls slaves with communicationproblems less frequently. The SLC processor can beprogrammed to control the activity on the port by activelyselecting commands from the command list to executeor issuing commands directly from the ladder logic.
