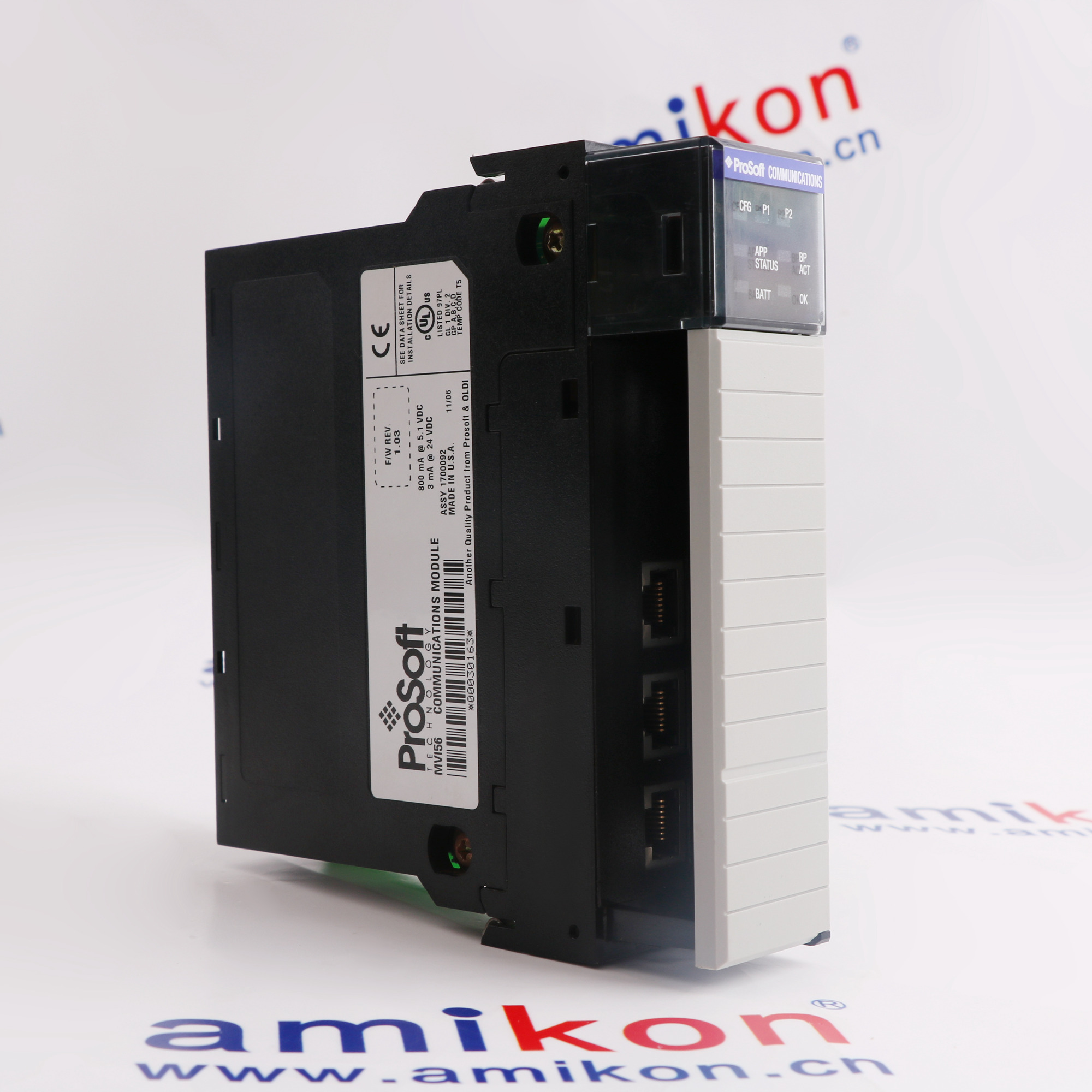

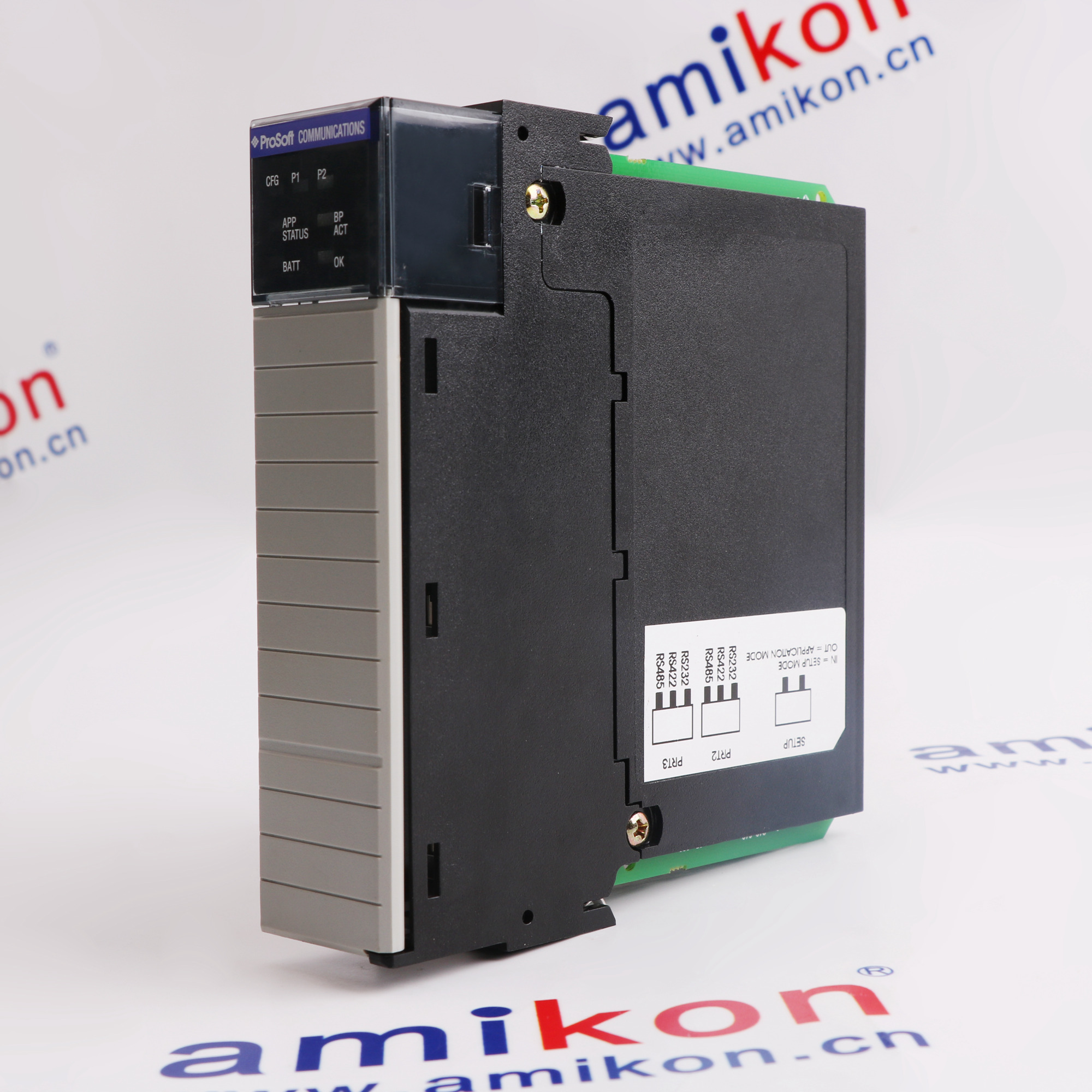

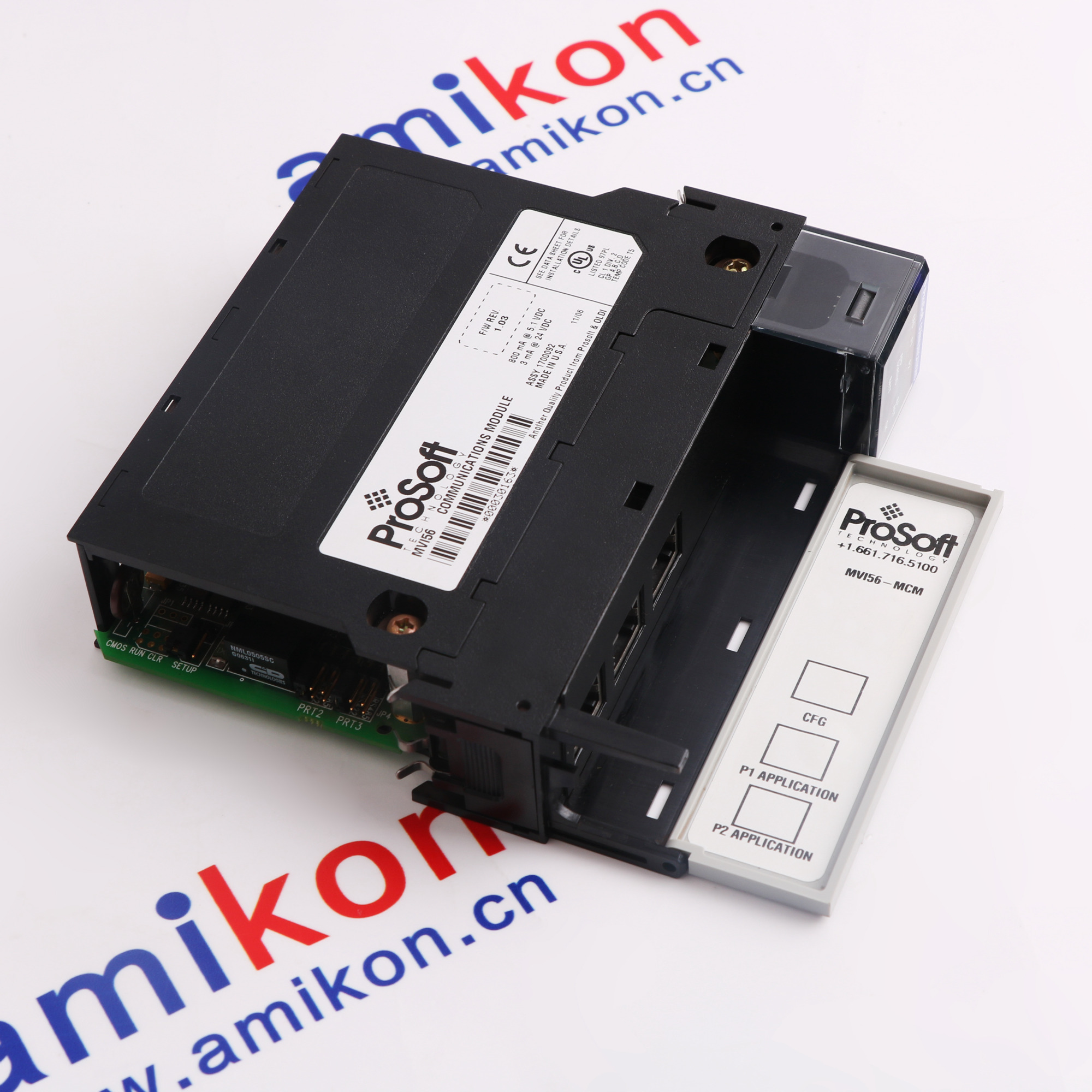

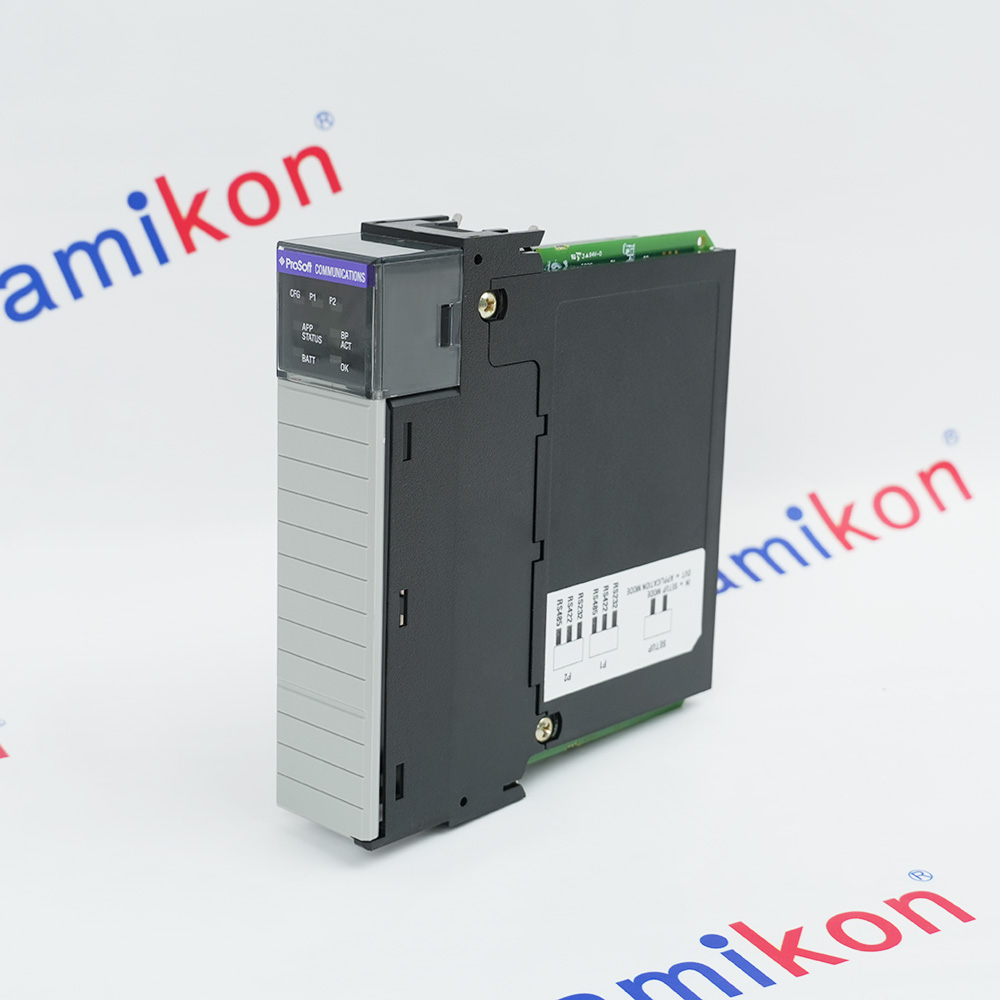

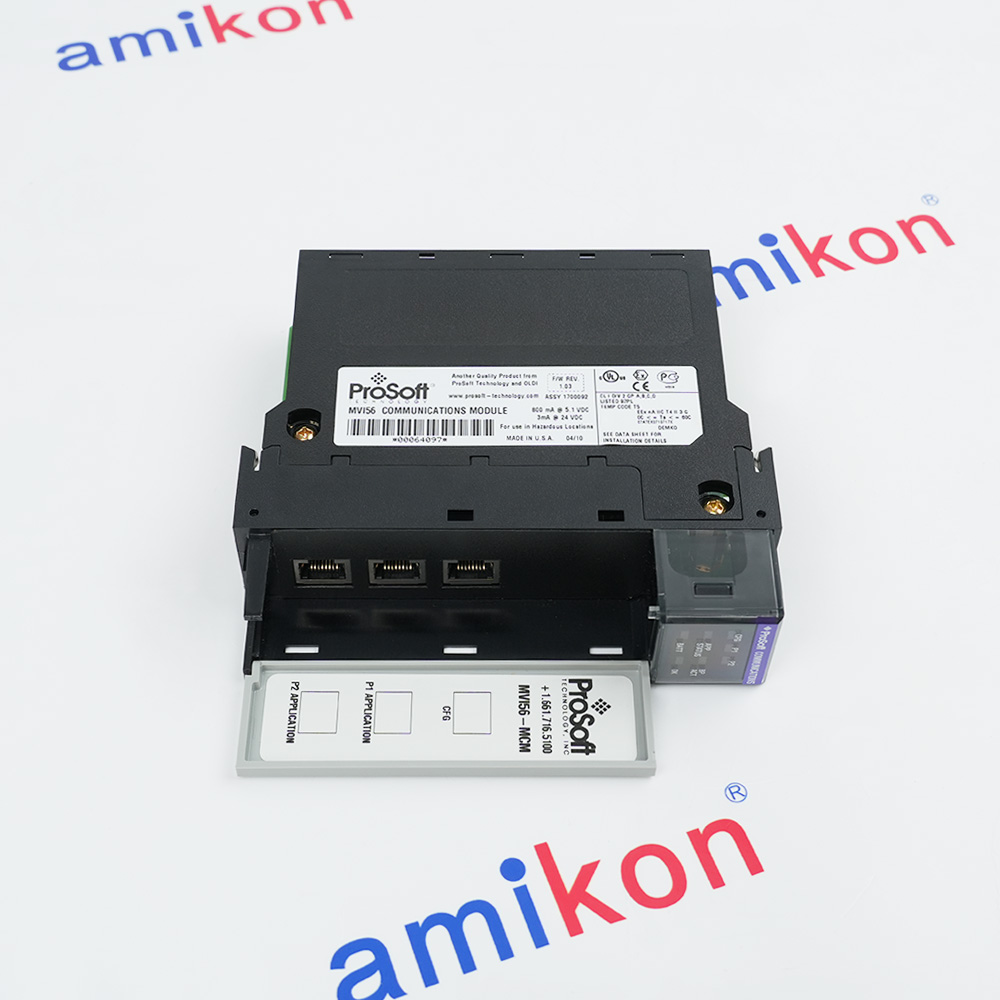

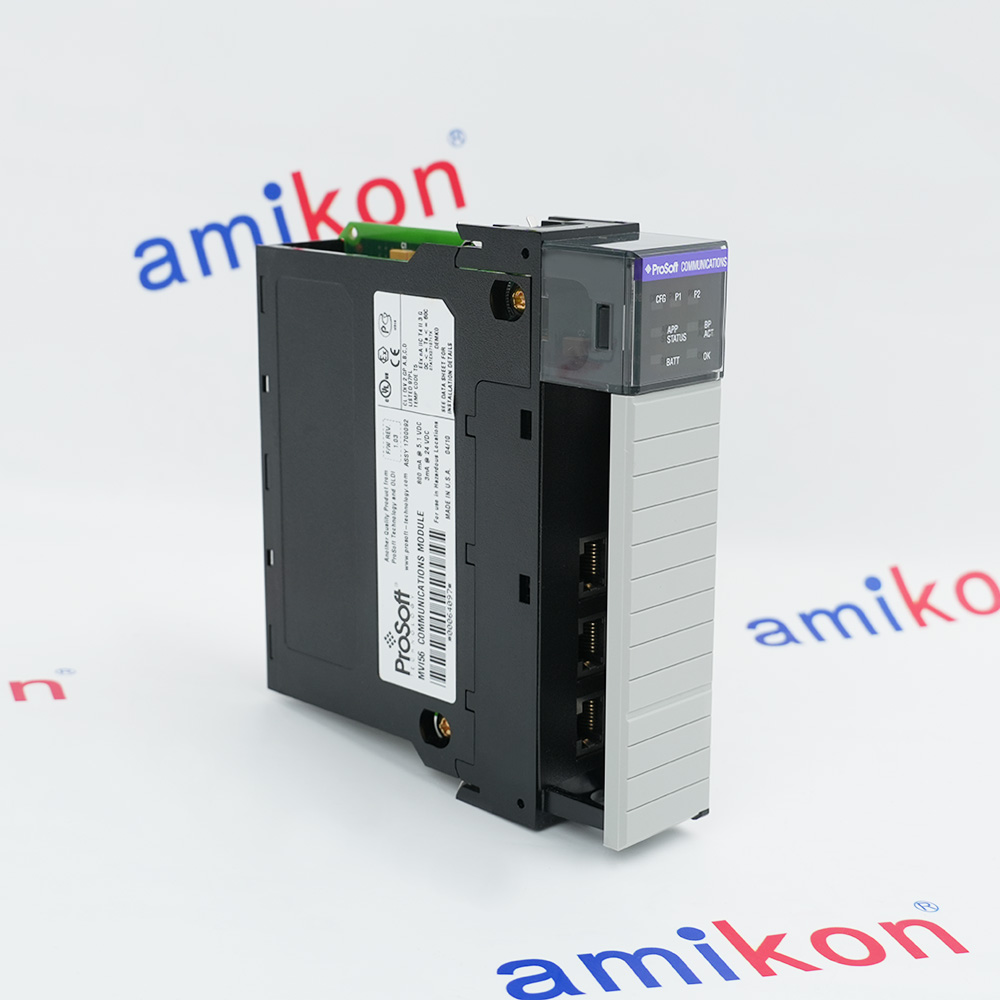

MVI56-MCM
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
COMMUNICATION MODULE
MODBUS
PLC
800 MA AT 5.1 VDC
3 MA AT 24 VDC
MODBUS
PLC
800 MA AT 5.1 VDC
3 MA AT 24 VDC
Technical specifications for MVI56-MCM
-
Product ModelMVI56-MCM
-
Spare ModelMVI56MCM
-
Product ParametersModbus Master/Slave Communication Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerProSoft
-
Weight0.25 kg
-
Backplane Current Load800 mA @ 5 VDC 3 mA @ 24 VDC
-
Operating Temperature0 to 60°C (32 to 140°F)
-
Storage Temperature-40 to 85°C (-40 to 185°F)
-
Backplane Power Load800 mA @ 5 V DC
-
Data Format7–8 data bits
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is MVI56-MCM?+The ProSoft MVI56-MCM is a Modbus Master/Slave module for ControlLogix, requiring 800mA @ 5V DC and supporting two serial ports (RS-232, 422, or 485).
-
What is the difference between MVI56-MCM and MVI56-MCMR?+The MCM version uses a larger I/O image (250 input/248 output words) and is preferred for local chassis use. The MCMR version uses a smaller I/O image (42 input/42 output words), making it ideal for remote racks over ControlNet to reduce bandwidth requirements.
-
What power does the module require?+It requires 800 mA at 5V DC and 3 mA at 24V DC provided directly by the ControlLogix backplane.
-
How do I handle more than 100 commands per port?+While each port's standard command list supports up to 100 entries, you can use Event Command control blocks to trigger additional Modbus commands directly from your ladder logic.
Get a quick price fo MVI56-MCM
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Core Technical Capabilities
Features:
- Communication module
- ControlLogix
- Modbus Communication Module with Reduced Data Block
When it comes to environmental tolerance, the MVI56-MCM showcases impressive capabilities, functioning effectively from -40 °C to 85 °C, thus suitable for a variety of operating conditions. It can also withstand humidity levels of 5% to 95%, provided that it remains non-condensing. For safety and reliability, the module incorporates optical isolation from the backplane, rated at a typical 500 V. Status indicators provide real-time feedback on module status, backplane transfer, application, and serial communication activity.
The MVI56-MCM ProSoft Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ProSoft MVI56-MCM Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ProSoft Technology MVI56-MCM is a Modbus Master/Slave serial module for ControlLogix, facilitating RS-232, 485, and 422 communication with 500V optical isolation. It supports 800 mA @ 5 VDC, operates between 0-60°C, and uses ladder logic for configuration. It was succeeded by the MVI56E-MCM (enhanced version) and is generally used in local chassis applications.
- Oil & Gas: Used in pipelines and offshore platforms for remote monitoring and control.
- Water and Wastewater: Employed in SCADA systems for station monitoring.
- Food Processing: Integrating specialized processing equipment.
- Pulp and Paper: Connecting legacy machinery to modern automation platforms.
- Mining: Coordinating large-scale industrial equipment on a unified network.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Dual Mode Support: Two serial ports can be independently configured as either a Modbus Master or Slave.
Protocol Flexibility: Supports both RTU (binary) and ASCII modes.
Data Capacity: Features a user-controlled 5,000-word database for exchanging data between the processor and the network.
Floating Point Support: Includes specialized support for Enron and Daniel floating-point implementations, common in the energy sector.
