- MVI56E-MCM

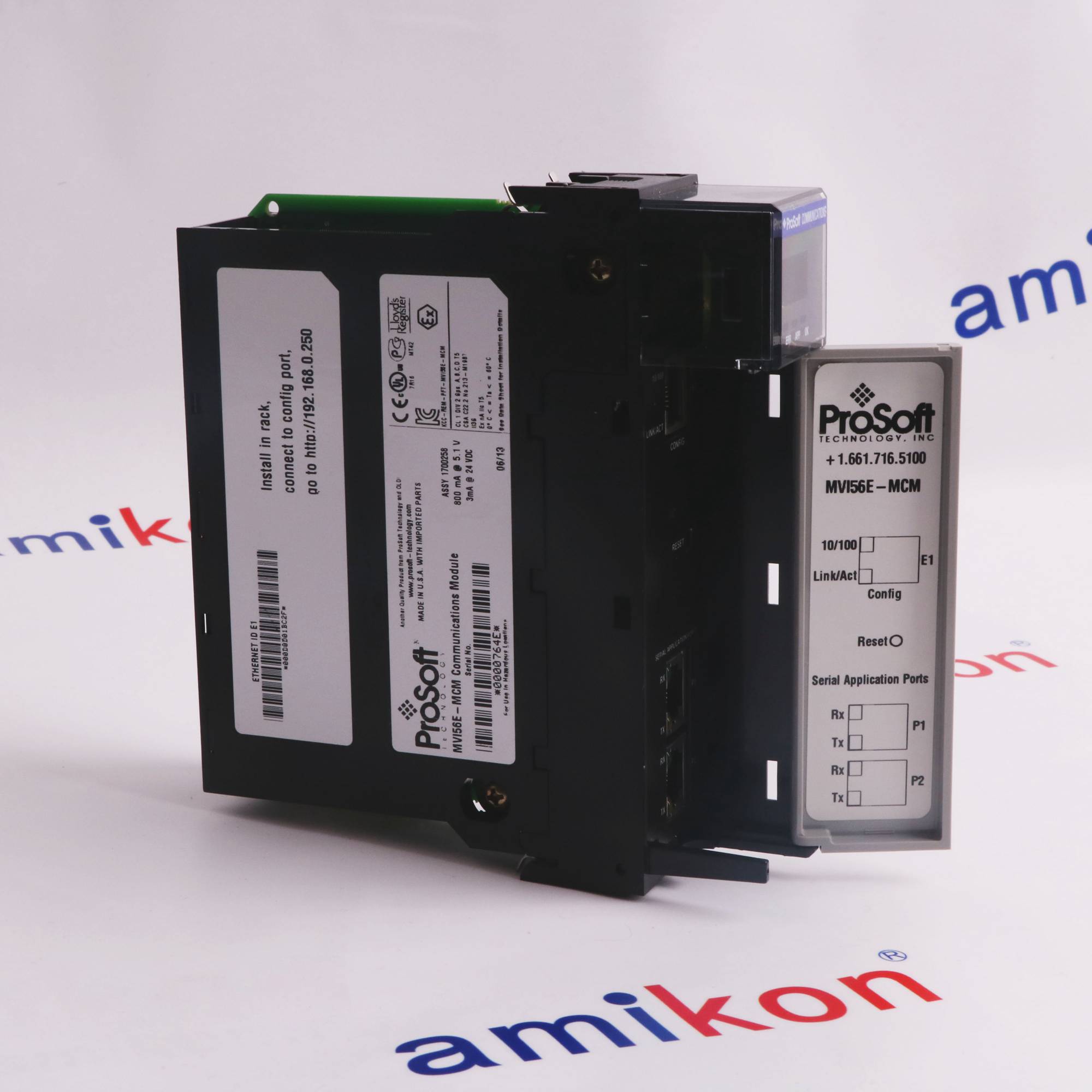

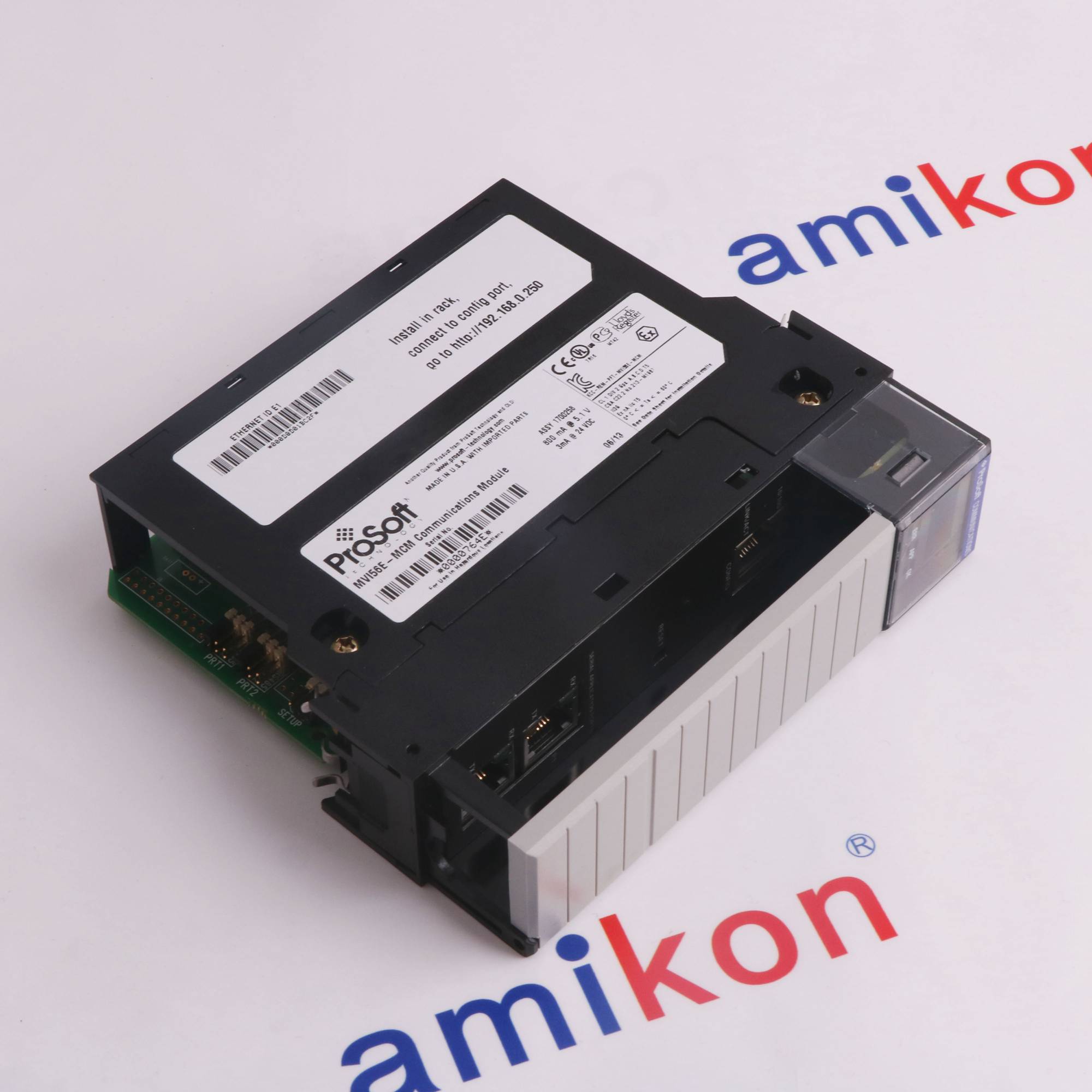

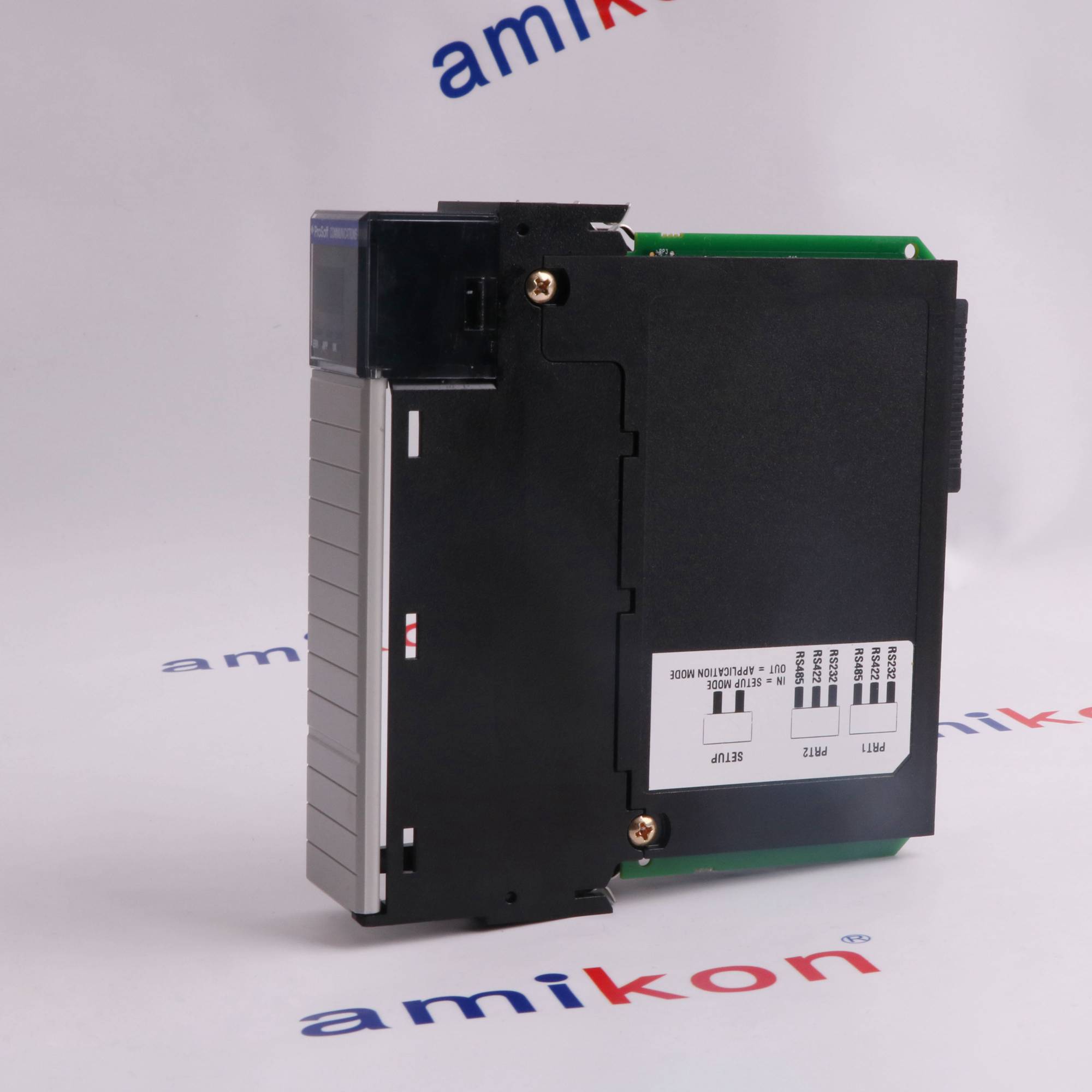

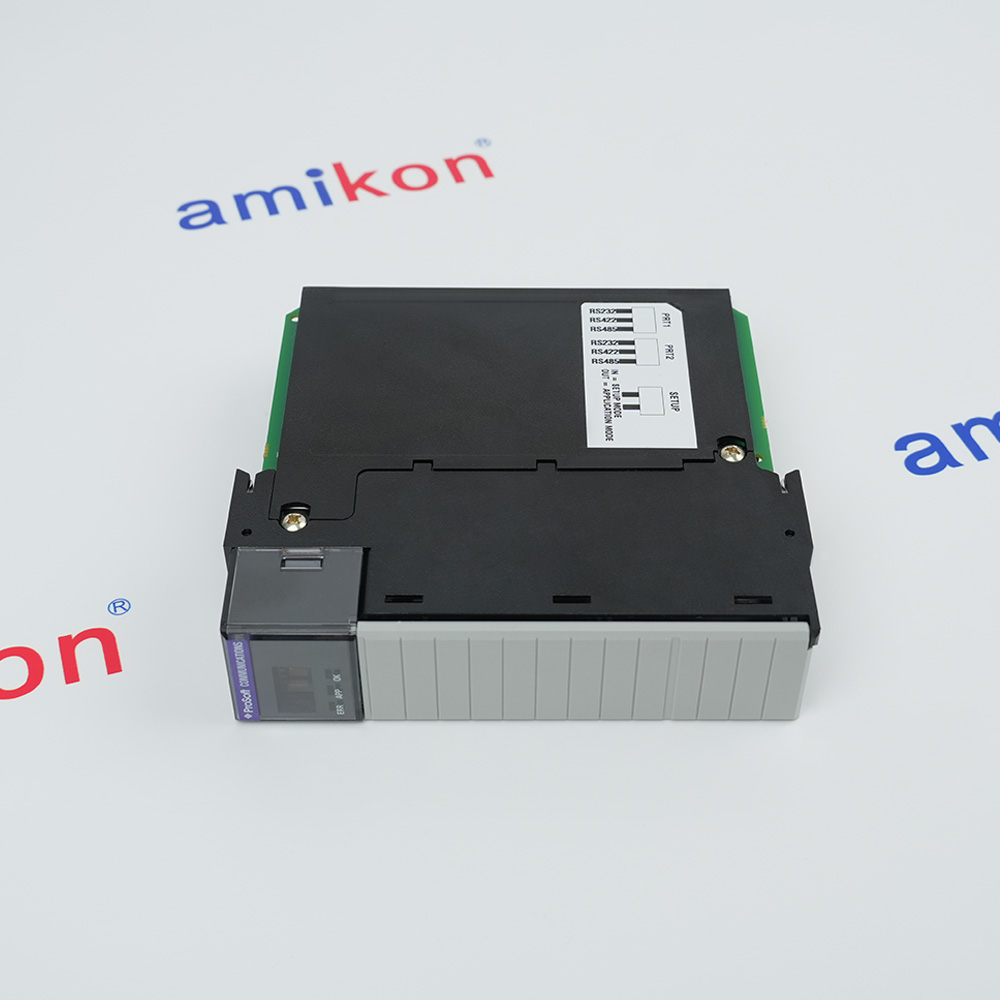

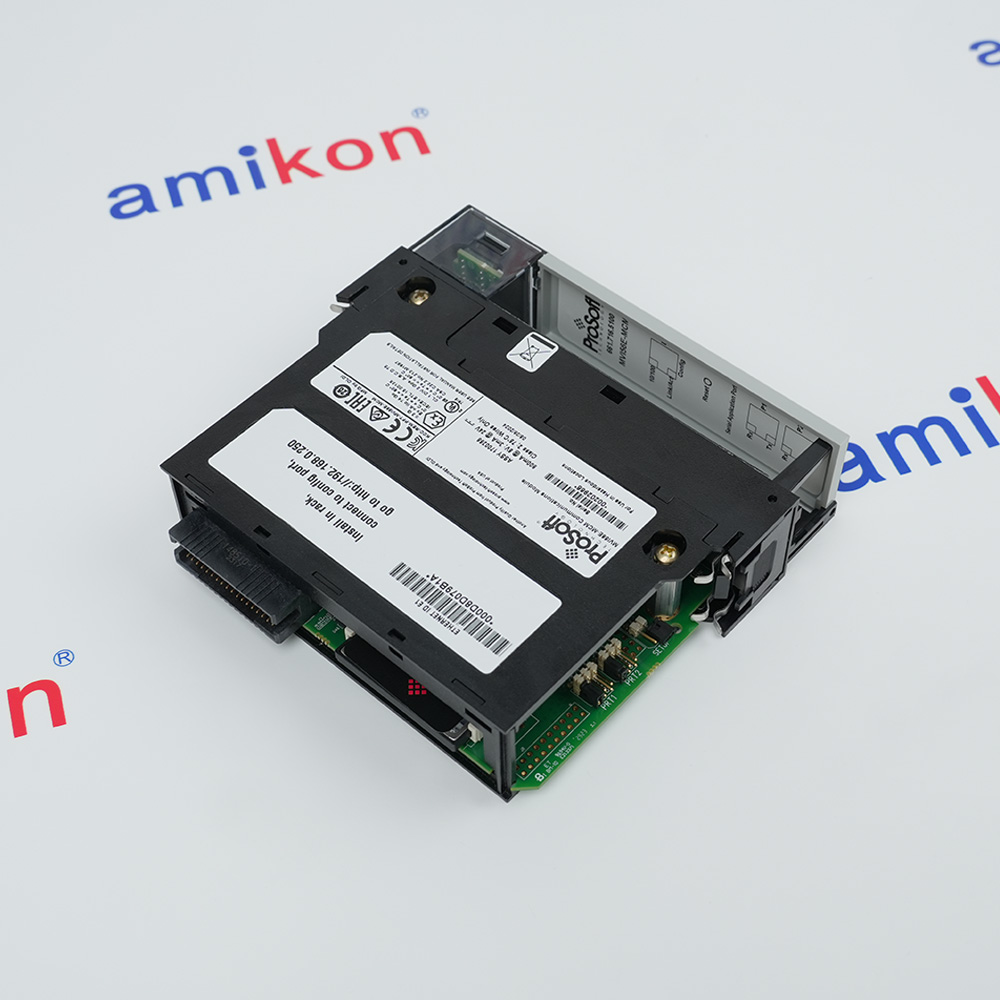

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for MVI56E-MCM
-
Product ModelMVI56E-MCM
-
Product ParametersModbus Master/Slave Enhanced Comm Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerProSoft
-
Weight0.26 kg
-
Backplane Current Load800 mA @ 5 VDC3 mA @ 24 VDC
-
Storage Temperature-40°C to 85°C (-40°F to 185°F)
-
Extreme/Harsh EnvironmentMVI56E-MCMXT comes with conformal coating
-
Relative Humidity5% to 95% (without condensation)
-
Vibration5 g from 10 to 150 Hz
Description
MVI56EMCM
COMMUNICATION MODULE
5 VDC AT 800 MA
24 VDC AT 3 MA
0-60 DEGREE C
COMMUNICATION MODULE
5 VDC AT 800 MA
24 VDC AT 3 MA
0-60 DEGREE C
Information
Overview
Manuals
Technical notes
Product Applications
Features:
- Single Slot - 1756 ControlLogix® backplane compatible
- PCB includes powerful Modbus network analyzer
- Supports Enron version of Modbus protocol for floating-point data transactions
- Modbus Master/Slave Enhanced Network Interface Module
- 10/100 MB Ethernet port for network configuration and diagnostics with Auto Cable Crossover Detection
The MVI56E-MCM ProSoft Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ProSoft MVI56E-MCM Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on theControlLogix backplane, making Modbus data appear as I/O data to the processor.Two independently configurable serial ports can operate on the same or differentModbus networks. The MVI56E-MCM is designed for standard processapplications and the MVI56E-MCMXT is designed for the Logix-XT™ controlplatform, allowing it to operate in extreme environments. It can tolerate higheroperating temperatures, and has conformal coating to protect it from harsh orcaustic conditions.
- Oil & Gas: Connects remote terminal units (RTU), flow meters, wellhead controllers and chromatographs
- Power & Energy: Connects multi-functional meters, protection relays, variable frequency drives (VFDs) and intelligent circuit breakers
- Water & Wastewater: Integrates pump station controllers, level meters, dissolved oxygen sensors and chemical dosing devices
- Manufacturing: Connects various third-party sensors with Modbus interfaces, actuators, weighing displays and small PLCs
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is MVI56E-MCM?
+The ProSoft Technology MVI56E-MCM is an Enhanced Modbus Master/Slave Communication Module designed for Rockwell Automation ControlLogix processors. -
How is the MVI56E-MCM configured?
+The module is configured using Add-On Instructions (AOI) in RSLogix 5000/Studio 5000, where parameters are stored within the project (.ACD file). -
Does the MVI56E-MCM support RS-485 full-duplex?
+No, the module only supports RS-485 half-duplex (2-wire) mode. -
What has been added to the MVI56E-MCM module with the revision3 firmware?
+The MVI56E-MCM module has been upgraded to provide support for up to a maximum of325 Modbus commands per port, when the module is operating as a Modbus master pollingdata from various slave devices. The version 2 firmware only supported a maximum of100 commands per port, and this created a limitation in some systems.The module additionally has seen an increase in the total database size of the module. Therevision 3 firmware now supports up to a maximum of 10,000 registers (16-bit INT) to beexchanged between the ControlLogix processor and the module. The previous revision 2firmware only supported 5000 registers. -
Is the MVI56E-MCM rev3 module backwards compatible with my oldAdd on Instruction (AOI) or ladder logic?
+Yes, a revision 3 firmware module can operate with revision 2 AOI or ladder logic withoutany issues. Replacing a revision 2 module with a new revision 3 unit requires no changesto your AOI or Ladder Logic.
