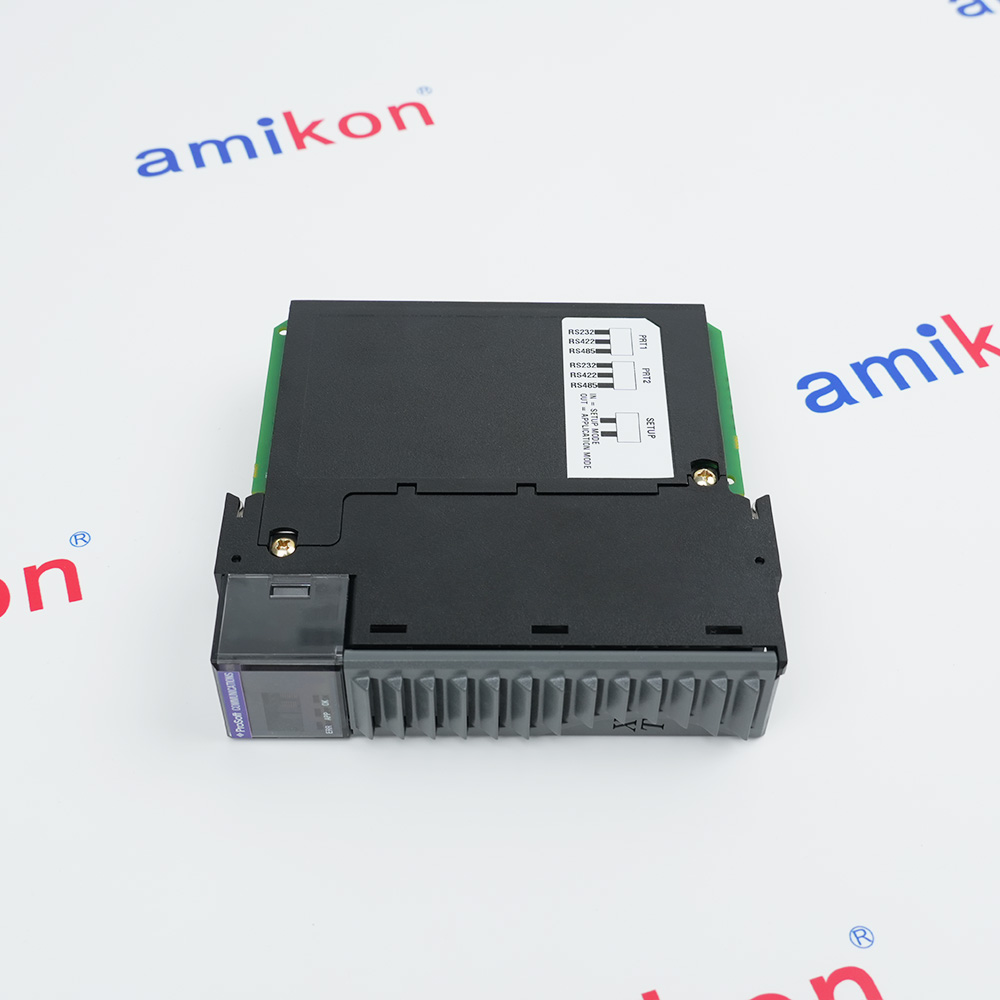

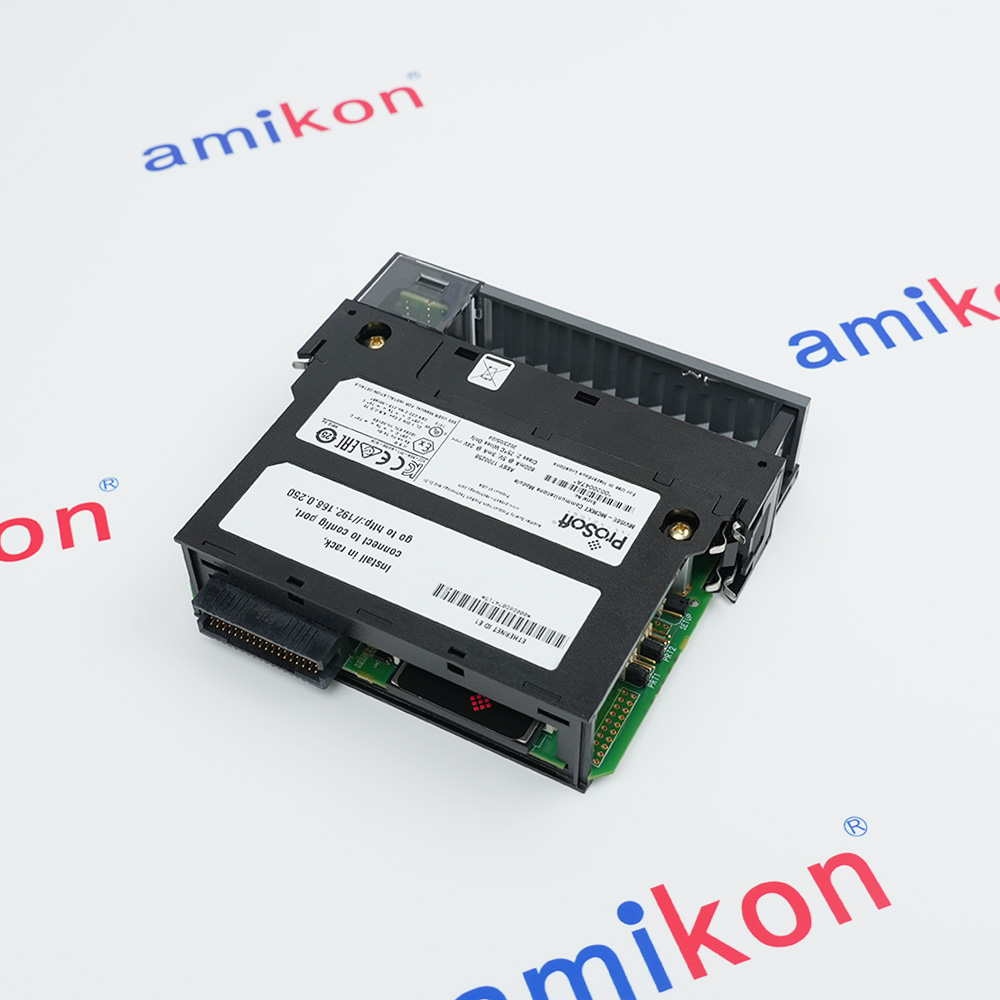

MVI56E-MCMXT
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
MVI56EMCMXT
COMMUNICATION MODULE
MASTER/SLAVE
5.1 VDC
24 V
3- 800 MA
LED INDICATORS
COMMUNICATION MODULE
MASTER/SLAVE
5.1 VDC
24 V
3- 800 MA
LED INDICATORS
Technical specifications for MVI56E-MCMXT
-
Product ModelMVI56E-MCMXT
-
Product ParametersCOMMUNICATION MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14.3x14.5cm
-
ManufacturerProSoft
-
Weight0.25 kg
-
Backplane Current Load800 mA @ 5 VDC3 mA @ 24 VDC
-
Operating Temperature0°C to 60°C (32°F to 140°F)
-
Storage Temperature-40°C to 85°C (-40°F to 185°F)
-
Relative Humidity5% to 95% (without condensation)
-
Baud Rate110 baud-115.2 kbps
-
Rack TypeLocal or Remote
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the MVI56E-MCMXT？+The ProSoft Technology MVI56E-MCMXT is an enhanced Modbus Master/Slave communication module designed for the ControlLogix platform, specifically for extreme environments
-
Is it backwards compatible with the older MVI56-MCM?+Yes. The MVI56E-MCMXT is designed as a drop-in replacement. For most applications, you can replace a legacy module by transferring the configuration through the PLC ladder logic
-
What does the XT stand for?+"XT" refers to the Extended Temperature version. It features conformal coating to protect against harsh or caustic conditions and can operate in temperatures ranging from -25°C to 70°C (-13°F to 158°F), compared to the standard model's 0°C to 60°C range.
-
Do the serial ports have electrical isolation?+The two application serial ports provide 1000 volts of electrical isolation between the port and the ControlLogix backplane. However, there is no isolation between the ports themselves or between the debug/configuration port and the module's internal circuitry
-
How is the module configured?+Configuration is primarily handled through controller-scoped tags in RSLogix 5000 / Studio 5000. These tags are automatically generated when you import the Add-On Instruction (AOI).
Get a quick price fo MVI56E-MCMXT
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- CIPconnect® enabled for module and network configuration using 1756-ENxTmodule with EtherNet/IP pass-through communications
- Supports Enron version of Modbus protocol for floating-point data transactions
- 4-digit LED Display for English based status and diagnostics information
- PCB includes powerful Modbus network analyzer
- Error codes and port status data available in user data memory
The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on the ControlLogix backplane, making Modbus data appear as I/O data to the processor. Datatransfer to and from the processor is asynchronous from the communications on theModbus network. Two independently configurable serial ports can operate on the sameor different Modbus networks. Each port can be configured as a Modbus Master orSlave, sharing the same user-controlled, 10,000-word database.
The MVI56E-MCMXT ProSoft Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ProSoft MVI56E-MCMXT Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on theControlLogix backplane, making Modbus data appear as I/O data to the processor. Datatransfer to and from the processor is asynchronous from the communications on theModbus network. Two independently configurable serial ports can operate on the sameor different Modbus networks. Each port can be configured as a Modbus Master orSlave, sharing the same user-controlled, 10,000-word database.
The two modules are functionally the same. The MVI56E-MCM is designed for standardprocess applications. The MVI56E-MCMXT is designed for the Logix-XT™ controlplatform, allowing it to operate in extreme environments. It can tolerate higher operatingtemperatures, and it also has a conformal coating to protect it from harsh or causticconditions.
- Oil & Gas: Interfaces with SCADA, analyzers, lift systems
- Power & Energy: Controls turbines, excitation, protective relays
- Water & Wastewater: Monitors pumps, sensors, Modbus in outdoor cabinets
- Manufacturing & Process: Integrates MCCs, VFDs, and instrumentation
- Remote Site Automation: Harsh-environment rated for offshore, pipelines, mining
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The ProSoft Technology MVI56E-MCMXT is a ruggedized, enhanced Modbus communication module designed for the Rockwell Automation ControlLogix-XT platform. While it is functionally identical to the standard MVI56E-MCM, it is specifically built for extreme environments.
Operating Temperature: According to ProSoft Technology, the ProSoft Technology MVI56E-MCMXT supports a range of -25°C to 70°C (-13°F to 158°F), whereas the standard ProSoft Technology MVI56E-MCM is rated for 0°C to 60°C (32°F to 140°F).
Protection: The XT version includes conformal coating as a standard feature to protect against caustic or humid environments.
Functionality: Both modules are functionally identical, featuring two independently configurable serial ports, a 10,000-word database, and support for up to 325 Modbus commands per port.
