- RD-323MS
In Stock
Ships by Friday, July 10
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for RD-323MS
-
Product ModelRD-323MS
-
Product Parameters2-PH Microstepping Motor Driver
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size10.5x2.6x5.6cm
-
ManufacturerRorze
-
Weight0.24 kg
-
Supply voltage18 to 40VDC
-
Motor current0.3 to 3A/phase
-
Microstep resolutionUp to 400 microsteps/step
-
Response frequency500kpps max.
-
Supply currentApprox. 1.2 times rated coil currentof motor (max.)
Description

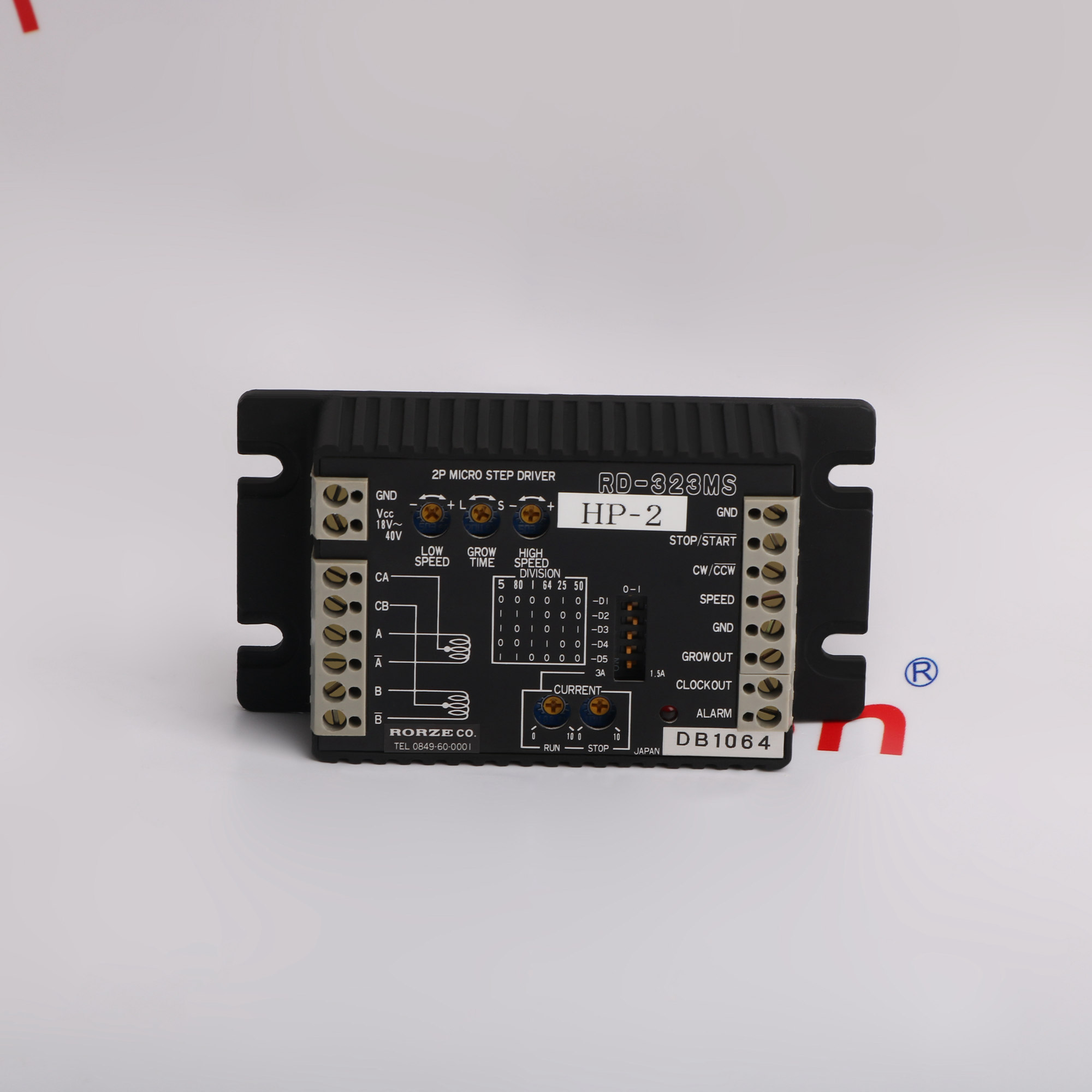

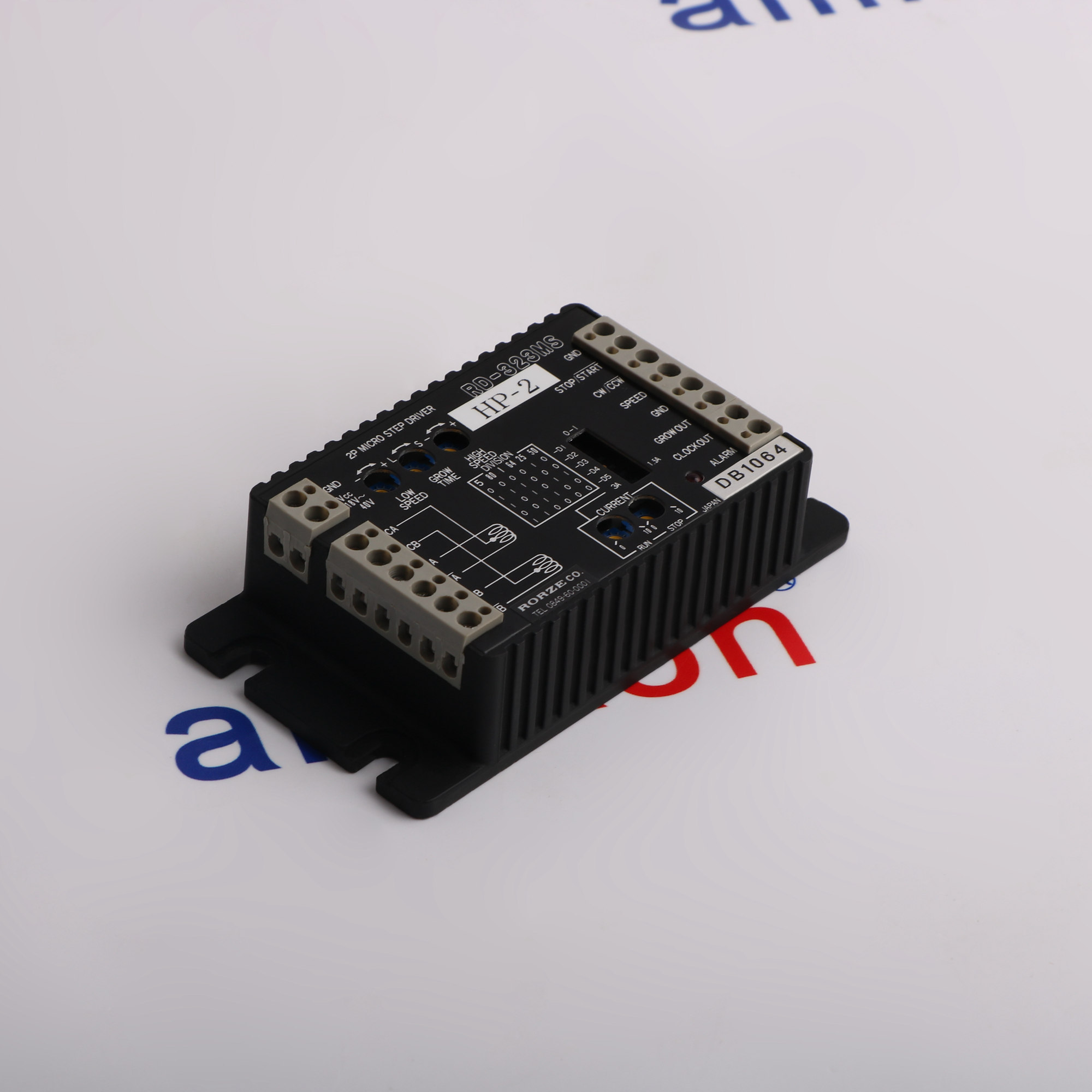

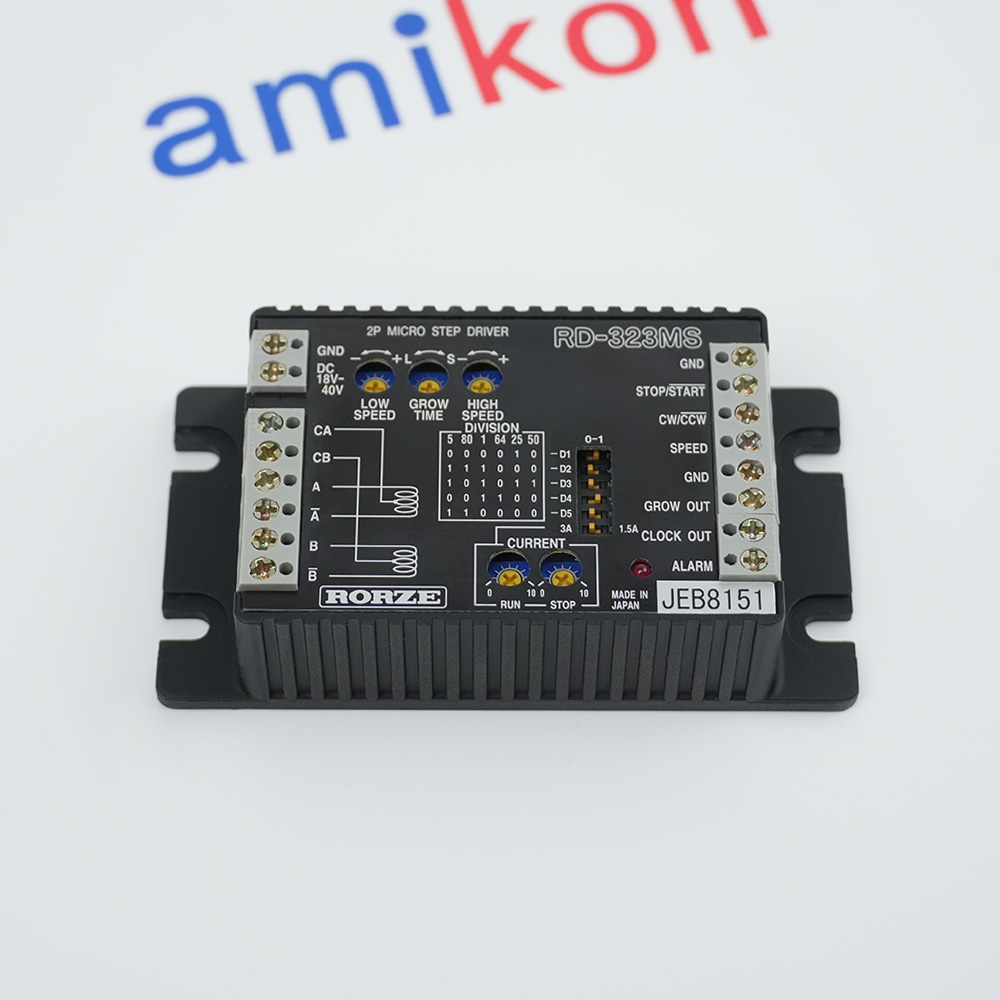

The RORZE RD-323MS is a 2-PH Microstepping Motor Driver designed for high-resolution stepping motor control applications. The RD-323MS enables microstep drive of 2-phase stepping motors using a unipolar, constant current chopper method, providing smooth and precise motor operation.
The RD-323MS features a built-in pulse oscillator that eliminates the need for an external pulse generator, allowing the RD-323MS to combine easily with PLC, microcomputer, or RORZE controller systems. The RD-323MS supports selectable microstep resolution of 50, 64, or 80 microsteps per step via DIP switch configuration, enabling users to optimize between positioning precision and system response. The RD-323MS achieves position repeatability of ±1 microstep with no load in one direction when configured at 50 microsteps per step.
The RD-323MS operates from a single supply voltage of 18 to 40VDC (including ripple) and delivers a motor current of 0.3 to 3A per phase, adjustable via the Run Current Adjustment Trimmer. The RD-323MS features a current range switch (3A/1.5A) that sets the motor run current range when the run current adjustment trimmer is set to maximum value.
The RD-323MS features a built-in pulse oscillator that eliminates the need for an external pulse generator, allowing the RD-323MS to combine easily with PLC, microcomputer, or RORZE controller systems. The RD-323MS supports selectable microstep resolution of 50, 64, or 80 microsteps per step via DIP switch configuration, enabling users to optimize between positioning precision and system response. The RD-323MS achieves position repeatability of ±1 microstep with no load in one direction when configured at 50 microsteps per step.
The RD-323MS operates from a single supply voltage of 18 to 40VDC (including ripple) and delivers a motor current of 0.3 to 3A per phase, adjustable via the Run Current Adjustment Trimmer. The RD-323MS features a current range switch (3A/1.5A) that sets the motor run current range when the run current adjustment trimmer is set to maximum value.
Alternative Names
RD323MS
RO-323MS
RO323MS
Information
Overview
Manuals
Application Notes
Product Applications
Installation and Heat Management
Features:
- High Power Output (3A/Phase Max)
- Large Supply Voltage Range (18 to 40VDC)
- Selectable Microstep Resolution (50, 64, or 80 microsteps/step)
- Built-in Pulse Oscillator with Analog Speed Control
- Selectable Clockout (1 to 80 pulses/step)
Motor current is adjustable from 0.3 A to 3.0 A per phase using the front-panel Run Current Adjustment Trimmer, with a current range selection switch setting the maximum trimmer range to either 1.5 A or 3.0 A. The Stop Current Adjustment Trimmer sets the holding current to any value between 0 % and 80 % of the run current, with a factory default of 50 %. An automatic current down function reduces the motor current to the stop current setting approximately 0.3 seconds after the motor becomes stationary, reducing heat generation during idle periods.
The RD-323MS RORZE 2-PH Microstepping Motor Driver may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
RORZE RD-323MS 2-PH Microstepping Motor DriverManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The RD-323MS is suitable for use with any hybrid (HB) or permanent magnet (PM) 2-phase stepping motor rated between 0.3 A and 3.0 A per phase, with a voltage rating less than 70 % of the supply voltage. Recommended RORZE motors include the RM2414S/D (1.4 kgf·cm), RM2424S/D (2.4 kgf·cm), RM2621S/D (2.1 kgf·cm), RM2640S/D (4.0 kgf·cm), RM2690S/D (8.0 kgf·cm), and RM26A3S/D (13.0 kgf·cm) series.
The driver measures 27.5 mm in height, 105 mm in width, and 56 mm in depth, with a weight of approximately 250 g. Adequate heat dissipation must be provided to keep the driver case temperature below 60 °C and the motor case temperature below 100 °C, achieved through drive current adjustment or installation of cooling fins and fans as necessary.
- Semiconductor Fabrication: Drives wafer-handling robots and stage positioning with low-vibration, high-precision movement
- LCD/Display Manufacturing: Powers glass substrate handling, cutting, and inspection system mechanisms
- Automated Guided Vehicles: Controls steering and drive for smooth, reliable acceleration and deceleration
- General Automation: Applied in pick-and-place, test fixtures, and custom robotics applications
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Heatsink Mounting: Because the driver generates heat, it is highly recommended to mount it flush against a metal plate or heatsink for proper thermal dissipation.Safety First: Ensure the power supply is entirely turned off before attempting to connect or remove any wires.
Technical notes
The RD-323MS includes a GROW OUT output that turns ON when the motor changes from a stationary state to the speed set at the High Speed trimmer, allowing calculation of deceleration time based on pulse count during acceleration. The RD-323MS provides CLOCK OUT output with selectable resolution from 1 to 80 pulses per step, with an oscillating frequency of up to 700 kpps maximum.
FAQs
-
What is the RD-323MS?
+The Rorze RD-323MS is a discontinued 2-phase micro-stepping motor driver frequently used in automated equipment and positioning applications. -
Why is the Alarm LED lighting up and the motor stopping?
+This indicates the internal temperature of the driver has exceeded ≈ 70°C. The driver will automatically reset and the motor will turn again once the temperature drops by about 10°C -
What is the function of the Automatic Current Down circuit?
+When the motor is inactive (no input clock pulses) for approximately 0.3 seconds, the driver automatically drops the current to 0 to 80% of the running value. This significantly limits motor heat generation during standstill periods. -
Which motors are compatible with this driver?
+The RD-323MS is designed for 2-phase hybrid (HB) type or PM type stepping motors that utilize 4-lead or 6-lead wire configurations. It integrates natively with RORZE series motors (such as RM2B42 and RM26) as well as equivalent 2-phase motors from third-party manufacturers.
