Technical specifications for DL35-B15552
-
Product ModelDL35-B15552
-
Product ParametersTIME-OF-FLIGHT SENSORS
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size21x15.3x15cm
-
ManufacturerSICK
-
Weight3.3 kg
-
Measuring range200 mm ... 35,000 mm, on “diamond grade” reflective tape
-
Target ReflectorResolution 100 µm
-
Repeatability≥ 0.5 mm
-
Measurement accuracy Typ± 15 mm
-
Response time2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms
-
Switching frequency333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz
-
Output time1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms
-
Type of lightVisible red light
-
Average laser service life (at 25 °C)100,000 h
-
Data transmission rate38.4 kbit/s
-
Maximum output current IA≤ 100 mA
-
Current4 mA ... 20 mA, ≤ 450 Ω
-
Voltage0 V ... 10 V, ≥ 50,000 Ω
-
Resolution12 bit
Description

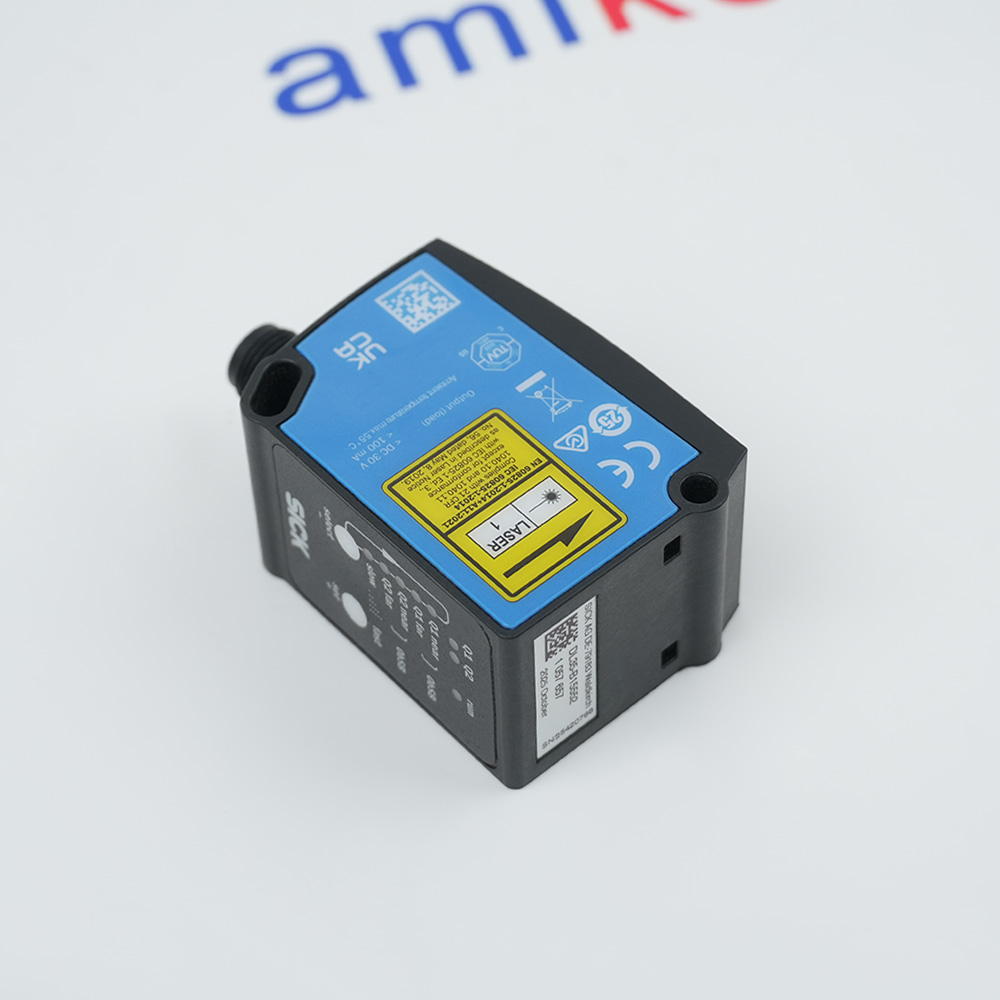

The SICK DL35-B15552 is a mid-range distance sensor from the Dx35 series, designed for industrial laser distance measurement applications. The SICK DL35-B15552 utilizes time-of-flight technology with a laser source operating at a wavelength of 658nm, maximum output of 120mW, pulse duration of 4ns, and defined duty cycle, enabling accurate and reliable distance detection across its measuring range.
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mechanical Mounting & Stability
Features:
- Triple Modular Redundant (TMR), fault tolerant (3-2-0) operation.
- Hardware Implemented Fault Tolerant (HIFT) architecture.
- Automatic fault handling without nuisance alarming
- Time-stamped fault historian
- Hot replacement (no need to re-load programs)
- Front panel indicators that show module status
- Front panel RS232 serial diagnostics port for system monitoring, configuration andprogramming
The SICK DL35-B15552 features IO-Link 1 communication capability, listed and CE certified, enabling advanced integration into industrial automation systems. The SICK DL35-B15552 provides dual output configuration with Q1/C and QA/Q2 outputs, where output Q is short-circuit protected with voltage drop less than 3V, and response time is configurable with a maximum of ≤60ms depending on the set speed. The analog output of the SICK DL35-B15552 is configurable via IO-Link or control elements.
The DL35-B15552 SICK Time-of-Flight Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SICK DL35-B15552 Time-of-Flight Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

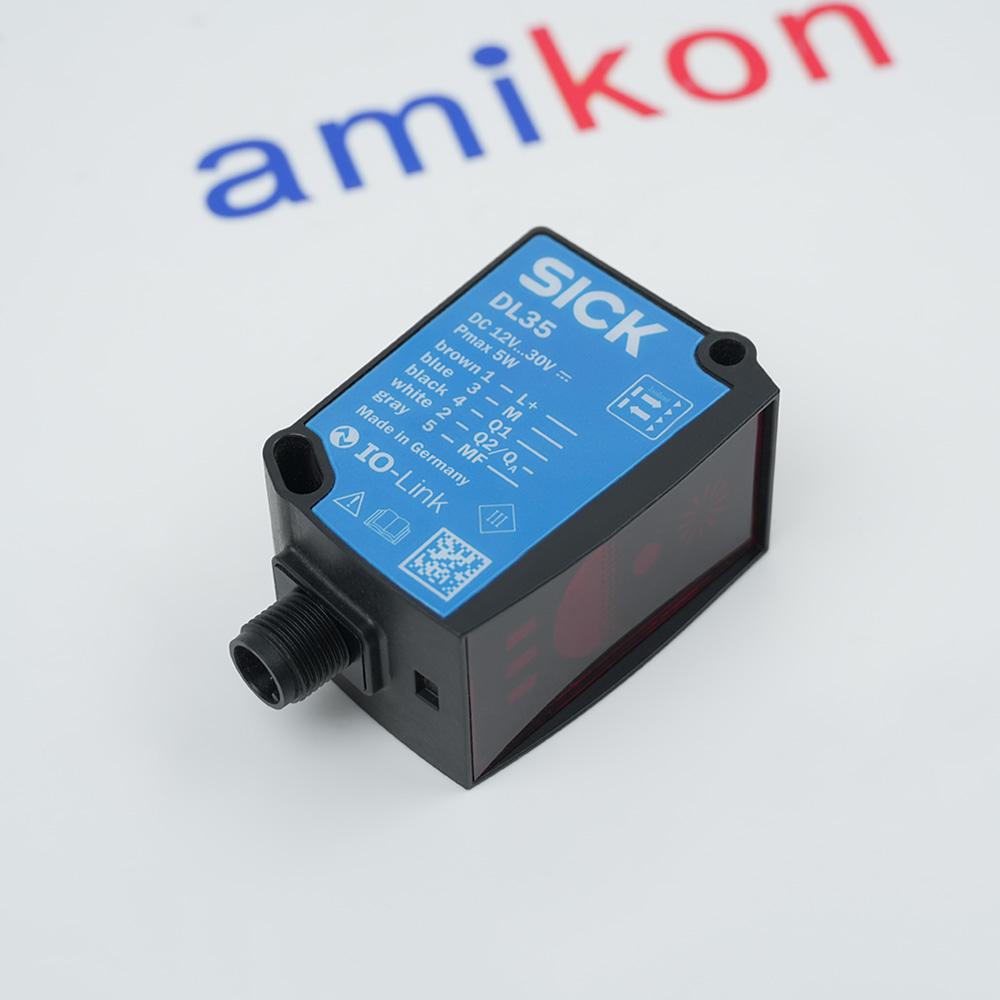

The SICK DL35-B15552 is designed with robust mechanical construction featuring a compact housing with dimensions of 71.1mm (2.80") height, 32mm (1.26") width, and 42.4mm (1.68") depth. The SICK DL35-B15552 includes an optical axis for sender and receiver, a zero level reference, mounting holes M4, status indicator for output Qa/Q2, status LEDs for output Q1, an operating indicator, and control elements on the front panel. The SICK DL35-B15552 connects via a male M12 5-pin connector with pin assignments for L+ (brown), Q1/C (black), QA/Q2 (white), M (blue), and MF multifunctional input (gray).
- Hot & Cold Rolling Mills:Tracks slab/plate/coil transfer cars near high heat
- Stamping Plants:Die-change & coil-feeding cars for heavy press lines
- Corrugated Board Plants:Paper roll unwinds: monitors reel diameters
- Flexible Packaging Facilities:Web film lines: master roll tracking & loop control
- Component Assembly Bays:Bridge cranes for aircraft wings/fuselages/engines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Vibration Isolation: If mounting directly onto moving machinery, use rubber vibration-damping mounts to prevent high-frequency mechanical jitter from degrading distance measurements.
Clear Line of Sight: Ensure a clear 50 mm radius "cone" around the beam path over the entire 35-meter run to prevent overhead cables, structural columns, or dust curtains from breaking the beam.
Sensor Orientation: Install the device so that its front lens is easily accessible for routine cleaning.
FAQs
-
What is the SICK DL35-B15552?
+The SICK DL35-B15552 is a highly precise mid-range distance sensor known for its reliability in warehouse and industrial settings. -
Does it require a special reflector?
+Yes. To achieve maximum range and accuracy, the sensor requires the use of "diamond grade" reflective tape (or a standard retro-reflector). -
What is the maximum measurement range of the DL35-B15552?
+The sensor tracks objects reliably within a range of 200 mm to 35,000 mm (0.2 to 35 meters). -
What are its accuracy and resolution capabilities?
+The sensor provides a high resolution of 0.1 mm with a standard measurement accuracy of ±15 mm. Its repeatability matches or exceeds 0.5 mm depending on the speed setting.
