Amikon Limited comprehensive Schneider Electric industrial control systems, specializing in the supply of the following core product lines:
Modicon® Quantum PLC Systems,Quantum 140 Series ,M340 PLC Systems.we provide certified Obsolete Parts for discontinued Schneider Electric equipment across all legacy systems.
Whether you require components for specific platforms (such as Modicon Quantum or M340), or need to source replacement/obsolete parts based on equipment functionality, Send email now.
Amikon Limited comprehensive Schneider Electric industrial control systems, specializing in the supply of the following core product lines:
Modicon® Quantum PLC Systems,Quantum 140 Series ,M340 PLC Systems.we provide certified Obsolete Parts for discontinued Schneider Electric equipment across all legacy systems.
Whether you require components for specific platforms (such as Modicon Quantum or M340), or need to source replacement/obsolete parts based on equipment functionality, Send email now.
140CPU53414B
DISCONTINUED BY MANUFACTURER
QUANTUM 534B PLC CONTROLLER
80486 MODICON QUANTUM
WITH MATHEMATICAL COPROCESSOR
CPU MODULE
Tariff Code: 8537109060
Country of Origin: France
Concept:Transparent Ready
Transmission rate:10/100 Mbit/s
Current consumption:750 mA at 5 V DC
Ambient air temperature for operation:0…60 °C
Ambient air temperature for storage:-40…85 °C
Operating altitude:<= 4500 m
Relative humidity:95 % without condensation
Modicon Quantum automation platform
Dc discrete input modules
Discrete input number:16
Group of channels:8
Logic input:Positive (sink)
Input voltage limits:10...60 V
Absolute maximum voltage:75 V
Modicon Quantum automation platform
RIO drop adaptor module
Type of cable:75 Ohm coaxial
Transmission Rate:1544 Mbit/s
Dynamic range:35 dB
500 V DC coaxial center and ground
3.8 W 2 channels
750 mA 2 channels

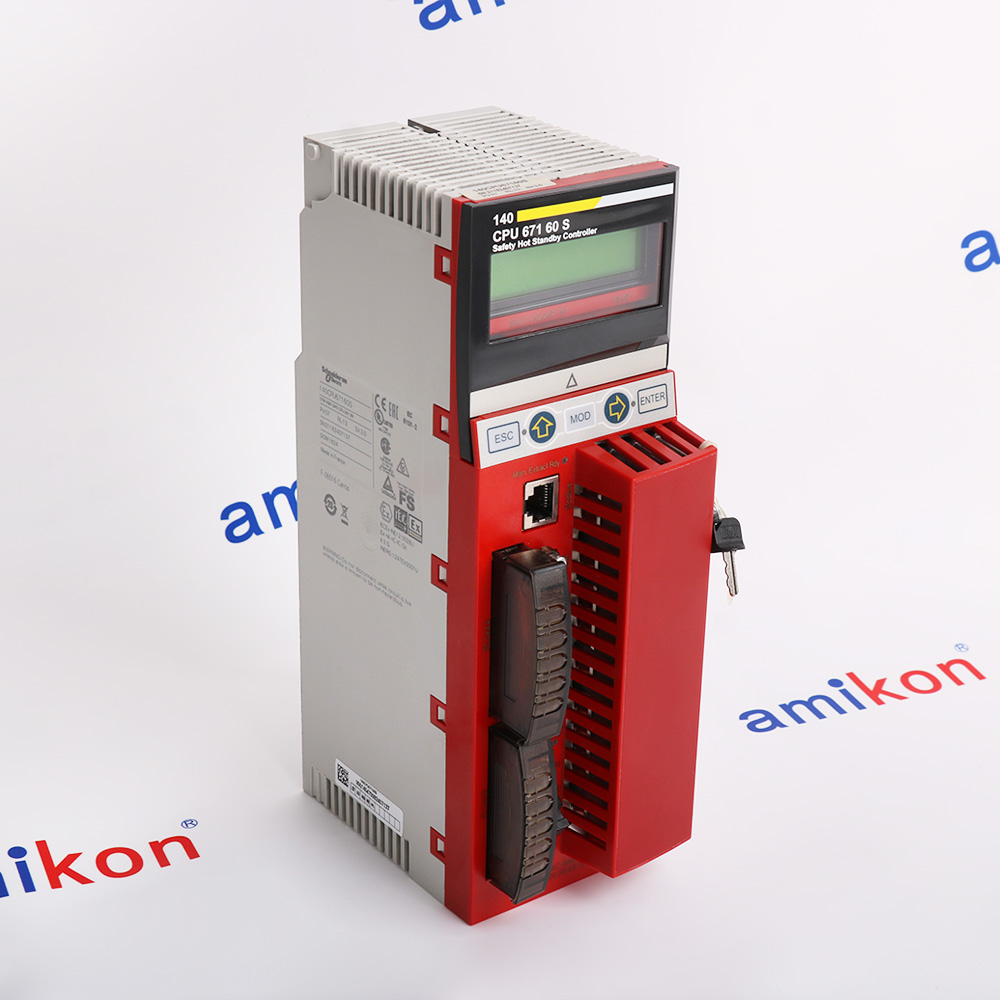

Product or component type:Unity safety processor
Software designation:Unity Pro XL safety
Backup type:Lithium battery 990XCP98000
Clock frequency:266 MHz
Number of remote I/O station:31 - 1 rack(s) per remote
Bus current requirement:2500 mA
rated supply voltage:3 V DC lithium battery
Battery capacity:1200 Ah
Range of product:Modicon Quantum automation platform
Product or component type:Unity processor
Mode of transmission:Multi mode
Clock frequency:266 MHz
Number of racks:2 - local rack(s)
Communication service:Ethernet router
Bus current requirement:2500 mA
System overhead
0.2 ms for fast task
1 ms for master task
Product or component type:Unity processor
Number of racks:2 - local rack
Number of distributed I/O station
63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)
Checks:Process control
Memory description:Internal RAM 548 kB
Bus current requirement:1800 mA
power supply module
Modicon Quantum
115 V/230 V AC
redundant
Input voltage
115 V (93...138 V) AC 47…63 Hz/230 V (170...276 V) AC
Input current
1100 mA at 115 V/600 mA at 230 V
Inrush current
19 A 230 V/38 A 115 V
140ARI03010
ANALOG INPUT MODULE
ANALOGUE INPUT NUMBER:8
10 MOHM
47/63 HZ
DIFFERENTIAL INPUT TYPE
ANALOGUE INPUT RESOLUTION: 13 BITS
Country of Origin: United States
140ACI04000
DISCONTINUED BY MANUFACTURER
ANALOGUE INPUT MODULE
16 ANALOUGE INPUT NUMBER
DIFFERENTIAL INPUT TYPE
0-20 MA ANALOGUE INPUT
30 MA MAX INPUT
250 OHM INPUT IMPEDANCE
5 W
Tariff Code: 8538903000
Country of Origin: France
Modicon Quantum automation platform
Analogue input module
Single pole low pass - 3 dB at 15 Hz +/- 20 %
Analogue input number:8
Input type:Differential
Addressing requirement:9 input words
Analogue input resolution:12 bits
Common mode rejection:> - 72 dB 60 Hz
Isolation between channels:30 V DC
