Technical specifications for MC-4/11/10/400
-
Product ModelMC-4/11/10/400
-
Spare ModelVDM01D10AA00
-
Product ParametersELAU variateur PacDrive
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6.8x24.5x30.8cm
-
ManufacturerSchneider Electric
-
Weight3.55 kg
-
Rated connection voltage3 AC 380 V (-10%) to 480 V (+10%)
-
mains frequency48 ... 62 Hz
-
control voltage/currentDC 24 V (-15% / +25%) / 1 A
-
DC-circuit voltageDC 530 V to 680 V
-
Excess voltageDC 860 V
-
Ambient temperature duringoperation+5 ... +45 °C (+55 °C with reduced power)
-
for storage and transport-25 ... +70 °C
Description

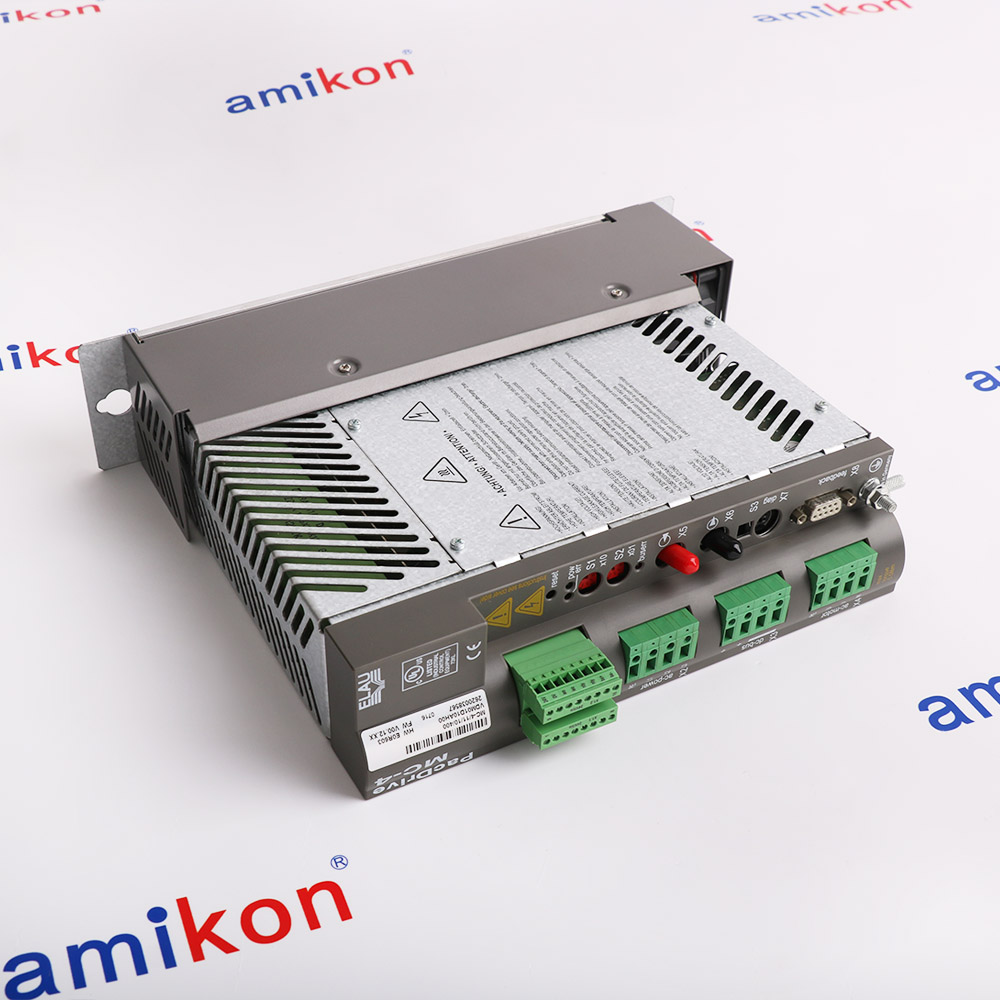

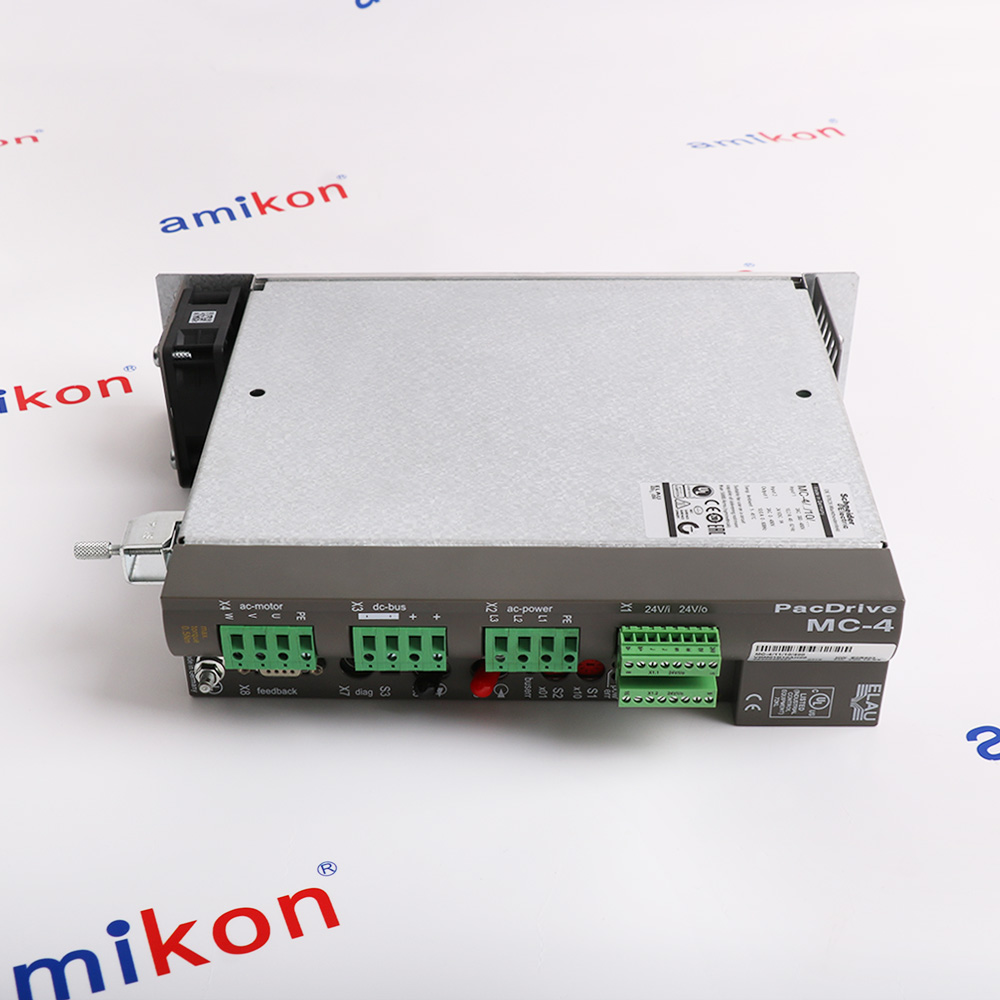

The SCHNEIDER ELECTRIC MC-4/11/10/400 is a PacDrive digital Servo Drive characterized by its compact and autonomous structure suitable for wall mounting as well as its leading-edge technology. The MC-4/11/10/400 has the mains supply unit, end stage, and software regulator for one axis integrated in a compact casing, providing a complete single-axis servo drive solution.
The SCHNEIDER ELECTRIC MC-4/11/10/400 communicates with the PacDrive Controller only via fibre optical cable (SERCOS interface), making the MC-4/11/10/400 suitable for a decentralized structure. The MC-4/11/10/400 requires no user program, comes with single- and multi-turn processing features as standard, and configures itself with the help of the electronic name plate in the SM/SH servo motor.
The SCHNEIDER ELECTRIC MC-4/11/10/400 operates from a 3-phase AC power supply with a rated connection voltage of 380V (-10%) to 480V (+10%) at a mains frequency of 48 to 62 Hz. The MC-4/11/10/400 generates a DC-circuit voltage of 530V to 680V, with bleeder activation at 820V and deactivation at 800V. The MC-4/11/10/400 includes an internal bleeder resistance of 60 Ohm, bleeder permanent power of 100W, and bleeder peak power of 10kW.
The SCHNEIDER ELECTRIC MC-4/11/10/400 communicates with the PacDrive Controller only via fibre optical cable (SERCOS interface), making the MC-4/11/10/400 suitable for a decentralized structure. The MC-4/11/10/400 requires no user program, comes with single- and multi-turn processing features as standard, and configures itself with the help of the electronic name plate in the SM/SH servo motor.
The SCHNEIDER ELECTRIC MC-4/11/10/400 operates from a 3-phase AC power supply with a rated connection voltage of 380V (-10%) to 480V (+10%) at a mains frequency of 48 to 62 Hz. The MC-4/11/10/400 generates a DC-circuit voltage of 530V to 680V, with bleeder activation at 820V and deactivation at 800V. The MC-4/11/10/400 includes an internal bleeder resistance of 60 Ohm, bleeder permanent power of 100W, and bleeder peak power of 10kW.
Alternative Names
MC-4-11-10-400
MC-4-11-10-40O
MC-4-11-10-4O0
MC-4-11-1O-400
MC-4-11-I0-400
MC-4-1I-10-400
MC-4-I1-10-400
MC41110400
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion (Mounting)
Features:
- World-wide voltage range
- Integrated mains supply unit
- Max. power 34,5/69 kVA
- Automatic motor recognition
- Safety input Inverter Enable
The drive operates from a 3-phase AC supply of 380 V to 480 V (±10%) at 48 to 62 Hz, with a DC bus voltage of 530 V to 680 V and 330 µF capacitance. A 24 V DC control supply at 1 A provides logic power. The DC circuit includes an internal bleeder circuit with 60 Ω resistance, 100 W continuous power, and 10 kW peak power capacity. Bleeder activation occurs at 820 V DC and deactivation at 800 V DC, with excess voltage protection at 860 V DC.
The MC-4/11/10/400 SCHNEIDER ELECTRIC Servo Drive may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SCHNEIDER ELECTRIC MC-4/11/10/400 Servo Drive Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Integrated motion functions include electronic gearing, electronic cam profiling, registration control, and flying cut operations. These functions execute locally within the drive, reducing central controller load and improving system response times.
Digital inputs accept DC 20 to 30 V signals at 5 mA with a 15 ms input filter. The IE-Input (Inverter Enable) requires DC 20 to 30 V at 30 mA. Relay outputs switch DC 20 to 30 V at 2 A.
The drive measures 100 mm in width, 400 mm in height, and 320 mm in depth, with a product weight of 3.6 kg. It mounts on walls or panels. The enclosure is rated IP20, achieving IP54 when safety wiring is used with the Inverter Enable function. Cooling is via natural convection with temperature-controlled internal fan. Operating temperature is +5°C to +45°C, with derating of -2% per K above 45°C up to a maximum of +55°C.
- Packaging Machinery: Used in VFFS, cartoning, and labeling equipment on packaging lines
- Food/Beverage: Drives actuators/motors with washdown-rated motion and high cycle rates
- Printing/Converting: Provides synchronization and electronic gearing for continuous web handling
- Robotics/Automation: Controls multi-axis robotic movements with high precision and fast loops
- Custom Machine Tools: Used in specialized engineering for synchronous/asynchronous motion profiles
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Clearance Requirements: Ensure a minimum of 100 mm of free space above and below the drive to allow for adequate natural convection.
Orientation: The MC-4 must be mounted vertically on a flat surface (typically a backplate in an electrical cabinet) using the integrated mounting brackets.
Environment: Must be installed in an environment with a minimum IP54 rating if subjected to safety wiring constraints, though the unit itself is IP20 rated.
Technical notes
The SCHNEIDER ELECTRIC MC-4/11/10/400 has a product size of 100 mm width × 320 mm height × 400 mm depth, with a product weight of 3.1 kg and boxed weight of 4.5 kg. The MC-4/11/10/400 uses internal fan ventilation with temperature closed-loop control. The MC-4/11/10/400 operates in ambient temperatures from +5°C to +45°C (+55°C with reduced power, -2% per K at INc and Isc), with storage and transport temperatures from -25°C to +70°C.
