Technical specifications for 140NOE77101
-
Product Model140NOE77101
-
Spare Model140-NOE-771-01
-
Product ParametersEthernet network TCP/IP module
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x10.8x25cm
-
ManufacturerSchneider Electric
-
Weight0.35 kg
-
Range of productModicon Quantum automation platform
-
Product or component typeEthernet network TCP/IP module
-
ConceptTransparent Ready
-
Web serverClass B30
-
Transmission rate10/100 Mbit/s
-
Communication port protocolEthernet Modbus TCP/IP
-
Current consumption750 mA 5 V DC
-
Resistance to electromagnetic fields10 V/m 80...1000 MHz IEC 801-3
-
Ambient air temperature for operation0...60 °C
-
Ambient air temperature for storage-40...85 °C
-
Relative humidity95 % without condensation
Description

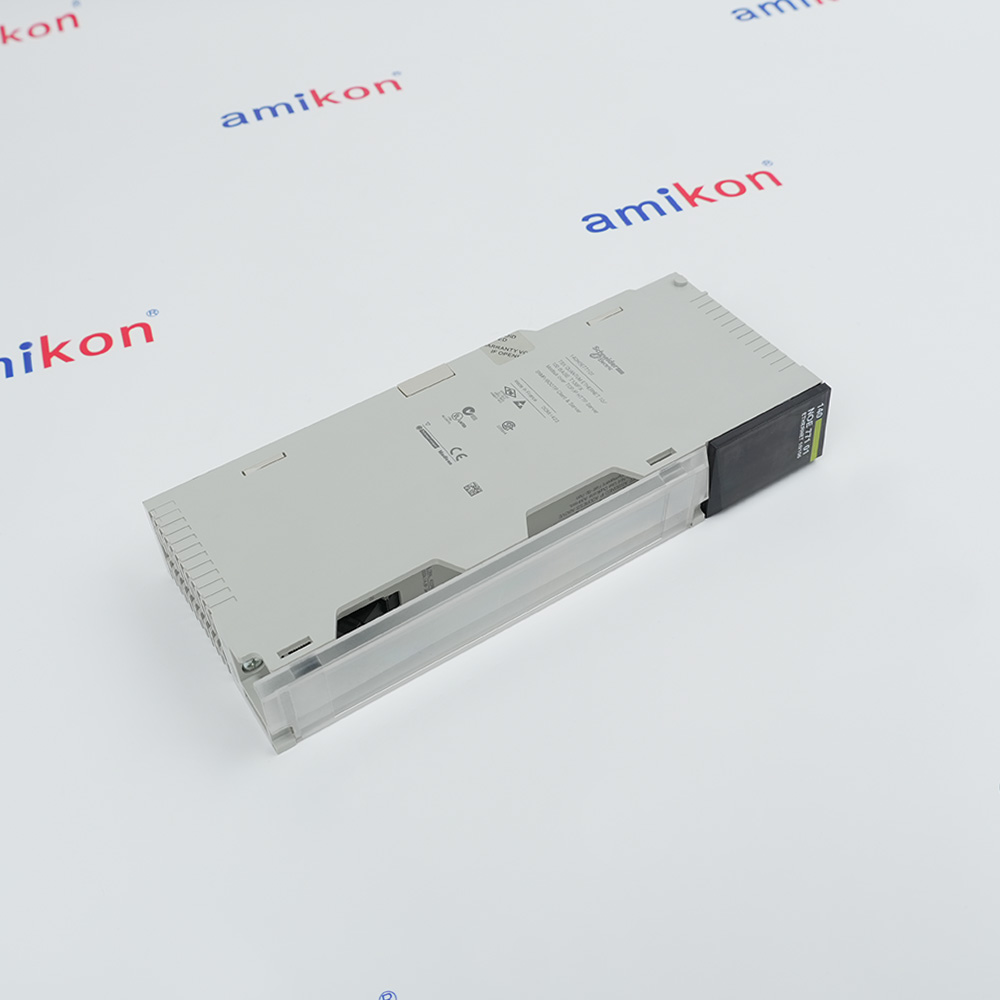

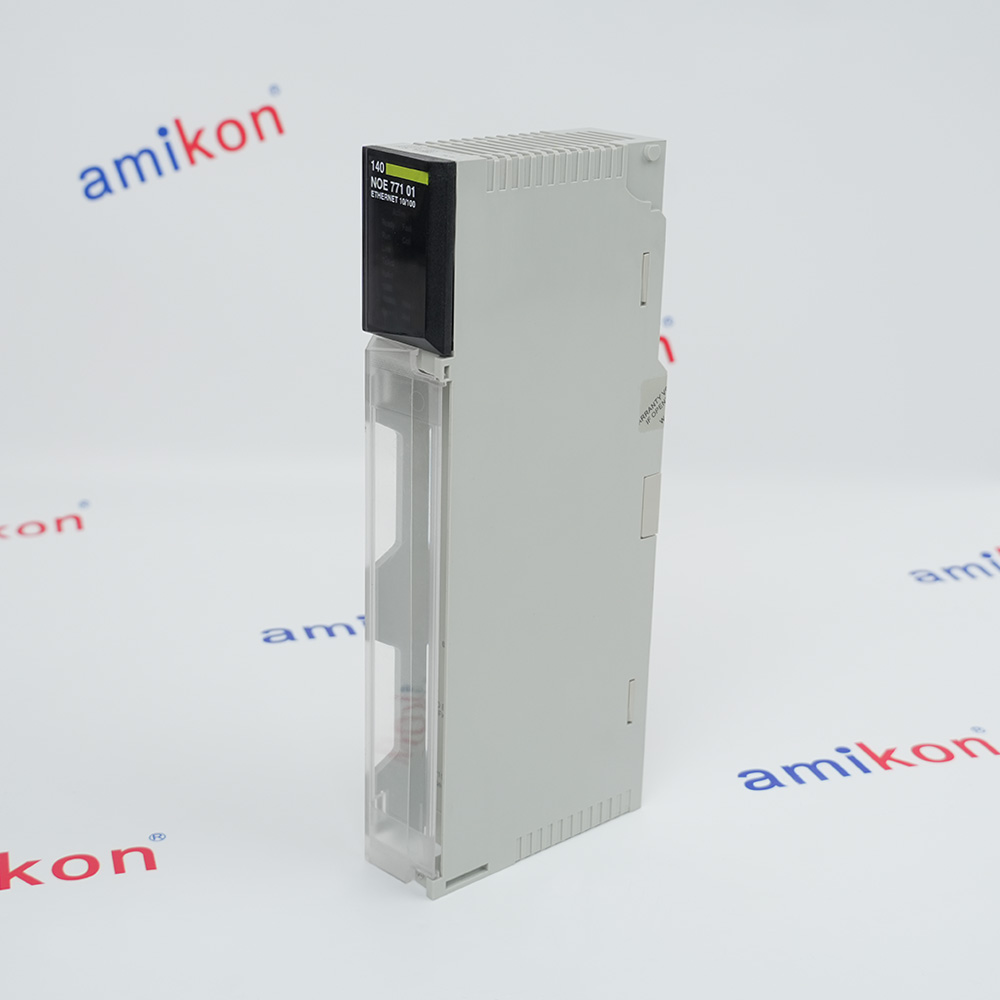

The 140NOE77101 is a Schneider Electric Ethernet network TCP/IP module designed for the Modicon Quantum automation platform. The 140NOE77101 serves as an Ethernet option adapter that enables Modicon Quantum PLCs to communicate over standard Ethernet networks. The 140NOE77101 features Transparent Ready technology with a Class B30 web server, allowing users to access diagnostics via predefined web pages, perform rack viewing, and edit data through a PC terminal interface.
The 140NOE77101 provides dual physical interfaces including an RJ45 port for 10BASE-T/100BASE-TX twisted pair copper cables and an MT/RJ port for 100BASE-FX fiber optic cables, offering flexibility for different installation environments. The 140NOE77101 supports 10/100 Mbit/s adaptive transmission rate, automatically detecting and matching the network speed for optimal performance. The 140NOE77101 supports hot standby redundancy architecture, enabling configuration of redundant module pairs for mission-critical applications with switchover times typically less than 50 ms when using firmware version 2.0 or higher.
The 140NOE77101 provides dual physical interfaces including an RJ45 port for 10BASE-T/100BASE-TX twisted pair copper cables and an MT/RJ port for 100BASE-FX fiber optic cables, offering flexibility for different installation environments. The 140NOE77101 supports 10/100 Mbit/s adaptive transmission rate, automatically detecting and matching the network speed for optimal performance. The 140NOE77101 supports hot standby redundancy architecture, enabling configuration of redundant module pairs for mission-critical applications with switchover times typically less than 50 ms when using firmware version 2.0 or higher.
Alternative Names
140NOE77I0I
140N0E771O1
14ONOE771O1
140NOE771OI
I40N0E77I0I
I4ONOE77IOI
Information
Overview
Manuals
Technical notes
Product Applications
Physical Installation
Features:
- Integrated Web Server Functionality
- Extensive Protocol Support
- Support for I/O Scanning
- Advanced Network Security
The 140NOE77101 Schneider Electric Ethernet communication module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140NOE77101 Ethernet communication module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A standout characteristic of the 140NOE77101 is its versatility in protocol handling. By supporting both Modbus TCP and EtherNet/IP simultaneously, it acts as a universal translator, allowing Quantum controllers to interface with a diverse range of third-party devices, drive systems, and sensors. The module's embedded web server is a powerful diagnostic tool, offering maintenance teams real-time visibility into network traffic, port statistics, and internal module health without the need for specialized programming software.
- Railway & Transport: Suitable for demanding, high-requirement applications, including rail vehicles
- Clean Room Technology: Used in clean room workstations
- Machinery & Production: Suitable for packaging machines, manufacturing equipment, and cooling electronic components
- Industrial Ventilation: Used in air handling units, ventilation systems, and extraction systems
- HVAC & Refrigeration: Ideal for cooling, temperature control, and dehumidification in industrial plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Hold the module at an angle and hook the two tabs at the top of the module onto the two slots on the top of the backplane.
Seating: Pivot the module downward until it is firmly seated in the backplane connector.
Securing: Tighten the screw at the bottom of the module to lock it into the rack.
Cabling: Connect your Ethernet cable to either the RJ45 (10BASE-T/100BASE-TX) port for copper networking or the MT/RJ (100BASE-FX) port for fiber optic connections
Technical notes
The 140NOE77101 supports both Modbus TCP client and server functionality, making it suitable for PLC-to-PLC communication, SCADA integration, distributed control architectures, and remote monitoring applications. Built-in I/O scanning services allow efficient exchange of process data between Quantum controllers and Ethernet-based field devices.
FAQs
-
What is 140NOE77101?
+The Schneider Electric Modicon Quantum 140NOE77101 is a Transparent Ready Ethernet TCP/IP module designed for the Modicon Quantum automation platform. -
Can the 140NOE77101 be used in a Hot Standby system?
+Yes, it is compatible with Quantum Hot Standby systems. -
Can the 140NOE77101 hostname be changed?
+No. The host name “140-NOE-771-01 Module” is stored in the read-only SNMP OID “System Name:” property and cannot be modified. . -
What replaces the 140NOE77100?
+The 140NOE77101 is the replacement, adding FDR, bandwidth monitoring, and enhanced diagnostics.
