The Schneider Electric 140NOE77111 is a Modicon Quantum Ethernet Network TCP/IP module for high-performance communication, featuring FactoryCast configurable web services (Class C30).

What communication services are supported?

The module supports Modbus TCP messaging, I/O scanning, Global Data, FDR server (Faulty Device Replacement), SNMP network management, SMTP email notifications, and NTP time synchronization.

Does the 140NOE77111 use Modbus UDP for Global Data?

No. The module uses UDP and RTPS (Real Time Publish Subscribe) for Global Data, not Modbus UDP.

What are the physical interface options?

It offers two primary interfaces: one RJ45 port for 10BASE-T/100BASE-TX (copper) and one MT/RJ fiber optic port for 100BASE-FX.

Get Parts Quote

Name

Company *

Phone *

Email *

Address

City

State / Province / Region

Zipcode

Country

Quantity *

Part Number *

Manufacturer

Preferred Condition

Additional Information

Cancel

140NOE77111

Name: 140NOE77111
Brand: Schneider Electric

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

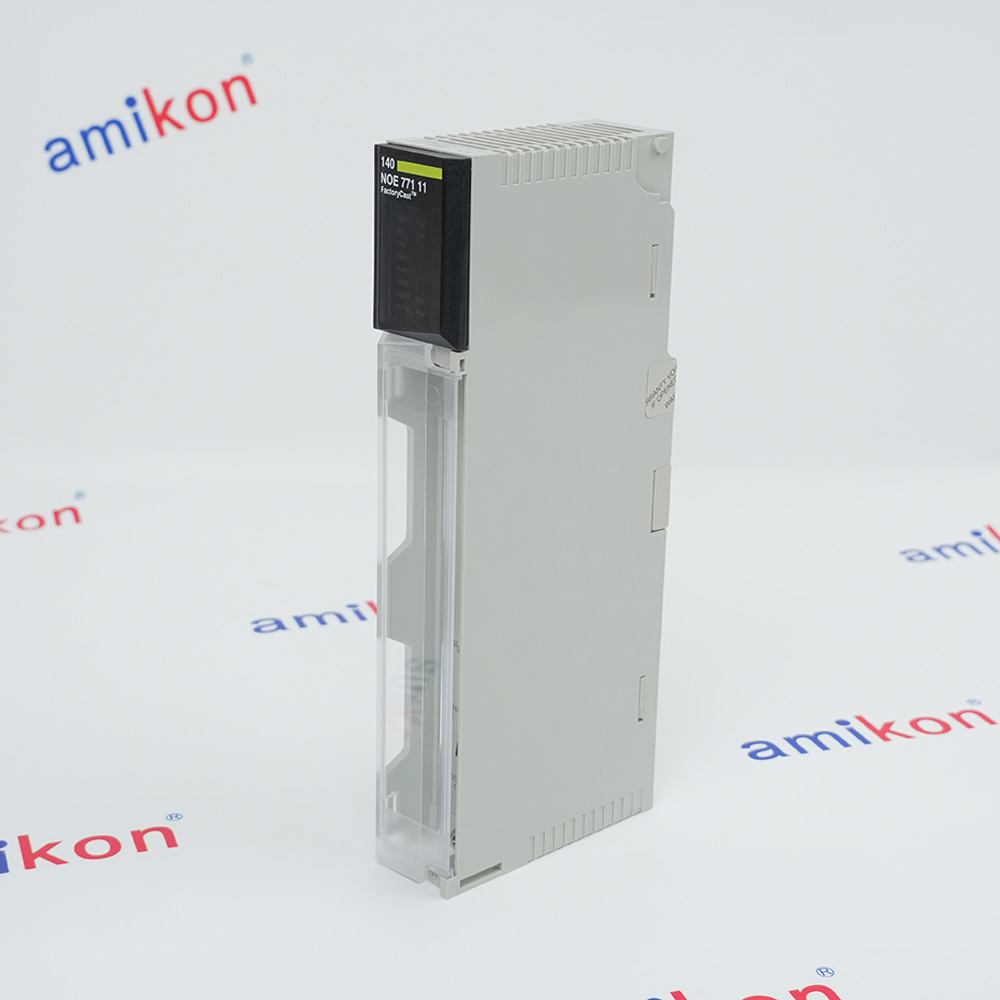

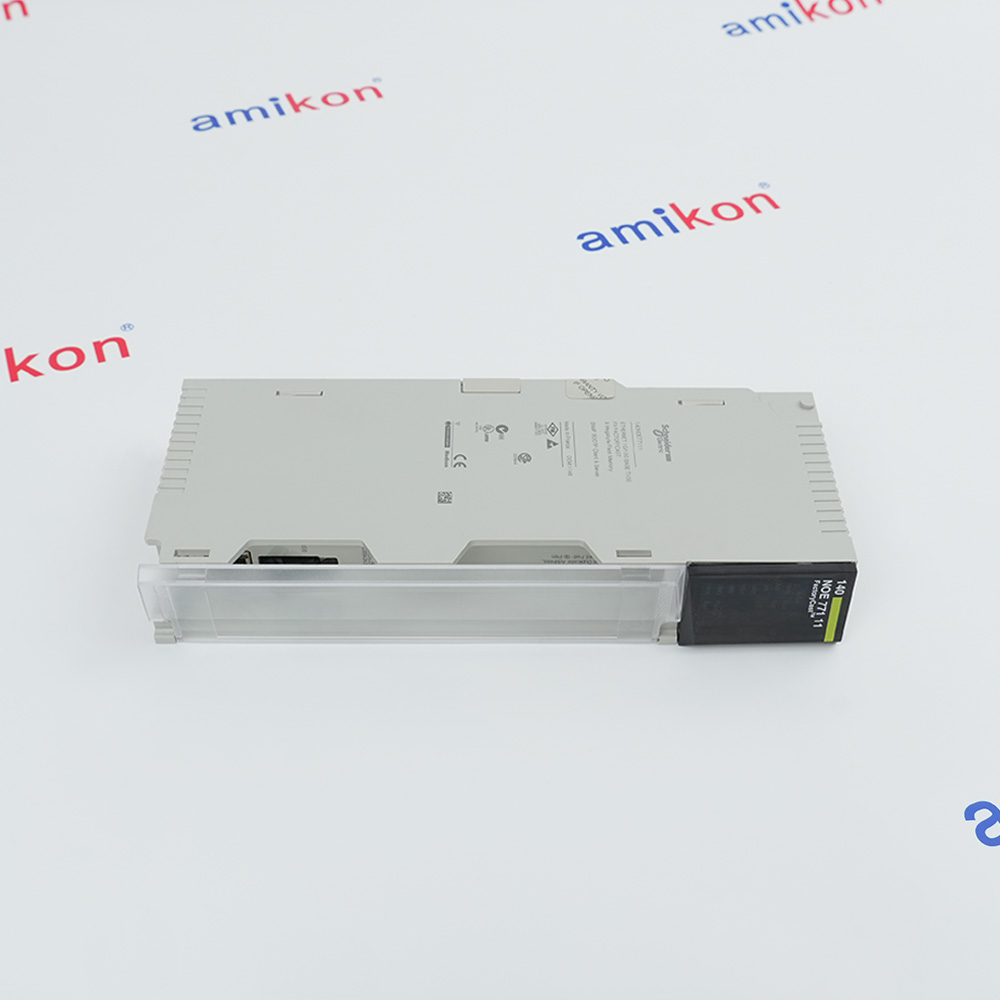

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Information

Product Describe

140NOE77111
ETHERNET NETWORK TCP/IP MODULE
CLASS C30
FACTORY CAST CONFIGURABLE
10/100 BASE T100FX

Technical specifications for 140NOE77111

Product Model

140NOE77111
Product Parameters

ETHERNET NETWORK TCP/IP MODULE
Tariff Code

8537101190
Country of origin

france
Place of shipment

Xiamen, China
Estimated Shipping Size

31x16.5x5cm
Manufacturer

Schneider Electric
Weight

0.5 kg
Web server

Class C30
Concept

Transparent Ready
Communication port protocol

Ethernet Modbus TCP/IP
Transmission rate

10/100 Mbit/s
Current consumption

750 mA 5 V DC
Resistance to electromagnetic fields

10 V/m 80...1000 MHz IEC 801-3
Ambient air temperature for operation

0...60 °C
Ambient air temperature for storage

-40...85 °C

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is 140NOE77111?+

The Schneider Electric 140NOE77111 is a Modicon Quantum Ethernet Network TCP/IP module for high-performance communication, featuring FactoryCast configurable web services (Class C30).
What communication services are supported?+

The module supports Modbus TCP messaging, I/O scanning, Global Data, FDR server (Faulty Device Replacement), SNMP network management, SMTP email notifications, and NTP time synchronization.
Does the 140NOE77111 use Modbus UDP for Global Data?+

No. The module uses UDP and RTPS (Real Time Publish Subscribe) for Global Data, not Modbus UDP.
What are the physical interface options?+

It offers two primary interfaces: one RJ45 port for 10BASE-T/100BASE-TX (copper) and one MT/RJ fiber optic port for 100BASE-FX.

Get a quick price fo 140NOE77111

*Quantity

*E-mail

Company

*Mobile

*Content

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Amikong please read our privacy policy.

Inquiry

Control system parts

Required delivery time

ask

Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

Product

MORE INFORMATION

Overview Manuals Technical notes Product Applications Physical Mounting

Features:

Ethernet network TCP/IP module
Standard TCP/IP Connectivity
Extensive Network Management
Rugged Railway-Grade Construction

The Schneider Electric Modicon Quantum 140NOE77111 is a high-performance Ethernet communication module designed to bridge the gap between industrial control systems and enterprise-level networks. As a key component of the Modicon Quantum automation platform, the 140NOE77111 provides robust TCP/IP connectivity, enabling PLCs to communicate seamlessly with other controllers, human-machine interfaces (HMI), and supervisory control and data acquisition (SCADA) systems over a standard Ethernet backbone.

The 140NOE77111 Schneider Electric ETHERNET NETWORK TCP/IP MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

Schneider Electric 140NOE77111 ETHERNET NETWORK TCP/IP MODUL Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

A standout feature of the 140NOE77111 is its embedded web server functionality. This allow maintenance personnel and engineers to access real-time diagnostic information and module statistics from any network-connected PC without the need for specialized programming software. This capability significantly reduces troubleshooting time and simplifies system maintenance.With its dual-speed 10/100 Mbps RJ45 interface and support for network management protocols like SNMP, the 140NOE77111 is an essential tool for building modern, connected, and data-driven industrial facilities. Its reliability and advanced feature set make it the preferred choice for demanding applications in water treatment, oil and gas, and large-scale manufacturing sectors.

SCADA & HMI Integration:High-speed comms between Quantum PLCs & SCADA/HMI
Plant-Floor Automation:Multi-device links to coordinate machinery & production lines
Remote System Monitoring:Class C30 Web Server: remote diagnostics via browser
High-Availability Systems:Hot Standby redundancy for critical uptime applications
Safe Peer-to-Peer Communication:Non-interfering certified for Quantum Safety PLC environments

This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

Power Off: Always switch off the power supply to the rack before inserting or removing the module.

Seating: Align the module with the slots on the backplane, firmly press it into the connector, and tighten the two mounting screws at the bottom to secure it.

Power Supply: The module draws 750 mA at 5V DC directly from the backplane power supply.
