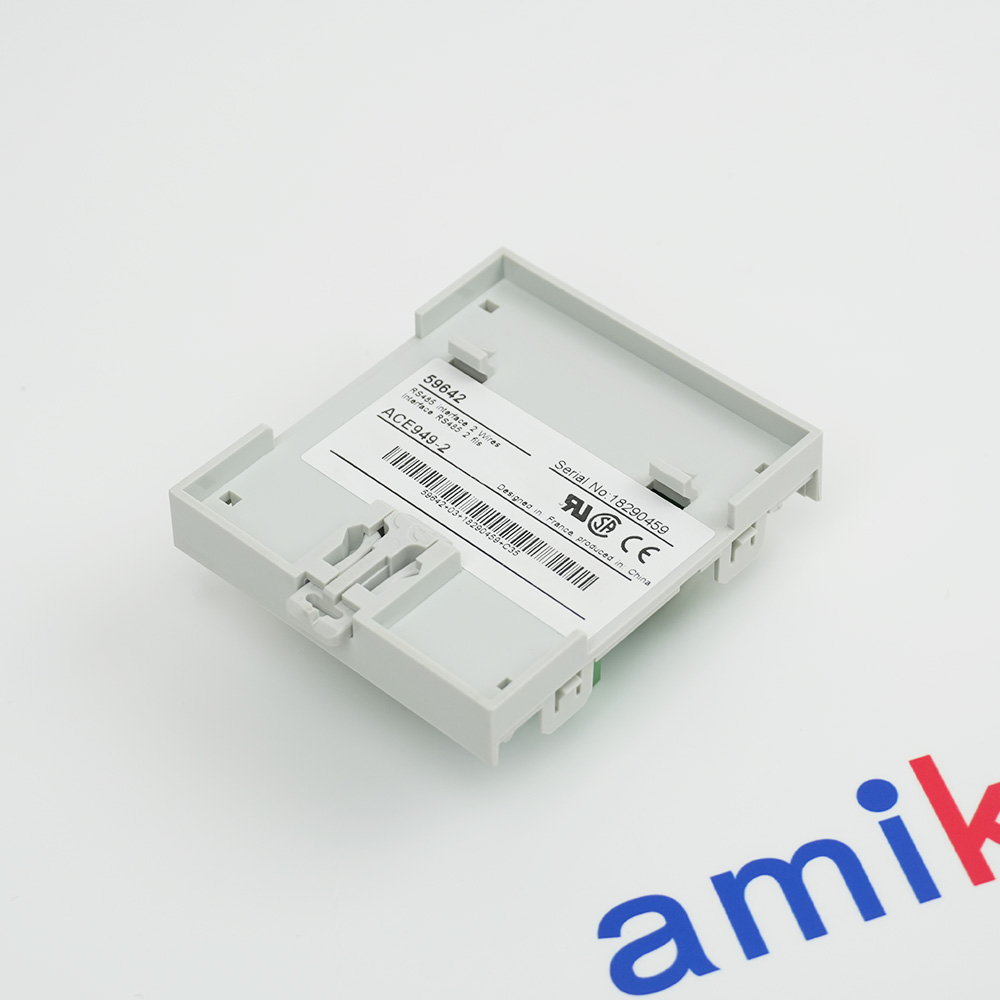

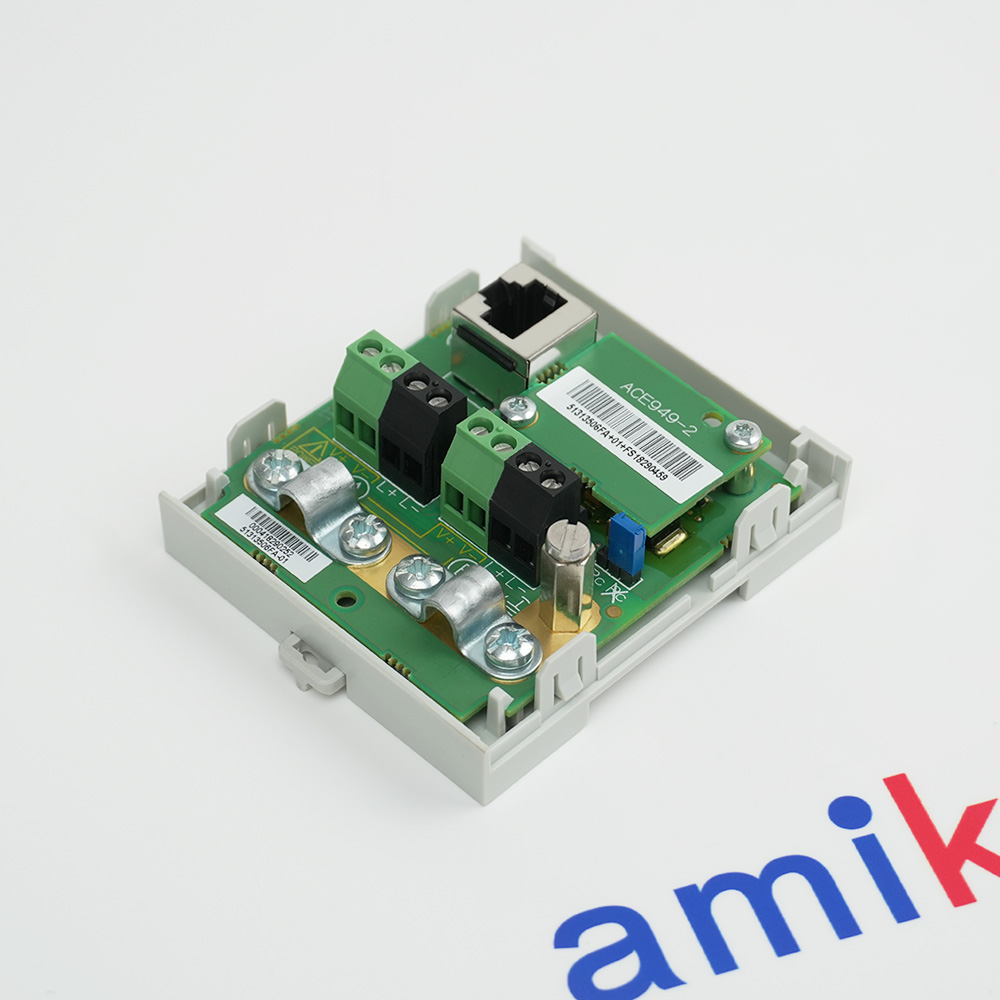

Technical specifications for ACE949-2
-
Product ModelACE949-2
-
Product ParametersINTERFACE MODULE
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
Estimated Shipping Size8.3x7x3.2cm
-
ManufacturerSchneider Electric
-
Weight0.1 kg
-
Power Supply24 V DC (typical)
-
Power Consumption5-10 W (typical)
-
Operating Voltage24 V DC logic
-
Isolation500-1500 V AC
-
Operating Temperature0°C to +60°C
-
Storage Temperature-40°C to +85°C
-
Humidity5-95% RH (non-condensing)
Description
INTERFACE MODULE
12-24 VDC
2 WIRES
FOR SEPAM
DIN RAIL MOUNT
RS485
12-24 VDC
2 WIRES
FOR SEPAM
DIN RAIL MOUNT
RS485
Information
Overview
Manuals
Technical notes
Product Applications
Physical Installation
Features:
- 2-Wire RS485 Modbus RTU Communication Interface
- Dual Power Supply Compatibility
- Long-Distance Network Capability up to 1,000 Meters
- Jumper-Selectable 150 Ω Line Termination & Network Branching
- Front-Panel Link Activity LED for Real-Time Diagnostics
- IEC 60255-21 Mechanical Robustness Level 2 Certification
The ACE949-2 Schneider Electric INTERFACE MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric ACE949-2 INTERFACE MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Communication performance is tailored for industrial reliability. The module implements the EIA 2-wire RS485 differential standard, which provides superior noise immunity compared to single-ended RS232 by rejecting common-mode interference induced by nearby power cables, variable frequency drives, and switching equipment. The Modbus RTU protocol is supported natively, with Sepam relays operating as slave stations on the network—responding to polling requests from a Modbus master (typically a SCADA system, PLC, or PowerLogic gateway) with real-time measurements, protection status, event logs, and diagnostic data. The link activity LED on the module's front panel flashes whenever the Sepam relay is actively transmitting or receiving data, providing technicians with instant visual feedback during commissioning, troubleshooting, or routine maintenance checks.
- CNC and Metal Processing Equipment:CNC chuckers, turning & milling center
- Heavy Motor-Driven Systems:Pumps, conveyors, fans, compressors & assembly drives
- Fabric and Textile Production Lines:Inspection tables, rolling/batching units & folder-packagers
- Plastic and Marble Processing Processing Machinery:Extruders, molders & stone cutting blocks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Base Unit Connection: Insert the CCA612 RJ45 cord into the module socket.
Relay Interface: Connect the opposite end to the C connector of the base Sepam relay.
Network Wiring: Connect the 2-wire RS485 network cable directly to screw terminal blocks A and B.
FAQs
-
What is the difference between ACE949 and ACE949-2?
+The difference lies in the distributed power supply level transmitted over each Sepam in parallel with the RS-485 Modbus line. The ACE949-2 specifically handles 2-wire RS-485 communication -
What is the core function of the ACE949-2?
+It bridges a Sepam protection relay with an electrical EIA 2-wire RS485 differential communication network using Modbus RTU protocol. -
Can the ACE949-2 act as an autonomous Modbus RS485 to Modbus TCP/IP gateway?
+No, the module cannot operate as a standalone protocol converter without being connected to a Sepam host relay. -
What type of network cable connects the relay to the module?
+The remote interface connects to the Sepam base unit via a prefabricated CCA612 cable (length 3 meters).
