Technical specifications for TSXPLP01
-
Product ModelTSXPLP01
-
Product ParametersLITHIUM BATTERY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.4x1.3x1.3cm
-
ManufacturerSchneider Electric
-
Weight0.01 kg
-
Nominal Voltage3.6 V
-
Battery Size / Form Factor1/2 AA cylindrical cell
-
Storage-55°C to +85°C
-
Operating-40°C to +70°C
Description

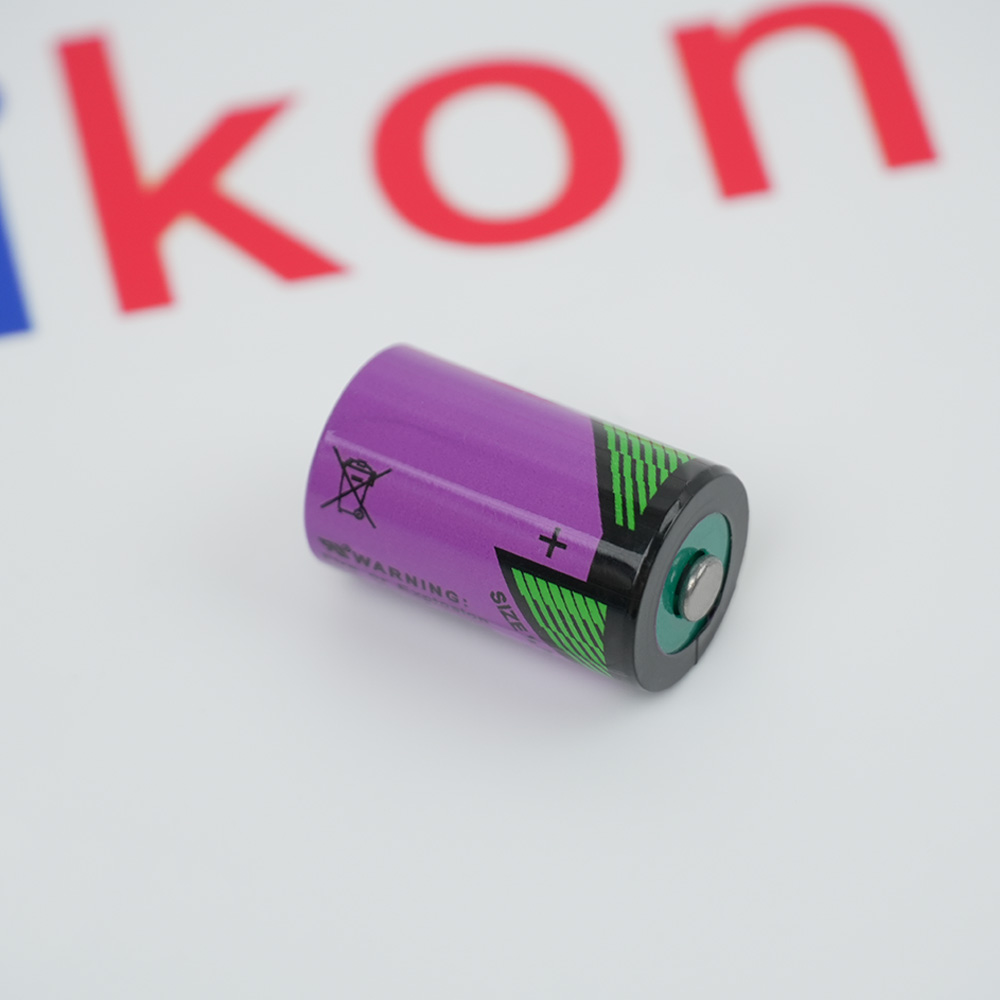

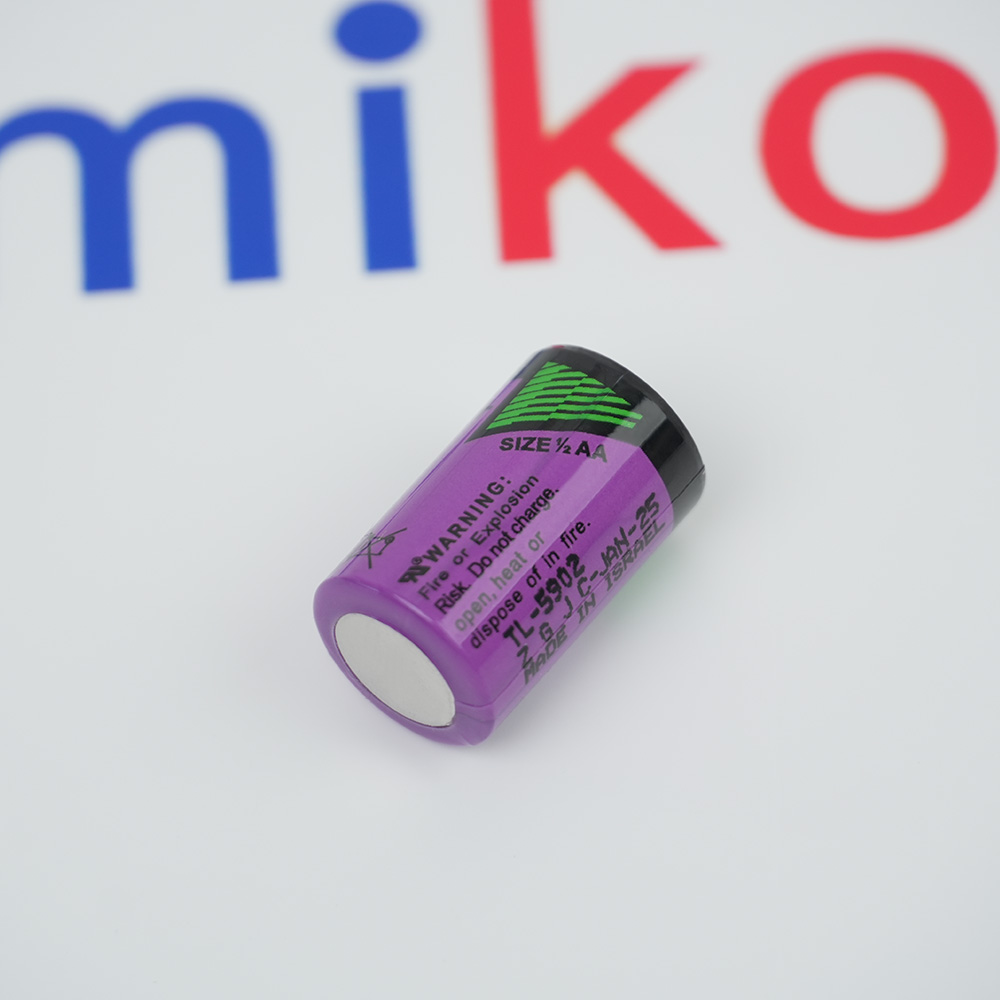

The Schneider TSXPLP01 is a lithium battery specifically manufactured for internal RAM memory backup in Modicon TSX Micro programmable logic controllers. The battery employs a 1/2AA cell format and delivers a nominal voltage of 3.6 V DC.
This battery ensures the retention of user programs, configuration data, and runtime variables stored in the PLC's internal RAM when the main power supply is disconnected or interrupted. Without this backup battery, the contents of the internal RAM would be lost upon power failure, requiring reprogramming of the controller.
This battery ensures the retention of user programs, configuration data, and runtime variables stored in the PLC's internal RAM when the main power supply is disconnected or interrupted. Without this backup battery, the contents of the internal RAM would be lost upon power failure, requiring reprogramming of the controller.
Alternative Names
TSX PLP01
TSXPLPO1
TSXPLP0I
Information
Overview
Manuals
Technical notes
Product Applications
Installation Steps for Modicon Premium
Features:
- ModiconTSX Micro
- battery for internal RAM memory backup
- Modicon Premium Automation platform
The TSXPLP01 Schneider Electric lithium battery may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric TSXPLP01 lithium battery Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Schneider Electric TSXPLP01 is a specialized 3.6V lithium battery used to maintain volatile internal RAM data in Modicon automation platforms. The battery is located within the power supply module. It is often supplied standard with the Premium PSY power supply unit.
- Packaging & Bottling Systems:High-speed fill/label/wrap; power loss halts production
- Material Handling & Conveyors:Sorters, palletizers & warehouse conveyors with position tracking
- Automotive Assembly Equipment:Robotic welding, paint booths & line sync
- Textile & Fabric Machines:Inspection, batching & rolling
- HVAC & Building Automation:Central climate & industrial heating/ventilation
- Water Treatment Systems:Pump/valve/dosing timing control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
For the Modicon Premium platform, the battery is typically located in the Power Supply module rather than the CPU.
Locate: Find the battery slot on the front of the TSXPSY power supply module.
Swap: Similar to the Micro, replace the battery while the rack is powered.
Dual Battery Systems: Some Premium processors use PCMCIA memory cards with their own auxiliary batteries. In these cases, replace only one battery at a time to ensure continuous backup.
Technical notes
The TSXPLP01 utilizes a 1/2AA 3.6 V lithium battery and is installed directly within compatible Modicon TSX Micro controllers. Its compact design and long service life make it suitable for industrial automation systems requiring reliable memory retention and continuous data preservation.
FAQs
-
What is the TSXPLP01？
+TSXPLP01 is a 3.6V 1/2 AA lithium battery designed for internal RAM memory backup, primarily used with Modicon TSX Micro and Premium PLCs. -
What is the purpose of TSXPLP01?
+It provides backup power for the volatile RAM memory in Modicon TSX Micro and Modicon Premium PLCs to prevent the loss of program logic, variables, and process data during power outages. -
What are its specifications?
+It is a 3.6V Lithium Thionyl Chloride battery in a 1/2 AA size with a nominal capacity of approximately 1.2Ah
