PRODUCT DESCRIPTION

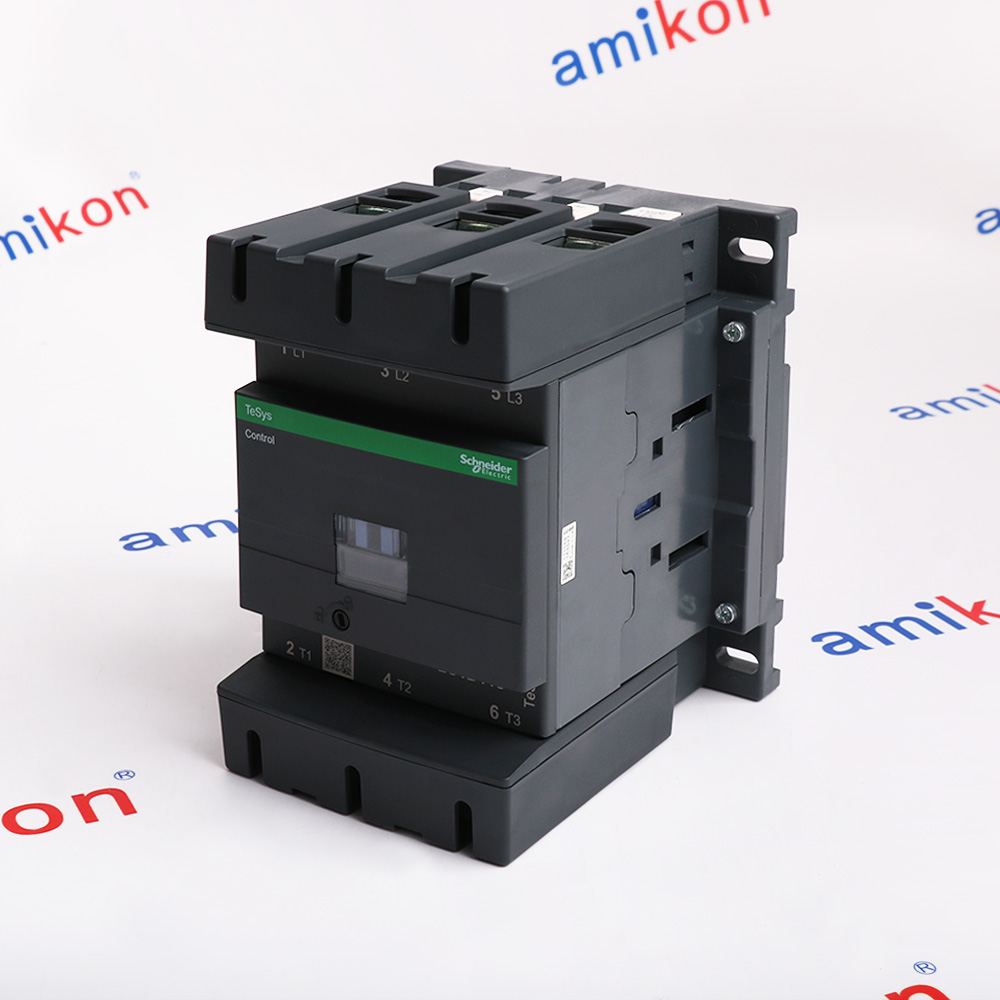

LC1D11500F7C three-pole contactor
Schneider Electric LC1D11500F7C is a three-pole contactor in the TeSys D motor contactors. It is used to switch and control the specified electrical load from the automation circuit.
Its documented configuration includes pole configuration of 3-pole AC-3, rated current of 115 A, rated operational voltage of 380 V AC, and rated insulation voltage of 1000 V. During operation, the three-pole contactor performs its assigned three-pole contactor function through the documented power, signal and communication interfaces.
Its documented configuration includes pole configuration of 3-pole AC-3, rated current of 115 A, rated operational voltage of 380 V AC, and rated insulation voltage of 1000 V. During operation, the three-pole contactor performs its assigned three-pole contactor function through the documented power, signal and communication interfaces.
BEFORE YOU BUY
Confirm the complete three-pole contactor
ACTUAL APPLICATIONS
Application context for LC1D11500F7C
Official manufacturer documentation supports these system uses when the complete TeSys D motor contactors configuration is verified.
-
01 · WATER & WASTEWATER
Pump and blower starter panels
Motor Switching SystemsHigh-service pump switchingAeration blower control -
02 · FOOD & BEVERAGE
Processing and packaging machines
Machine Motor SystemsConveyor motor switchingMixer starter control -
03 · AUTOMOTIVE
Assembly-line motor panels
Production Drive SystemsTransfer conveyor switchingPump motor control

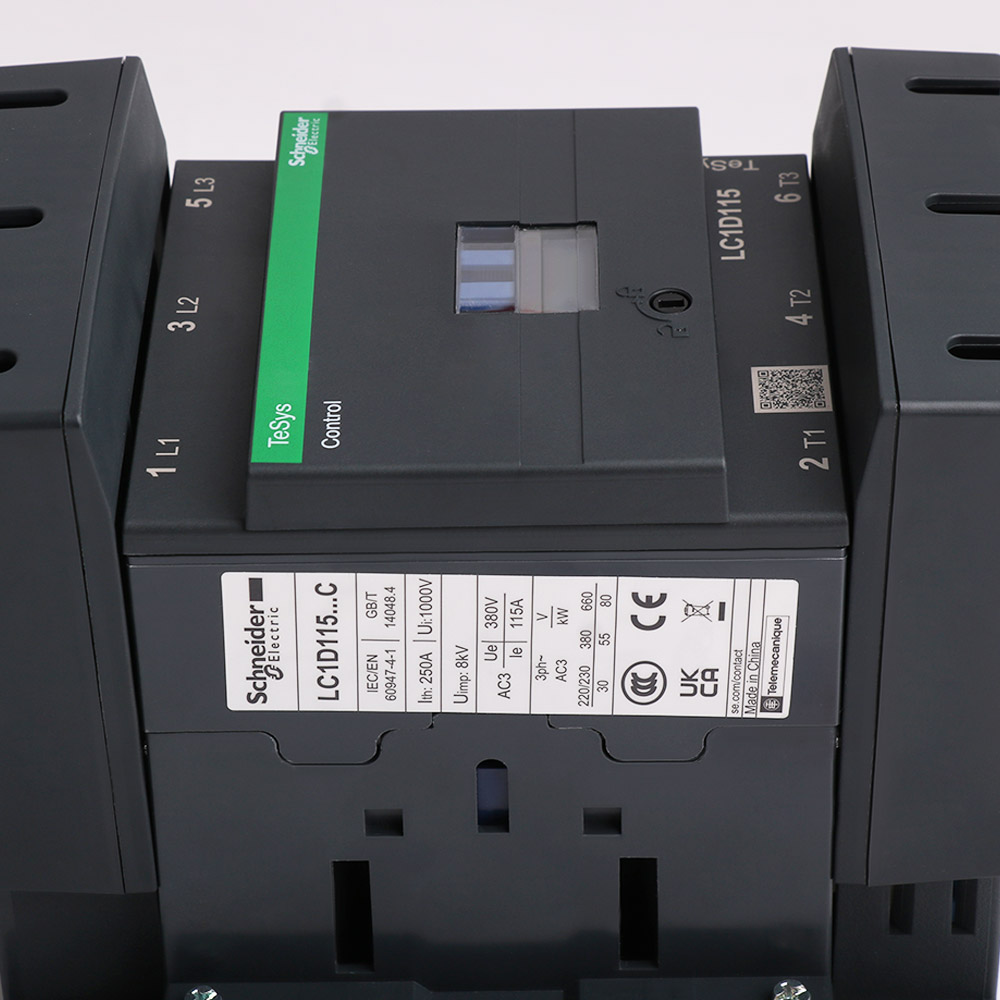

Technical specifications for LC1D11500F7C
-
Product ModelLC1D11500F7C
-
Product Parametersthree-pole contactor
-
In stock1 unit
-
ManufacturerSchneider Electric
-
Pole Configuration3-pole AC-3
-
Rated Current115 A
-
Rated Operational Voltage380 V AC
-
Rated Insulation Voltage1000 V
-
Impulse Withstand Voltage8 kV
-
Motor Power at 220/230 V30 kW
-
Motor Power at 380 V55 kW
-
Motor Power at 660 V80 kW
-
Product StandardIEC/EN 60947-4-1
-
China StandardGB/T 14048.4
View all additional
Alternative Names
LC1D11500F7C
TeSys D motor contactors three-pole contactor
Schneider Electric three-pole contactor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match LC1D11500F7C to the installed TeSys D motor contactors
Schneider Electric LC1D11500F7C is a three-pole contactor for the TeSys D motor contactors. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare rated insulation voltage (1000 V), impulse withstand voltage (8 kV) and motor power at 220/230 v (30 kW) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: LC1D11500F7C
- Product class: three-pole contactor
- Family: TeSys D motor contactors
The Schneider Electric LC1D11500F7C requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete LC1D11500F7C identity before exchange
Replace LC1D11500F7C only after matching the complete article code, three-pole contactor, installed TeSys D motor contactors role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: LC1D11500F7C
- Product class: three-pole contactor
- Family check: TeSys D motor contactors
The Schneider Electric LC1D11500F7C requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for LC1D11500F7C
- Schneider Electric TeSys D motor contactors references reviewed
- Exact Schneider Electric identity required before service
Documentation for Schneider Electric LC1D11500F7C must match the installed equipment; confirm document applicability before service.
