Technical specifications for 3VL9300-3HF05
-
Product Model3VL9300-3HF05
-
Product Parametersdoor-coupling rotary op
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x10.6x13cm
-
ManufacturerSiemens
-
Weight0.3 kg
-
Product BrandSENTRON
-
Breaker Current Range16 A to 250 A
-
Breaker Frame SizesVL160X, VL160, VL250
-
Compatible Breaker Types3VL160X, 3VL160, 3VL250
-
Operating Temperature-25°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Relative Humidity5–95% (non-condensing)
Description

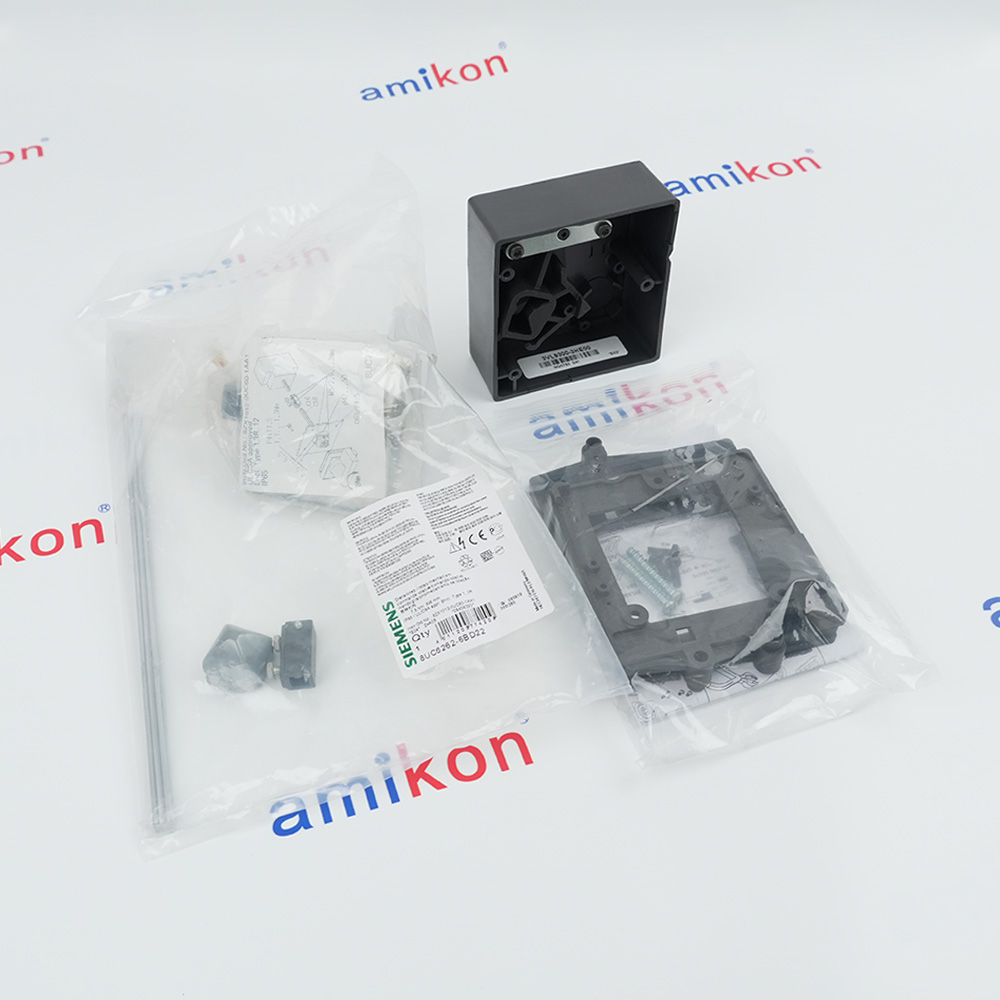

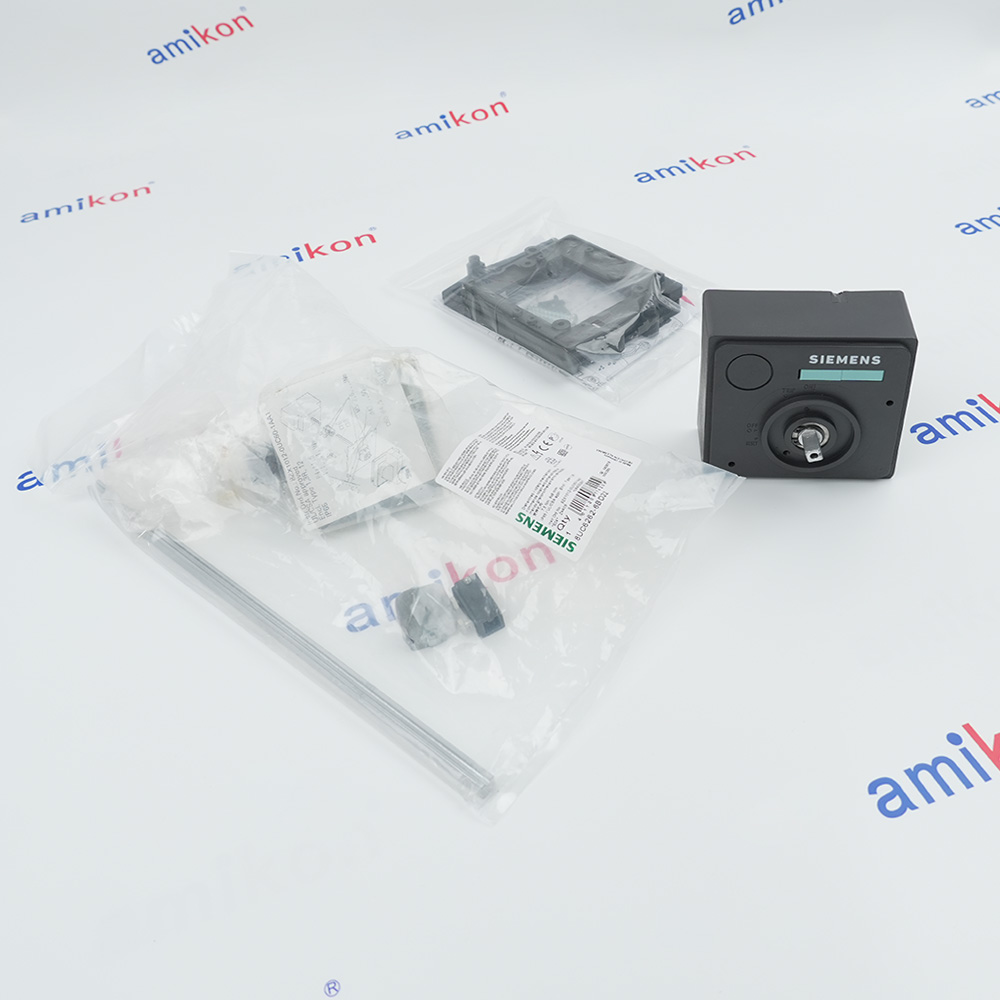

The SIEMENS 3VL9300-3HF05 is a door-coupling rotary operating mechanism accessory designed for the Siemens SENTRON 3VL molded case circuit breaker series. The 3VL9300-3HF05 is specifically compatible with VL160X, VL160, and VL250 circuit breakers, providing a reliable solution for operating these breakers through switchgear cabinet doors.
The SIEMENS 3VL9300-3HF05 is designed for installation in doors, allowing operators to safely control the circuit breaker from outside the enclosure without opening the cabinet. The 3VL9300-3HF05 includes a complete standard door operation mechanism 8UC7, which provides all necessary components for secure and reliable door-coupled operation.
The SIEMENS 3VL9300-3HF05 is designed for installation in doors, allowing operators to safely control the circuit breaker from outside the enclosure without opening the cabinet. The 3VL9300-3HF05 includes a complete standard door operation mechanism 8UC7, which provides all necessary components for secure and reliable door-coupled operation.
Alternative Names
3VL9300-3HFO5
3VL93OO-3HF05
3VL9300-3HF05
3VL9300 3HF05
3VL9300 3HFO5
3VL93OO 3HF05
3VL93003HF05
Information
Overview
Manuals
Application Notes
Product Applications
Connection and Operation
Features:
- Compatible with VL160X, VL160, and VL250 Circuit Breakers
- Door-Coupling Rotary Operating Mechanism for Door Installation
- Complete Standard Door Operation Mechanism 8UC7
- Light Gray Masking Plate
The SIEMENS 3VL9300-3HF05 is designed for installation in doors, allowing operators to safely control the circuit breaker from outside the enclosure without opening the cabinet. The 3VL9300-3HF05 includes a complete standard door operation mechanism 8UC7, which provides all necessary components for secure and reliable door-coupled operation.
The 3VL9300-3HF05 SIEMENS Door-coupling rotary operating mechanism accessory may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 3VL9300-3HF05 Door-coupling rotary operating mechanism accessory Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3VL9300-3HF05 is compatible with 3VL160X, 3VL160, and 3VL250 frame size molded case circuit breakers, covering current ratings from 16 A to 250 A. The mechanism couples the breaker operating shaft through a door cutout, providing a secure mechanical linkage between the external handle and the internal breaker mechanism. The complete assembly includes the door-coupling mechanism, the 8UC7 new design standard door operating mechanism, a titanium gray handle, and a light gray masking frame.
- Low-Voltage Switchboards: Handles main power and feeder circuits, allowing safe network isolation via external handle
- Control Panels/Machine Wiring: Toggles motor circuits while keeping high-voltage hazards locked inside cabinets
- Maintenance/Facilities: Enables rapid LOTO procedures during overhauls, upgrades, or retrofitting routines
- Commercial/Residential Load Centers: Protects breaker sub-panels from unauthorized internal tampering in buildings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Connection: The 3VL9300-3HF05 is a mechanical accessory, meaning it requires no electrical wiring. Power cables connect to the line and load terminals of the VL160/VL250 circuit breaker via standard copper busbars or lugs (depending on your breaker's configuration).
Rotary Operation: Turning the handle to "I" turns the breaker on. Turning it to "0" turns it off, and it can be padlocked in the "0" position for safe maintenance.
Technical notes
The SIEMENS 3VL9300-3HF05 is part of the SENTRON 3VL molded case circuit breaker accessory family, which provides plant, starter, and motor protection depending on requirements. The 3VL9300-3HF05 supports the modular concept of the 3VL series, allowing simple mounting on the switching unit after the accessory compartment cover is removed.
FAQs
-
Which circuit breakers are compatible with 3VL9300-3HF05?
+This accessory is designed specifically for Siemens SENTRON VL160X, VL160 and VL250 molded case circuit breakers. -
What components are included in the kit?
+The standard complete door operating mechanism comes with the 8UC7 through-the-door rotary handle (titanium gray) and the masking plate/frame (light gray) -
Can the panel door be opened while the breaker is switched ON?
+No, door-coupling mechanisms feature a built-in safety interlock that prevents the enclosure door from being opened when the circuit breaker is in the "ON" (closed) position. -
What is 3VL9300-3HF05?
+The Siemens 3VL9300-3HF05 is a door-coupling rotary operating mechanism designed for SENTRON VL160X, VL160, and VL250 molded case circuit breakers.
