PRODUCT DESCRIPTION
943.1069.1C SCR control and firing circuit board
Siemens 943.1069.1C is identified in independent industrial-parts records as an SCR control and firing printed circuit board. It is intended for the matching industrial power-control equipment, with the complete board number and installed wiring determining the replacement selection.

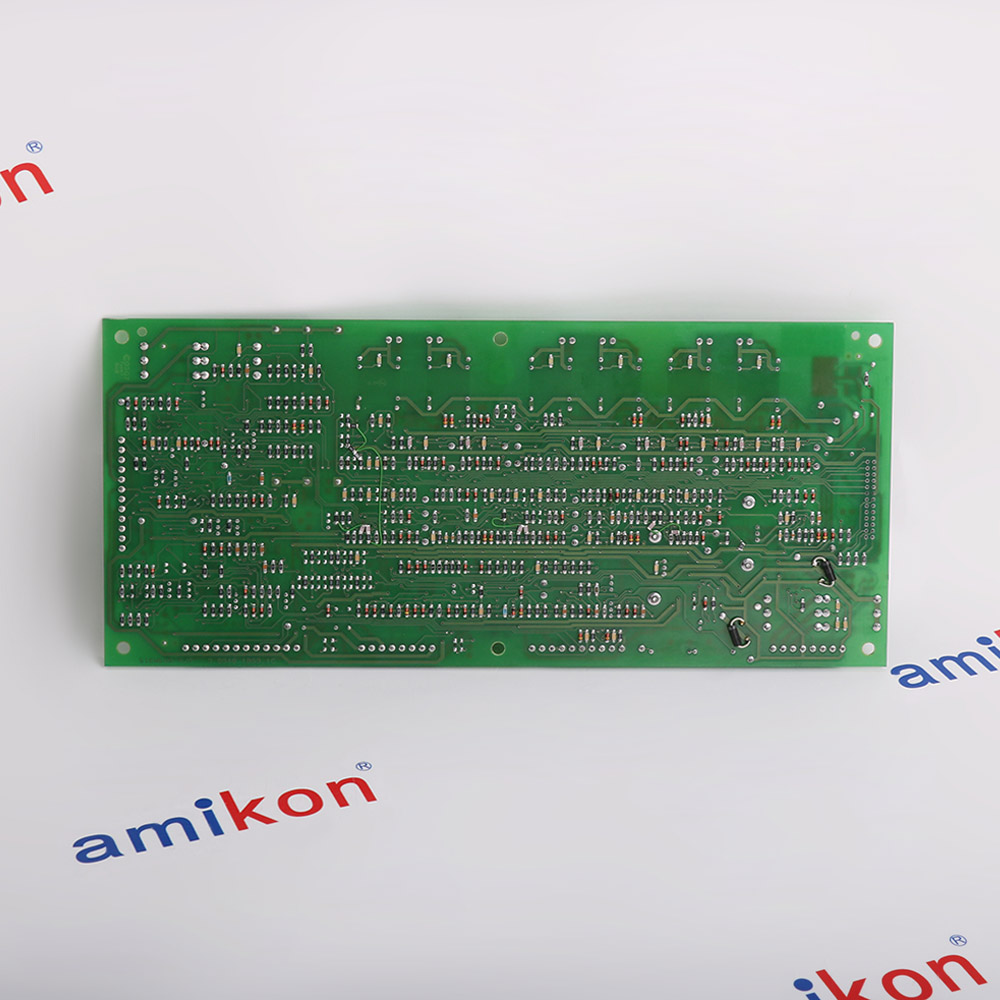

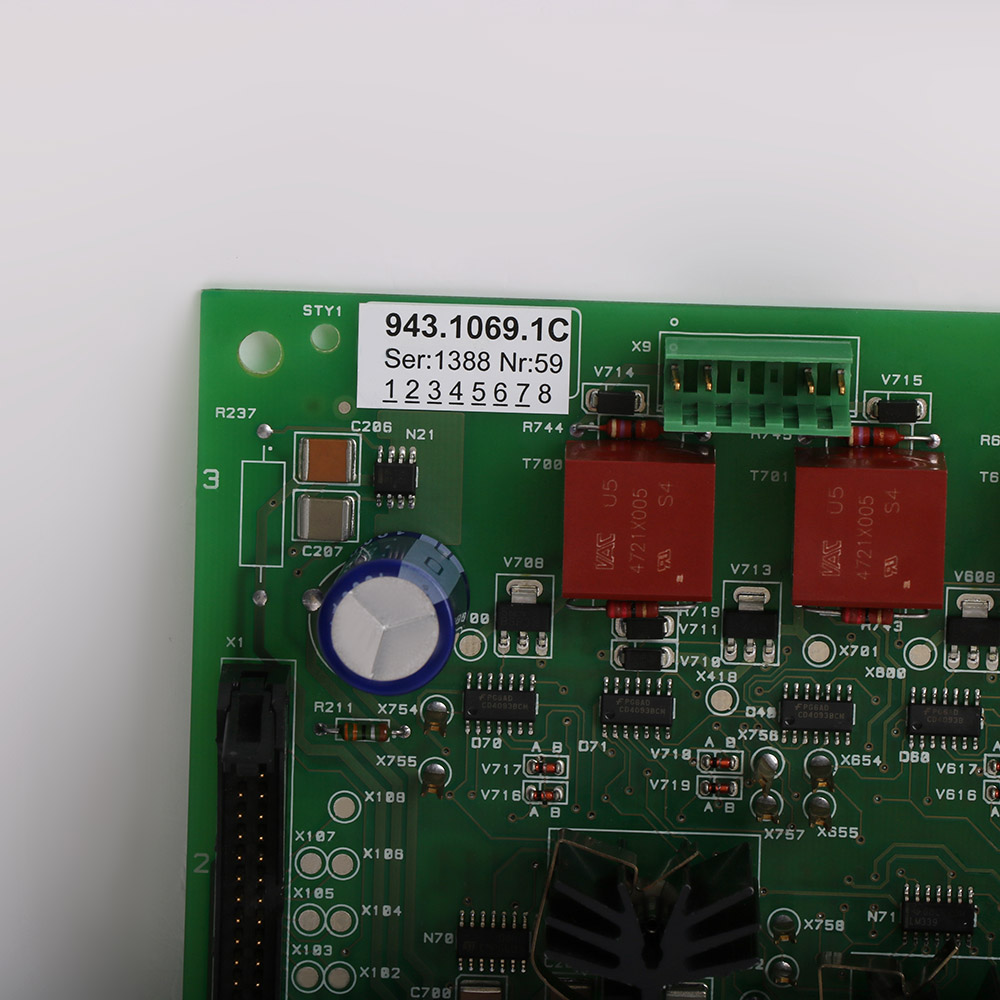

The photographed board contains multiple pulse-transformer circuits, semiconductor control components, pluggable terminals and a multipole interface connector. These circuits form the control and firing interface used by the matched SCR power assembly. Supply voltage, firing-current ratings and pin assignments have not been established from a verified technical document and must not be borrowed from a different Siemens controller.
The photographed board contains multiple pulse-transformer circuits, semiconductor control components, pluggable terminals and a multipole interface connector. These circuits form the control and firing interface used by the matched SCR power assembly. Supply voltage, firing-current ratings and pin assignments have not been established from a verified technical document and must not be borrowed from a different Siemens controller.
BEFORE YOU BUY
Confirm the complete SCR control and firing circuit board
ACTUAL APPLICATIONS
Application context for 943.1069.1C
943.1069.1C is an SCR firing control circuit board for matched industrial power-control equipment. Relevant power-control settings include industrial manufacturing, mineral processing and pulp production. Its use depends on the original equipment configuration, board revision and connector allocation; the board number alone does not establish the electrical ratings of the complete assembly.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Factory Production Automation
Industrial Manufacturing ProductionManufacturing Process Automation -
02 · MINING
Metal Ore Mining and Mineral Processing
Metal Ore MiningMineral Processing and Beneficiation -
03 · PULP & PAPER
Industrial Pulp Production and Paper Manufacturing
Pulp Production and ProcessingPaper and Board Manufacturing
Technical specifications for 943.1069.1C
-
Product Model943.1069.1C
-
Product ParametersSCR firing control circuit board
-
In stock10 units
-
ManufacturerSiemens
-
Pulse transformer count6
-
Pulse transformer marking471/1005 S4
-
Pluggable terminal header count7
-
Ribbon-cable interface count1
-
Logic IC markingCD4093BCN
